Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

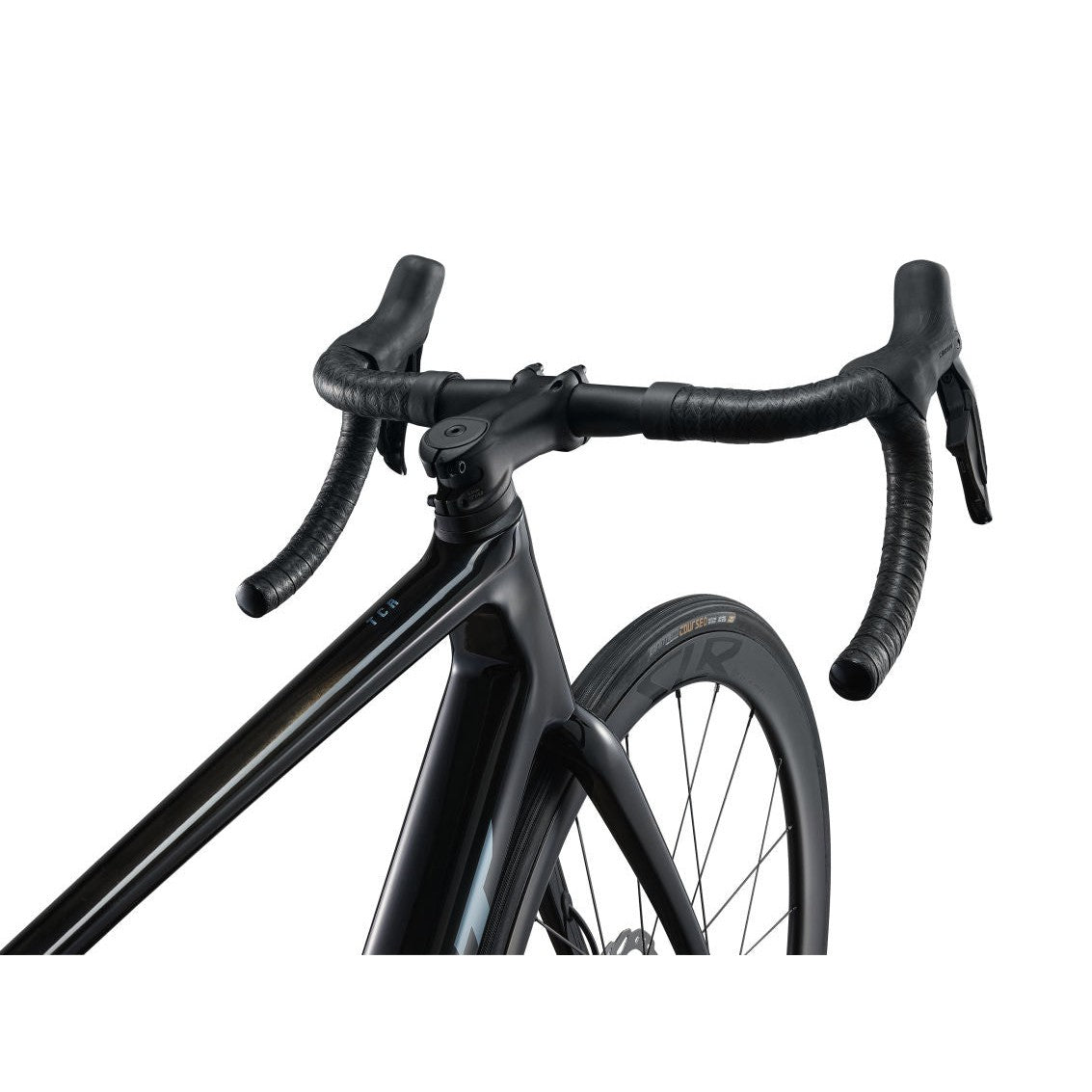

Experience the thrill of taking risks with the Giant TCR Advanced Pro 1 Di2. This race bike combines a superlight and ultra-efficient composite frame with fully integrated components for unbeatable speed and handling. Climb, corner, and descend with ease - this bike is a dream to ride!
SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
| Attribute | Details |
|---|---|
| Sizes | XS, S, M, M/L, L, XL |
| Colors | Carbon / Chrome |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Handlebar | Giant Contact SL XS:39/40cm, S:39/40cm, M:39/42cm, M/L:39/42cm, L:41/44cm, XL:41/44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | sold separately |
| Shifters | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 FD-R8150 |
| Rear Derailleur | Shimano 105 Di2 RD-R8150 |
| Brakes | Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12L-1 |
| Crankset | Shimano 105, 36/52 with Giant Power Pro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 40 WheelSystem, [F]40mm, [R]40mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tires | Giant Gavia Course 0, tubeless, 700x28, folding |
| Extras | computer mount, Airway Eco Composite water bottle cage, tubeless prepared, 33mm max tire size |
| Weight | The most accurate way to determine any bike’s weight is to have your local Bicylce Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 26.8 | 28 | 29.1 | 30.3 | 31.5 | 32.7 |
| B | SEAT TUBE ANGLE | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (inch) | 20.5 | 21.1 | 21.7 | 22.2 | 22.8 | 23.6 |
| D | HEAD TUBE LENGTH (inch) | 4.7 | 5.1 | 5.7 | 6.5 | 7.3 | 7.9 |
| E | HEAD TUBE ANGLE | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | FORK RAKE (inch) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| G | TRAIL (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | WHEELBASE (inch) | 38.4 | 38.5 | 38.6 | 39 | 39.6 | 40.2 |
| I | CHAIN STAY LENGTH (inch) | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
| J | BOTTOM BRACKET DROP (inch) | 2.8 | 2.7 | 2.7 | 2.6 | 2.6 | 2.6 |
| K | STACK (inch) | 20.4 | 20.8 | 21.5 | 22.1 | 22.9 | 23.5 |
| L | REACH (inch) | 14.8 | 15.1 | 15.3 | 15.5 | 15.8 | 16.2 |
| M | STAND OVER HEIGHT (inch) | 27.7 | 28.4 | 29.3 | 30.4 | 31.4 | 32.4 |
| N | HANDLEBAR WIDTH (inch) | 15.7 | 15.7 | 16.5 | 16.5 | 17.3 | 17.3 |
| O | STEM LENGTH (inch) | 3.1 | 3.5 | 3.9 | 4.3 | 4.3 | 4.7 |
| P | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
