NEW ARRIVAL

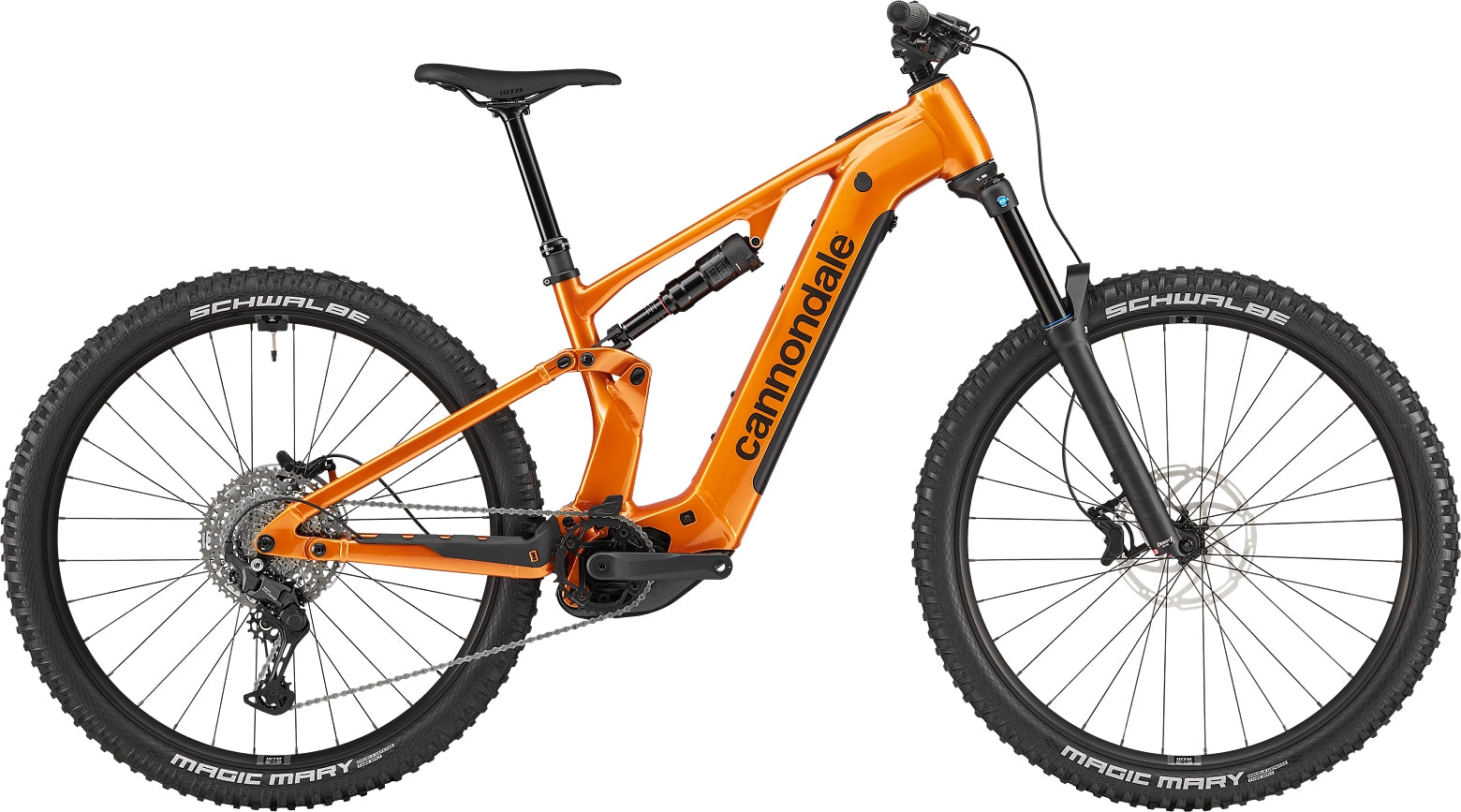

Moterra 4
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Moterra 4 strips things down to the essentials—reliable, rugged, and ready for anything. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and big 600Wh battery deliver smooth, sustained power, with more than enough range to keep things interesting. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
  • Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
  • Interchangeable 600Wh battery provides an ideal balance of range and light weight
  • Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors

Cannondale

Moterra 4

$4,499.00 $4,799.00
Save $300

Size Guide

Jump to: MOUNTAIN | GRAVEL | ROAD | ELECTRIC | FITNESS

Mountain Bikes

Trail

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'3" - 5'8"
160 - 172
  5'7" - 6'0"
170 - 182 		  5'11" - 6'3"
180 - 190
XS S M L XL

Trail Women's

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182
XS S M L

Trail SE

5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182 		  6'0" - 6'3"
182 - 190
S M L XL

Habit, Habit HT

5'0" - 5'2"
142 - 157
 5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
XS S M L XL

Scalpel, Scalpel SE, Scalpel HT

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Jekyll

5'2" - 5'5"
157 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Moterra, Moterra LT, Moterra SL

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'1"
172 - 185 		  6'0" - 6'5"
182 - 195
S M L XL

Gravel

Topstone, Topstone Carbon

4'10" - 5'5"
147 - 165		 5'3" - 5'9"
160 - 175		 5'7" - 6'1"
170 - 185		  5'10" - 6'4"
177 - 193		  6'0" - 6'8"
182 - 203
XS

 S M L XL

SuperSix EVO SE, SuperSix EVO CX

5'0" - 5'4"
152 - 162
 5'5" - 5'9"
165 - 175
 5'7" - 5'11"
170 - 180
  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
46cm

 51cm 54cm 56cm 58cm

Road

Synapse

5'0 - 5'4"
152 - 162
 5'2" - 5'6"
157 - 167 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
175 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'8"
190 - 203
44cm 48cm
 		 51cm 54cm 56cm 58cm 61cm

SuperSix Evo

5'1 - 5'5"
154 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'7"
190 - 200
44cm
48cm
 		 51cm 54cm 56cm 58cm 61cm

SystemSix

5'3 - 5'7"
160 - 170
 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		 5'10" - 6'2"
177 - 187 		  6'10" - 6'4"
182 - 193		  6'2" - 6'6"
187 - 198 		 6'5" - 6'9"
195 - 205
47cm 51cm
 		 54cm 56cm 58cm 60cm 62cm

CAAD Optimo

5'2" - 5'5"
157 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
44cm 48cm
 		 51cm 54cm 56cm 58cm

CAAD13

5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'4" - 5'9"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'2" - 6'6"
187 - 198
48cm
 		 51cm 54cm 56cm 58cm
60cm

Fitness, Urban & Comfort

Adventure, Adventure EQ

4'11" - 5'6"
149 - 167		 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187
S M L

Quick, Quick Women's, Quick Remixte

4'10 - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170 		 5'5" - 5'10"
165 - 177 		 5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
XS S
 		 M L XL XXL

Quick CX

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
 5'9" - 6'2"
175 - 187
  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
S

 M L XL XXL

Quick CX Women's

4'10" - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170
  5'5" - 5'10"
165 - 177
XS S M

Bad Boy

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195
S M L XL

Treadwell, Treadwell EQ

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L

Treadwell Remixte, Treadwell EQ Remixte

4'11" - 5'6"
149 - 167
  5'4" - 6'0"
162 - 182
S L

Electric

Adventure Neo, Adventure Neo EQ

4'11" - 5'7"
149 - 170
  5'7" - 6'6"
170 - 198
S L

Adventure Neo Allroad, Adventure Neo Allroad Low StepThru

5'0" - 5'7"
152 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'5"
175 - 195
S M L

Compact Neo

4'5" - 6'1"
134 - 185
OS

Tesoro Neo SL, Tesoro Neo SL Remixte

5'4" - 5'8"
162 - 172
 5'7" - 6'0"
170 - 182
  6'0" - 6'3"
182 - 190
S M L

Treadwell Neo, Treadwell Neo Remixte

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L
Low stock (2 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: C65234U20LG

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Moterra 4 strips things down to the essentials—reliable, rugged, and ready for anything. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and big 600Wh battery deliver smooth, sustained power, with more than enough range to keep things interesting. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
  • Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
  • Interchangeable 600Wh battery provides an ideal balance of range and light weight
  • Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
SPECIFICATIONS

Frameset

  • FrameMoterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
  • ForkSR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
  • HeadsetAcros ICR, 1.5" to 1.8", sealed bearings
  • Rear ShockRockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm

E-System

  • Drive UnitBosch Performance Line CX
  • BatteryBosch PowerTube, 600Wh
  • ChargerBosch 4A
  • DisplayBosch LED Remote

Drivetrain

  • Rear DerailleurShimano CUES U6000, LinkGlide
  • ShiftersShimano CUES U6000, 11-speed, LinkGlide
  • ChainShimano LG500, LinkGlide, 11-speed
  • CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Rear CogsShimano CUES LG400, LinkGlide, 11-50, 11-speed

Brakes

  • BrakesTektro Gemini SL 4-piston hydraulic disc, 203mm rotors
  • Brake LeversTektro Gemini SL hydraulic disc

Wheels

  • RimsWTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
  • SpokesDT Swiss Champion 2.0
  • Tire Size2.4
  • Wheel Size29
  • Hubs(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
  • TiresSchwalbe Magic Mary Performance, 29x2.4", Addix Foldable, Tube
  • Front Tire(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
  • Rear Tire(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR

Components

  • HandlebarCannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
  • StemCannondale 1, 6061 Alloy, 35.0, 40mm, 0°
  • GripsCannondale TaperRidge
  • SaddleWTB Silverado Medium
  • SeatpostCannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

  • Extra 1Bosch PowerMore range extender compatibl

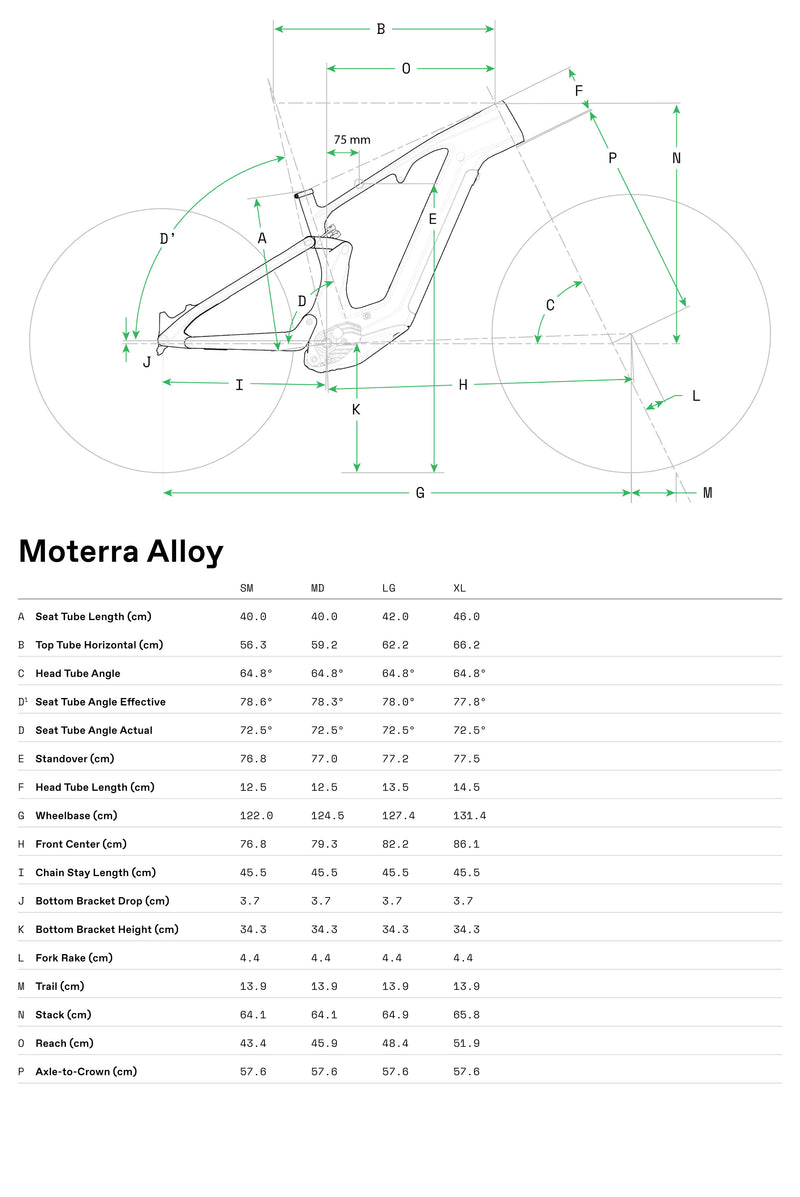

GEOMETRY
