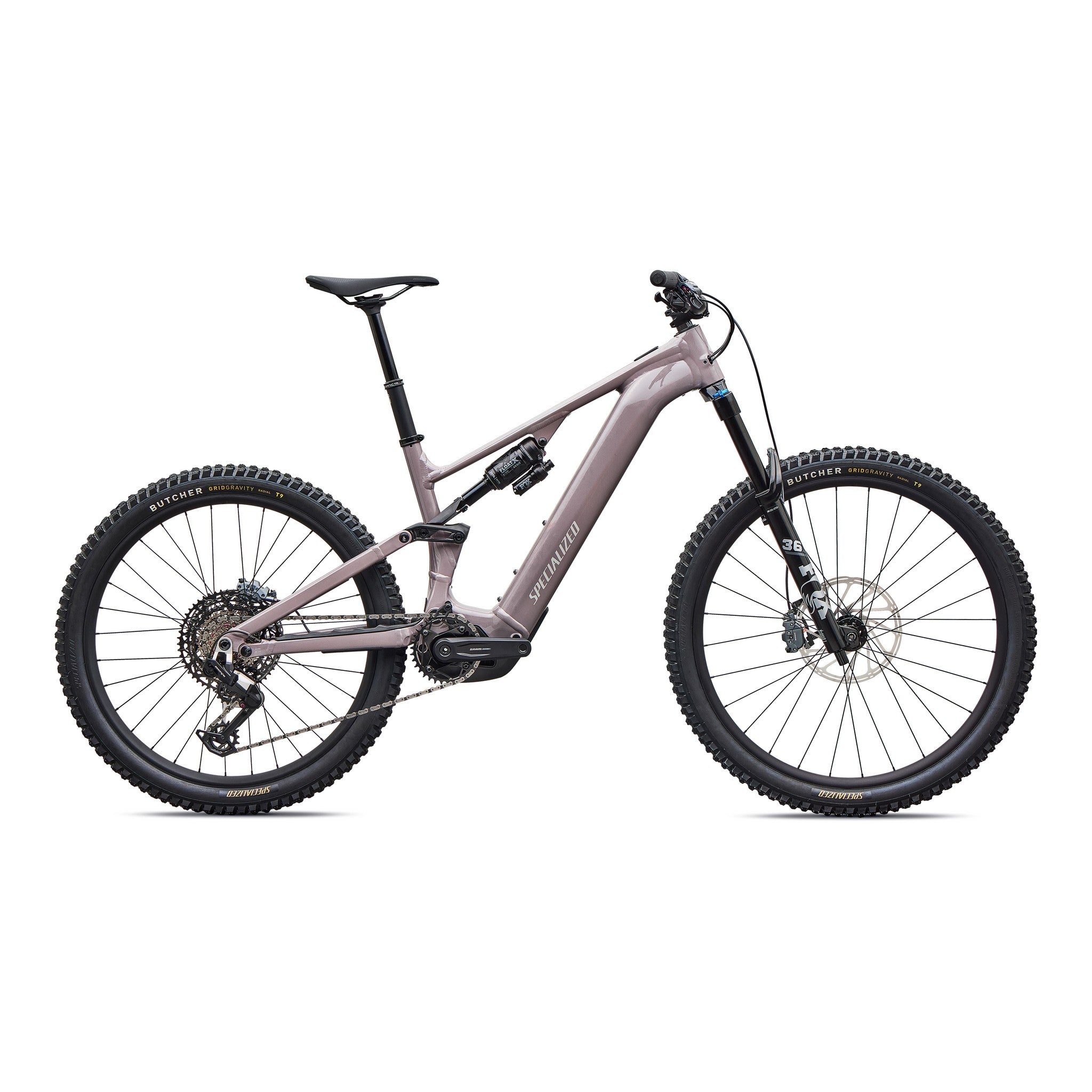

Turbo Levo 4 Comp Alloy (2027)
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

FEATURES

  • Use - Full Power E-MTB Trail
  • E-System - Specialized 3.1 Motor w/ 810 Watts & 105Nm, 840Wh Battery, up to 5 hour range
  • Frame - Premium M5 Alloy, Geo Adj & SWAT Storage
  • Suspension - Front: 160mm FOX 36 Rhythm GRIP, Rear: 150mm GENIE - FOX FLOAT X Performance
  • Drivetrain - SRAM 90 Eagle T-Type Mechanical
  • Wheels - Specialized Alloy / Bear Pawls hubs

Specialized

Turbo Levo 4 Comp Alloy (2027)

$6,799.99
Free Shipping
on this Specialized bike!
*Discount applies automatically at checkout.

Size Guide

S0 / XXS  S1 / XS S2 / S S3 / M S4 / L S5 / XL S6 / XXL
4'9" - 5'2" 4'11" - 5'3" 5'2" - 5'8" 5'5" - 5'11" 5'8" - 6'2" 5'10" - 6'4" 6'2" - 6'8"

Size Down for More Maneuverability, Size Up for More Stability



Low stock (1 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 95227-6003

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

FEATURES

  • Use - Full Power E-MTB Trail
  • E-System - Specialized 3.1 Motor w/ 810 Watts & 105Nm, 840Wh Battery, up to 5 hour range
  • Frame - Premium M5 Alloy, Geo Adj & SWAT Storage
  • Suspension - Front: 160mm FOX 36 Rhythm GRIP, Rear: 150mm GENIE - FOX FLOAT X Performance
  • Drivetrain - SRAM 90 Eagle T-Type Mechanical
  • Wheels - Specialized Alloy / Bear Pawls hubs
SPECIFICATIONS

E-bike

  • Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
  • Battery: 840Wh battery
  • Charger: Specialized 4amp charger
  • UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Frameset

  • Frame: Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
  • Seat Binder: Alloy, 38.6mm

Suspension

  • Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset
  • Rear Shock: S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT Performance, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm

Brakes

  • Front Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
  • Rear Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

  • Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length
  • Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
  • Shift Levers: SRAM Eagle 90T, single click, with MMX
  • Rear Derailleur: SRAM Eagle 90 T-Type
  • Cassette: SRAM 12-speed, 10-52t
  • Chain: SRAM 70 Transmission 12-Speed Flattop Chain

Wheels & Tires

  • Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
  • Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
  • Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
  • Spokes: DT Swiss Elemental
  • Front Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
  • Rear Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
  • Inner Tubes: Standard, Presta Valve

Cockpit

  • Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
  • Stem: Alloy Trail Stem, 35mm bar bore
  • Grips: Specialized Trail Grips
  • Saddle: Bridge Comp, Hollow Cr-mo rails 155/143
  • Seatpost: Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

Accessories

  • SWAT: SWAT Internal downtube storage

Product Details

  • Product ID: 263405
  • Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
    For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
  • Weight Size: S4
  • Weight: 26.37 kg (58 lb, 2.2 oz)
GEOMETRY
S1 S2 S3 S4 S5 S6
Crank Length 155 155 155 155 155 155
Handlebar Width 780 780 800 800 800 800
Stem Length 40 40 40 40 40 40
Saddle Width 155 155 143 143 143 143
Seatpost Length 125 150 170 200 230 230
Stack 609 618 626 638 652 667
Reach 407 435 455 480 505 535
Headtube Length 94 95 103 117 132 149
Headtube Angle 64 64.5 64.5 64.5 64.5 64.5
BB Height 355 350 350 350 350 350
BB Drop 24.13 29.5 29.5 29.5 29.5 29.5
Trail 132 132 137 132 132 132
Fork Length (full) 567 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44 44
Front Center 744 765 789 820 851 888
Chainstay Length 435 435 435 435 435 435
Wheelbase 1179 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 556 578 599 627 655 689
Bike Standover Height 753 753 754 753 758 761
Seat Tube Length 379 390 405 425 445 465
Seat Tube Angle 76 77 77 77 77 77
Saddle Height for Effective ST Angle 645 690 735 780 825 870
Max Seatpost Insertion 264 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80 80
FEATURES

Key Technologies

Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info
genie-hero.png__PID:a2ecb2ee-823a-4da7-b97b-19154fb7f689

GENIE

Discover the revolutionary GENIE shock technology by Specialized - and how this patent-pending, 2-stage air-spring shock technology delivers the best of both worlds: a coil-like liner spring rate mid-stroke and the progressive end-stroke of an air shock.
More Info
