| Size | Height Range |
| X-Small | 5'2"-5'7" |
| Small | 5'5"-5'9" |
| Medium | 5'7"-5'11" |
| Medium/Large | 5'10"-6'2" |
| Large | 6'0"-6'4" |
| X-Large | 6'2"-6'6" |
This aluminum-framed multi-terrain bike excels across pavement, gravel, and unpaved surfaces. The composite fork absorbs vibrations for a refined ride quality, while an integrated flip chip enables quick geometry adjustments—shifting wheelbase and tire clearance to match your terrain and riding style.
Confident handling
Built for endurance riding with geometry optimized for technical terrain. Compact chainstays deliver responsive handling and agility, while extended reach and a lower bottom bracket enhance stability when tackling rough surfaces. The shorter stem complements this setup for confident control across varied conditions.Tuned compliance
Tapered seatstays with reduced wall thickness dampen road vibrations and impacts for a more compliant ride. The D-Fuse handlebar and seatpost form an integrated compliance system that absorbs chatter while maintaining lateral stiffness for powerful cornering, sprinting, and climbing efforts.
Adaptable to the terrain
The rear dropout flip chip provides two wheelbase configurations—compact for nimble handling and acceleration, or extended for high-speed stability and up to 53mm tire clearance. The included D-Fuse seatpost maximizes vibration absorption, with the option to swap in a standard 30.9mm or dropper post to suit your riding preferences and terrain demands.
Giant

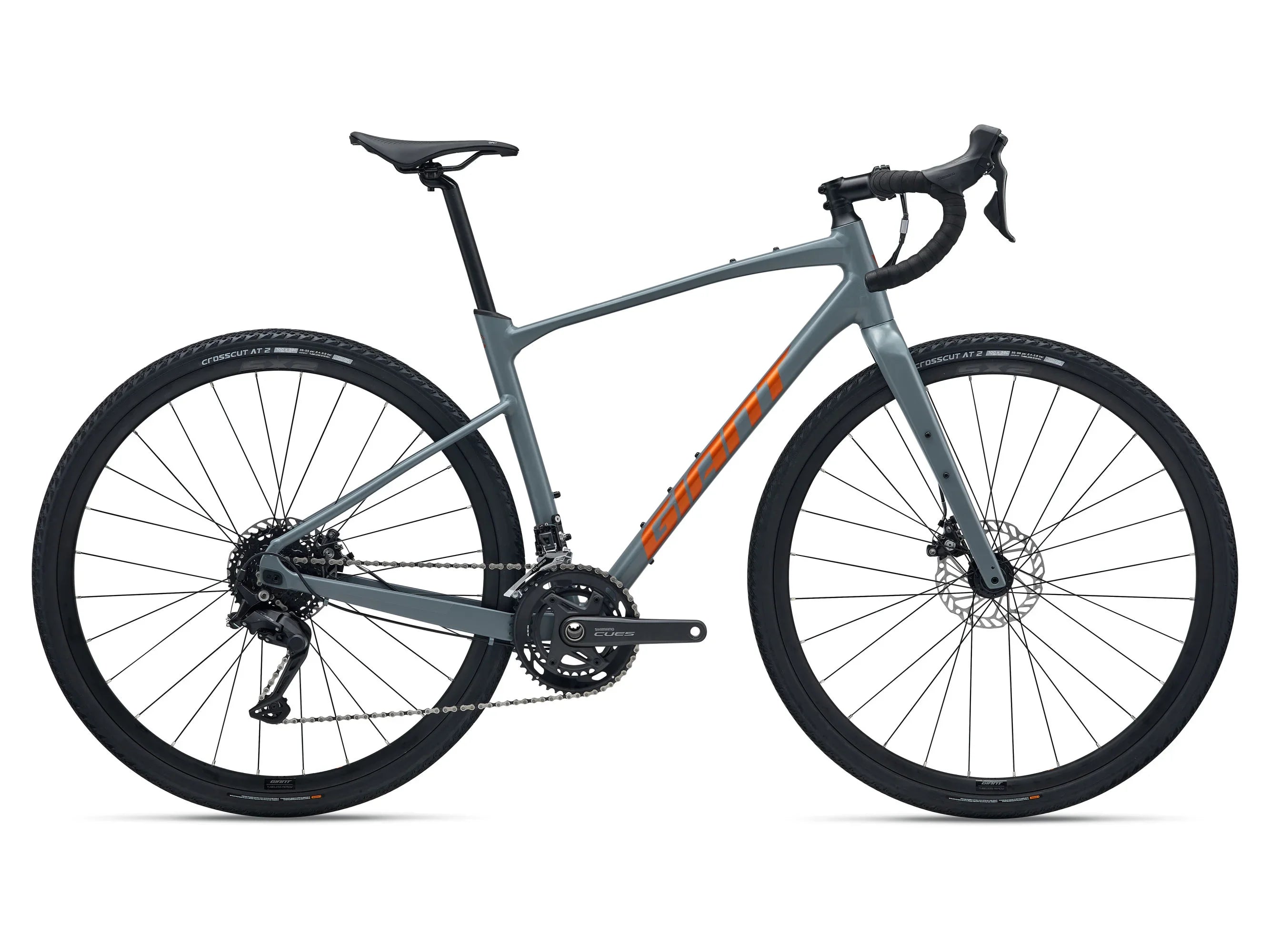

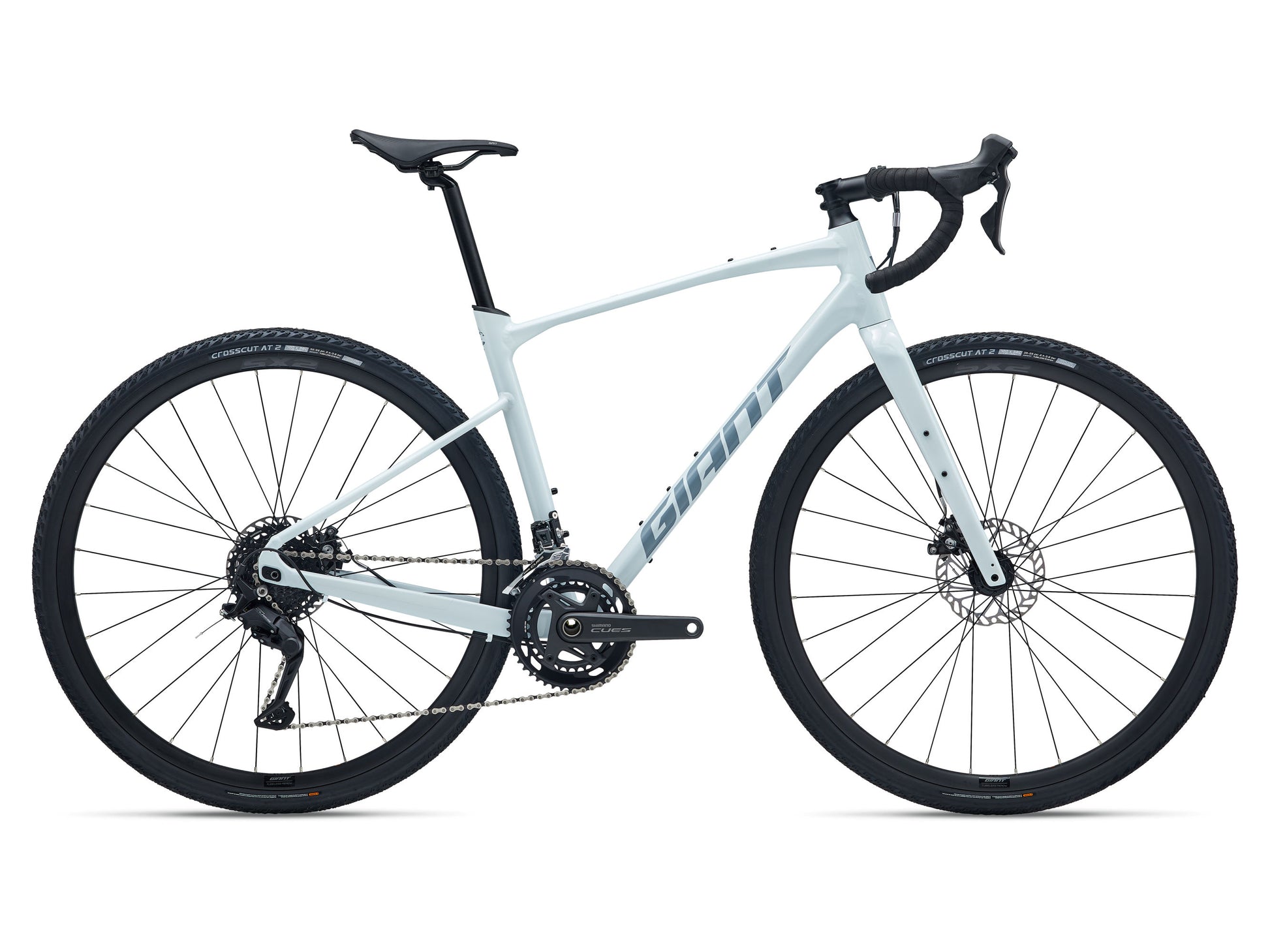

Revolt 2 (2026)
$1,499.99
Low stock (5 left)
SKU: 1080010193
This aluminum-framed multi-terrain bike excels across pavement, gravel, and unpaved surfaces. The composite fork absorbs vibrations for a refined ride quality, while an integrated flip chip enables quick geometry adjustments—shifting wheelbase and tire clearance to match your terrain and riding style.
Confident handling
Built for endurance riding with geometry optimized for technical terrain. Compact chainstays deliver responsive handling and agility, while extended reach and a lower bottom bracket enhance stability when tackling rough surfaces. The shorter stem complements this setup for confident control across varied conditions.Tuned compliance
Tapered seatstays with reduced wall thickness dampen road vibrations and impacts for a more compliant ride. The D-Fuse handlebar and seatpost form an integrated compliance system that absorbs chatter while maintaining lateral stiffness for powerful cornering, sprinting, and climbing efforts.
Adaptable to the terrain
The rear dropout flip chip provides two wheelbase configurations—compact for nimble handling and acceleration, or extended for high-speed stability and up to 53mm tire clearance. The included D-Fuse seatpost maximizes vibration absorption, with the option to swap in a standard 30.9mm or dropper post to suit your riding preferences and terrain demands.
SPECIFICATIONS
GEOMETRY
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| B Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (inch) | 21.3 | 21.7 | 22 | 22.6 | 23 | 23.6 |
| D Head Tube Length (inch) | 4.9 | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| E Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 3.2 | 2.8 | 3 | 2.7 | 2.8 | 2.6 | 2.7 | 2.6 | 2.7 | 2.6 | 2.7 |
| H Wheelbase (inch) | 40.5 | 40.9 | 40.4 | 40.7 | 40.6 | 40.9 | 40.7 | 41.1 | 41.1 | 41.5 | 41.8 | 42.2 |
| I Chain Stay Length (inch) | 16.9 | 17.3 | 16.9 | 17.3 | 16.9 | 17.3 | 16.9 | 17.3 | 16.9 | 17.3 | 16.9 | 17.3 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K Stack (inch) | 21.9 | 22.4 | 23.1 | 23.7 | 24.3 | 24.8 |
| L Reach (inch) | 15 | 15 | 15.2 | 15.4 | 15.6 | 16 |
| M Stand Over Height (inch) | 28.2 | 28.5 | 28.9 | 29.2 | 29.6 | 29.9 | 30.3 | 30.6 | 30.9 | 31.2 | 31.5 | 31.9 |
| N Handlebar Width (inch) | 16.5 | 16.5 | 17.3 | 17.3 | 18.1 | 18.1 |
| O Stem Length (inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| P Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q Wheel Size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
FEATURES
Key Technologies
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
More Info
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info
