Ride Where the Pavement Ends

If you only have room for one bike in your life, Straggler can (and should) be your one and only.

A decade-long hiatus taught Surly there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, flat-mount brakes, and zero ego.

It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready for you to plow through challenges, not obstacles.

Straggler’s capabilities extend into some light cargo setups, so you can do double-duty when hitting the trails and running around town. Tack on one of our Pack Racks and maybe a frame bag when you need to grab some groceries on the way back to civilization –– knowing with Straggler, you always have an exit plan.

  • 650b or 700c wheels (varies by frame size) for optimized rider fit
  • Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames
  • Updated thru-axle dropouts for improved stiffness and handling
  • Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
  • Lower bottom bracket and sloping top tube adds stability and better standover
  • 50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain

Surly

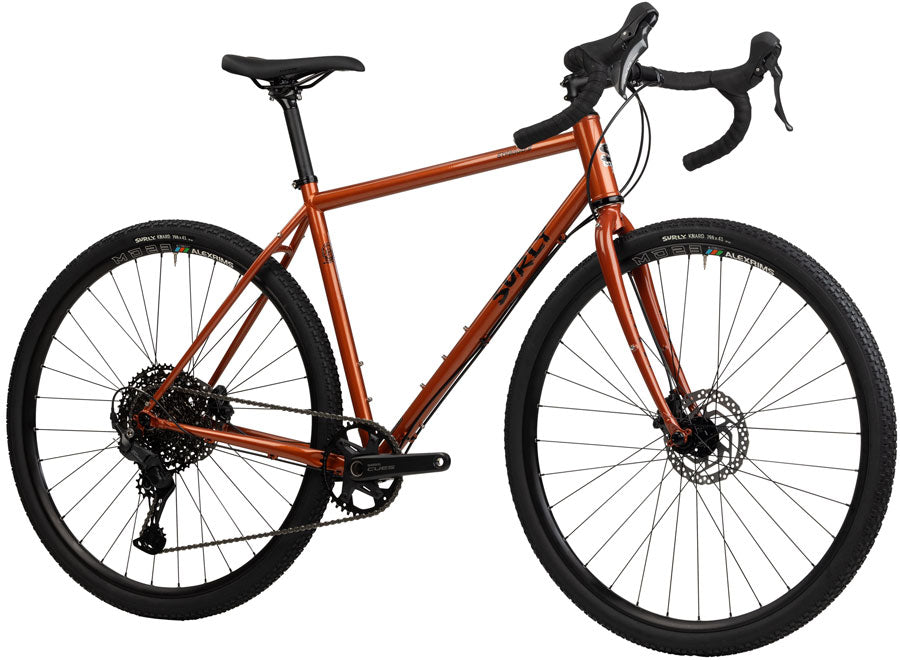

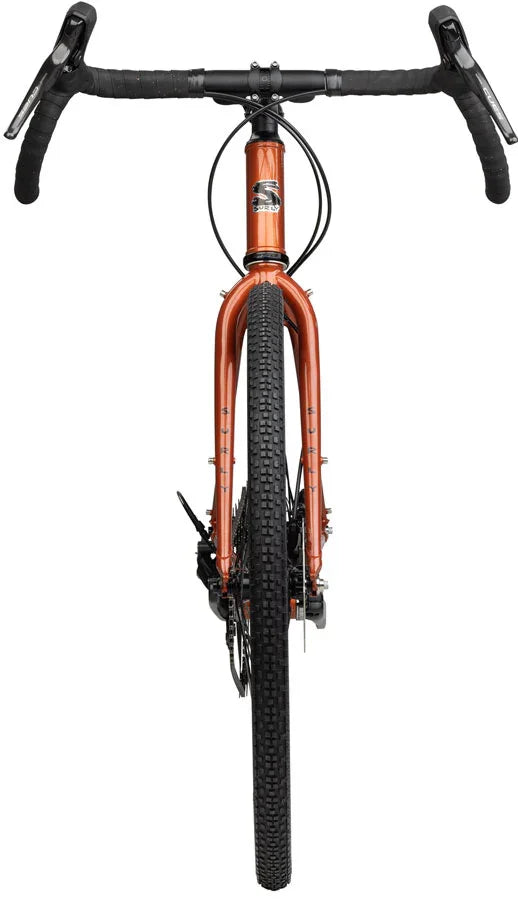

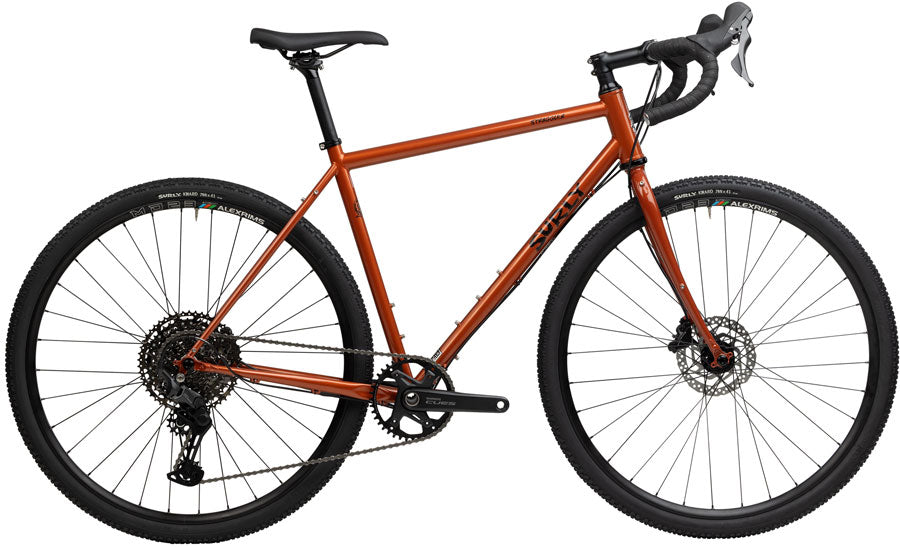

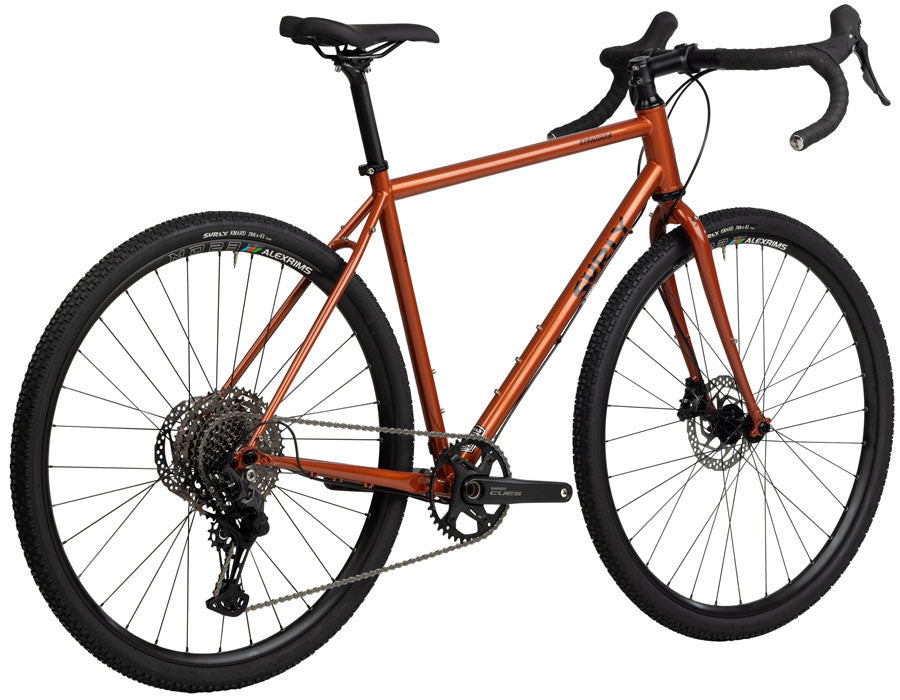

Straggler Bike - Shaggy Carpet

$2,199.00

Size Guide

No size chart available for this product.

In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 04-002173

Ride Where the Pavement Ends

If you only have room for one bike in your life, Straggler can (and should) be your one and only.

A decade-long hiatus taught Surly there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, flat-mount brakes, and zero ego.

It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready for you to plow through challenges, not obstacles.

Straggler’s capabilities extend into some light cargo setups, so you can do double-duty when hitting the trails and running around town. Tack on one of our Pack Racks and maybe a frame bag when you need to grab some groceries on the way back to civilization –– knowing with Straggler, you always have an exit plan.

  • 650b or 700c wheels (varies by frame size) for optimized rider fit
  • Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames
  • Updated thru-axle dropouts for improved stiffness and handling
  • Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
  • Lower bottom bracket and sloping top tube adds stability and better standover
  • 50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain
SPECIFICATIONS

Frameset

  • Frame: Straggler, Thru-axle, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Color: Shaggy Carpet
  • Fork: Straggler, Thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated

Drivetrain

  • Rear Derailleur: Shimano CUES U6000 GS
  • Front Derailleur: N/A
  • Shifter: Shimano CUES U6030
  • Cassette: Shimano CUES LG400, 11-50t, 11spd
  • Crankset: Shimano CUES U6030, 40T
  • Chain: Shimano LG500
  • Bottom Bracket: Shimano RS501

Brakes

  • Brake Levers: Shimano CUES U6030
  • Brake Calipers: Shimano CUES U6030
  • Rotors: Shimano RT26 160/160mm, 6-Bolt

Wheels

  • Front Hub: Novatec 12x100mm Thru-axle, 6-Bolt
  • Rear Hub: Novatec 12x142mm Thru-axle, 6-Bolt
  • Rim: Alex MD23, 32h, Tubeless Ready
  • Spoke: 14G Black
  • Front Tire: Surly Knard 650b x 41, 33tpi (46 - 52) / 700c x 41, 33tpi (54 and up)
  • Rear Tire: Surly Knard 650b x 41, 33tpi (46 - 52) / 700c x 41, 33tpi (54 and up)

Components

  • Headset: FSA Orbit ITA
  • Handlebar: Salsa Cowchipper
  • Stem: TranzX JD-ST123A
  • Grips/Bar Tape: Black Cork
  • Saddle: WTB Volt Medium
  • Seatpost: Kalloy SP-DC2 27.2mm, 0 offset
  • Seatpost Clamp: Surly Stainless, 30.0mm

Weight

  • Complete Bike: 27 lb 4 oz (56)
GEOMETRY
Size 46 (650b) 49 (650b) 52 (650b) 54 (700c) 56 (700c) 58 (700c) 61 (700c) 64 (700c)
A. Effective Top Tube 19.69 20.47 21.26 21.85 22.44 23.03 23.82 24.8
B. Stand Over 26.85 28.19 29.37 30.67 31.77 32.68 33.74 35.24
C. Reach 14.33 14.29 14.38 15.41 15.32 15.45 15.89 16.52
D. Stack 20 20.88 21.81 22.47 23.29 24.04 25.16 26.29
E. Total Seat Tube Length 15.35 16.93 18.11 19.29 20.47 21.46 22.44 24.41
F. Headtube Length 3.54 4.33 5.31 4.72 5.51 6.3 7.48 8.66
G. Headtube Angle
70.0
71.0
71.0
71.5
72.0
72.0
72.0
72.0
H. Seat Tube Angle
75.0
73.5
72.5
74.0
73.0
72.5
72.5
72.5
I. BB Drop 2.44 2.44 2.44 2.83 2.83 2.83 2.83 2.83
J. BB Height 10.91 10.91 10.91 11.24 11.24 11.24 11.24 11.24
K. Chainstay Length 16.38 16.38 16.38 17.13 17.13 17.13 17.13 17.13
L. Fork Length Axle to Crown 15.26 15.26 15.26 16.05 16.05 16.05 16.05 16.05
M. Fork Offset 1.73 1.73 1.73 1.73 1.73 1.73 1.73 1.73
N. Wheelbase 38.76 38.67 39.08 40.69 40.68 41.05 41.85 42.85
Crank Arm Length 6.5 6.5 6.5 6.69 6.69 6.69 6.69 6.69
Handlebar Width 400.0 420.0 440.0 460.0 460.0 480.0 500.0 520.0
Recommended Rider Height 57.87 - 61.81 61.02 - 64.96 62.99 - 66.93 65.35 - 69.69 68.11 - 72.05 70.47 - 74.41 72.44 - 76.38 75.98 - 79.92
Stem Length 2.76 3.15 3.54 3.54 3.94 3.94 3.94 4.33
