Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

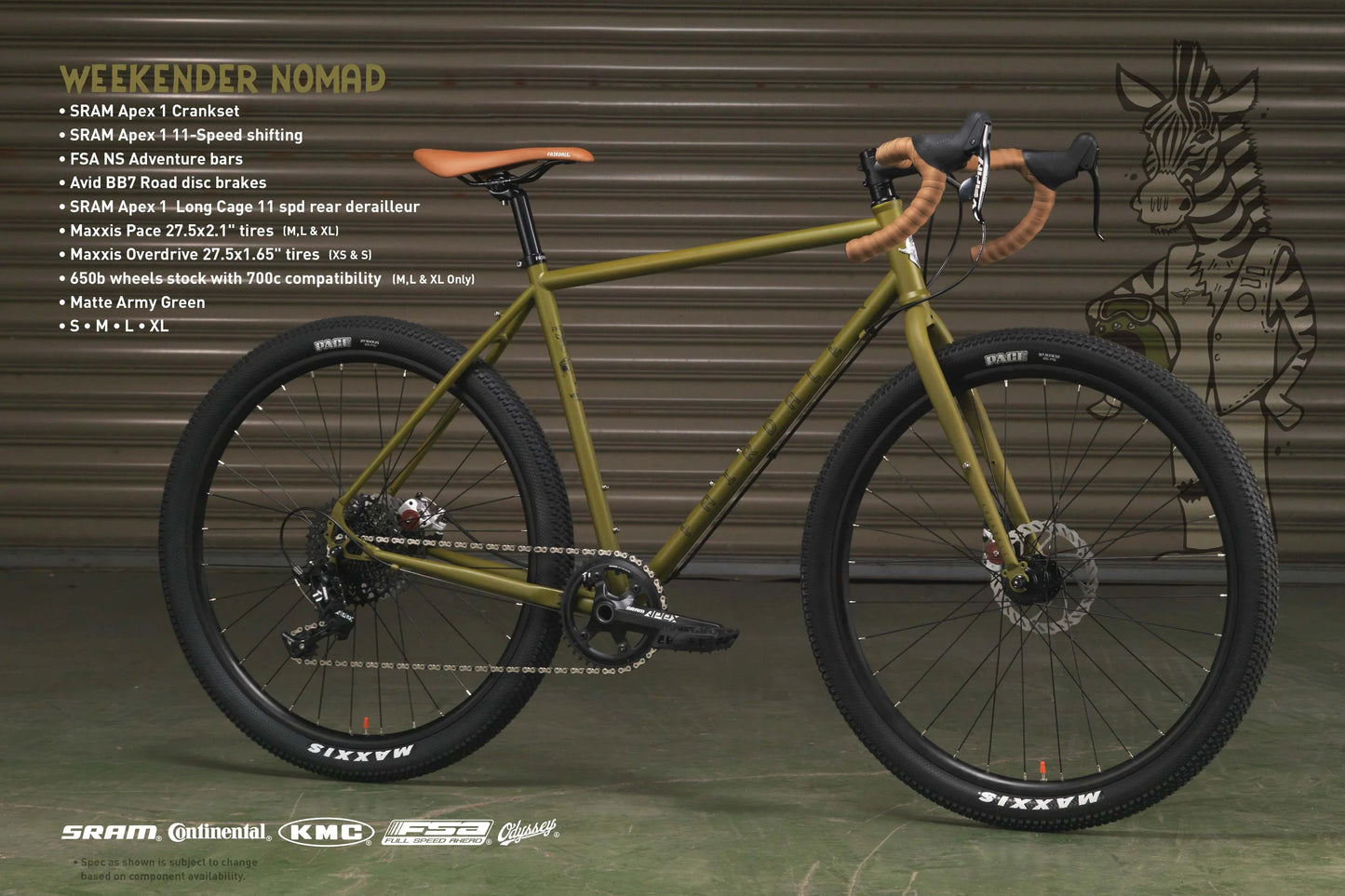

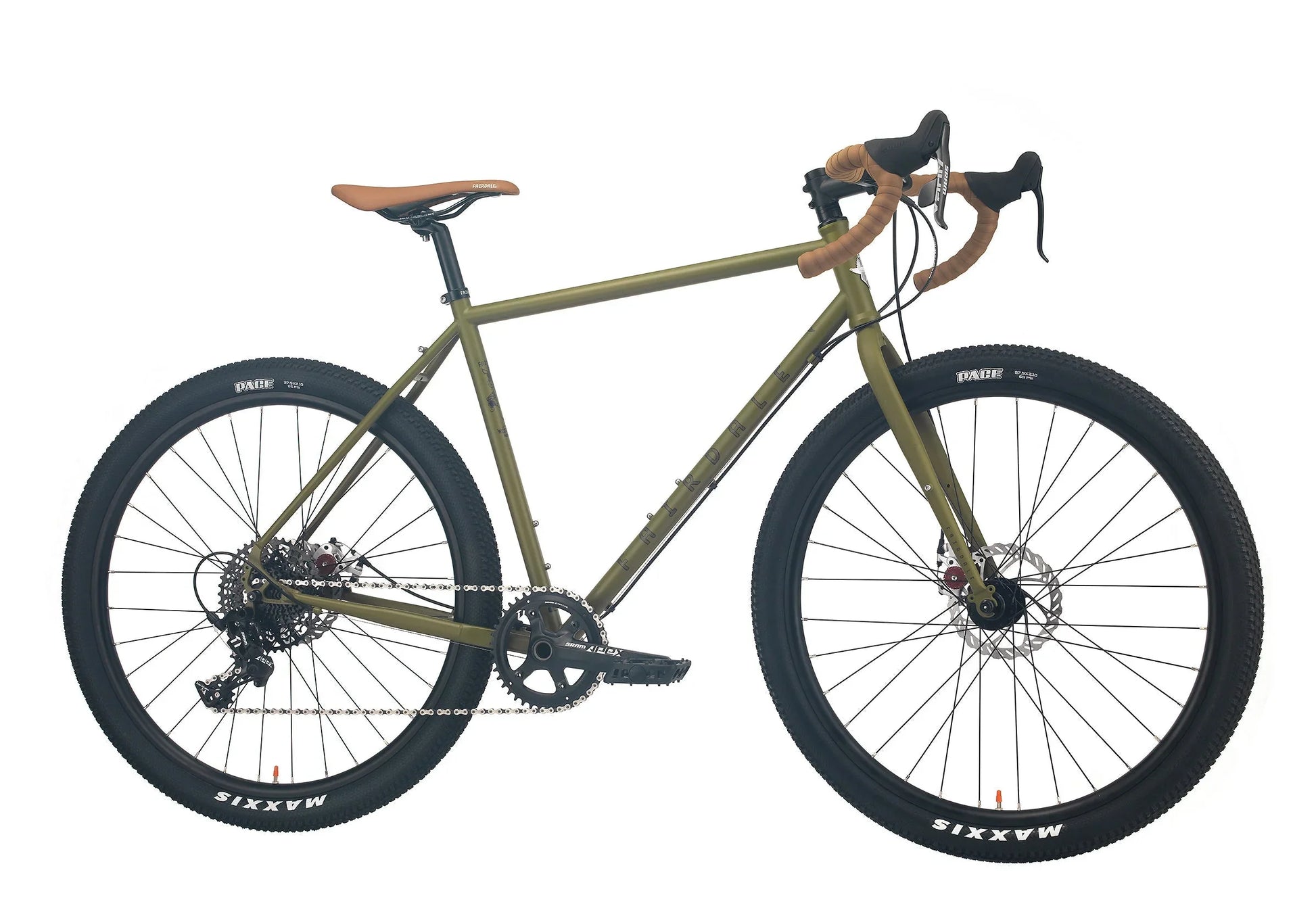

The Nomad version of the Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.
The Weekender Nomad’s 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. This is Fairdale's top of the line Weekender, and it comes equipped with an amazing parts build, like a SRAM Apex 1x derailleur and shifter, Avid disc brakes, SRAM Apex 1 cranks and Maxxis semi-knobby tires.
*Please note that the X-Small and Small Weekenders use 27.5 x 1.65" Maxxis tires and these frame sizes are not compatible with 700c wheels.
Sizing
Small: 5'2" 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height
Geometry
| Size | S (52cm) | M (55cm) | L (58cm) | XL (60cm) |
| Top Tube (Effective) | 523mm | 545mm | 579mm | 602cm |
| Top Tube (Actual) | 505mm | 532mm | 559mm | 585mm |
| Seat Tube (BB Center to TT Top) | 454mm | 485mm | 533mm | 576mm |
| Seat Tube (BB Center to TT Center) |
414mm | 445mm | 493mm | 536mm |
| Seat Tube Angle | 74° | 73° | 73° | 73° |
| Head Tube Length | 120mm | 122mm | 146mm | 167mm |
| Head Tube Angle | 70° | 71° | 71.5° | 71.5° |
| Chain Stay Length | 415mm | 440mm | 440mm | 440mm |
| Wheelbase | 1005mm | 1037mm | 1058mm | 1081mm |
| Standover | 745mm | 765mm | 800mm | 830mm |
| Stack | 517mm | 565mm | 589mm | 609mm |
| Reach | 373mm | 380mm | 398mm | 414mm |
| Fork Length | 390mm | 416mm | 416mm | 416mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 54mm | 72mm | 72mm | 72mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 272.mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width 27.5"/650b | 47mm |
54mm |
54mm |
54mm |
| Approx. Max Tire Width 29"/700c | N/A | 53mm | 53mm | 53mm |
| Wheel Size | 27.5" |
27.5" | 27.5" | 27.5" |
