| Height Range | |
| XX-Small | 4'9"-5'2" |
| X-Small | 5'-5'4" |
| Small | 5'2"-5'6" |
| Medium | 5'4"-5'10" |
| Large | 5'7"-6'0" |
Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
Liv

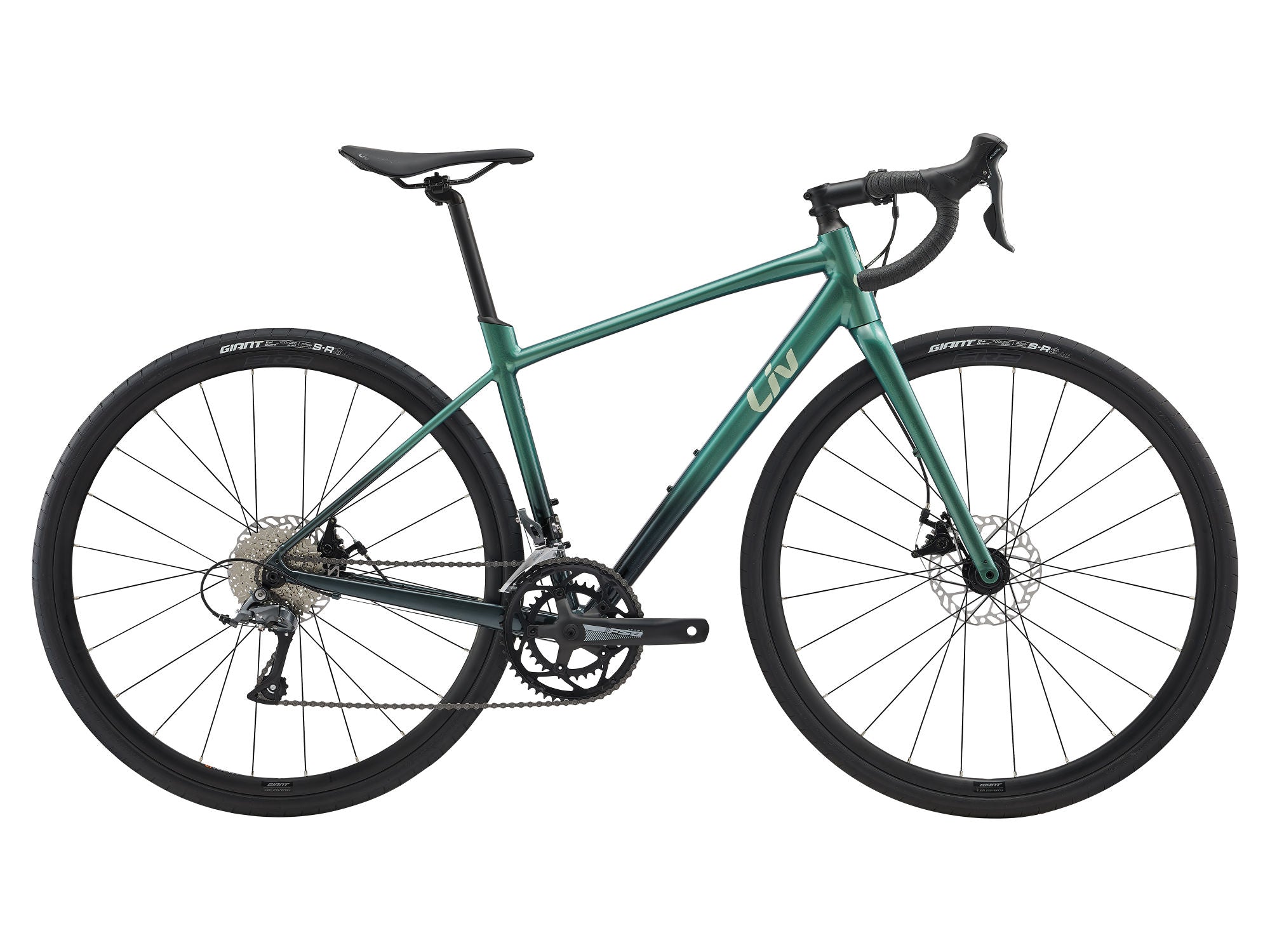

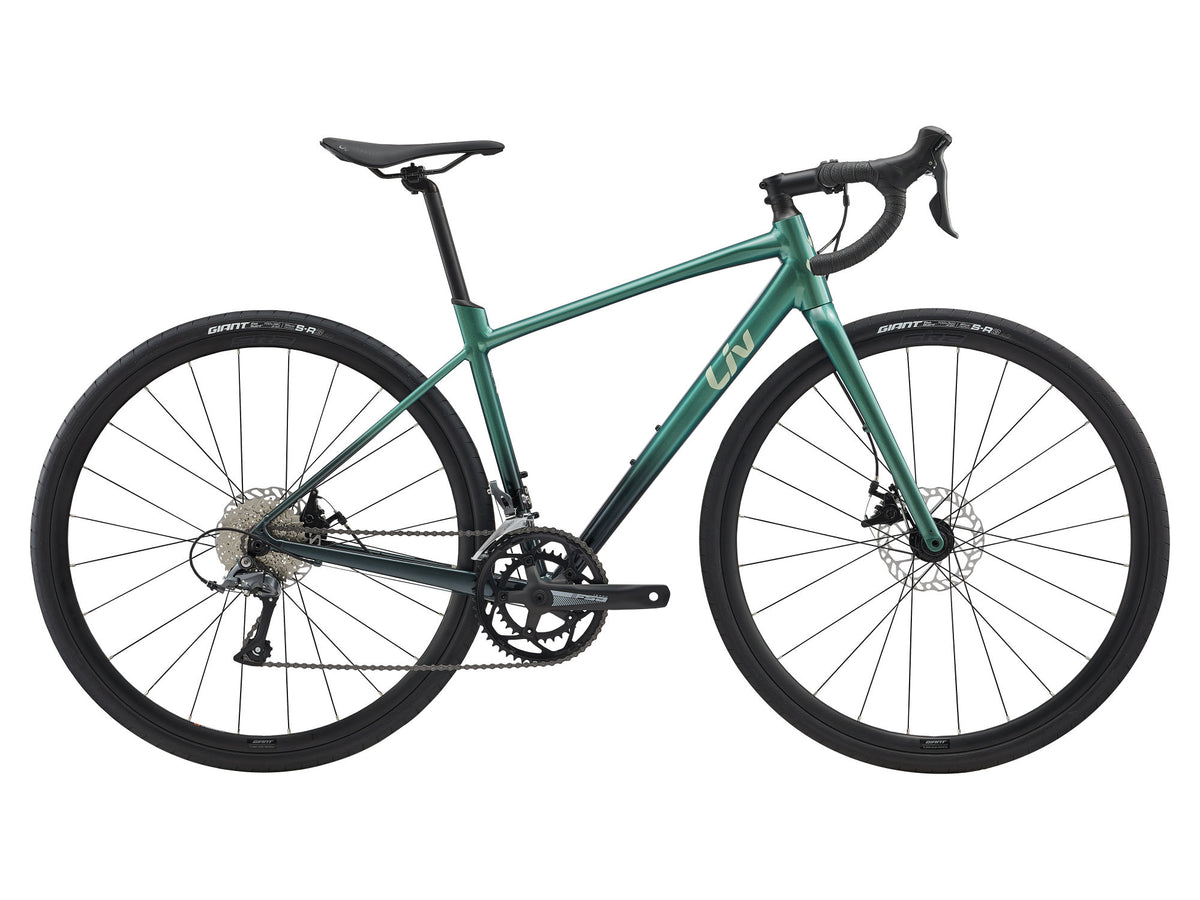

Avail AR4 (2026)
$1,199.99
LABOR DAY SALE
New Bike Bonus
*Your promo code hits your inbox after your ride ships.
In stock
SKU: 1017027195
Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
SPECIFICATIONS
Please Note: Product images are for illustrative purposes only. Manufacturers occasionaly make updates to components, specifications, and finishes, meaning the actual bike you receive may vary slightly from the photos. However, any substituted parts will always be of like or better quality. If you have any questions about specific components, please don't hesitate to reach out to our team so we can get you the most up-to-date info on our current stock.
GEOMETRY
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 16.1 | 17.5 | 18.9 | 20.3 |
| B | SEAT TUBE ANGLE | 74.5° | 74.5° | 74.0° | 74.0° |
| C | TOP TUBE LENGTH (inch) | 20.3 | 20.7 | 21.3 | 21.9 |
| D | HEAD TUBE LENGTH (inch) | 4.6 | 5.4 | 6.2 | 7 |
| E | HEAD TUBE ANGLE | 70.5° | 71.5° | 72.0° | 72.0° |
| F | FORK RAKE (inch) | 2.1 | 2.1 | 2.1 | 2.1 |
| G | TRAIL (inch) | 2.7 | 2.4 | 2.3 | 2.3 |
| H | WHEELBASE (inch) | 39.3 | 39.4 | 39.6 | 40.2 |
| I | CHAIN STAY LENGTH (inch) | 16.6 | 16.6 | 16.6 | 16.6 |
| J | BOTTOM BRACKET DROP (inch) | 3.1 | 3.1 | 3.1 | 3.1 |
| K | STACK (inch) | 21.2 | 22.1 | 22.9 | 23.7 |
| L | REACH (inch) | 14.4 | 14.5 | 14.7 | 15.1 |
| M | STAND OVER HEIGHT (inch) | 26.8 | 27.9 | 29 | 30.2 |
| N | HANDLEBAR WIDTH (inch) | 15 | 15.7 | 15.7 | 16.5 |
| O | STEM LENGTH (inch) | 2.8 | 3.1 | 3.5 | 3.5 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.8 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
FEATURES
Key Technologies
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
More Info
Compact Road Design
The world's first Compact Road frame is introduced and ridden by the ONCE ProTour team. With a dramatically sloping toptube and a compact rear triangle, the new design increases rigidity, improves handling and reduces weight. ONCE rider Joseba Beloki will ride the Giant TCR (Total Compact Road) to two Tour de France podiums.
More Info
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info
