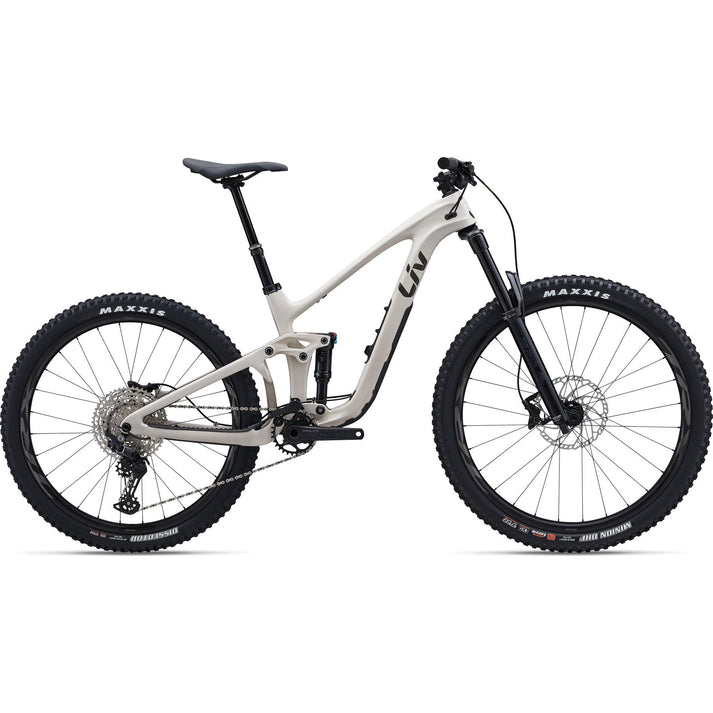

Whether your sights are set on park days, backcountry singletrack expeditions, or your next enduro competition - the brand new Intrigue LT Advanced provides you with the flexibility of customizable frame geometry, the outstanding efficiency of advanced-grade composite, and the incredibly smooth operation of Maestro suspension, empowering you to excel at what you do best - shred!!!
Performance Long Travel Trail
Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
Adjustable Frame Geometry

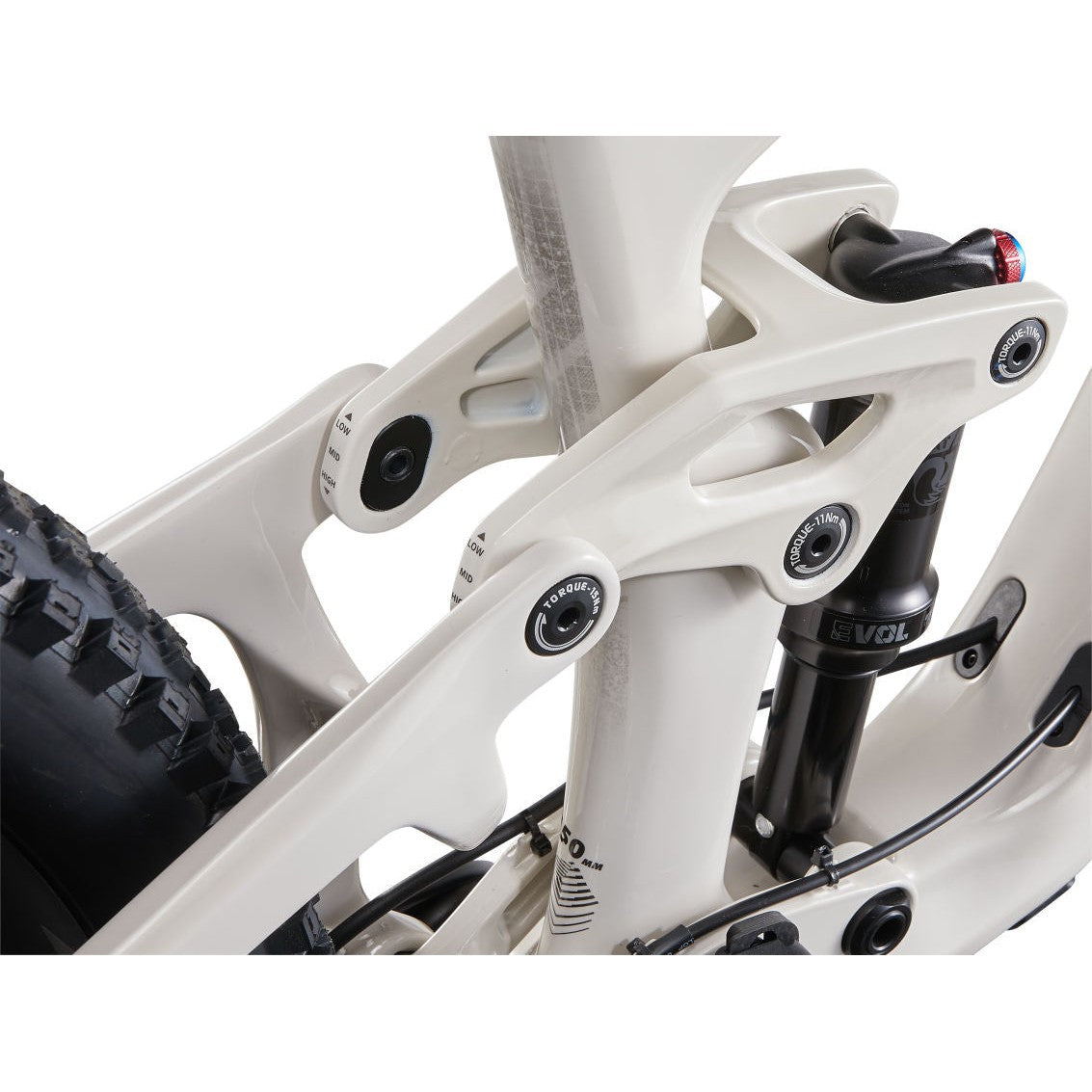

All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
| Sizes | XS, S: MX only, M, L: 29" F&R out of the box, MX compatible |
| Colors | Mushroom |
| Frame | Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage |
| Fork | Marzocchi Bomber Z1, 160mm, Rail damper, Boost 15x110 Kabolt, tapered, 44mm offset |
| Shock | Fox Float Performance 185x55, custom tuned for Liv |
| Handlebar | Giant Contact TR35, alloy, 35mm, 20mm rise XS: 760mm, S: 760mm, M: 760mm, L: 780mm |
| Grips | Liv Tactal Pro Single Lock-On XS/S: 120mm, M/L: 130mm |
| Stem | Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm |
| Seatpost | TranzX travel-adjustable dropper, remote XS: 125mm travel/ 30.9 x 390mm S: 120-150mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm |
| Saddle | Liv Sylvia |
| Pedals | platform |
| Shifters | Shimano Deore, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore, Shadow + |
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano BL-MT401 |
| Cassette | Shimano Deore M6100, 10x51 |
| Chain | KMC X12 |
| Crankset | Praxis Cadet, steel chain ring 30t, 52mm chainline S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | MRP 1259-HD2CS-0001 chain guide, 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5", max chainring size 32t |
| Weight | The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | SEAT TUBE LENGTH (inch) | 14.6 | 15.4 | 16.5 | 17.7 |
| A1 | SEAT POST INSERTION DEPTH (inch) | 9.1 | 9.8 | 11 | 12.2 |
| B | SEAT TUBE ANGLE | 76.2° | 76.6° | 77.0° | 76.2° | 76.6° | 77.0° | 77.3° | 77.6° | 78.0° | 77.3° | 77.6° | 78.0° |
| C | TOP TUBE LENGTH (inch) | 21.7 | 21.7 | 21.7 | 22.3 | 22.3 | 22.2 | 22.9 | 22.8 | 22.8 | 23.7 | 23.7 | 23.7 |
| D | HEAD TUBE LENGTH (inch) | 3.7 | 3.7 | 3.9 | 4.3 |
| E | HEAD TUBE ANGLE | 64.7° | 65.1° | 65.5° | 64.6° | 65.1° | 65.5° | 64.8° | 65.1° | 65.5° | 64.8° | 65.1° | 65.5° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 5.2 | 5 | 4.9 | 5.2 | 5 | 4.9 | 5.1 | 5 | 4.9 | 5.1 | 5 | 4.9 |
| H | WHEELBASE (inch) | 45.9 | 45.9 | 45.8 | 46.6 | 46.5 | 46.4 | 47.6 | 47.5 | 47.5 | 48.5 | 48.5 | 48.5 |
| I | CHAIN STAY LENGTH (inch) | 17.4 | 17.4 | 17.3 | 17.4 | 17.4 | 17.3 | 17.4 | 17.4 | 17.3 | 17.4 | 17.4 | 17.3 |
| J | BOTTOM BRACKET DROP (inch) | 1 | 0.8 | 0.6 | 0.9 | 0.8 | 0.6 | 1.4 | 1.2 | 1 | 1.4 | 1.2 | 1 |
| K | STACK (inch) | 24.8 | 24.7 | 24.6 | 24.7 | 24.7 | 24.6 | 24.7 | 24.6 | 24.5 | 25.1 | 25 | 24.8 |
| L | REACH (inch) | 15.7 | 15.8 | 16 | 16.3 | 16.4 | 16.6 | 17.3 | 17.4 | 17.6 | 18.1 | 18.2 | 18.4 |
| M | STAND OVER HEIGHT (inch) | 24.1 | 24.1 | 24.1 | 26.5 | 26.5 | 26.5 | 28 | 28 | 28 | 29.5 | 29.5 | 29.5 |
| N | HANDLEBAR WIDTH (inch) | 29.9 | 29.9 | 29.9 | 30.7 |
| O | STEM LENGTH (inch) | 1.6 | 2 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | F 29 | R 27.5 | F 29 | R 27.5 | 29" | 29" |
