Aventon Ramblas Electric Mountain Bike Size Chart
Ramblas comes in 4 sizes to suit most adults.
- Small: 5'1" - 5'5"
- Medium: 5'5" - 5'9"
- Large: 5'10" - 6'2"
- Extra Large: 6'2" - 6'5"
| Frame Size | Small | Medium | Large | Extra Large |
| Wheel Size | 27.5" | 29" | 29" | 29" |
| Seat Tube Length | 380mm | 410mm | 450mm | 490mm |
| Top Tube Length Horizontal | 594.5mm | 616.5mm | 642mm | 668mm |
| Bottom Bracket Drop | 55mm | 55mm | 55mm | 55mm |
| Head Tube Length | 125mm | 125mm | 135mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Rear Chainstay Length | 465mm | 465mm | 465mm | 465mm |
| Front Wheel Center | 720mm | 744mm | 770.5mm | 796mm |
| Wheelbase | 1179.5mm | 1203mm | 1230mm | 1256mm |
| Reach | 415mm | 432.5mm | 455mm | 481mm |
| Stack Height | 640mm | 656.5mm | 665mm | 665mm |
| Fork Length | 530mm | 547mm | 547mm | 547mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Trail | 108.6mm | 117mm | 117mm | 117mm |
| Standover | 683mm | 702mm | 712mm | 719.5mm |
| Rider | 5’1”-5’5" | 5’5”-5’9” | 5’10”-6'2" | 6’2”-6’5” |
Check out the Aventon Ramblas on our website or stop into a Bicycle Warehouse retail location.

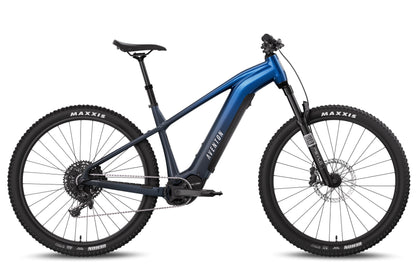

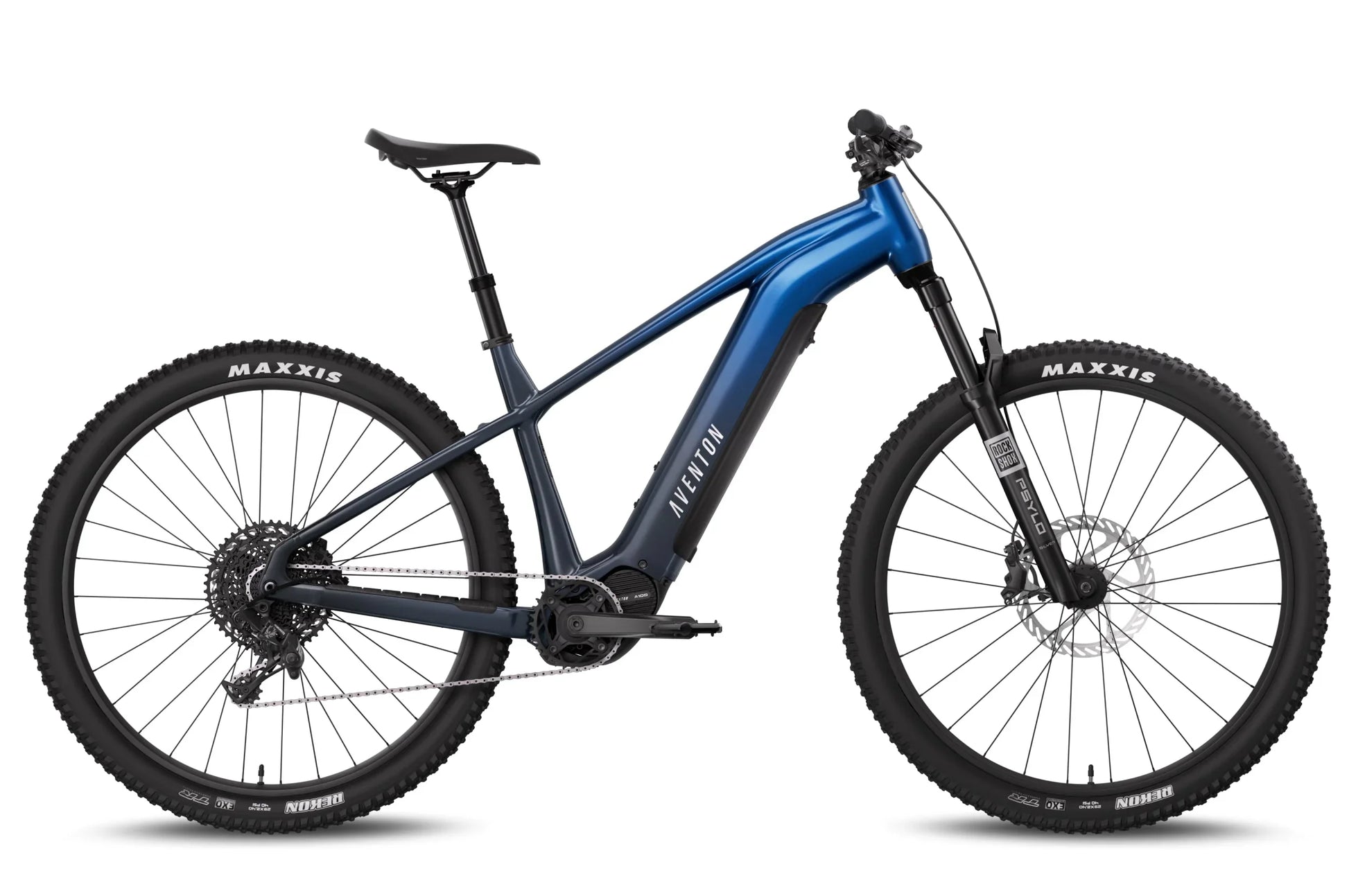

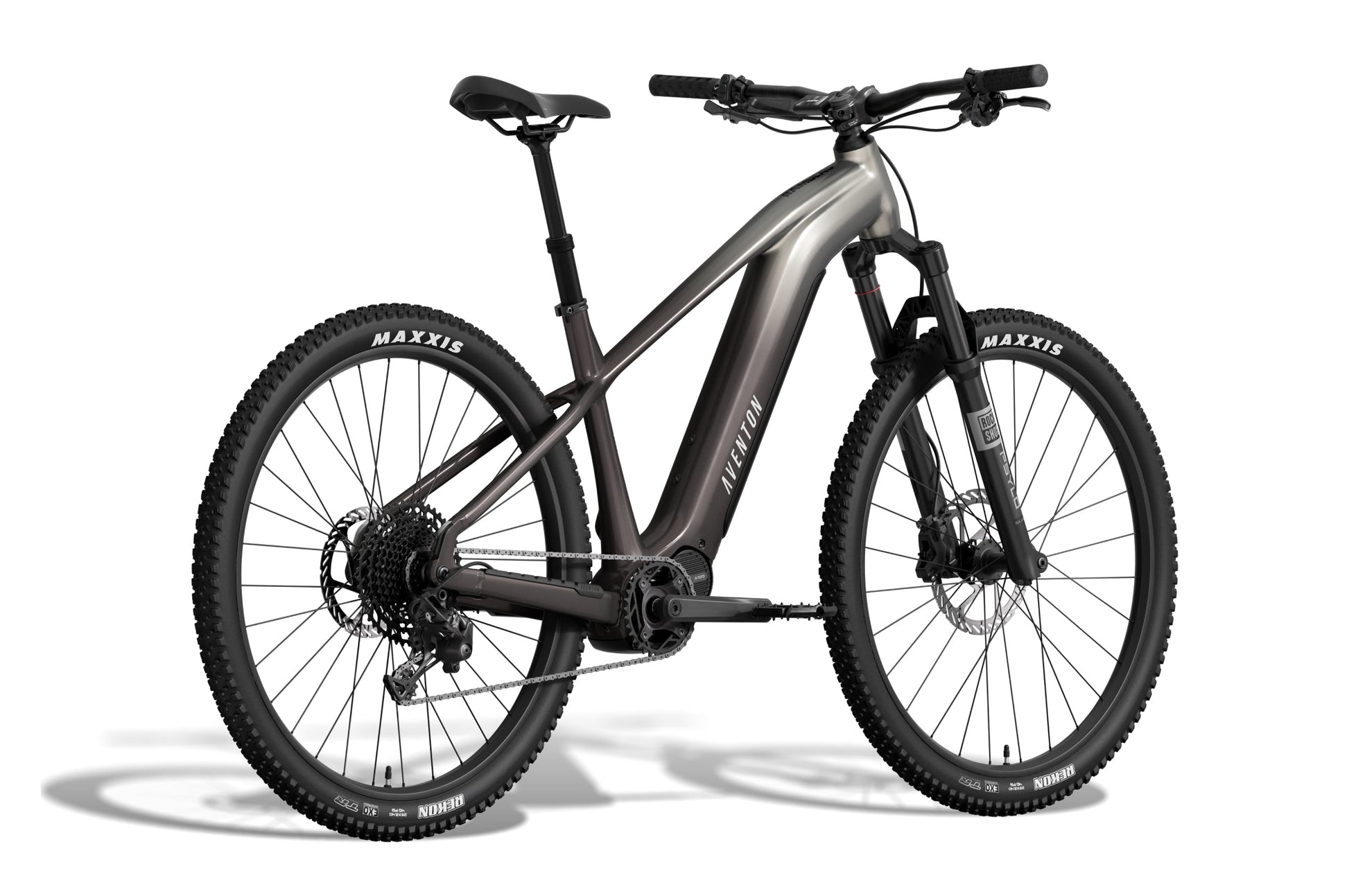

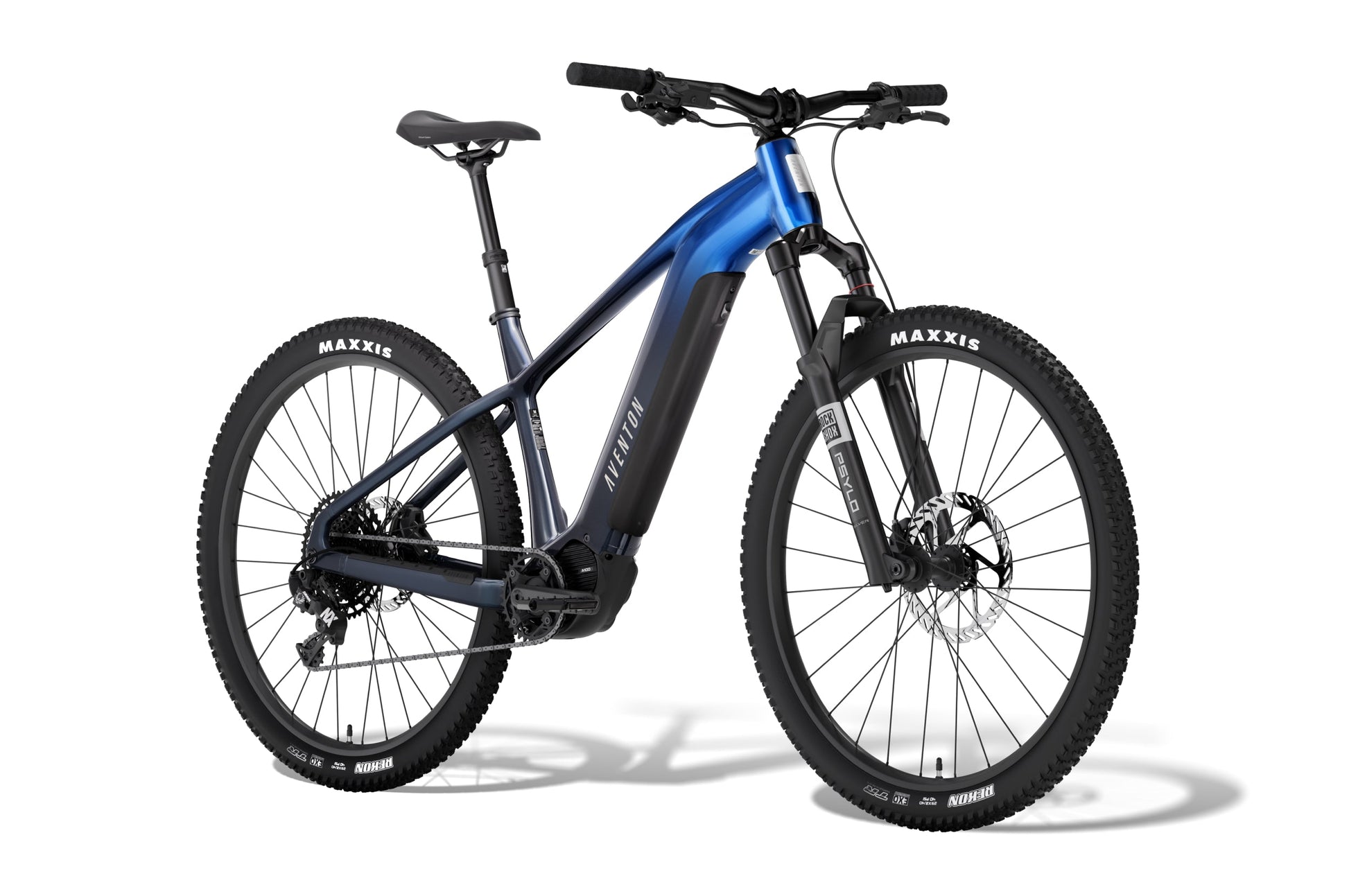

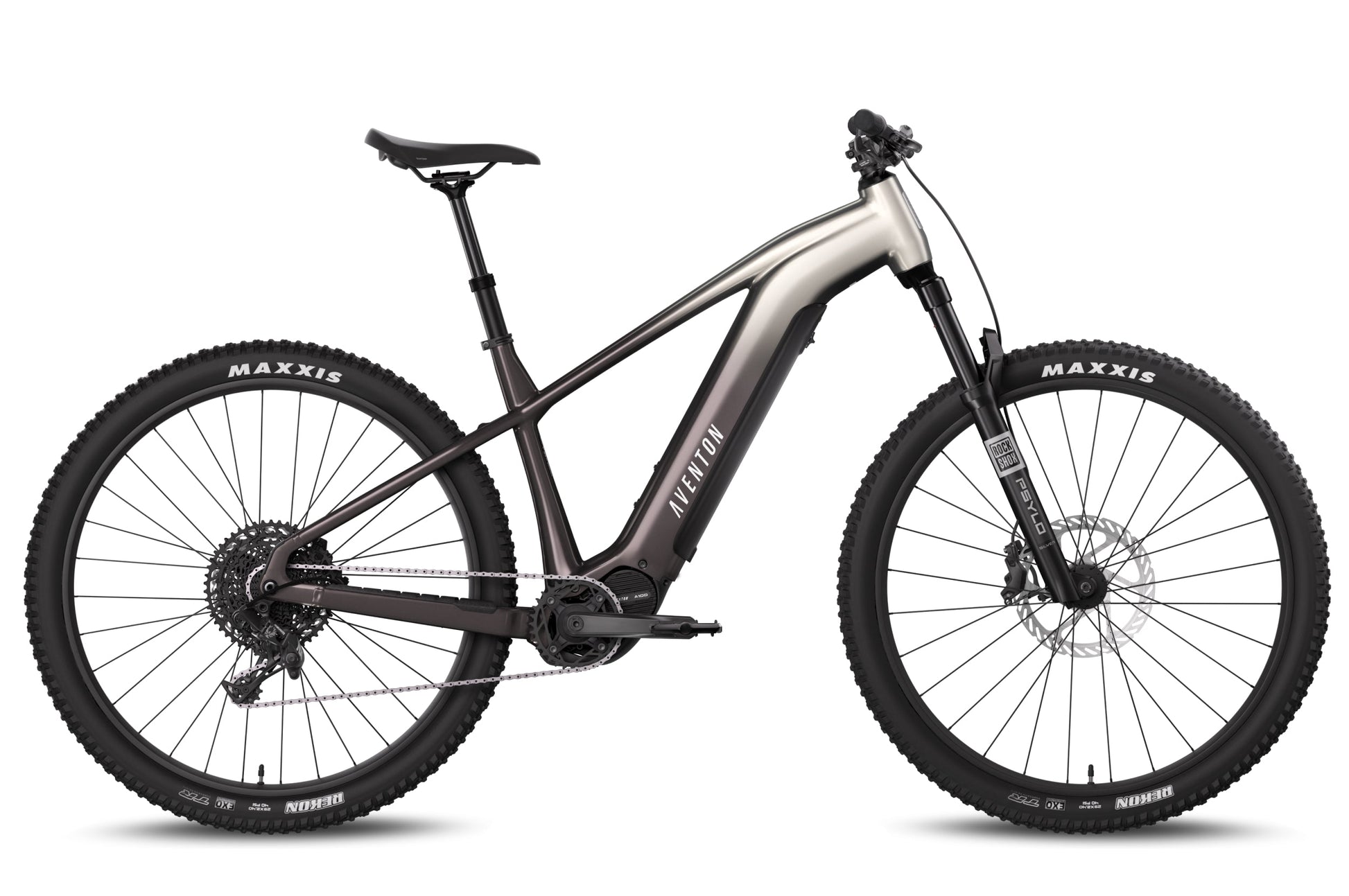

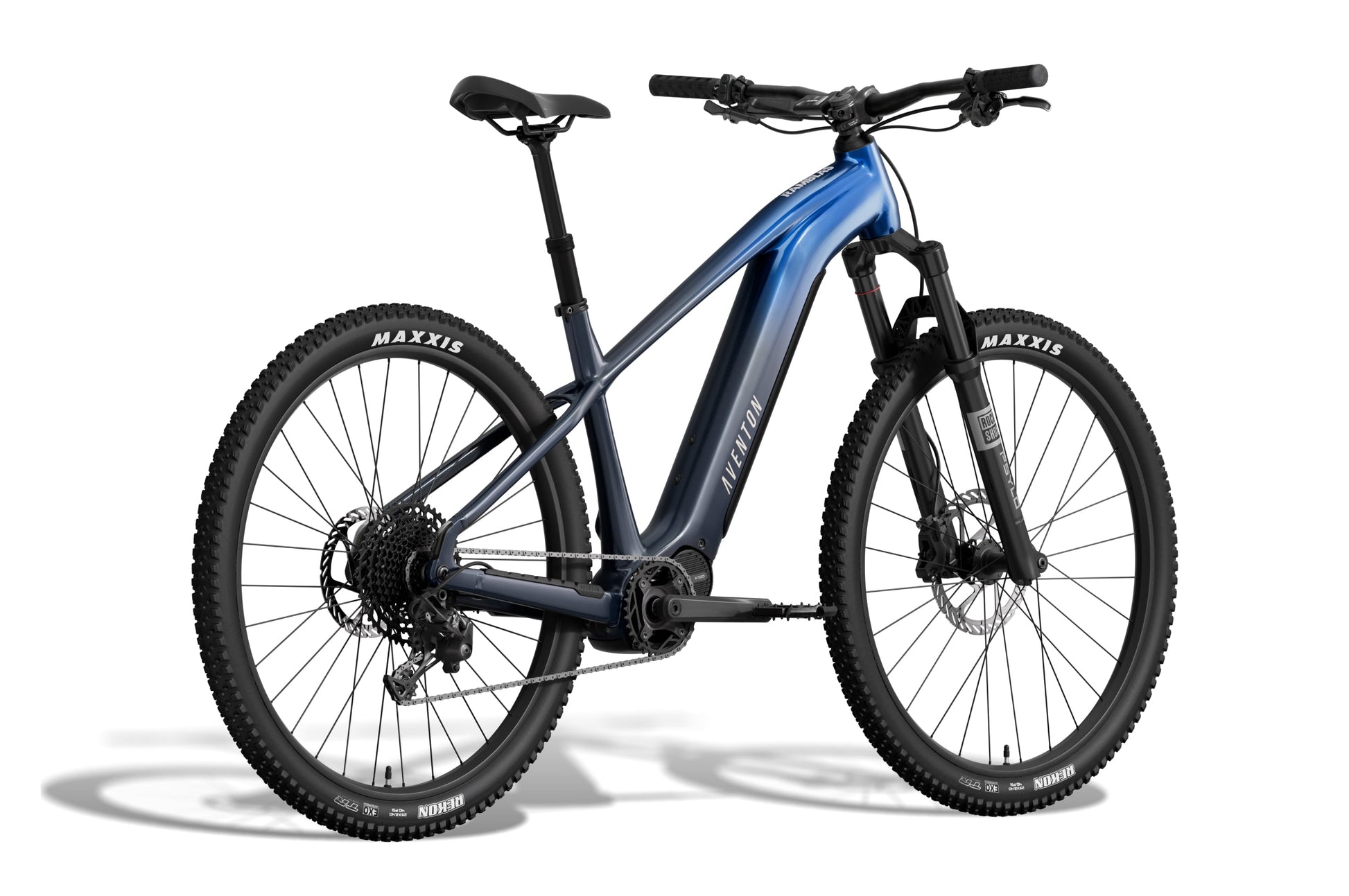

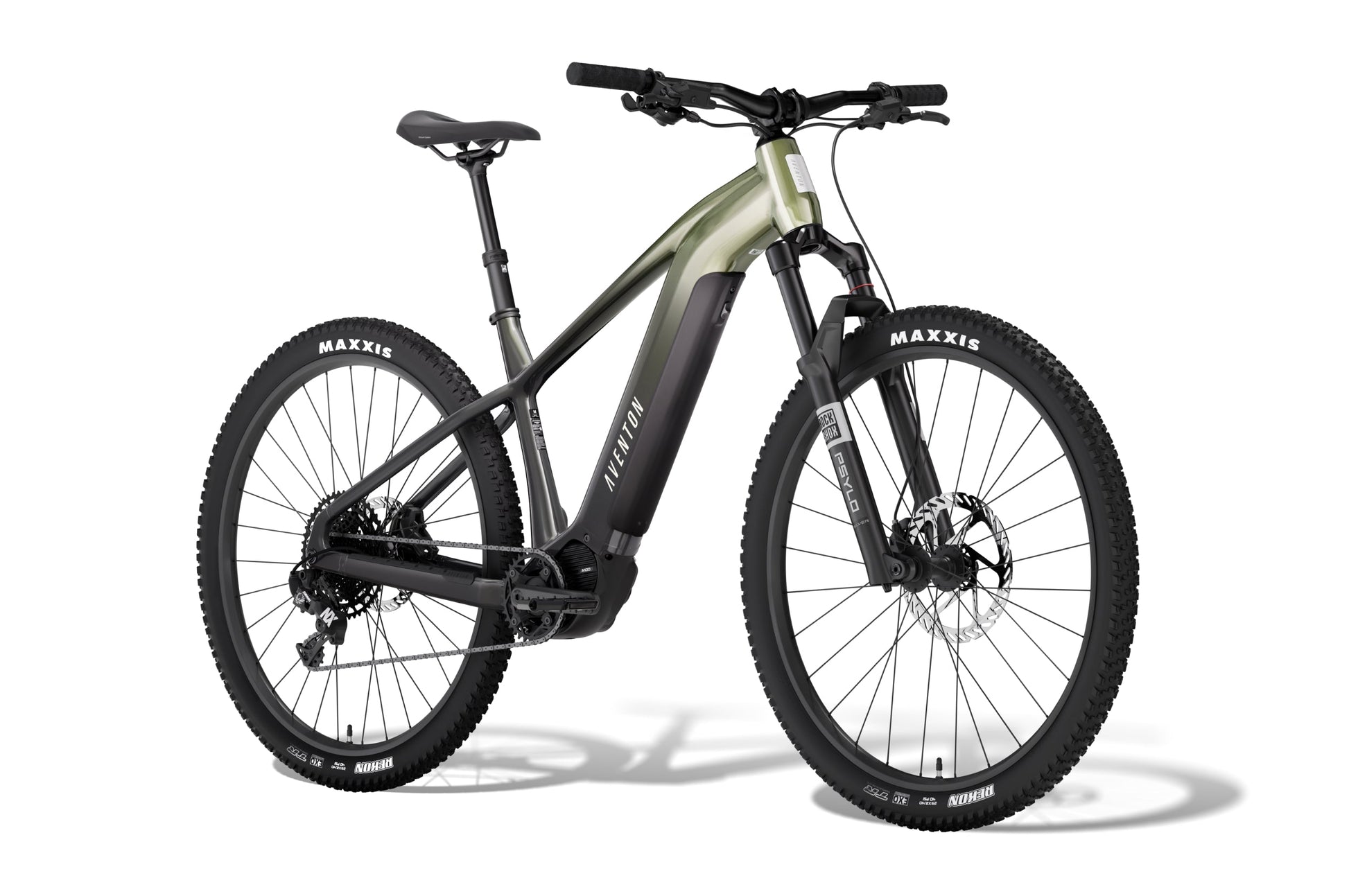

The Ramblas ADV represents Aventon's precision-engineered electric hardtail, designed for serious riders who demand performance across diverse terrain.
This all-terrain ebike delivers dependable power and stability whether navigating technical mountain passages or navigating urban corridors. With a 90-mile range, you gain the capability to tackle extended routes with confidence, combining durability with the responsive handling serious cyclists expect.

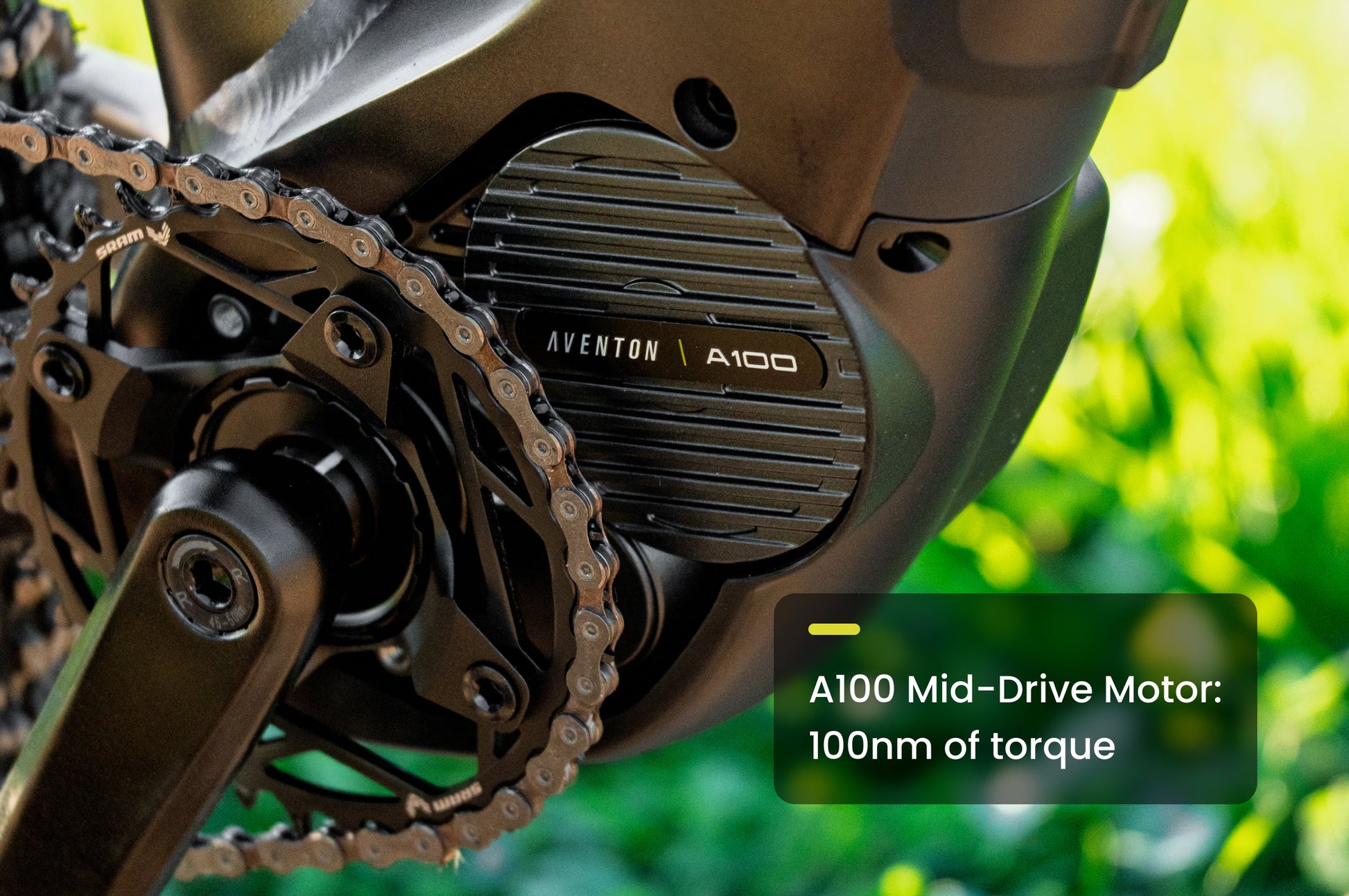

A100 Mid Drive Motor
The A100 mid-drive motor is engineered with 750W of peak power and 100Nm of torque, enabling you to crush climbs and power through trails with ease.
AUTO Mode
Switch to AUTO mode and let the Ramblas ADV supply the perfect amount of power based on terrain. Max torque on climbs, dialed back on flats.

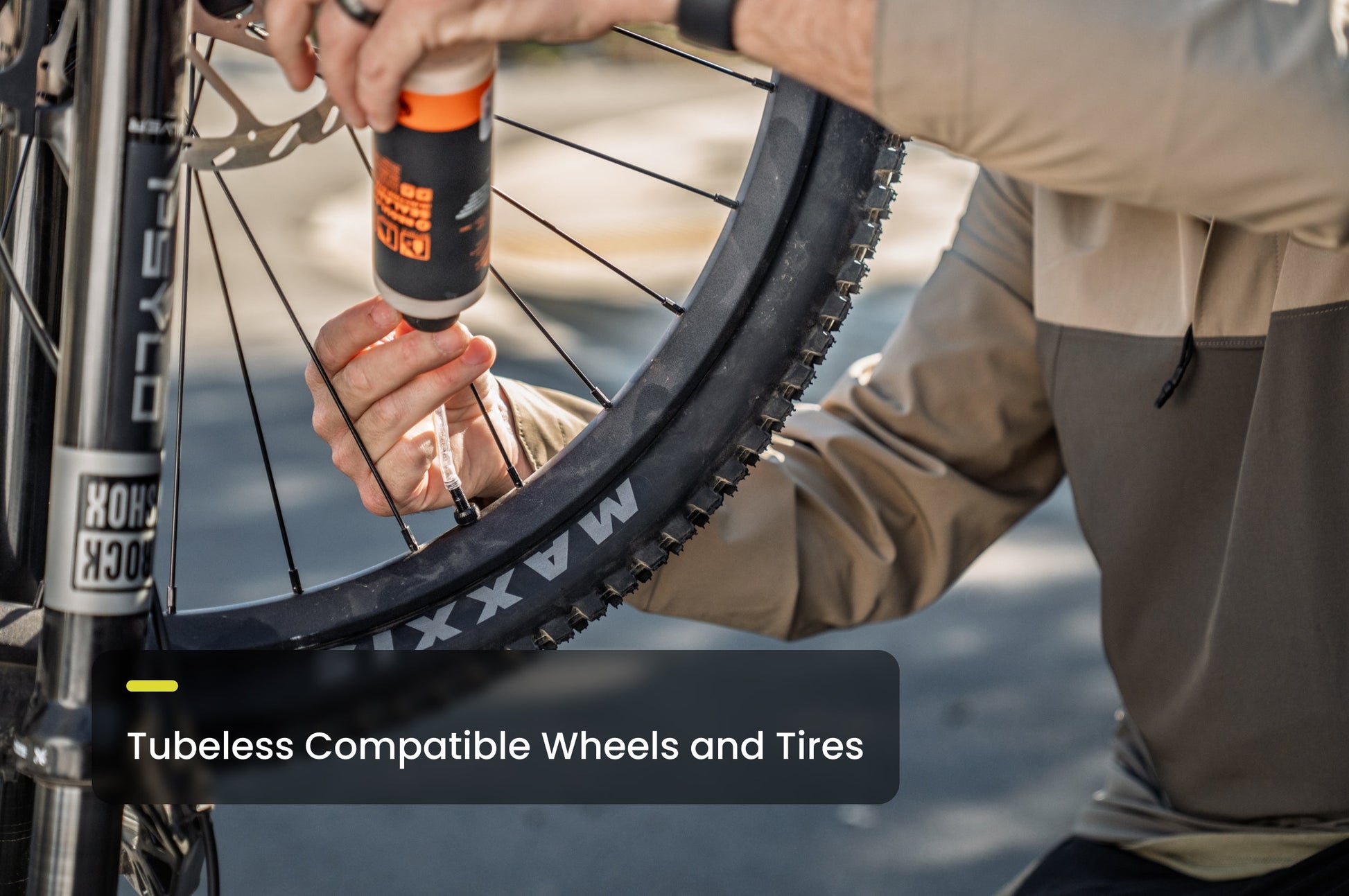

Tubeless Ready
Tubeless wheels and tires provide better flat protection and allow for lower pressures, resulting in improved traction and comfort on the trail.

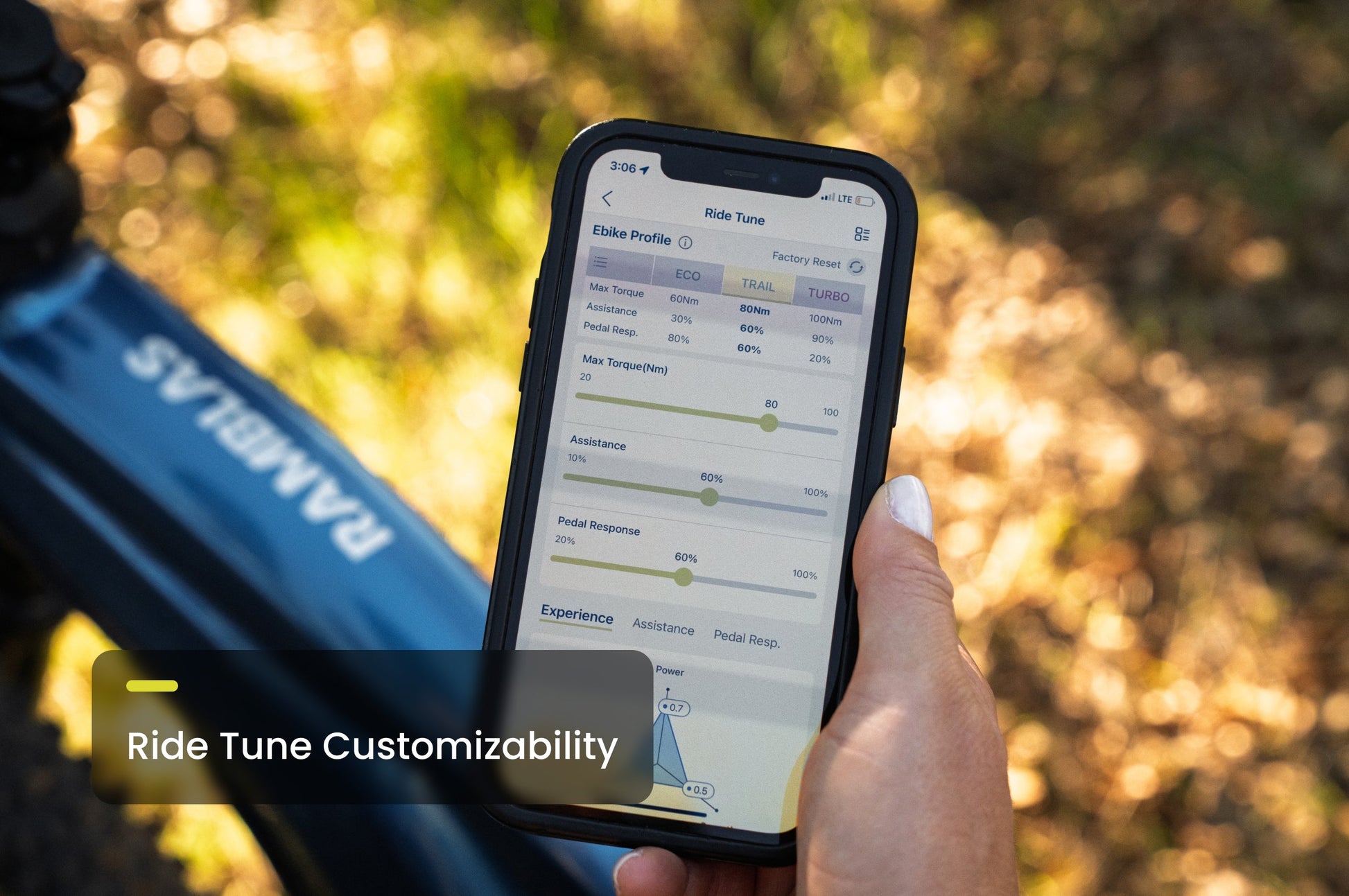

Ride Tune
Fine-tune each of your pedal assist modes (ECO, TRAIL, TURBO) through the app for a customized ride feel that fits your specific style.
Dropper Seatpost
The updated dropper seatpost offers improved lever actuation, giving you instant control when navigating steep and technical terrain.
RockShox Psylo Fork
The RockShox Psylo Silver fork features 130mm of travel, providing premium comfort and capability for all your trail adventures.
| Frame Size | Medium | Large | Extra Large |
|---|---|---|---|
| A - Wheel Size | 29" | 29" | 29" |
| B - Seat Tube Length | 410mm | 450mm | 490mm |
| C - Top Tube Length Horizontal | 616.5mm | 642mm | 668mm |
| D - Bottom Bracket Drop | 55mm | 55mm | 55mm |
| E - Head Tube Length | 125mm | 135mm | 135mm |
| F - Head Tube Angle | 66.5° | 66.5° | 66.5° |
| G - Seat Tube Angle | 74.5° | 74.5° | 74.5° |
| H - Rear Chainstay Length | 465mm | 465mm | 465mm |
| I - Front Wheel Center | 744mm | 770.5mm | 796mm |
| J - Wheelbase | 1203mm | 1230mm | 1256mm |
| K - Reach | 432.5mm | 455mm | 481mm |
| L - Stack Height | 656.5mm | 665mm | 665mm |
| M - Fork Length | 547mm | 547mm | 547mm |
| N - Fork Offset | 44mm | 44mm | 44mm |
| O - Trail | 117mm | 117mm | 117mm |
| Standover | 702mm | 712mm | 719.5mm |
| Rider Height (Range) | 165 - 176 cm 5'5" - 5'9" | 177 - 188 cm 5'10" - 6'2" | 188 - 195 cm 6'2" - 6'5" |
