Aventon Ramblas eMTB
Aventon Ramblas eMTB
Couldn't load pickup availability
Need help?
Need help?
Size & Fit Guide
Size & Fit Guide
Ramblas comes in 4 sizes to suit most adults.
- Small: 5'1" - 5'5"
- Medium: 5'5" - 5'9"
- Large: 5'10" - 6'2"
- Extra Large: 6'2" - 6'5"
| Frame Size | Small | Medium | Large | Extra Large |
| Wheel Size | 27.5" | 29" | 29" | 29" |
| Seat Tube Length | 380mm | 410mm | 450mm | 490mm |
| Top Tube Length Horizontal | 594.5mm | 616.5mm | 642mm | 668mm |
| Bottom Bracket Drop | 55mm | 55mm | 55mm | 55mm |
| Head Tube Length | 125mm | 125mm | 135mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Rear Chainstay Length | 465mm | 465mm | 465mm | 465mm |
| Front Wheel Center | 720mm | 744mm | 770.5mm | 796mm |
| Wheelbase | 1179.5mm | 1203mm | 1230mm | 1256mm |
| Reach | 415mm | 432.5mm | 455mm | 481mm |
| Stack Height | 640mm | 656.5mm | 665mm | 665mm |
| Fork Length | 530mm | 547mm | 547mm | 547mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Trail | 108.6mm | 117mm | 117mm | 117mm |
| Standover | 683mm | 702mm | 712mm | 719.5mm |
| Rider | 5’1”-5’5" | 5’5”-5’9” | 5’10”-6'2" | 6’2”-6’5” |
Check out the Aventon Ramblas on our website or stop into a Bicycle Warehouse retail location.
SKU:1-AV14101
Low stock
View full details
Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

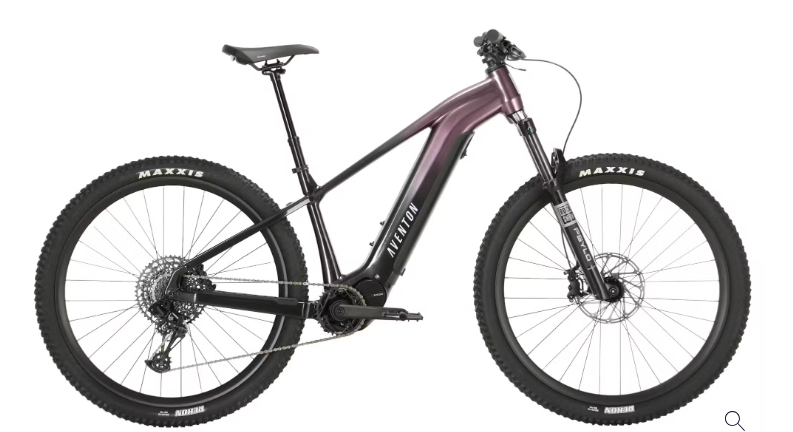

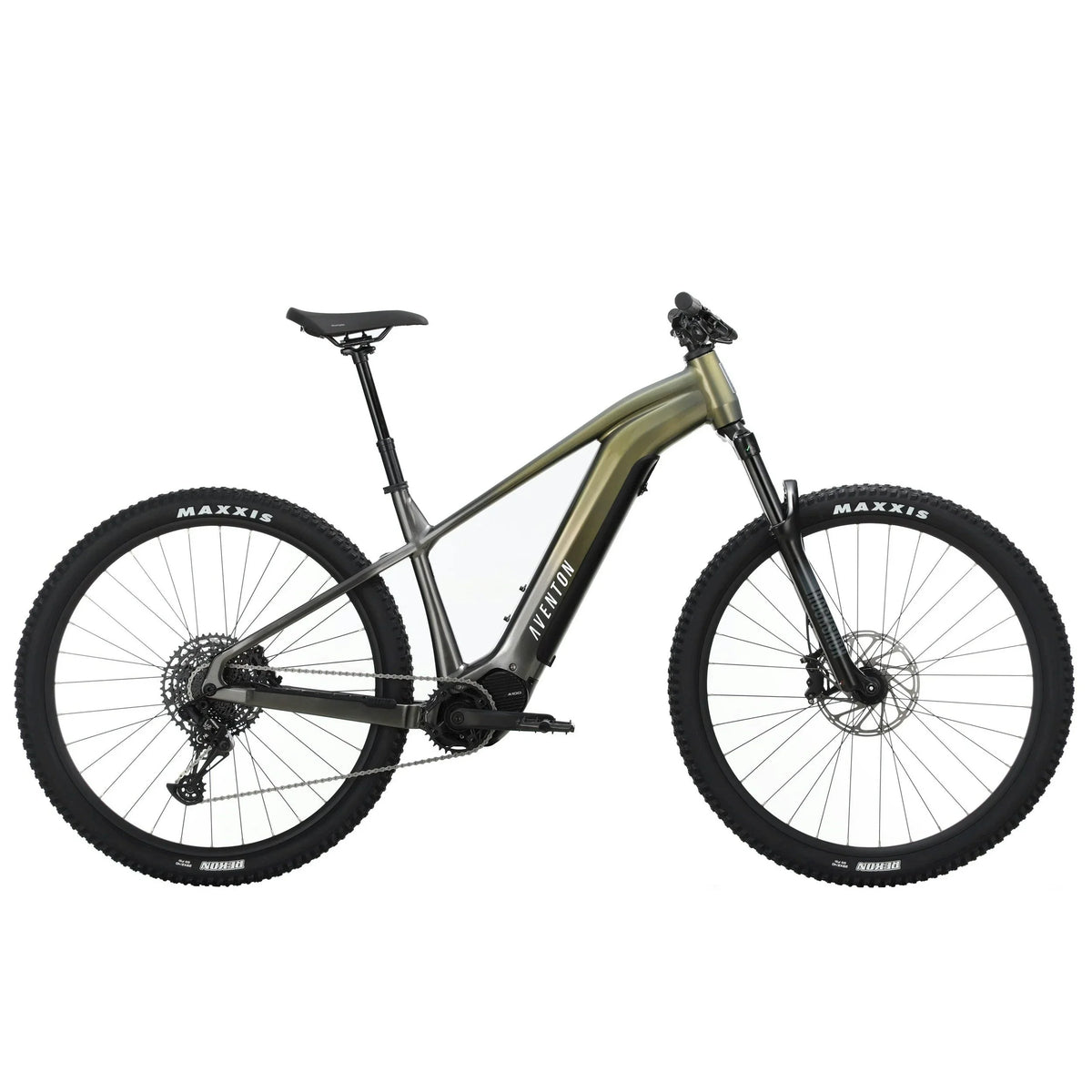

Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets.
Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.
Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.
Ramblas Display
Same great features as Aventon’s Full Color Display, only more compact. The Ramblas Display is slightly smaller and repositioned to protect it from unforeseen circumstances while hitting the trail or streets.
Mid-Drive Motor & Battery
Aventon’s mid-drive motor was designed to give riders full control over their riding experience. With its 250 watts of sustained power, 750 watts at peak power, 36V battery and adjustable three pedal assist levels, you can customize your ride to your liking for trail and daily commutes.
Hardtail Frame
Ramblas’ hardtail frame is a workhorse for the all-terrain. It's lightweight, durable, and reliable, giving you the confidence you need on mountain trails and rough roads.
Pedal Assist
Switch between 3 levels of pedal assist: eco, trail, and turbo, to get more in the mountains and on the streets. Add a boost to the way you move with a top speed of 20 mph and up to 80 miles in range.
Brakes
Enhance your speed control on steep slopes and loose terrain with Ramblas’ Sram DB8 mineral 4 piston hydraulic disc brakes. With four pistons, Ramblas’ brakes offer superior modulation, meaning more brake fluid is distributed across a larger surface area, allowing you to stop when you need to most.
Fork
Ramblas’ Rockshox 35 suspension with 130mm of travel allows riders to find comfort on the roughest of terrain. Roll over rocks, tree roots, and rugged roads and let the suspension take care of the rest.
Drivetrain
Ramblas comes equipped with a Sram NX 12-speed drivetrain for more efficiency to climb hills, roll around on trails and ride faster on flat surfaces.
Dropper Post
Ramblas’ dropper post enhances control and comfort right from the handlebars using the dropper lever. Drop it low for more room in the cockpit while navigating steep or technical terrain, or raise it up for a more efficient riding position.
| WEIGHT | 54lbs, size large, w/o pedals |
| FORK | RockShox 35 Silver TK 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube |
| FRAME | Single-Butted Aluminum Alloy |
| HUBS | 15x110 32H Front, 12x148 32H Rear |
| RIM | Double Wall Aluminum 32h Front & Rear |
| SPOKES | Black Stainless 13 Gauge |
| TIRES | S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4" |
| TUBES | Butyl Rubber, Schrader Valve |
| BATTERY | Aventon 708 WH. 36V LG 21700 cells. |
| CHARGER | 42V 4A charger |
| DISPLAY | LCD Smart "Easy Read" |
| MOTOR | Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating |
| REAR BRAKE ROTOR | Sram 180mm 6 bolt |
| FRONT BRAKE ROTOR | Sram 200mm 6 bolt |
| BRAKES | Sram DB8 mineral 4 piston hydraulic disc brakes |
| REAR DERAILLEUR | Sram NX Eagle 1x12 |
| PEDALS | 9/16" Alloy Platform |
| CHAINRING | Sram Nx 34t |
| CASSETTE | Sram SX Eagle 1x12 11-50t |
| SHIFT LEVER | Sram NX Eagle 1x12 single click |
| SEATPOST | 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length |
| HANDLEBARS | 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL |
| GRIPS | Lock on |
| STEM | 35mm Ø, 40mm length |
| SEAT CLAMP | Aventon 34.9mm |
| INCLUDED ACCESSORIES | KICKSTAND |
