Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

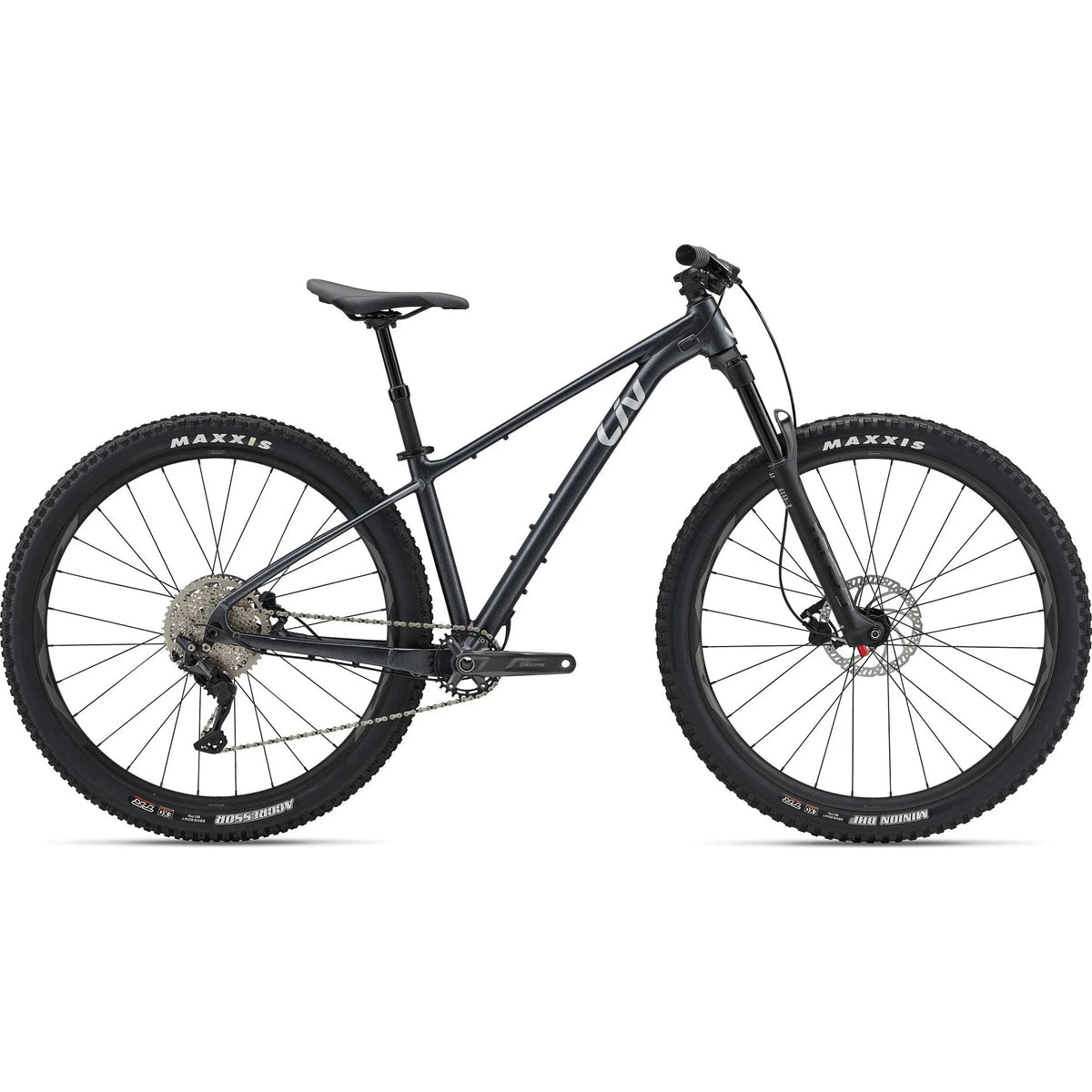

The Lurra 2 29er Women's Mountain Bike is engineered to provide a more fluid experience on the trail with its efficient hardtail construction, perfect for maneuvering challenging single track and enjoying downhill rides.
Optimal Trail Design
Lightweight ALUXX SL-Grade Aluminum hardtail frame with a steep seat tube angle optimizes your input when powering up climbs and hammering on the flats, resulting in greater efficiency and speed. And a 66-degree head tube angle offers confidence on steep descents, while the 438mm chainstays keep it feeling stable and playful. Frame sizes are paired up with wheel sizes, providing the ideal fit for you and where you want to ride.
Boosted Confidence
Take on technical terrain with the 130mm of plush front suspension, high-volume tubeless tires offering extreme traction on roots, rocks and ruts, and a dropper seatpost allowing you to get low and ride with control.
Adventure-Ready
The Lurra comes equipped with mounts for two water bottle cages and additional mounts on the underside of the top tube allow riders to add a small gear bag for stowing tools. Internal cable routing keeps the important stuff tidy and protected, so you can stay focused on the ride ahead.
Specifications
| Sizes S (29"), M (29"), L (29") |
| Colors Black Diamond |
| Frame ALUXX SL-Grade Aluminum, 12x148 thru-axle |
| Fork Giant Crest 34 RCL, 130mm, 15x110 |
| Shock N/A |
| Handlebar Giant Contact TR35, alloy For 27.5": XS: 760mm, S: 760mm For 29": S: 760mm, M: 760mm, L: 780mm |
| Grips Liv Sole-O |
| Stem Giant Contact SL 35 For 27.5": XS: 40mm, S: 40mm For 29": S: 40mm, M: 50mm, L: 50mm |
| Seatpost Giant Contact Switch dropper, remote For 27.5": XS: 100mm travel / 30.9 x 345mm S: 100mm travel / 30.9 x 345mm For 29": S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm |
| Saddle Liv Sylvia |
| Pedals platform |
| Shifters Shimano Deore M4100, 1x10 |
| Front Derailleur N/A |
| Rear Derailleur Shimano Deore M5120, Shadow + |
| Brakes Tektro HDM 276, hydraulic, Tektro rotors [F]180mm, [R]180mm |
| Brake Levers Tektro HDM 275 |
| Cassette Shimano Deore M4100, 11x46 |
| Chain KMC X-10 |
| Crankset Shimano Deore M5100, 30t For 27.5": XS: 170mm, S: 170mm For 29": S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket Shimano, threaded |
| Rims For 27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width For 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width |
| Hubs alloy, sealed |
| Spokes Sapim |
| Tires For 27.5": Maxxis Ardent Race 27.5x2.6, EXO, TR, tubeless For 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless, [R] Maxxis Aggressor 29x2.5 WT, EXO, TR, tubeless |
| Extras For 27.5": tubeless prepared, max tire size 2.6"", max chainring size 32t For 29": tubeless prepared, max tire size 2.5"", max chainring size 32t |
| Weight The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS (27.5") | S (27.5") | S (29") | M (29") | L (29") | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 14.2 | 15 | 15 | 16.1 | 16.9 |
| B | SEAT TUBE ANGLE | 76.0° | 76.0° | 76.5° | 76.5° | 76.5° |
| C | TOP TUBE LENGTH (inch) | 21.4 | 22.2 | 21.8 | 22.6 | 23.5 |
| D | HEAD TUBE LENGTH (inch) | 3.7 | 4.1 | 3.5 | 3.9 | 4.3 |
| E | HEAD TUBE ANGLE | 66.0° | 66.0° | 66.0° | 66.0° | 66.0° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.4 | 4.4 | 4.8 | 4.8 | 4.8 |
| H | WHEELBASE (inch) | 44 | 44.9 | 44.7 | 45.6 | 46.5 |
| I | CHAIN STAY LENGTH (inch) | 17.2 | 17.2 | 17.2 | 17.2 | 17.2 |
| J | BOTTOM BRACKET DROP (inch) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| K | STACK (inch) | 23.9 | 24.3 | 24.3 | 24.7 | 25 |
| L | REACH (inch) | 15.5 | 16.1 | 16 | 16.7 | 17.4 |
| M | STAND OVER HEIGHT (inch) | 24.1 | 26 | 26 | 28 | 29 |
| N | HANDLEBAR WIDTH (inch) | 29.9 | 29.9 | 29.9 | 29.9 | 30.7 |
| O | (inch) | 1.6 | 1.6 | 1.6 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 27.5" | 27.5" | 29" | 29" | 29" |
