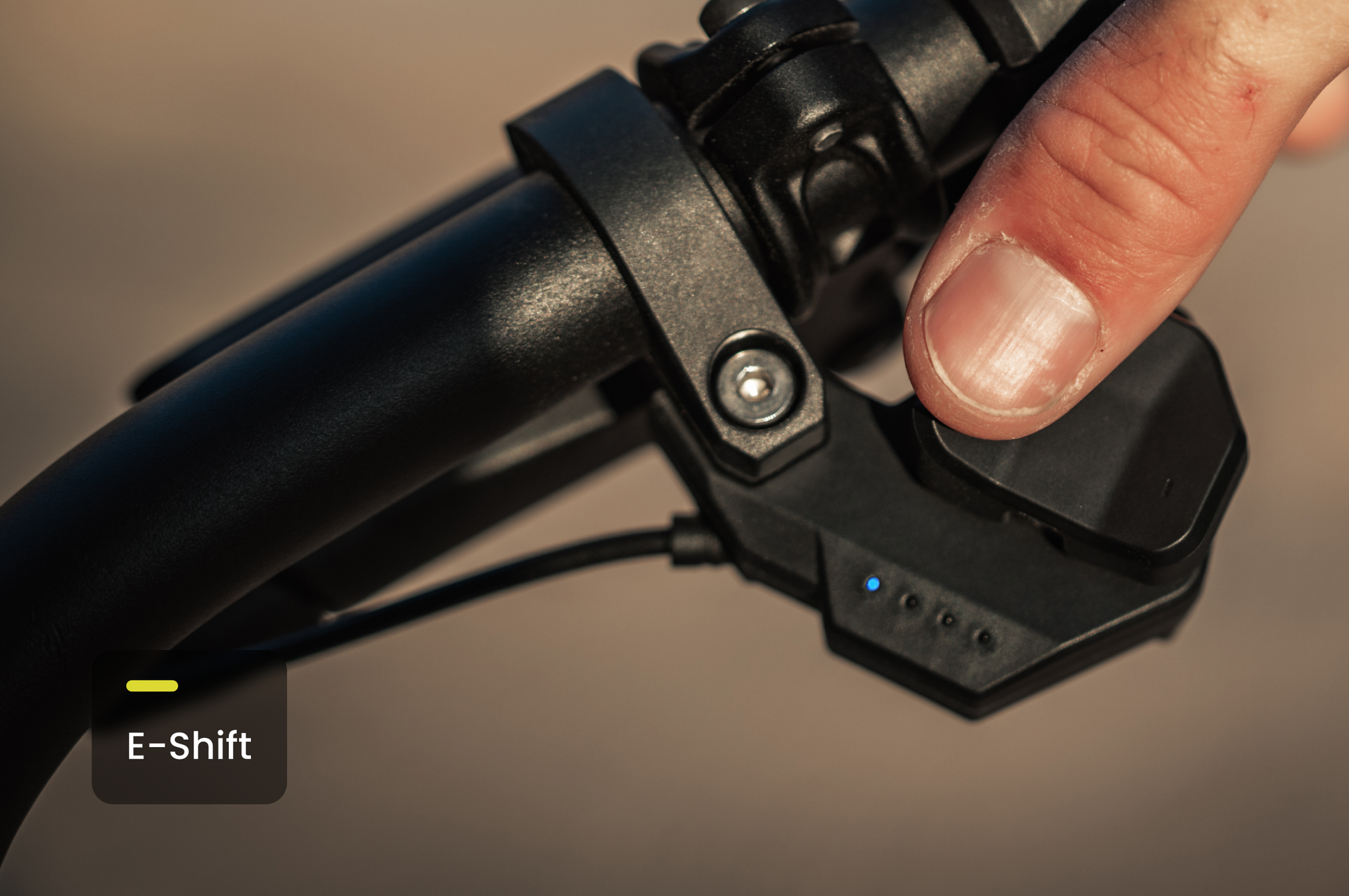

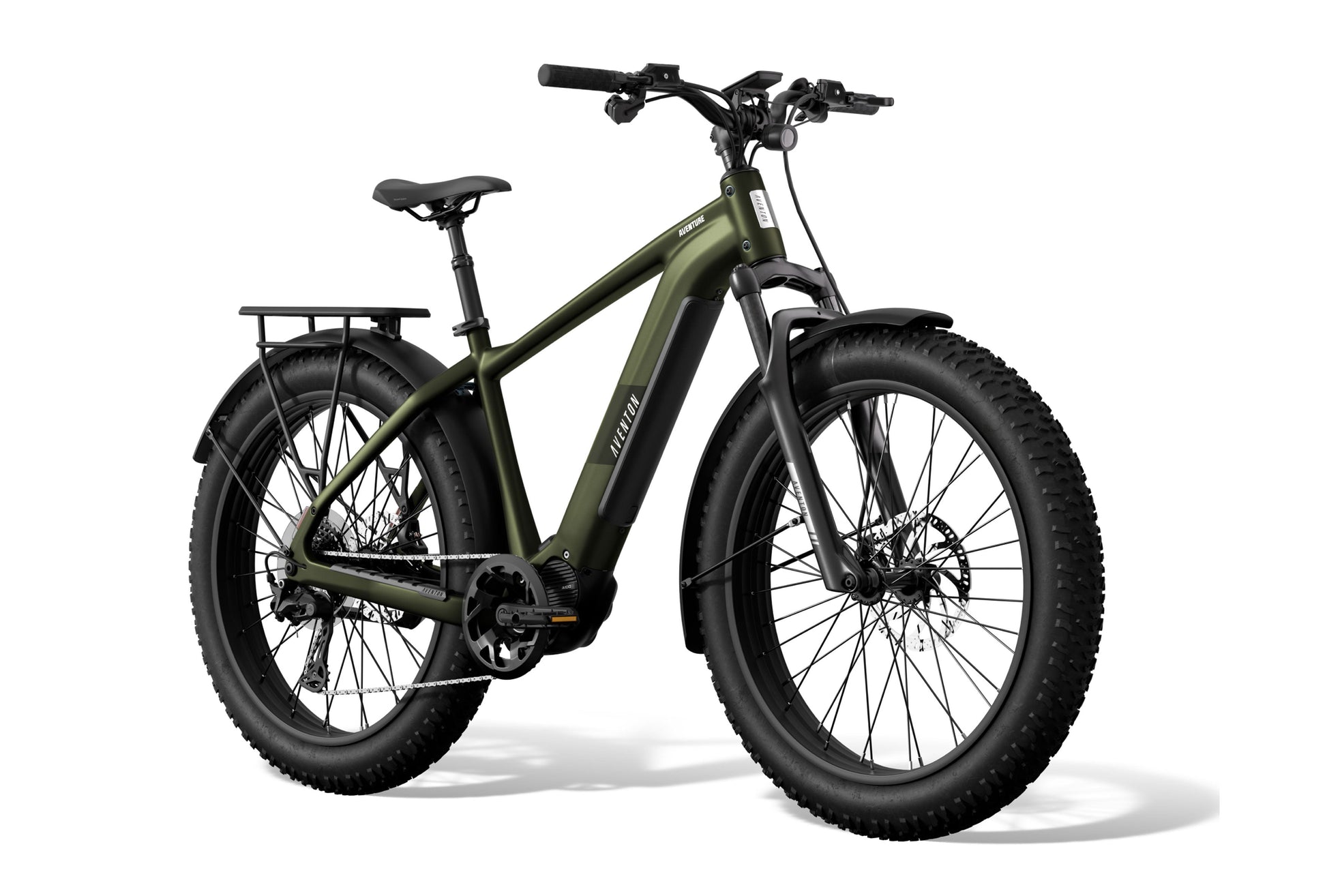

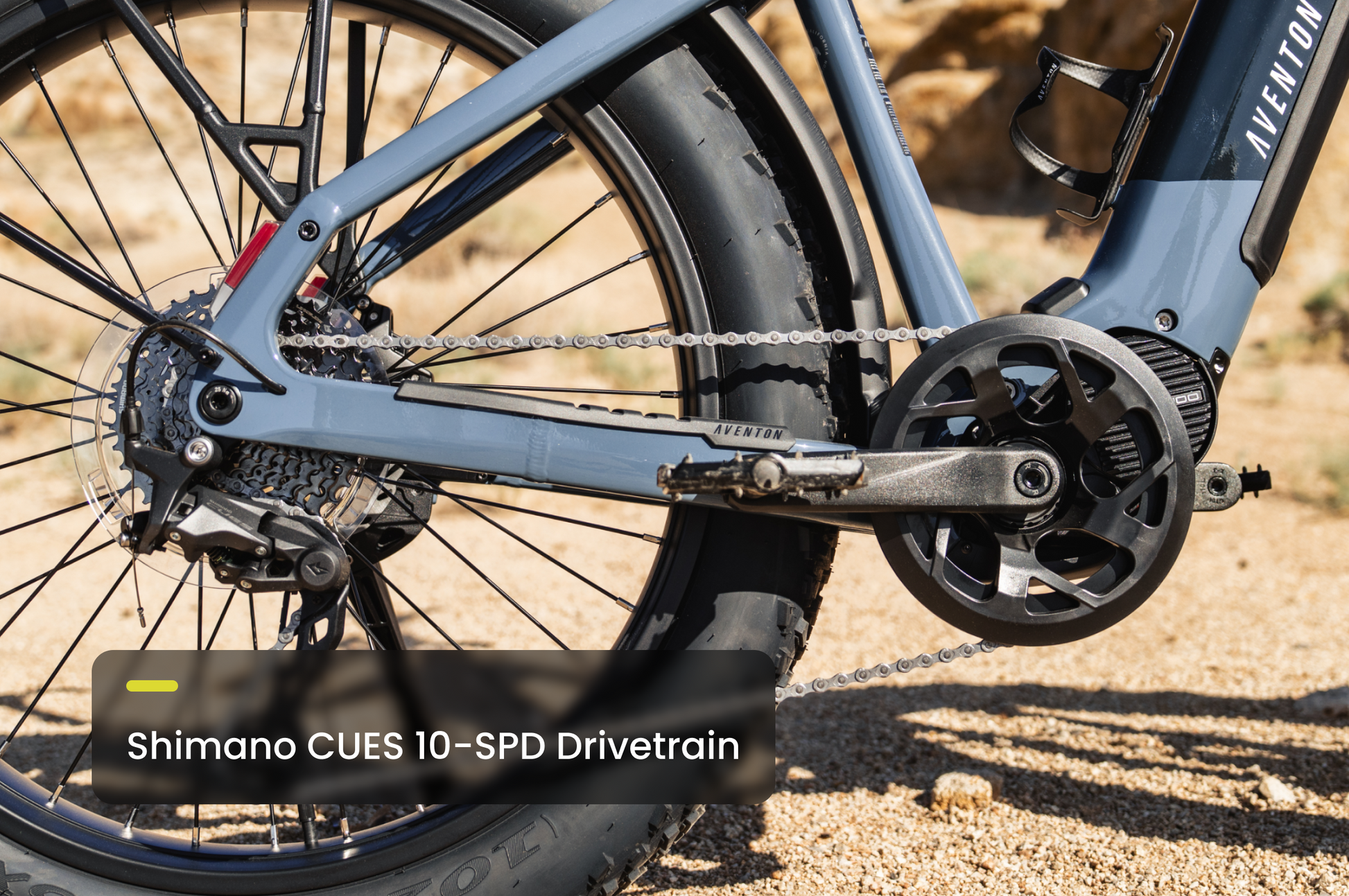

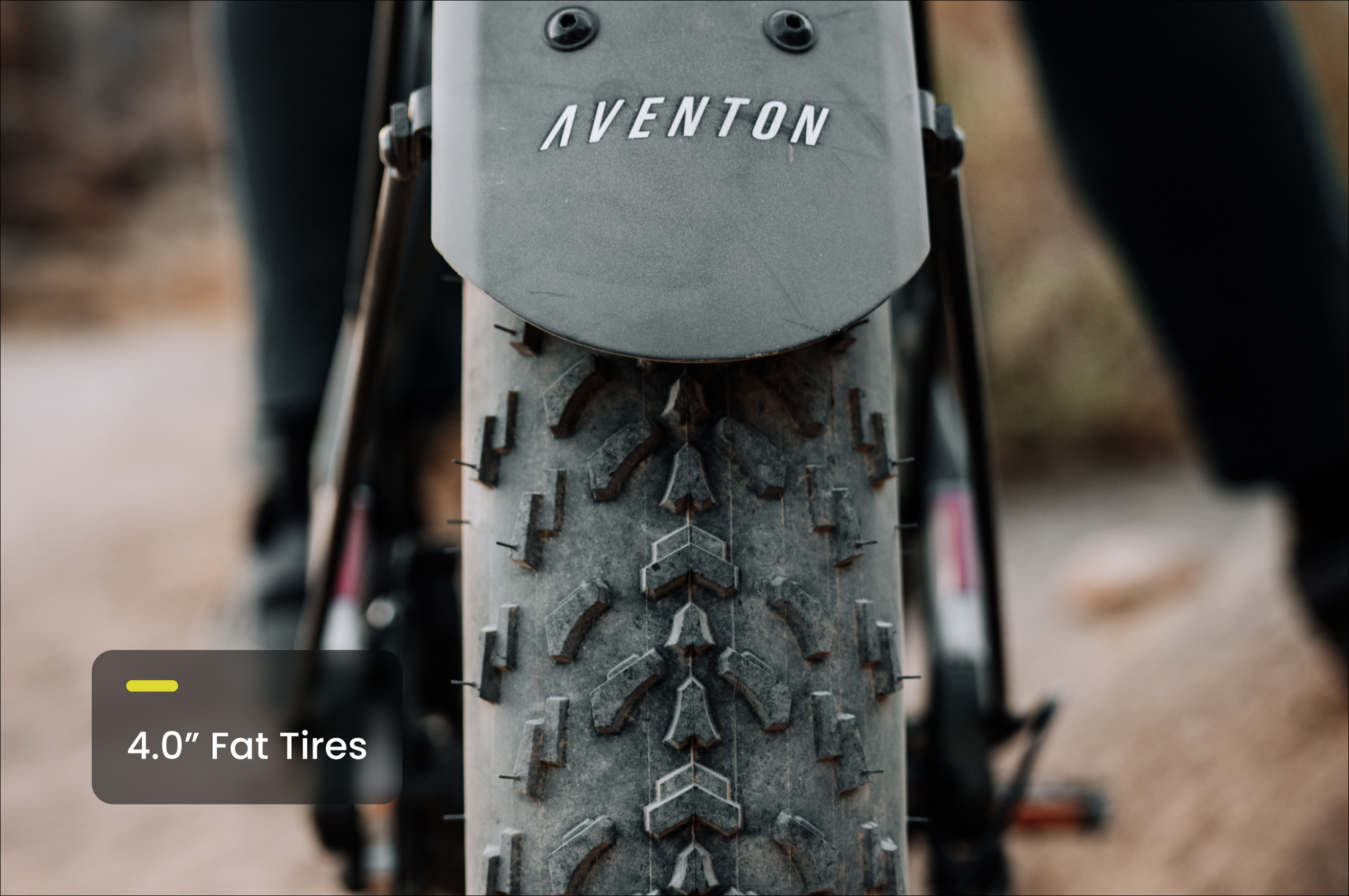

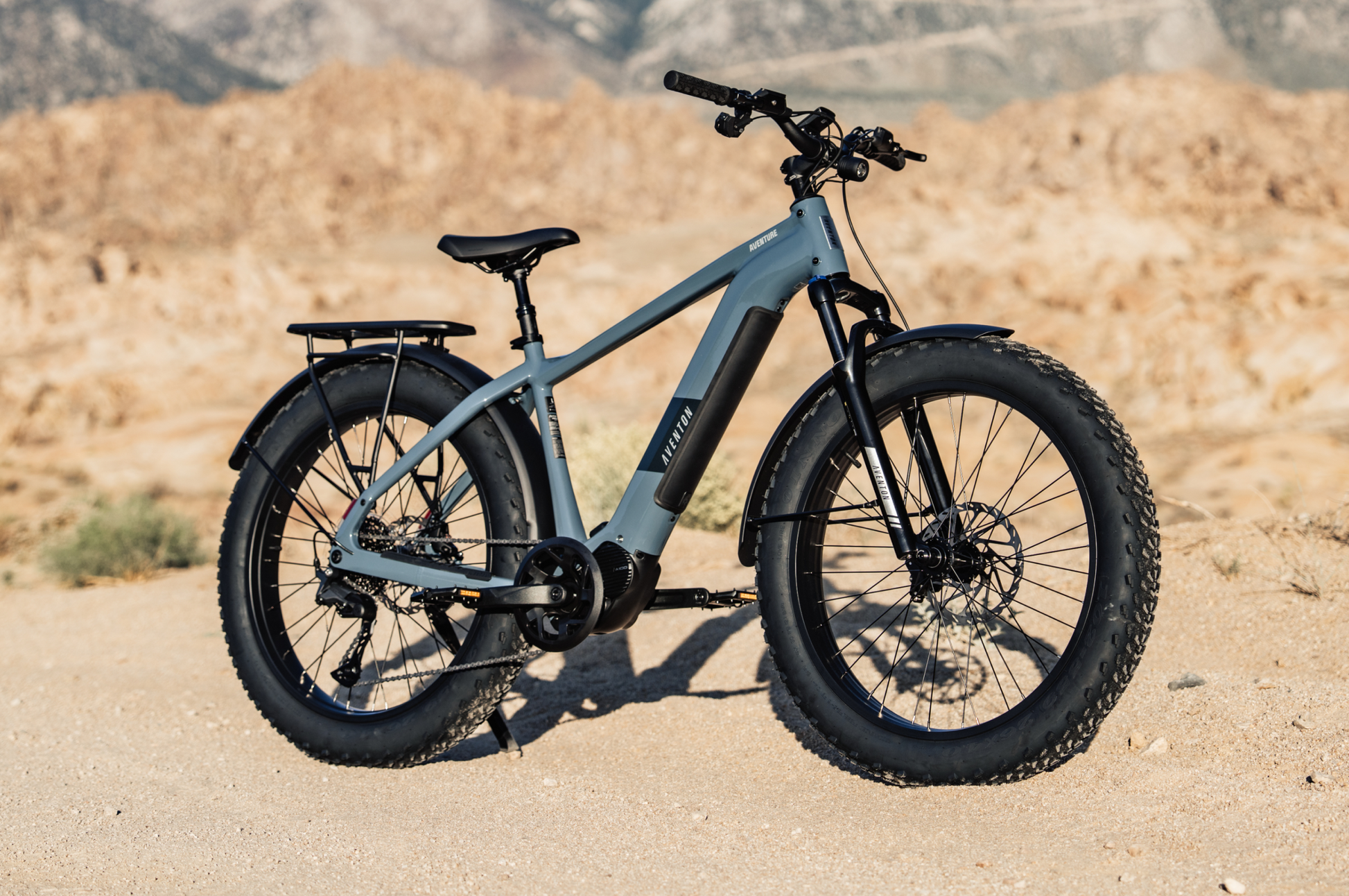

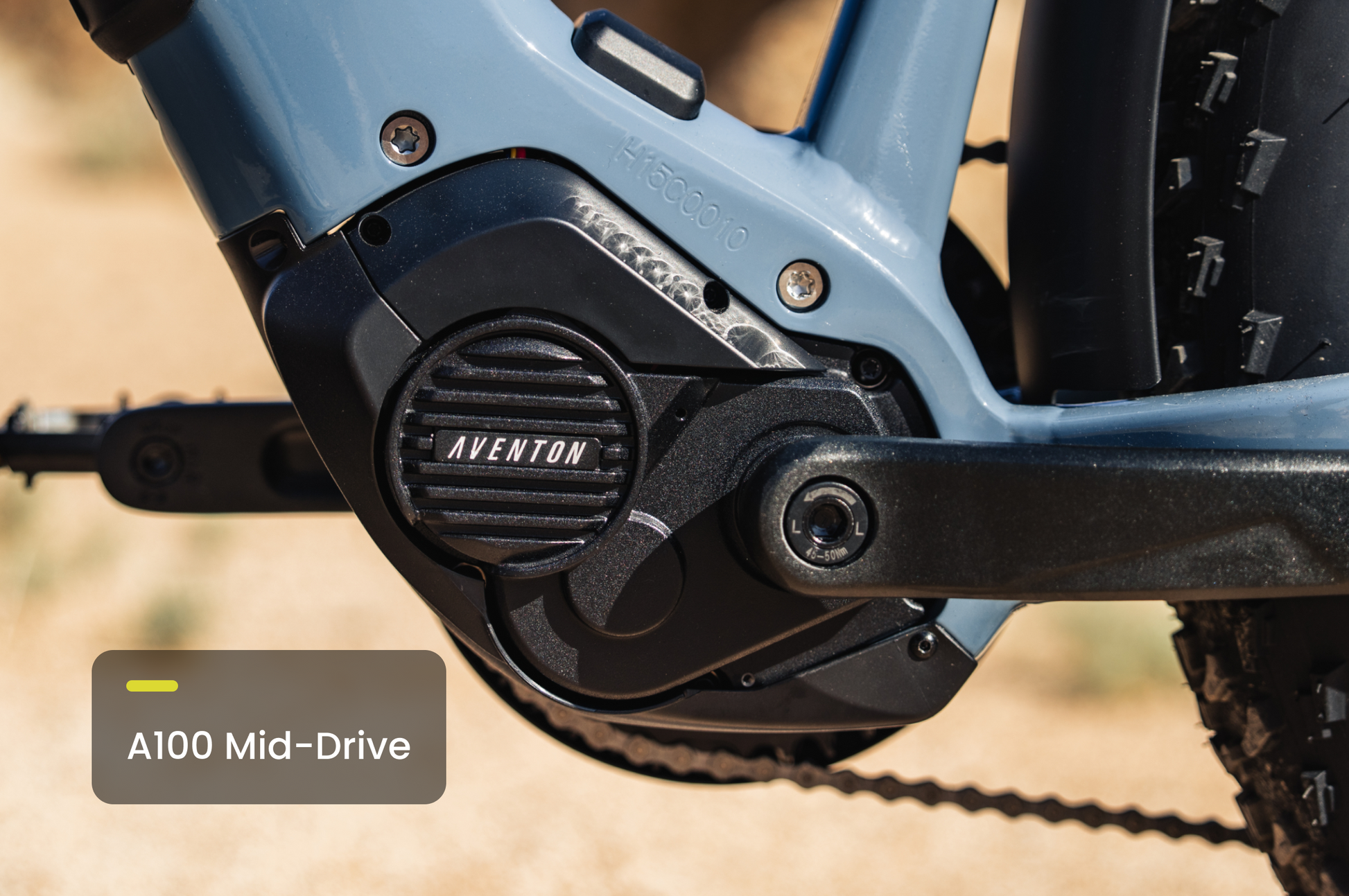

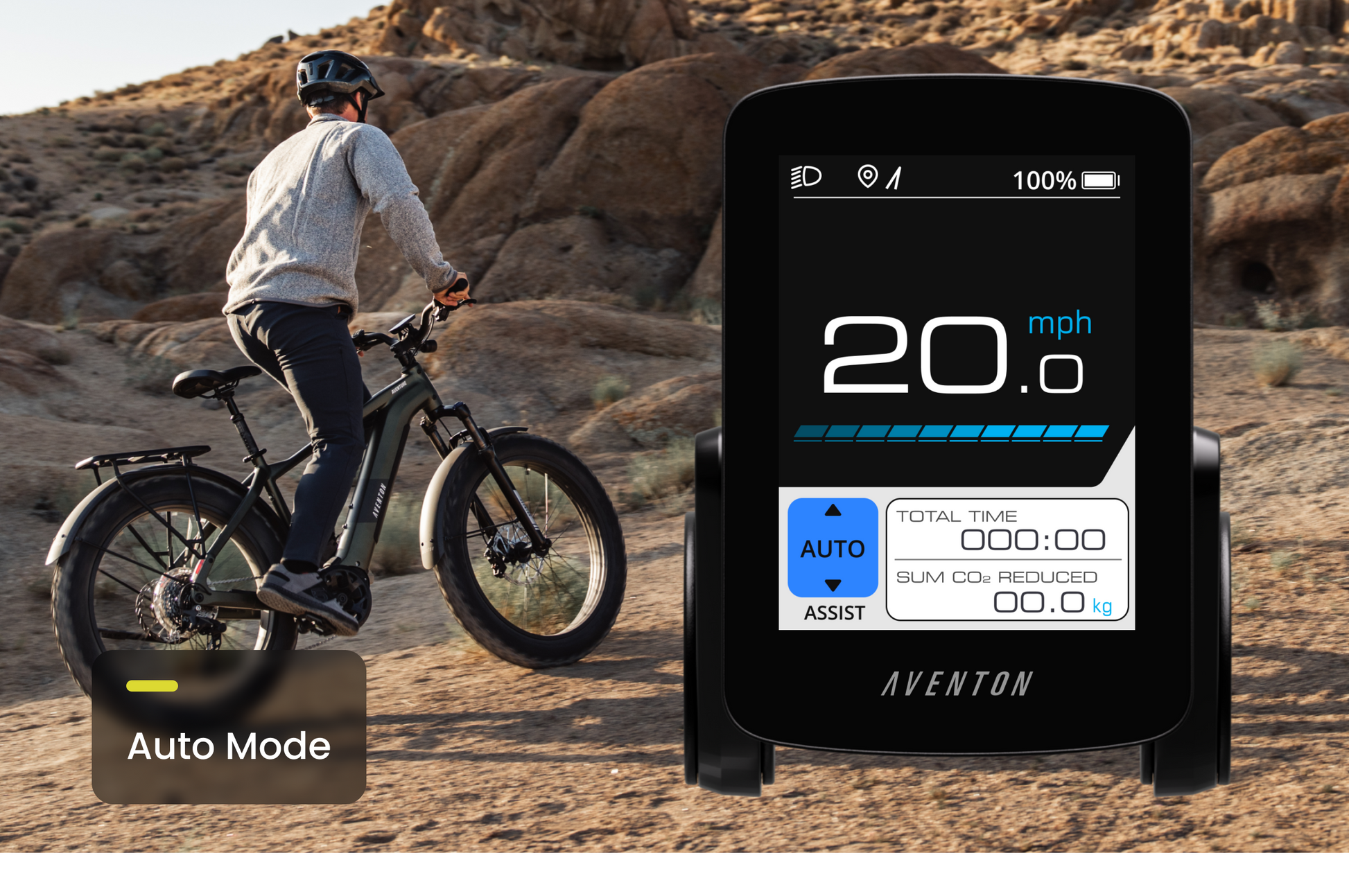

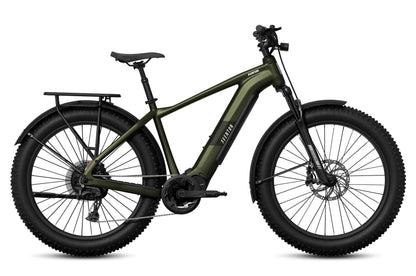

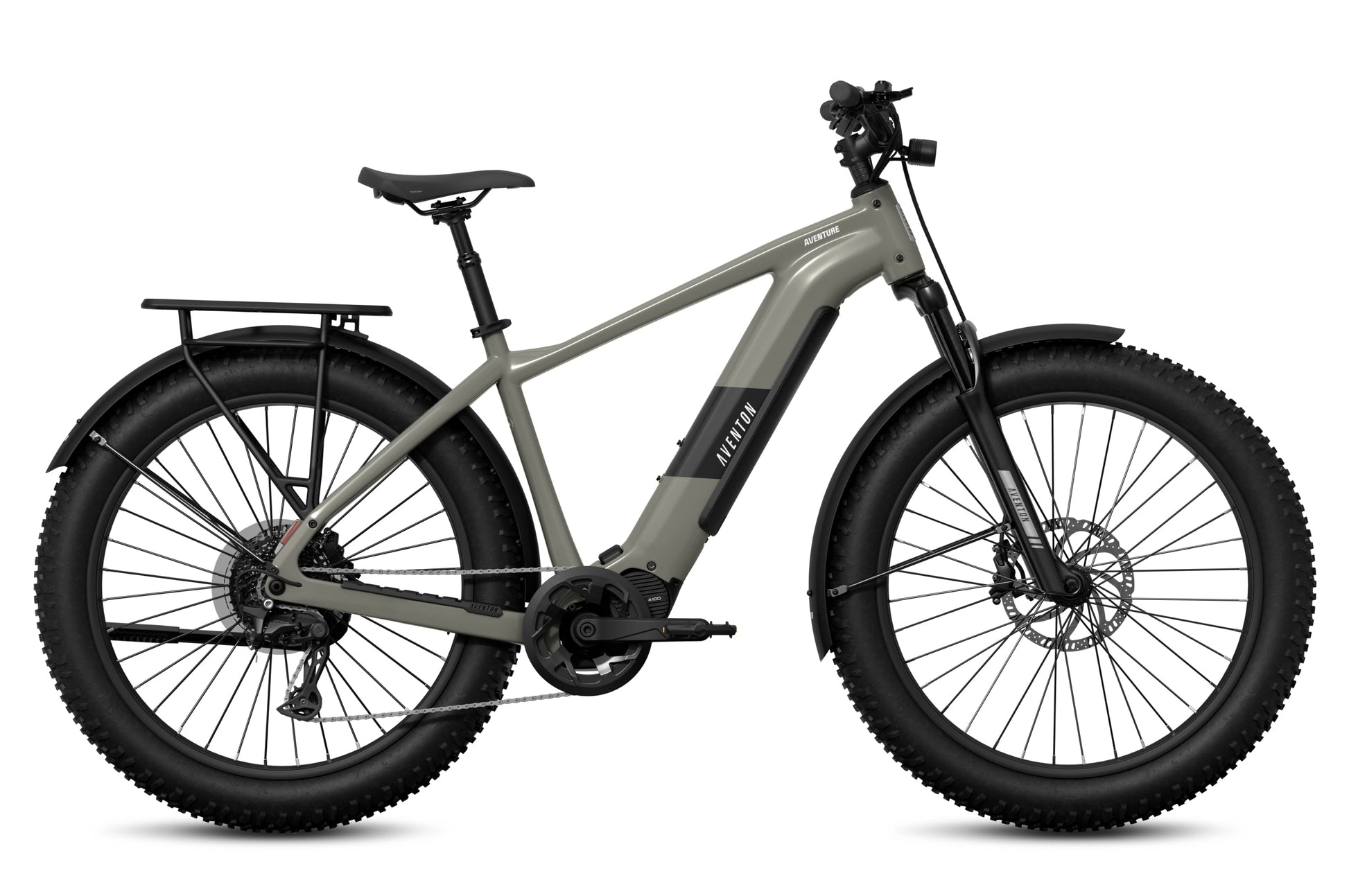

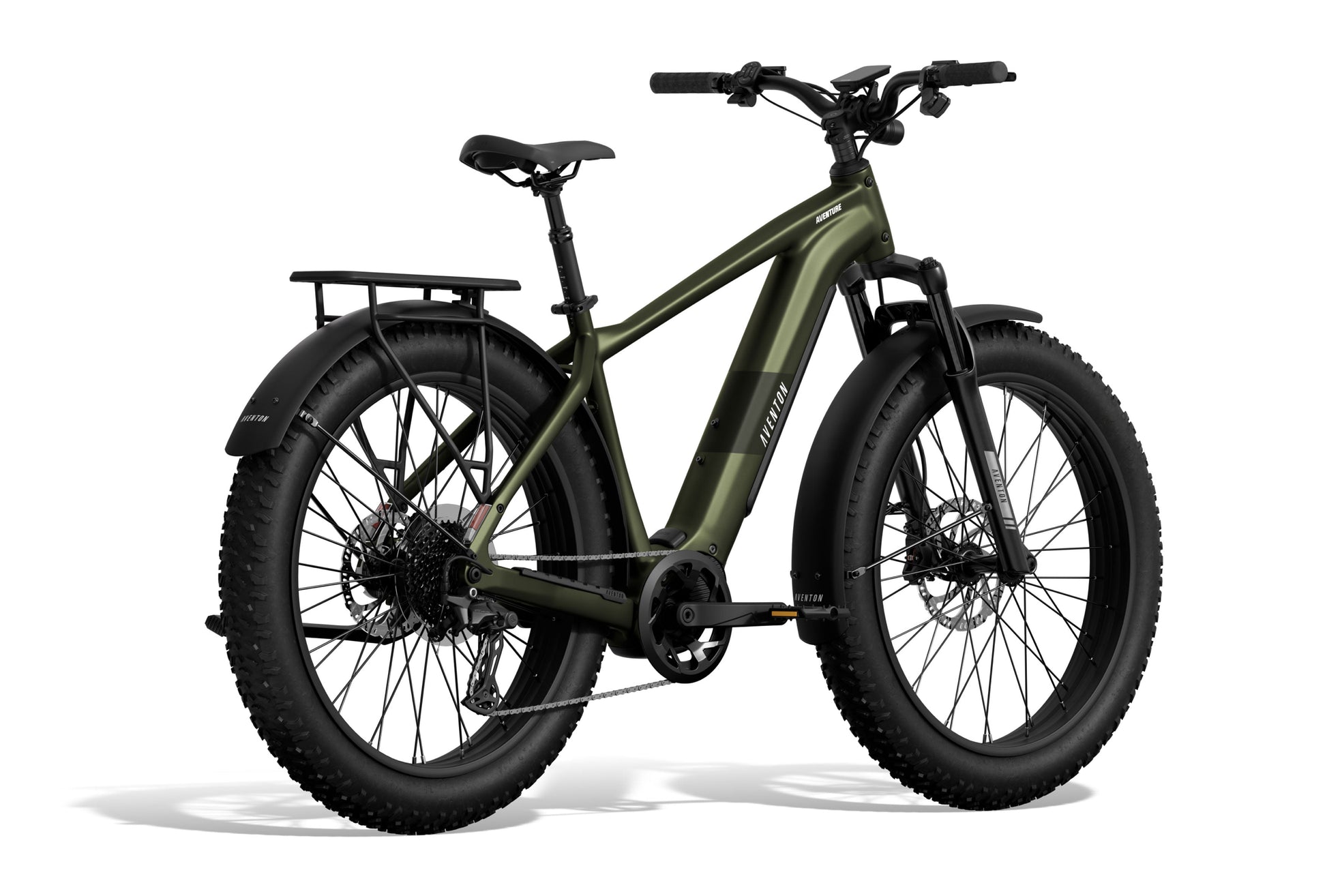

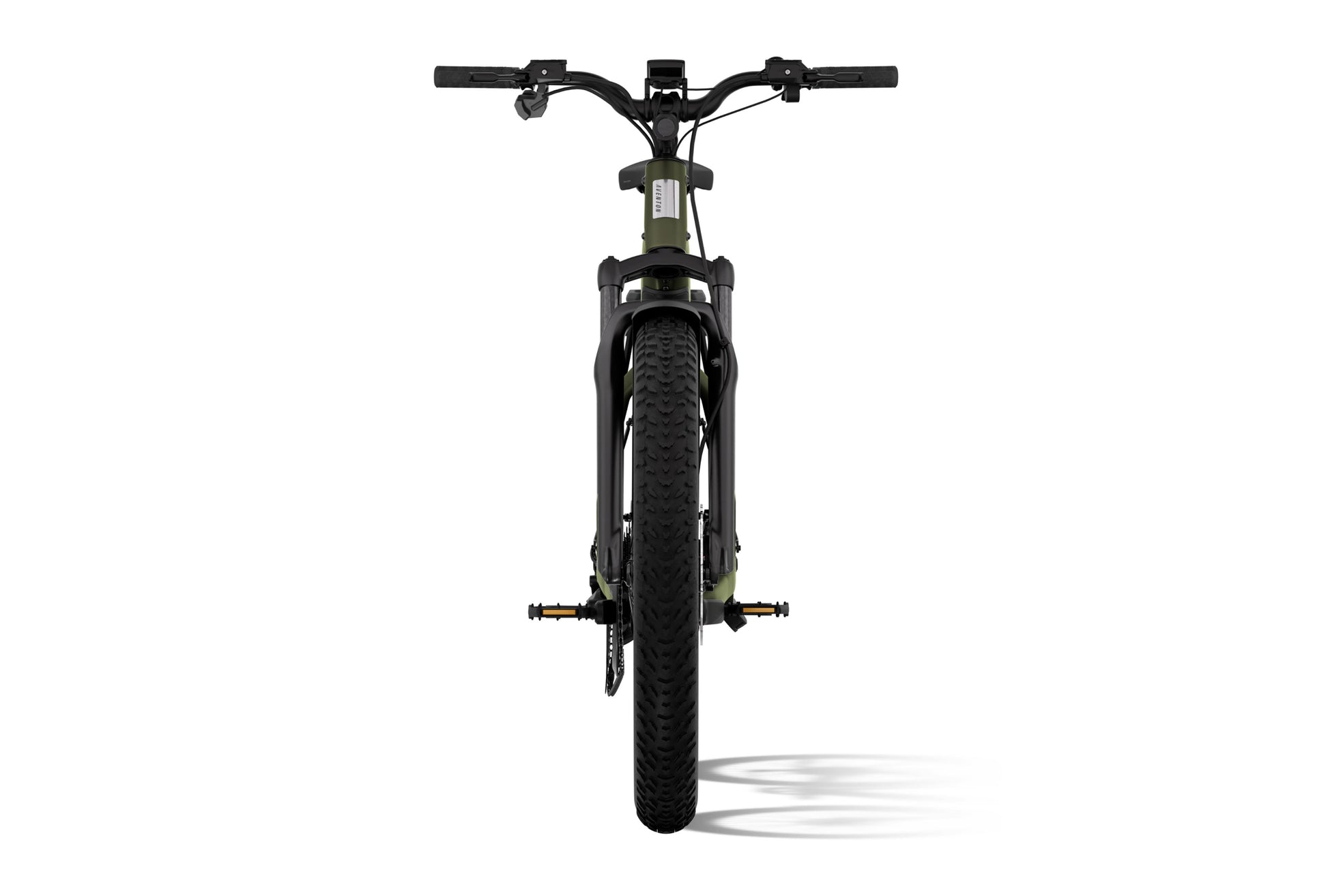

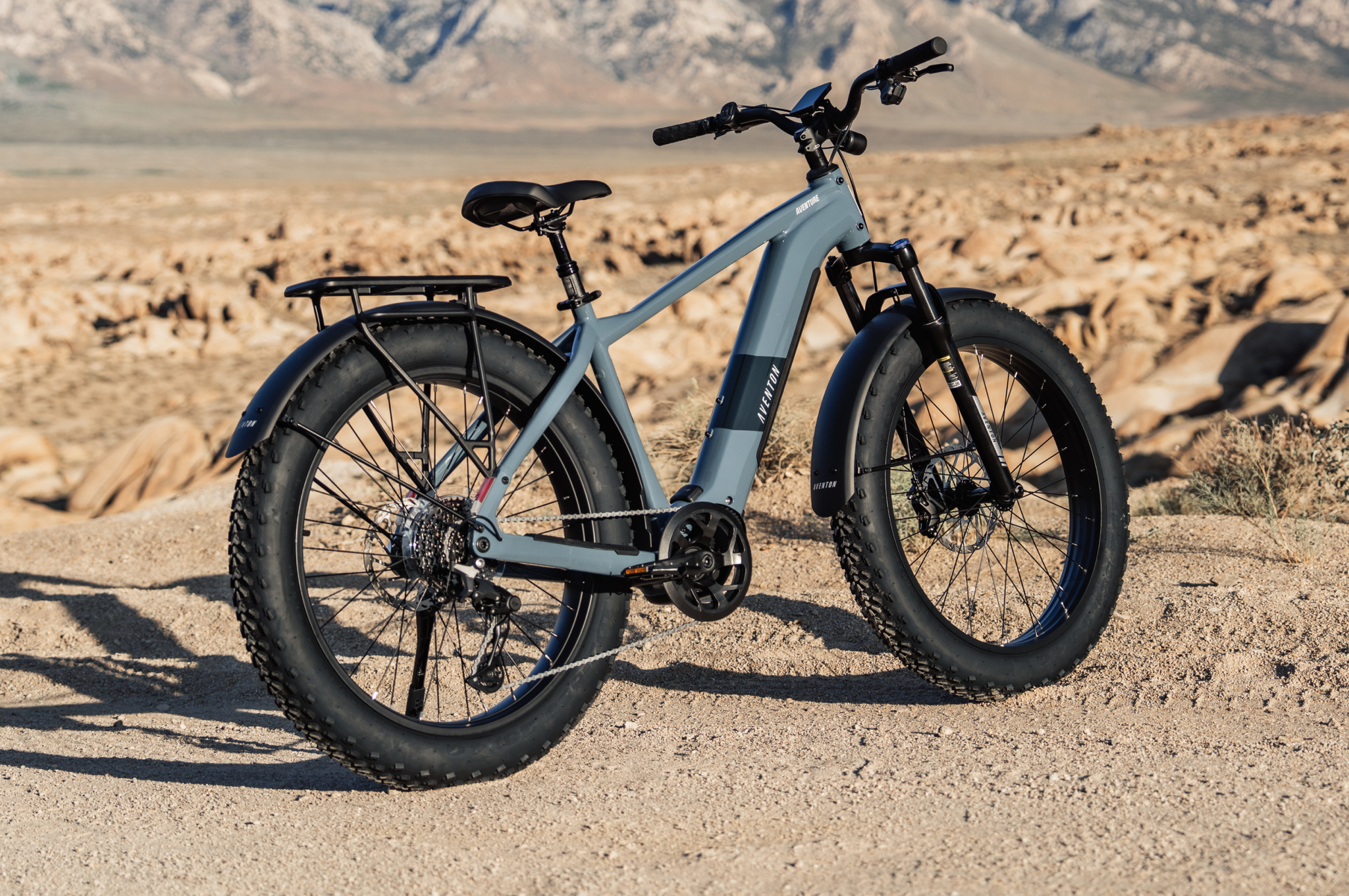

With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.
Aventon
| Frame Size | Regular | Large |
| Top Tube Length | 604mm | 604mm |
| Reach | 375mm | 375mm |
| Head Tube Length | 140mm | 140mm |
| Standover Height | 665mm | 713mm |
| Wheelbase | 1141mm | 1141mm |
| Min Saddle Height | 860mm | 940mm |
| Max Saddle Height | 980mm | 1060mm |

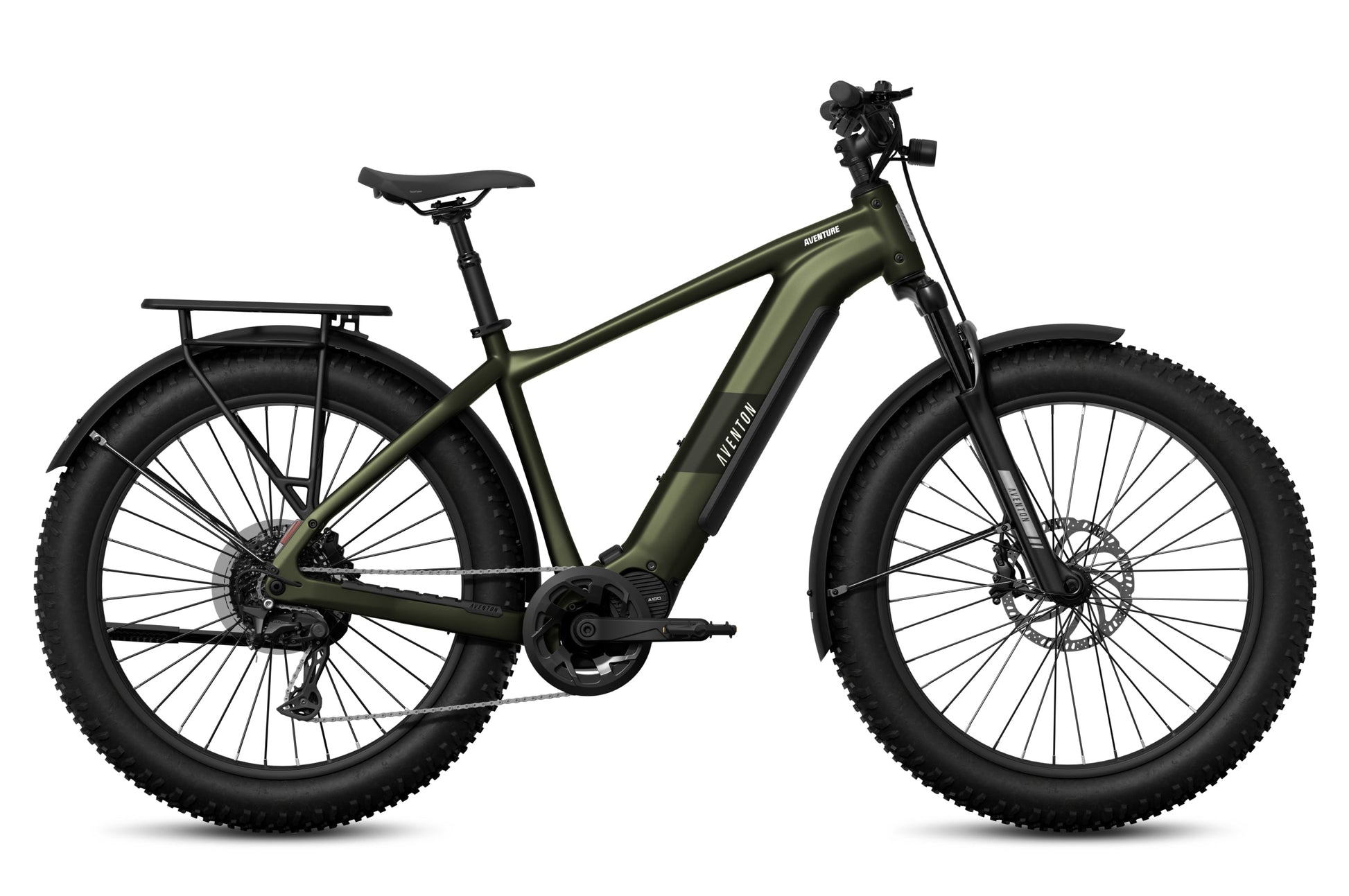

SKU: 1E037-0074303
With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.
| Frame Size | Regular | Large |
|---|---|---|
| A - Seat Tube Length | 430mm (16") | 480mm (18") |
| B - Top Tube Length Horizontal | 605mm (23") | 643mm (25") |
| C - Bottom Bracket Drop | 65mm (2") | 65mm (2") |
| D - Head Tube Length | 140mm (5") | 140mm (5") |
| E - Head Tube Angle | 67° | 67° |
| F - Seat Tube Angle | 72° | 72° |
| G - Rear Chainstay Length | 470mm (18") | 470mm (18") |
| H - Front Wheel Center | 693.6mm (27") | 731.5mm (28") |
| I - Wheelbase | 1156mm (45") | 1194mm (47") |
| J - Reach | 390mm (15") | 428mm (16") |
| K - Stack Height | 663mm (26") | 663mm (26") |
| L - Fork Length | 525.3mm (20") | 525.3mm (20") |
| M - Fork Offset | 43mm (1") | 43mm (1") |
| N - Trail | 102.5mm (4") | 102.5mm (4") |
| Wheel Size in Inches | 26" x 4.0" | 26" x 4.0" |
| Rider Height (Range) | 160cm - 175cm (5'3" - 5'10") | 175cm - 195cm (5'10" - 6'4") |
