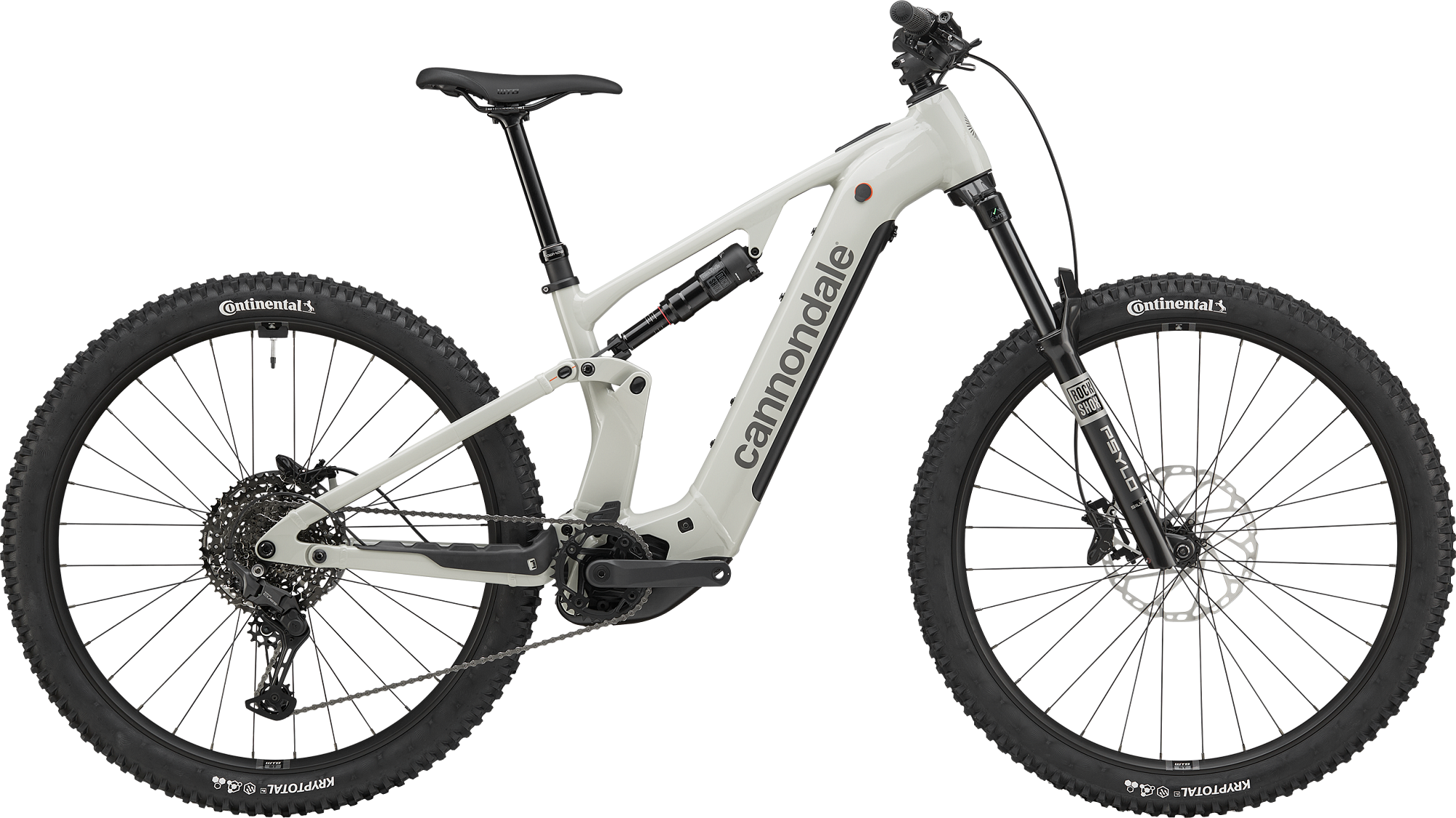

Moterra 3
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
  • Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power

Cannondale

Moterra 3

$5,899.00

Size Guide

Jump to: MOUNTAIN | GRAVEL | ROAD | ELECTRIC | FITNESS

Mountain Bikes

Trail

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'3" - 5'8"
160 - 172
  5'7" - 6'0"
170 - 182 		  5'11" - 6'3"
180 - 190
XS S M L XL

Trail Women's

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182
XS S M L

Trail SE

5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182 		  6'0" - 6'3"
182 - 190
S M L XL

Habit, Habit HT

5'0" - 5'2"
142 - 157
 5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
XS S M L XL

Scalpel, Scalpel SE, Scalpel HT

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Jekyll

5'2" - 5'5"
157 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Moterra, Moterra LT, Moterra SL

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'1"
172 - 185 		  6'0" - 6'5"
182 - 195
S M L XL

Gravel

Topstone, Topstone Carbon

4'10" - 5'5"
147 - 165		 5'3" - 5'9"
160 - 175		 5'7" - 6'1"
170 - 185		  5'10" - 6'4"
177 - 193		  6'0" - 6'8"
182 - 203
XS

 S M L XL

SuperSix EVO SE, SuperSix EVO CX

5'0" - 5'4"
152 - 162
 5'5" - 5'9"
165 - 175
 5'7" - 5'11"
170 - 180
  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
46cm

 51cm 54cm 56cm 58cm

Road

Synapse

5'0 - 5'4"
152 - 162
 5'2" - 5'6"
157 - 167 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
175 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'8"
190 - 203
44cm 48cm
 		 51cm 54cm 56cm 58cm 61cm

SuperSix Evo

5'1 - 5'5"
154 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'7"
190 - 200
44cm
48cm
 		 51cm 54cm 56cm 58cm 61cm

SystemSix

5'3 - 5'7"
160 - 170
 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		 5'10" - 6'2"
177 - 187 		  6'10" - 6'4"
182 - 193		  6'2" - 6'6"
187 - 198 		 6'5" - 6'9"
195 - 205
47cm 51cm
 		 54cm 56cm 58cm 60cm 62cm

CAAD Optimo

5'2" - 5'5"
157 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
44cm 48cm
 		 51cm 54cm 56cm 58cm

CAAD13

5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'4" - 5'9"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'2" - 6'6"
187 - 198
48cm
 		 51cm 54cm 56cm 58cm
60cm

Fitness, Urban & Comfort

Adventure, Adventure EQ

4'11" - 5'6"
149 - 167		 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187
S M L

Quick, Quick Women's, Quick Remixte

4'10 - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170 		 5'5" - 5'10"
165 - 177 		 5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
XS S
 		 M L XL XXL

Quick CX

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
 5'9" - 6'2"
175 - 187
  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
S

 M L XL XXL

Quick CX Women's

4'10" - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170
  5'5" - 5'10"
165 - 177
XS S M

Bad Boy

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195
S M L XL

Treadwell, Treadwell EQ

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L

Treadwell Remixte, Treadwell EQ Remixte

4'11" - 5'6"
149 - 167
  5'4" - 6'0"
162 - 182
S L

Electric

Adventure Neo, Adventure Neo EQ

4'11" - 5'7"
149 - 170
  5'7" - 6'6"
170 - 198
S L

Adventure Neo Allroad, Adventure Neo Allroad Low StepThru

5'0" - 5'7"
152 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'5"
175 - 195
S M L

Compact Neo

4'5" - 6'1"
134 - 185
OS

Tesoro Neo SL, Tesoro Neo SL Remixte

5'4" - 5'8"
162 - 172
 5'7" - 6'0"
170 - 182
  6'0" - 6'3"
182 - 190
S M L

Treadwell Neo, Treadwell Neo Remixte

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: C65224U20SM

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Rugged, responsive, and ready for anything—Moterra 3 has everything needed to tackle big days on the trail. The 150mm travel SmartForm C1 Alloy frame, huge 800Wh battery, and Bosch’s most powerful CX motor make short work of long climbs. A 160mm RockShox Psylo Silver RC fork and Deluxe Select shock ensure a controlled, responsive ride, while Shimano CUES U6000 shifting and MT520 4-piston brakes provide reliability you can count on. Ready to roll with WTB/Shimano wheels, it’s a no-nonsense trail companion.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • RockShox’s workhorse all-mountain suspension – 160mm Psylo Silver RC fork and Deluxe Select air shock
  • Reliable WTB ST i30 rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
  • Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
  • Shimano MT520 4-piston hydraulic disc brakes with 203mm rotors deliver strong, consistent braking power
SPECIFICATIONS

Frameset

  • Frame: Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube.
  • Fork: RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, 44mm offset.
  • Rear Shock: RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm.
  • Headset: Acros ICR, 1.5" to 1.8", sealed bearings.

E-System

  • Drive Unit: Bosch Performance Line CX
  • Battery: Bosch PowerTube, 800Wh
  • Display: Bosch Purion 200
  • Charger: Bosch 4A

Drivetrain

  • Rear Derailleur: Shimano CUES U6000, LinkGlide
  • Shifters: Shimano CUES U6000, 11-speed, LinkGlide
  • Chain: Shimano LG500, LinkGlide, 11-speed
  • Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
  • Rear Cogs: Shimano CUES LG400, LinkGlide, 11-50, 11-speed

Brakes

  • Brakes: Shimano MT520 4-piston hydraulic disc
  • Rotors: 203mm RT64 rotors
  • Brake Levers: Shimano MT501 hydraulic disc

Wheels

  • Rims: WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
  • Hubs: (F) Shimano TC500, 15x110mm / (R) Shimano TC500, 12x148mm
  • Tires: Continental Kryptotal-F (Front) and Kryptotal-R (Rear), 29x2.4", Enduro Soft Compound
  • Spokes: DT Swiss Champion 2.0

Components

  • Handlebar: Cannondale 3 riser, 6061 Alloy, 25mm rise, 800mm width
  • Stem: Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
  • Grips: Cannondale TaperRidge
  • Saddle: WTB Silverado Medium
  • Seatpost: Cannondale DownLow Dropper, 34.9mm (Travel: S-150mm, M-170mm, L-200mm, XL-230mm)

Extras

  • Compatibility: Bosch PowerMore range extender compatible
  • Mounts: Integrated rear rack, fender mounts, and 40mm two-bolt kickstand compatible

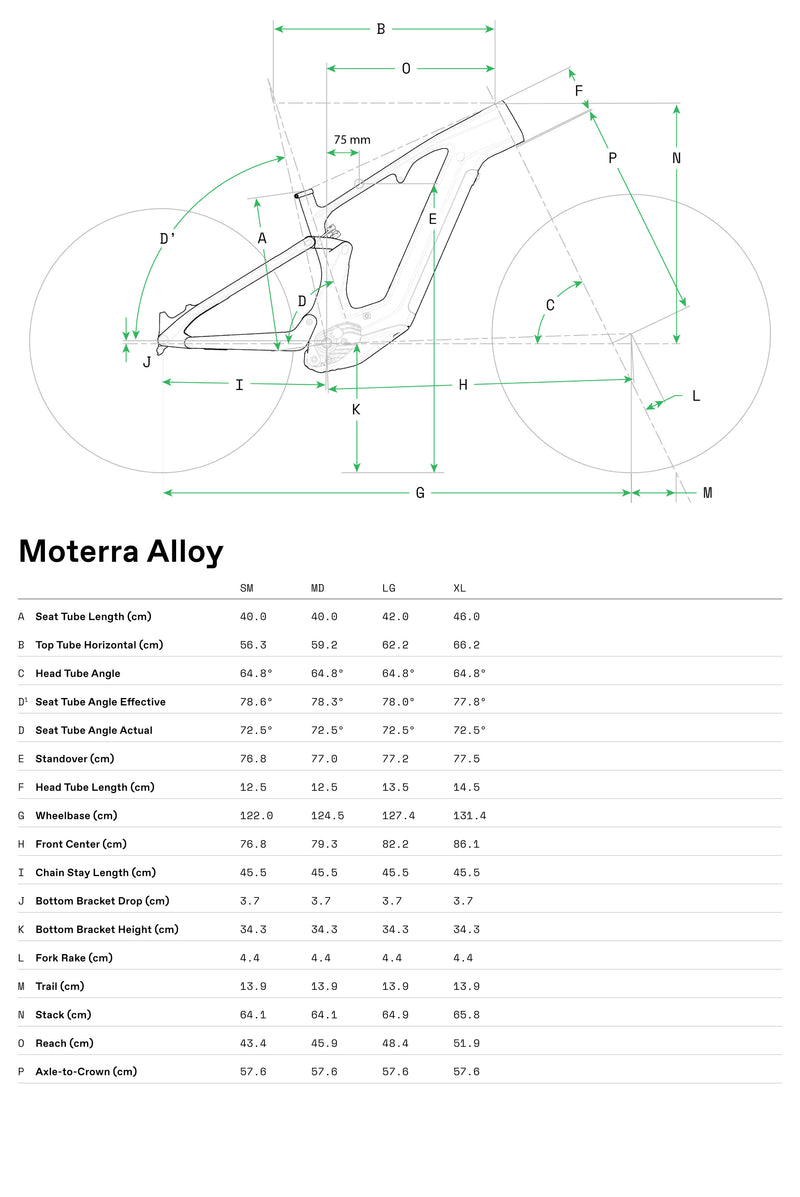

GEOMETRY

See the Moterra 3 in Action
