Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

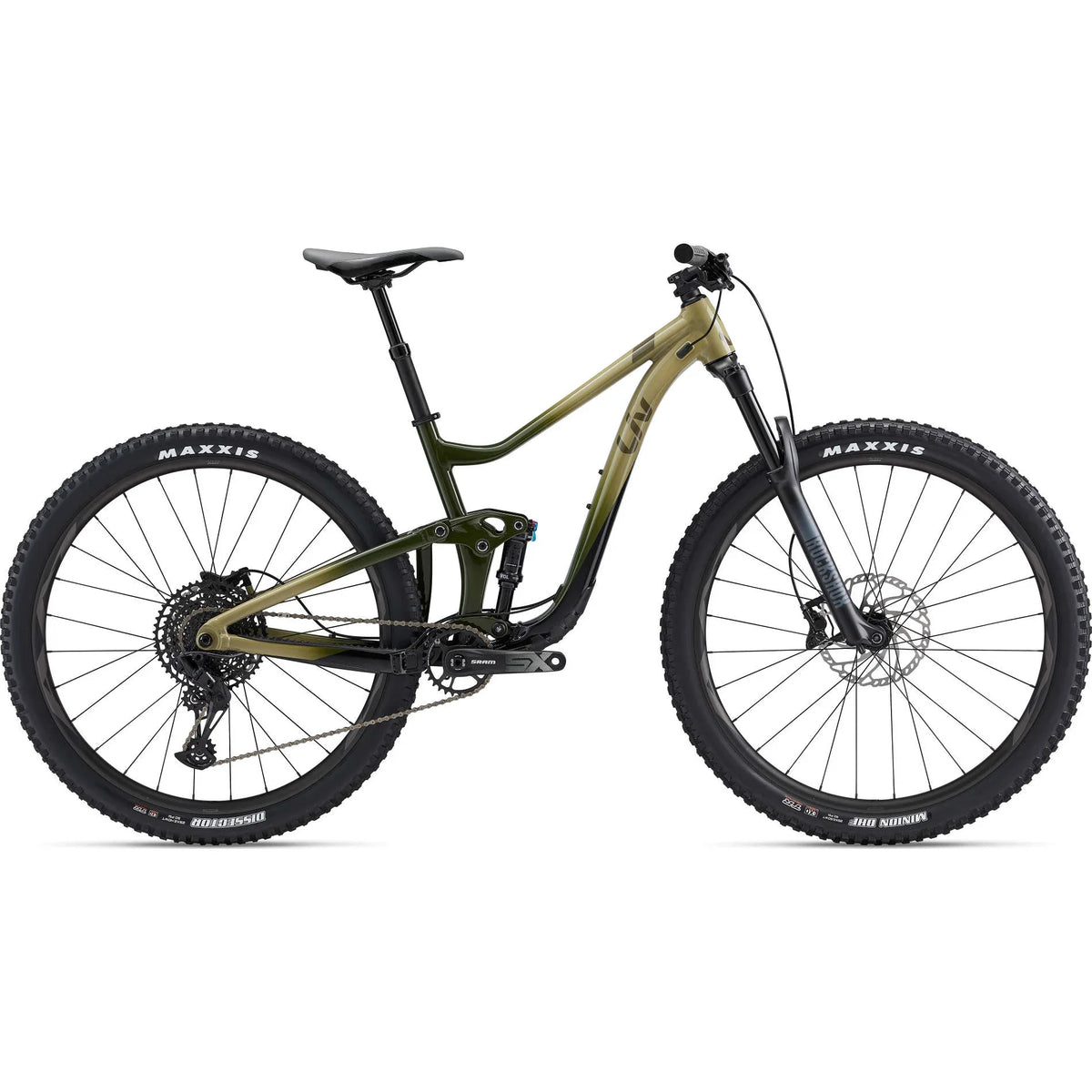

Hey there adventure seekers and mountain mavens! Get ready to blaze your own trails with the Intrigue 2 29 Women's Mountain Bike - the ultimate ride for those who prefer the rowdy side of life!
This bad boy is built tough and ready to take on anything you throw its way. From covering ground with ease, mowing over techy singletrack, to charging down aggressive terrain, the Intrigue 29 is the perfect companion for any off-road excursion.
With its sleek design and powerful components, the Intrigue 2 29 will have you feeling like the queen of the mountain. So get ready to conquer the great outdoors and leave your worries behind with the Intrigue 2 29 Women's Mountain Bike!
Performance Trail Geometry
The geometry of the Intrigue’s durable ALLUX SL-Grade Aluminum frame provides a stable, capable design, making it suited to tackle any terrain.
Balanced Agility
Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.
Custom Tuned Suspension
The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
Specifications
| Sizes S, M, L |
| Colors Pistachio / Rifle Green |
| Frame ALUXX SL-Grade Aluminum front and rear triangles, 125mm Maestro Suspension, flip chip |
| Fork RockShox 35 Gold RL, 140mm, Boost, 15x110, tapered, 44mm offset, custom tuned for Liv |
| Shock Fox Float DPS Performance, 185/50, custom tuned for Liv |
| Handlebar Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm |
| Grips Liv Supera, single lock ring |
| Stem Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm |
| Seatpost Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 499mm |
| Saddle Liv Sylvia |
| Pedals sold separately |
| Shifters SRAM SX Eagle, 1x12 |
| Front Derailleur N/A |
| Rear Derailleur SRAM SX Eagle |
| Brakes Tektro HD M745 |
| Brake Levers Tektro HD M745 |
| Cassette SRAM SX, 11x50 |
| Chain SRAM SX Eagle |
| Crankset SRAM SX, 30t S:170mm, M:170mm, L:170mm |
| Bottom Bracket SRAM DUB, press fit |
| Rims Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width |
| Hubs [F] alloy 15x110, sealed bearing [R] alloy 12x148, sealed bearing |
| Spokes Sapim |
| Tires [F] Maxxis Minion DHF 29x2.5WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, EXO, TR, tubeless |
| Extras tubeless prepared, max tire size 2.5", max chainring size 32t |
| WeightThe most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | |
|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| SEAT TUBE LENGTH(inch) | 16.7 | 17.1 | 18.1 |
| SEAT TUBE ANGLE | 77.0° | 77.8° | 77.0° | 77.8° | 77.0° | 77.8° |
| TOP TUBE LENGTH(inch) | 22 | 21.9 | 22.6 | 22.6 | 23.6 | 23.5 |
| HEAD TUBE LENGTH(inch) | 4.1 | 4.3 | 4.9 |
| HEAD TUBE ANGLE | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| FORK RAKE(inch) | 1.7 | 1.7 | 1.7 |
| TRAIL(inch) | 4.| 4.6 | 4.| 4.6 | 4.| 4.6 |
| WHEELBASE(inch) | 45.7 | 45.7 | 46.3 | 46.3 | 47.4 | 47.4 |
| CHAIN STAY LENGTH(inch) | 17.2 | 17.1 | 17.2 | 17.1 | 17.2 | 17.1 |
| BOTTOM BRACKET DROP(inch) | 1.6 | 1.2 | 1.6 | 1.2 | 1.6 | 1.2 |
| STACK(inch) | 24.4 | 24.2 | 24.6 | 24.3 | 25.2 | 24.9 |
| REACH(inch) | 16.3 | 16.7 | 16.9 | 17.2 | 17.| 18.1 |
| STAND OVER HEIGHT(inch) | 28.| 29.1 | 29 | 29.4 | 29.| 30.1 |
| HANDLEBAR WIDTH(inch) | 29.9 | 29.9 | 30.7 |
| STEM LENGTH(inch) | 2 | 2 | 2 |
| CRANK LENGTH(inch) | 6.7 | 6.7 | 6.9 |
| WHEEL SIZE | 29" | 29" | 29" |
