Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

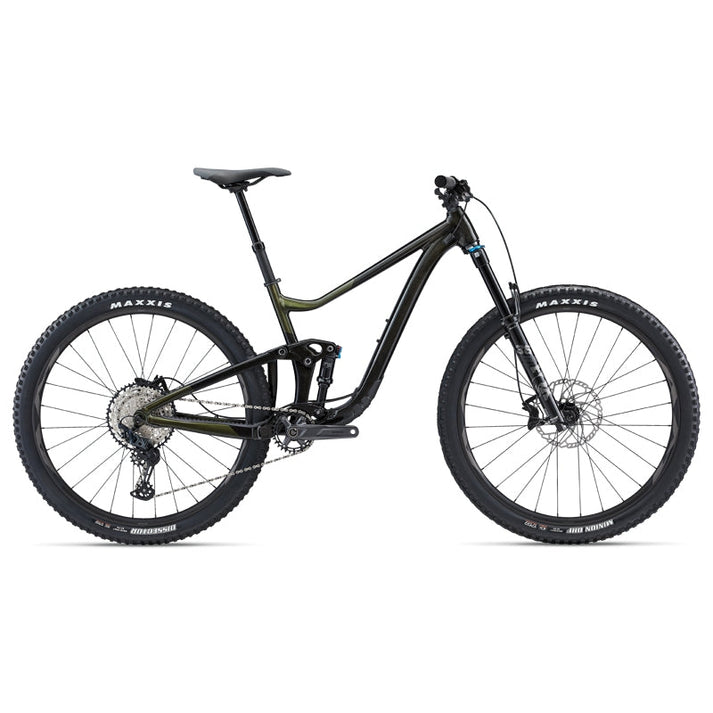

Oh boy, do we have a treat for you thrill-seekers out there! Introducing the Trance X 29 1 Mountain Bike - the ultimate hard-charging trail beast that'll have you dominating chunky rock gardens, roots, and technical climbs like a pro.
No matter what kind of singletrack you're facing, this bad boy adapts to the terrain like a chameleon on steroids, giving you the confidence and control you need to conquer even the most challenging trails.
So whether you're a seasoned pro or a newbie looking for an adrenaline rush, hop on the Trance X 29 1 and get ready to experience the ride of a lifetime!
29er confidence and control
29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tires.
Progressive suspension
Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Adjustable geometry
A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
Specifications
| Sizes S, M, L, XL |
| Colors Panther / Phantom Green / Chrome, Chameleon Blue / Black / Chrome |
| Frame ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle |
| Fork Fox 36 Float Performance, FIT4, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant |
| Shock Fox Float DPS Performance, 185/55, custom tuned for Giant |
| Handlebar Giant Contact TR35, 780x35mm, 20mm rise |
| Grips Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm |
| Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm |
| Saddle Giant Romero |
| Pedals sold separately |
| Shifters Shimano SLX SL-M7100, 1x12 |
| Front Derailleur N/A |
| Rear Derailleur Shimano SLX RD-M7100 |
| Brakes Tektro M745 |
| Brake Levers Tektro M745 |
| Cassette Shimano SLX, 10x51 |
| Chain KMC X-12 |
| Crankset Shimano M511, 30t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket Shimano, press fit |
| Rims Giant AM 29, alloy |
| Hubs alloy, sealed bearing |
| Spokes Sapim |
| Tires [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR |
| Extras tubeless prepared, 2.5" max tire size, 34t max chainring size |
| Weight The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
![ALUXX Aluminum Technology](http://bicyclewarehouse.com/cdn/shop/files/aluxxslr_500x.png?v=1715647704")
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
More Info![Maestro Suspension Technology](http://bicyclewarehouse.com/cdn/shop/files/maestro_500x.jpg?v=1717032240")
Maestro Suspension Technology
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
More Info![Tubeless System](http://bicyclewarehouse.com/cdn/shop/files/tubeless_500x.png?v=1715993078")
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info| S | M | L | XL | |
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| SEAT TUBE LENGTH (inch) | 16.9 | 16.9 | 18.3 | 19.5 |
| SEAT TUBE ANGLE | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° |
| TOP TUBE LENGTH (inch) | 22.3 | 22.2 | 23.5 | 23.4 | 24.8 | 24.7 | 25.8 | 25.7 |
| HEAD TUBE LENGTH (inch) | 3.7 | 3.9 | 4.3 | 4.7 |
| HEAD TUBE ANGLE | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAIL (inch) | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 |
| WHEELBASE (inch) | 46.2 | 47.4 | 48.8 | 49.9 |
| CHAIN STAY LENGTH (inch) | 17.2 | 17.2 | 17.2 | 17.2 |
| BOTTOM BRACKET DROP (inch) | 1.6 | 1.6 | 1.6 | 1.6 |
| STACK (inch) | 24.3 | 24.4 | 24.8 | 25.2 |
| REACH (inch) | 16.8 | 18 | 19.1 | 20.1 |
| STAND OVER HEIGHT (inch) | 28.9 | 28.7 | 29.7 | 30.6 |
| HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
| CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE | 29" | 29" | 29" | 29" |
