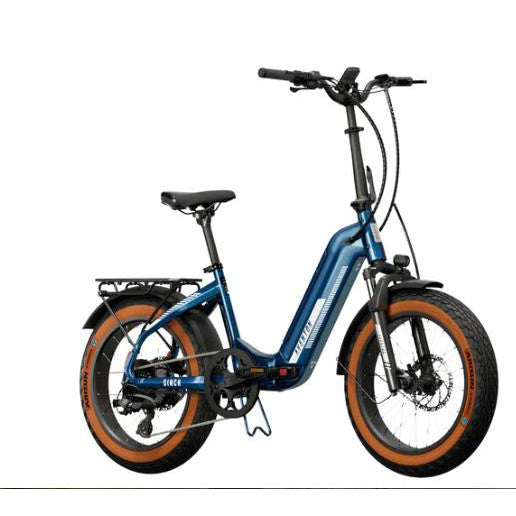

Aventon Sinch.2 Folding E-Bike
Aventon Sinch.2 Folding E-Bike
Couldn't load pickup availability
Need help?
Need help?
Size & Fit Guide
Size & Fit Guide
| Frame Size | Measurements |
| Height | 4’11" - 6’2" |
| Top Tube Length | 667mm |
| Reach | 483mm |
| Head Tube Length | 165mm |
| Standover Height | 390mm |
| Wheelbase | 1130mm |
| Minium Saddle Height | 850mm |
| Maximum Saddle Height | 1018mm |
SKU:1-AV24005
Low stock
View full details
Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.
Sinch.2 is the perfect fit for any kind of ride! Simply unfold the bike, then hit the streets or go off-road. With the addition of a torque sensor and all-new turn signal functionality there’s nowhere this bike can’t go.
Backlit LCD Display
Get real-time metrics such as speed, battery life and pedal assist level with the Full Color Display. Plus, charge your smartphone with the concealed USB port and sync to the Aventon app to connect to the larger Aventon community and share info and goals
Torque Sensor
The Sinch.2's torque sensor measures the amount of force being applied to the pedals, then provides assistance based on your efforts, creating a more natural riding experience.
Integrated Lights w/ Turn Signal Functionality
Sinch.2's front headlights allow you to see and be seen on the road, while the integrated rear lights double as turn signals that communicate to motorists or other cyclists when you're changing lanes for your safety.
Hub Motor & Battery
A 750W rear-hub (peak) motor coupled with a fast charging, fully integrated 48V battery with LG cells means there's plenty of power to hit the streets or go off-roading.
Pedal Assist & Throttle
Switch between throttle and 4 levels of pedal assist: eco, tour, sport and turbo, to get more from your foldable ebike. Reach top speeds of 20 mph and up to 55 miles in range to add excitement to your adventure.
Foldable Frame
Bring whatever you need wherever you go with the rear rack, and let the fenders protect you from water spray or mud as you make your way.
Fat Tires
Bring whatever you need wherever you go with the rear rack, and let the fenders protect you from water spray or mud as you make your way.
Fenders & Rear Rack
Bring whatever you need wherever you go with the rear rack, and let the fenders protect you from water spray or mud as you make your way.
Front Suspension
Sinch.2's front suspension with up to 45mm of travel means there's more ground to cover on the road or off-the-beaten-path.
Step-Thru Frame
Simply thread your leg through the open frame and get moving. The Sinch.2's step-through frame is easy access to the open road, and all the adventures that await.
Specifications
| MODEL | Sinch.2 Ebike |
| MOTOR | 750W (peak) 500W (sustained) 48V Brushless Hub Motor |
| THROTTLE | Throttle on demand - Throttle from a complete stop |
| DISPLAY | LCD Smart Easy Read Display with Backlight, Colorful screen with app |
| SPEED | Up to 20 MPH on Pedal Assist |
| BATTERY | Removable Internal Lithium-ion 48V 14Ah (672Wh) with LG cells |
| SENSORS | Torque Sensor |
| PEDAL ASSIST | 4 Levels |
| CHARGER | 48V 3 Amp Fast Charger, 4-5 Hour Charging |
| RANGE | Up to 55 Miles* on PAS, 22 Miles on Throttle |
| FRAME | 6061 Single-Butted Aluminum Alloy with Internal Battery |
| WEIGHT | 68lbs |
| PEDALS | 3x3.5 in. Folding Platform |
| DIMENSIONS | Bike Box: 103 cm x 54 cm x 85 cm Folded: 46” l x 28” w x 30” h Unfolded: 67” l x 23.25” w x 46*” h (*at lowest handlebar, given adjustable) |
| WEIGHT LIMIT | 300 lbs |
| REAR RACK CAPACITY | 55 lbs |
| FORK | RST GUIDE-ML-20 45mm travel, with lockout |
| BOTTOM BRACKET | Square Taper, Sealed, Torque Sensor |
| CRANKSET | 170mm w/ 52 T |
| REAR DERAILLEUR | 8 Speed |
| CASSETTE | 8 Speed |
| SHIFT LEVER | 8 Speed Trigger |
| BRAKES | Mechanical Disc Brakes |
| CHAIN | 114 Link, 8 Speed |
| RIM | Aluminum 36h Front & Rear |
| SPOKES | Black Stainless 13G Front / 12G Rear |
| TUBES | Butyl Rubber, Schrader Valve |
| HUBS | 36H Disc Nutted Front, Nutted Rear |
| TIRES | 20” x 4” Ebike Rated, Gum Sidewalls |
| SADDLE | Aventon by Velo |
| SEATPOST | Forged Alloy, 30.9mm 1-Bolt Clamp |
| STEM | Threadless Adjustable, 31.8mm, 90mm |
| SEAT CLAMP | 34.9 mm Quick Release |
| HANDLEBARS | Aluminum 31.8mm, 650mm |
| HEADSET | Sealed Bearing Headset |
| GRIPS | Sealed Bearing Headset |
Technical Overview
Sinch.2 ships as a Class II ebike, with pedal assist and throttle. Sinch.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS Eco throughout flat terrain with a rider weight of 160 lb.
