Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

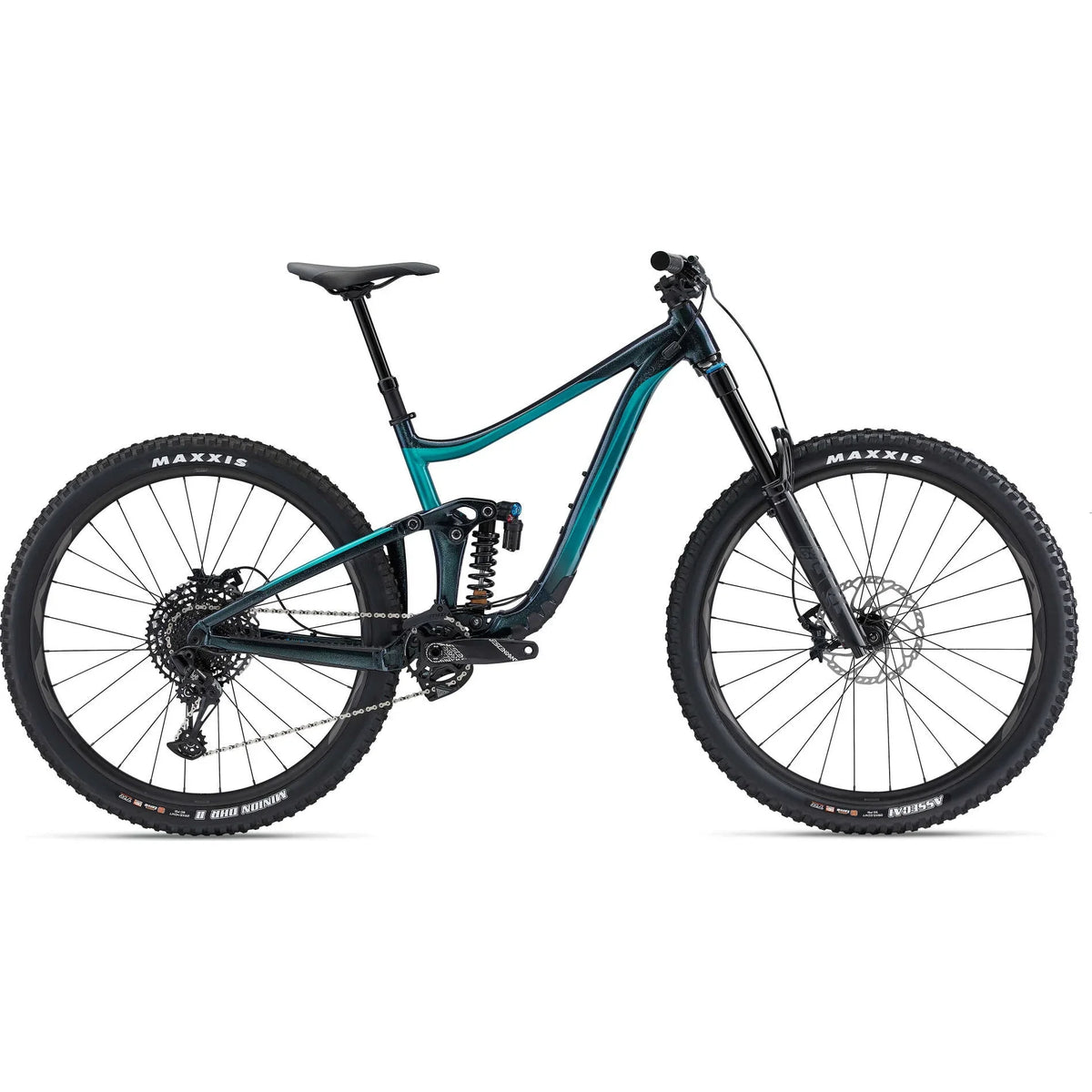

Pick your line and let it rip. From chunky alpine terrain to warp-speed park runs, this hard-charging 29er feasts on rugged terrain, giving you the confidence to charge harder.
Race-bred suspension
Maestro rear suspension and a 170mm fork developed and tested in Enduro World Series races. The trunnion mount rear shock has a longer stroke and smoother feel, and an Advanced Forged Composite upper rocker arm adds stiffness while lowering overall frame weight.
Progressive enduro geometry
A strong and durable ALUUX SL aluminum frameset helps you ride aggressive descents and rail corners with confidence. Enduro-optimized head and seattube angles, plus a 170mm fork with 44mm offset, produce confident front-end handling.
29er confidence and control
Larger 29-inch diameter wheels roll over rugged enduro terrain with improved balance and stability, giving you the momentum to crank up tough climbs and the confidence to fly on fast, technical descents.
Specifications
| Sizes S, M, L, XL | Rear Derailleur SRAM NX Eagle |
| Colors Starry Night / Jade Teal | Brakes Shimano SLX BR-M7120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]203mm |
| Frame ALUXX SL-Grade Aluminum front and rear triangles, 146mm Maestro suspension, 12x148mm thru-axle | Brake Levers Shimano SLX BL-M7100 |
| Fork Fox 38 Performance Elite, GRIP 2 damper, 44mm offset, 170mm, 15x110 Kabolt X, custom tuned for Giant | Cassette SRAM NX Eagle, 11x50 |
| Shock Fox DHX2 Performance Elite, lockout, 205/60, custom tuned for Giant S:400#, M:400#, L:450#, XL:500# | Chain SRAM NX Eagle |
| Handlebar Giant Contact SL TR35, 800x35mm, 20mm rise | Crankset TruVativ Descendent 6k, DUB, 32t S:165mm, M:170mm, L:170mm, XL:170mm |
| Grips Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm | Bottom Bracket SRAM DUB, press fit |
| Stem Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm | Rims Giant AM 29, alloy |
| Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm | Hubs Giant Boost, sealed |
| Saddle Giant Romero | Spokes Sapim |
| Pedals sold separately | Tires [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , EXO+, TR tubeless |
| Shifters SRAM NX Eagle, 1x12 | Extras tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP SXg chain guide |
| Front Derailleur N/A | Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (inch) | 17 | 17 | 18.3 | 19.5 |
| SEAT TUBE ANGLE | 76.4° | 76.4° | 76.4° | 76.4° |
| TOP TUBE LENGTH (inch) | 22.6 | 23.7 | 25.2 | 26.2 |
| HEAD TUBE LENGTH (inch) | 3.9 | 3.9 | 4.3 | 4.7 |
| HEAD TUBE ANGLE | 64.6° | 64.6° | 64.6° | 64.6° |
| FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAIL (inch) | 5.2 | 5.2 | 5.2 | 5.2 |
| WHEELBASE (inch) | 46.9 | 48 | 49.7 | 50.7 |
| CHAIN STAY LENGTH (inch) | 17.3 | 17.3 | 17.3 | 17.3 |
| BOTTOM BRACKET DROP (inch) | 1.1 | 1.1 | 1.1 | 1.1 |
| STACK (inch) | 24.5 | 24.5 | 24.8 | 25.2 |
| REACH (inch) | 16.7 | 17.8 | 19.2 | 20.1 |
| STAND OVER HEIGHT (inch) | 29.8 | 29.9 | 30.7 | 31.7 |
| HANDLEBAR WIDTH (inch) | 31.5 | 31.5 | 31.5 | 31.5 |
| STEM LENGTH (inch) | 1.6 | 1.6 | 1.6 | 1.6 |
| CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE |
