Aventon Soltera E-Bike Size & Fit
The Aventon Soltera comes in two sizes to suit most adults.
- Regular 5'3" - 5'10"
- Large 5'10" - 6'4
| Frame Size | Medium | Large |
| Height | 5'3" - 5'10" | 5'10" - 6'4" |
| Top Tube Length | 558mm | 577mm |
| Reach | 398mm | 414mm |
| Head Tube Length | 140mm | 150mm |
| Standover Height | 791mm | 828mm |
| Wheelbase | 1042mm | 1052mm |
| Min Saddle Height | 915mm | 975mm |
| Max Saddle Height | 1050mm | 1120mm |

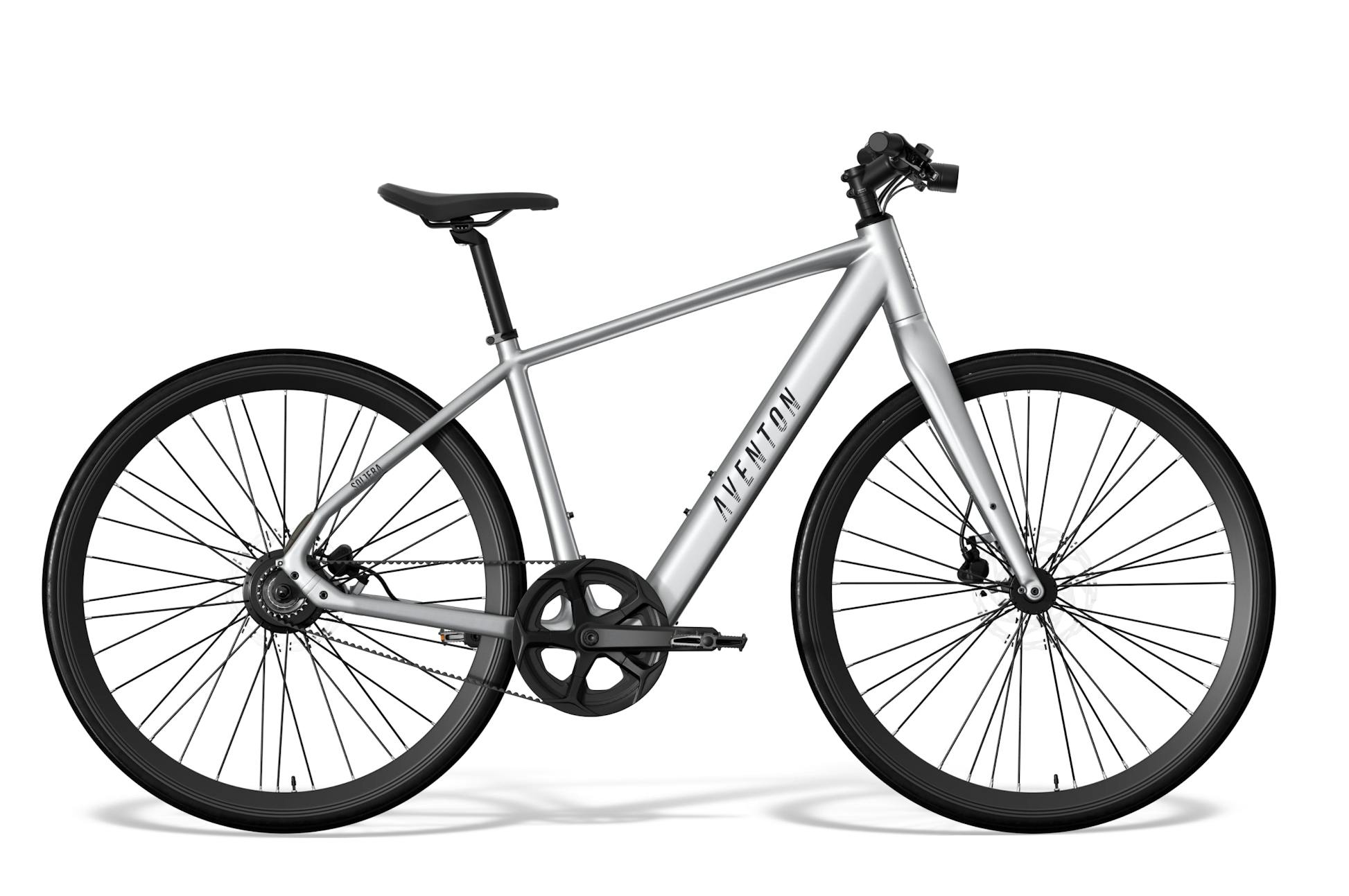

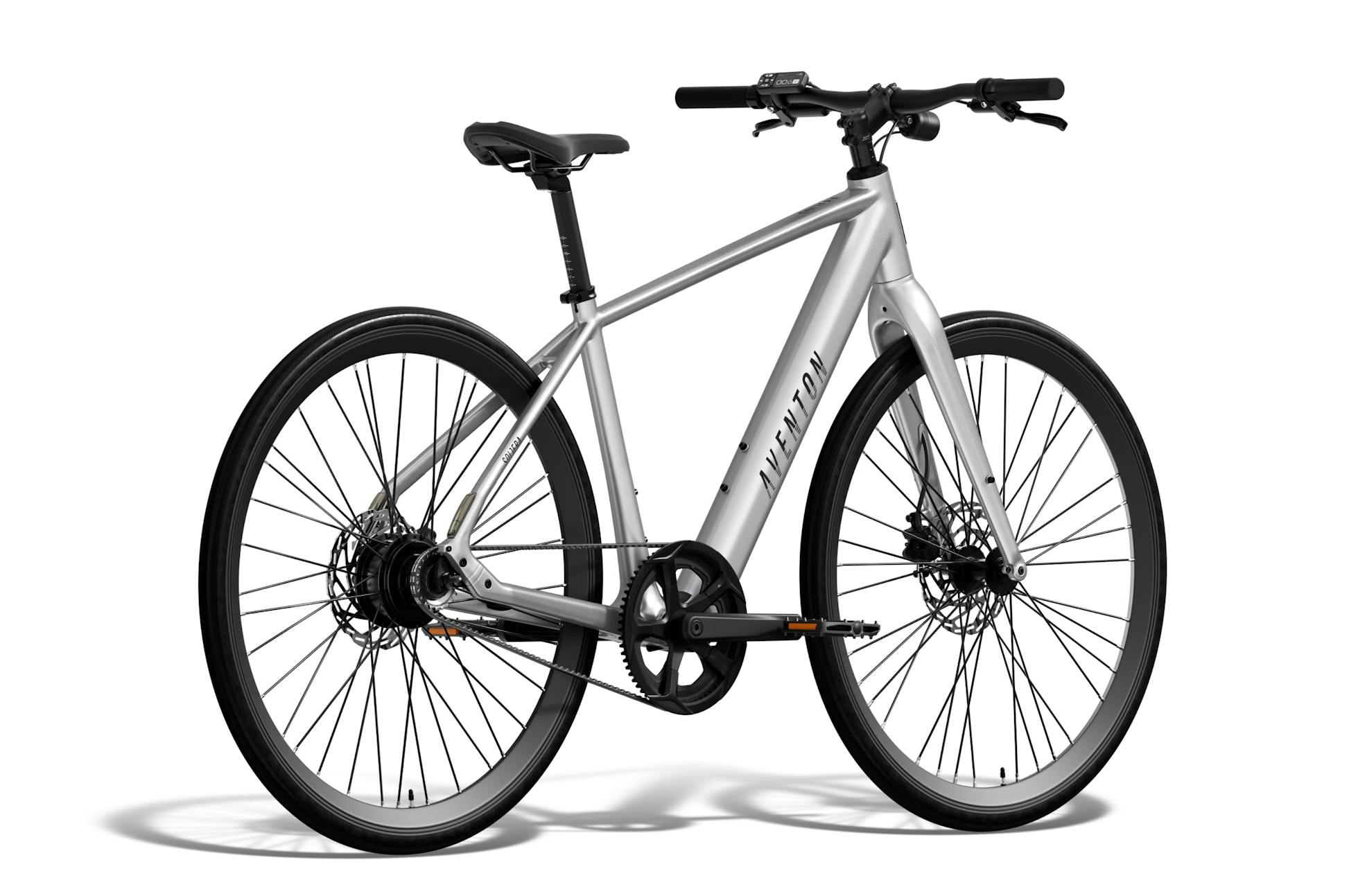

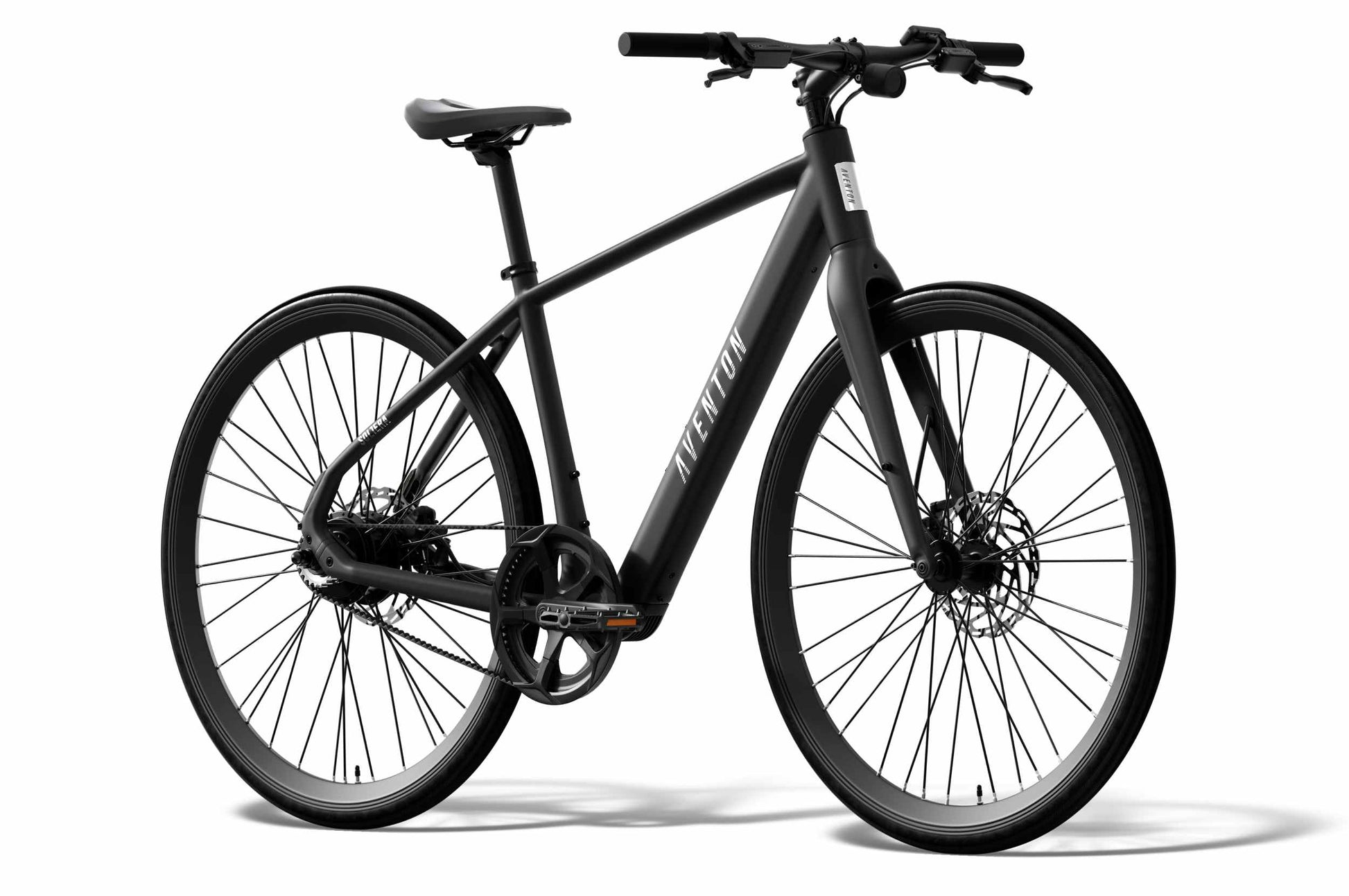

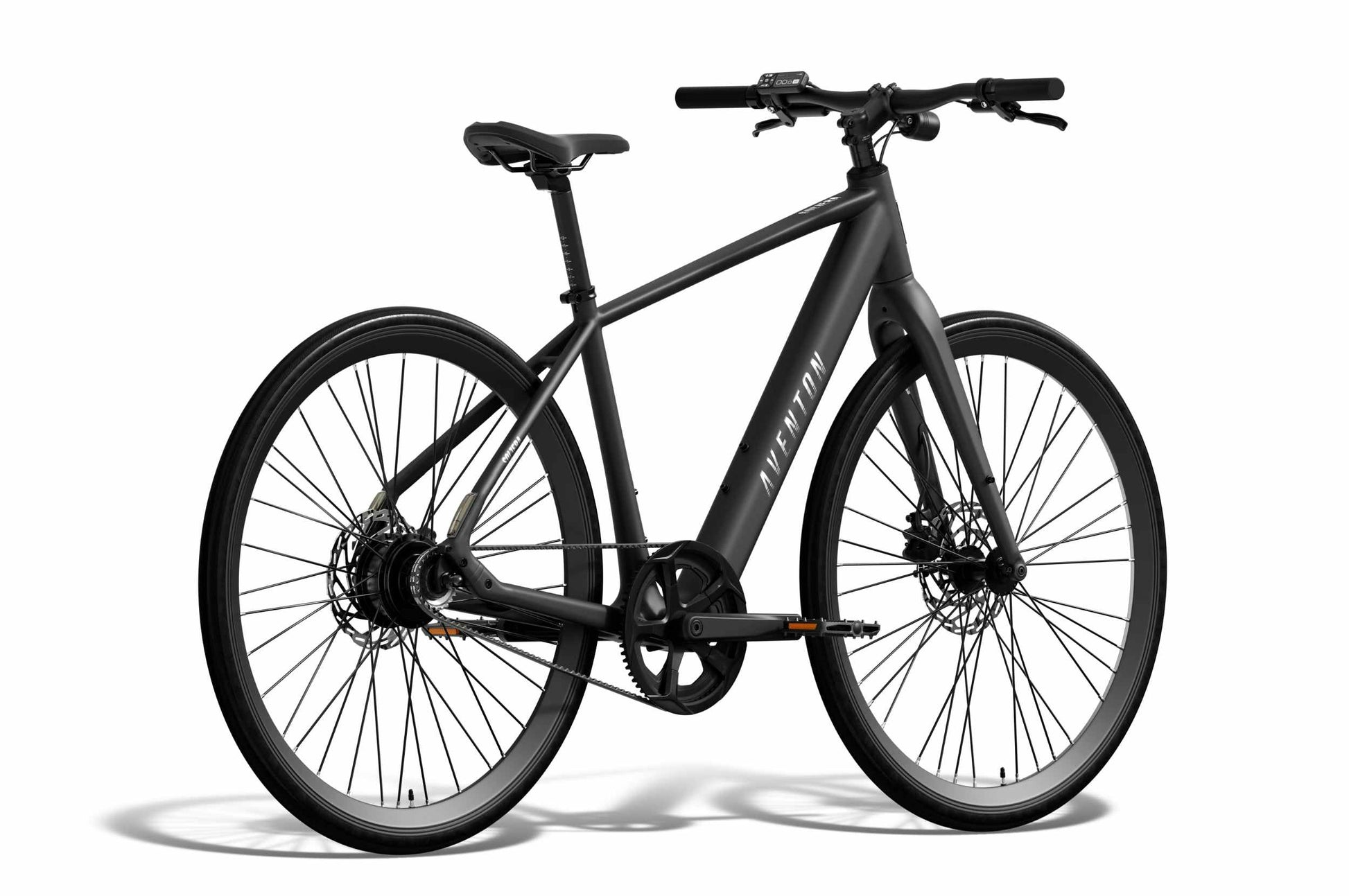

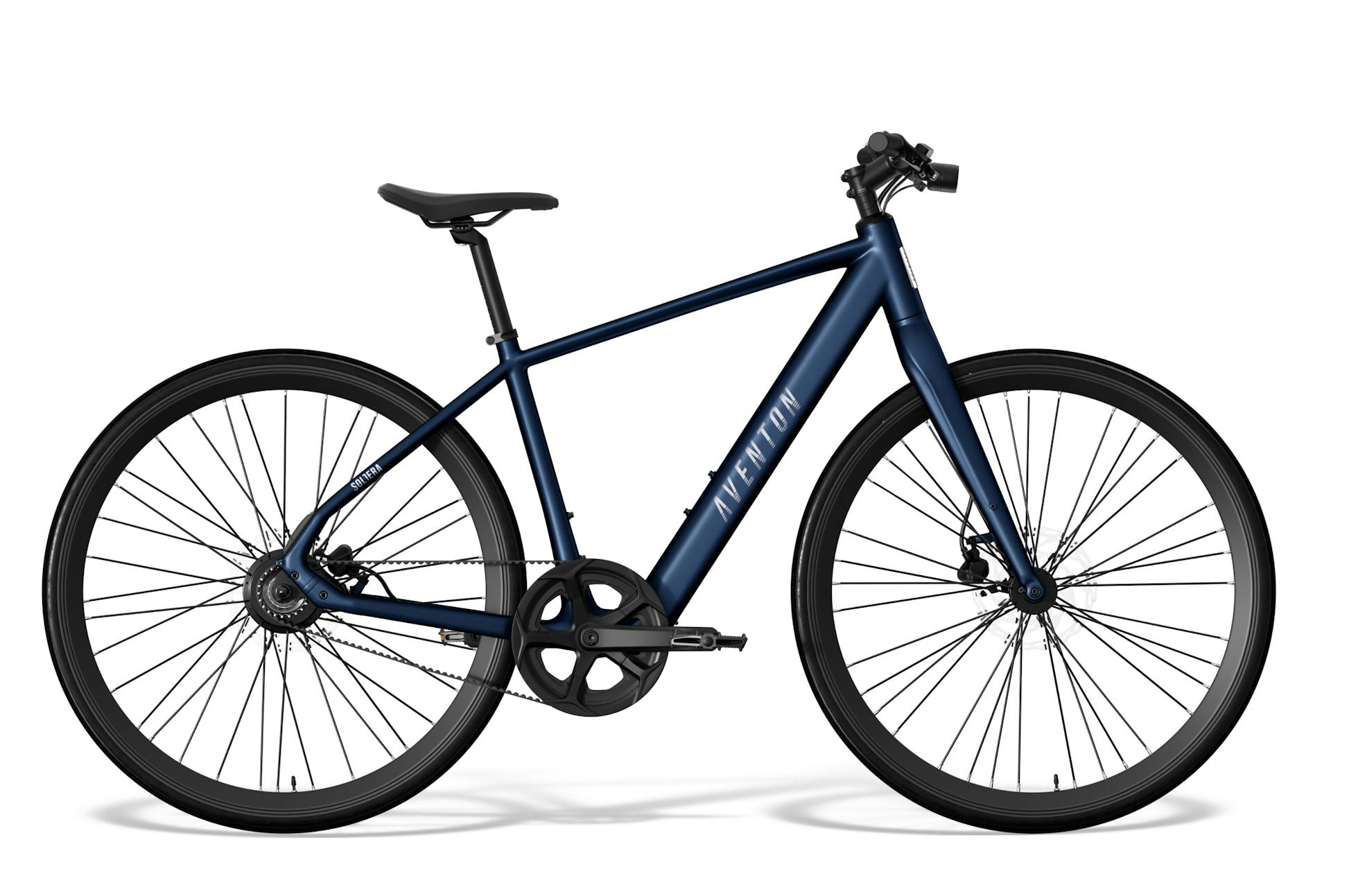

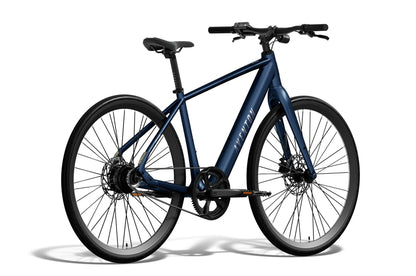

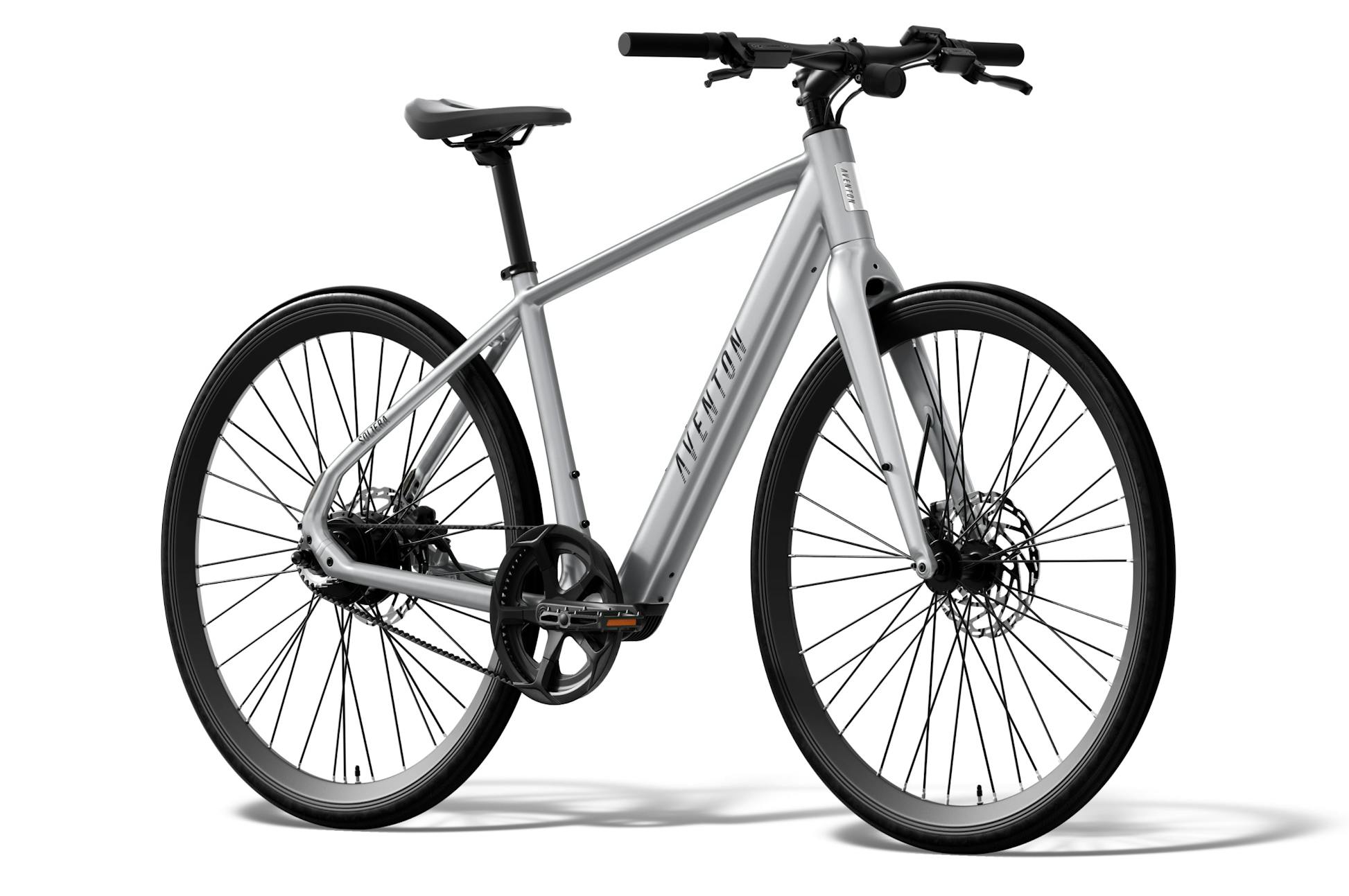

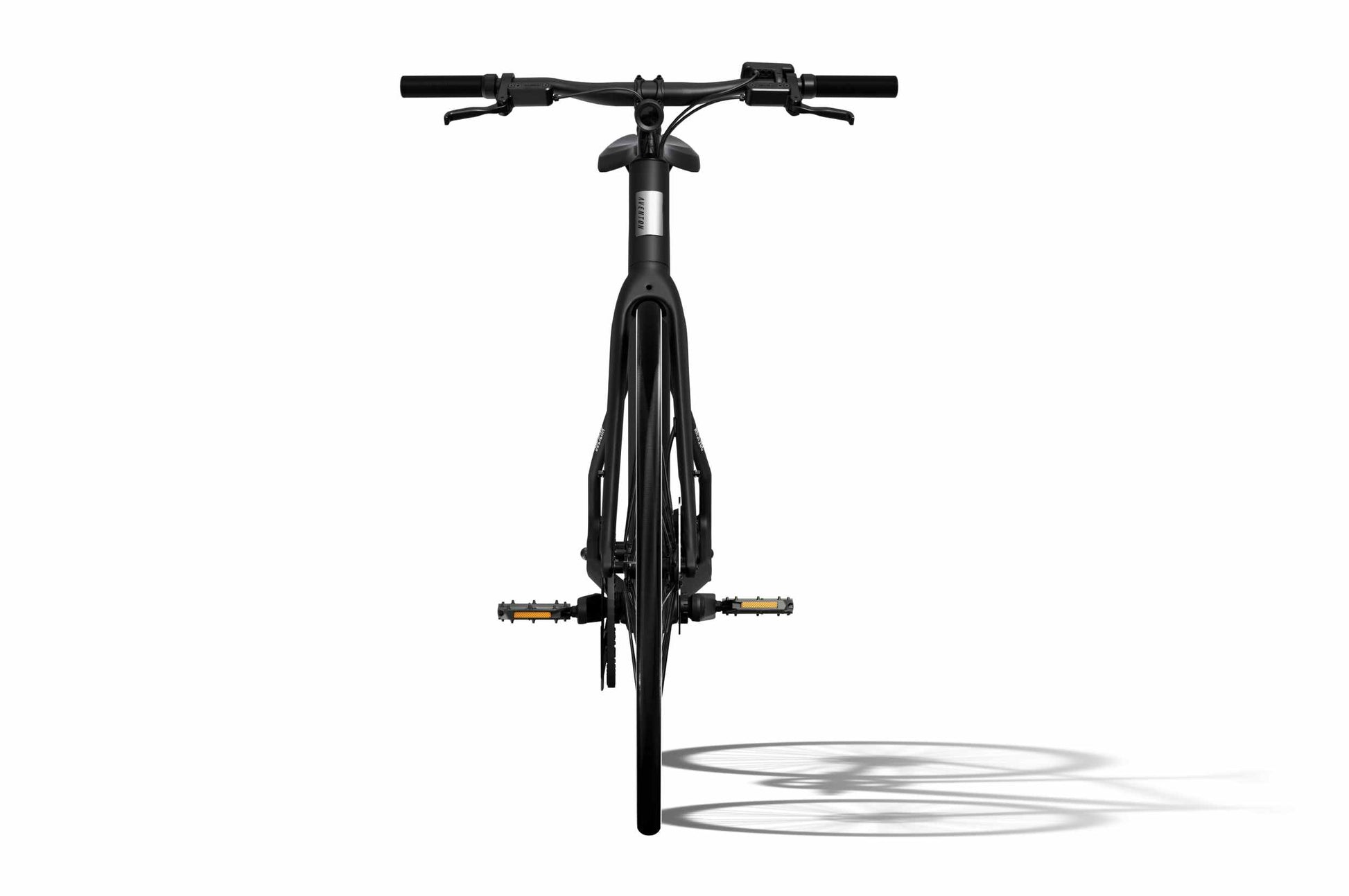

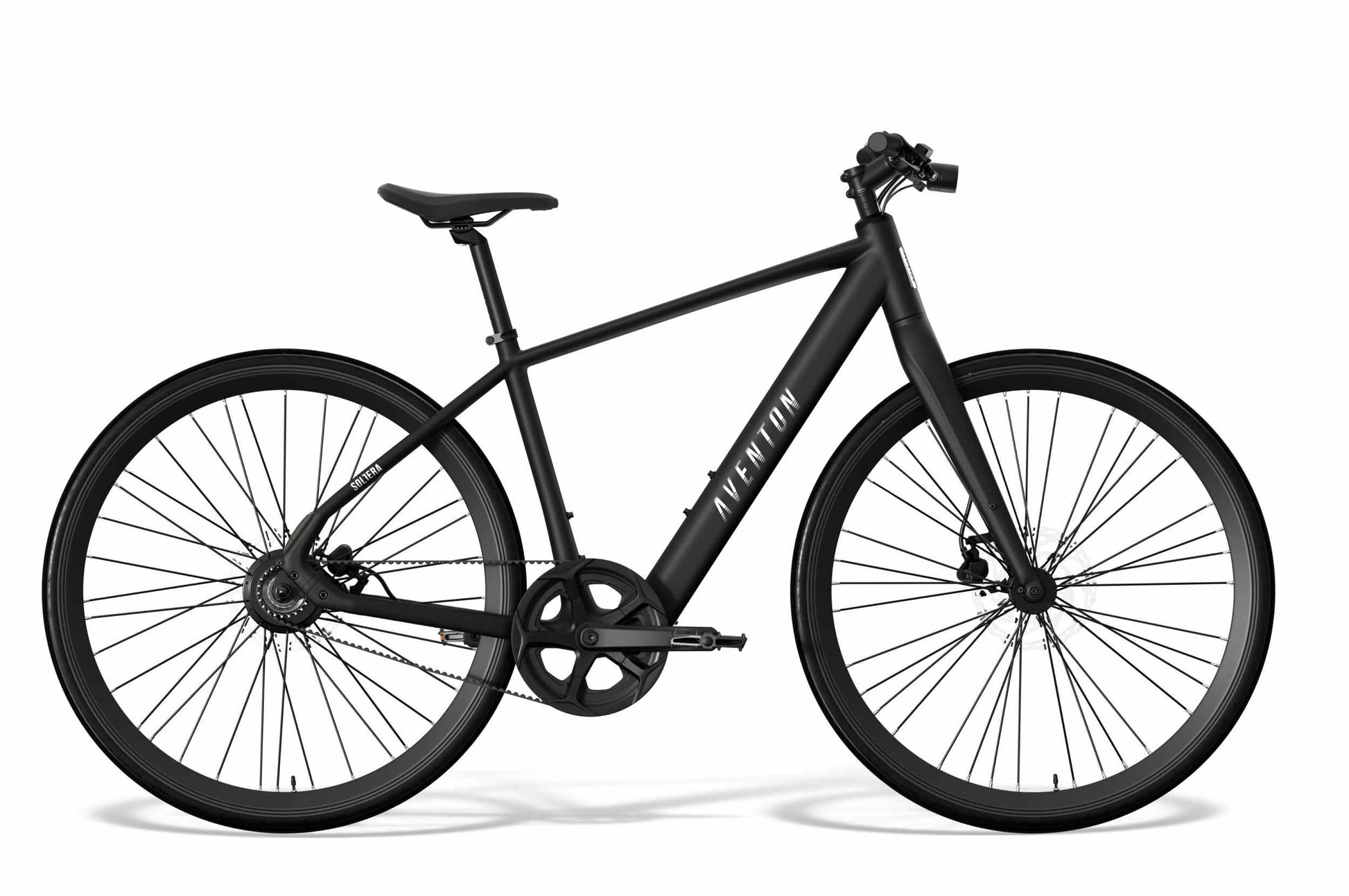

Designed in the spirit of simplicity, the Soltera 3 ADV is built to explore city streets with minimal upkeep.
Outfitted with a low-maintenance Gates Carbon Belt Drive, torque sensor, and hydraulic disc brakes, the Soltera 3 ADV blends intuitive performance with practical design. Its single-speed configuration nods to Aventon’s roots, while maintaining a lightweight build made for urban agility. Paired with responsive geometry, the Soltera 3 ADV is your ultimate companion for commutes, quick trips, and urban explorations.

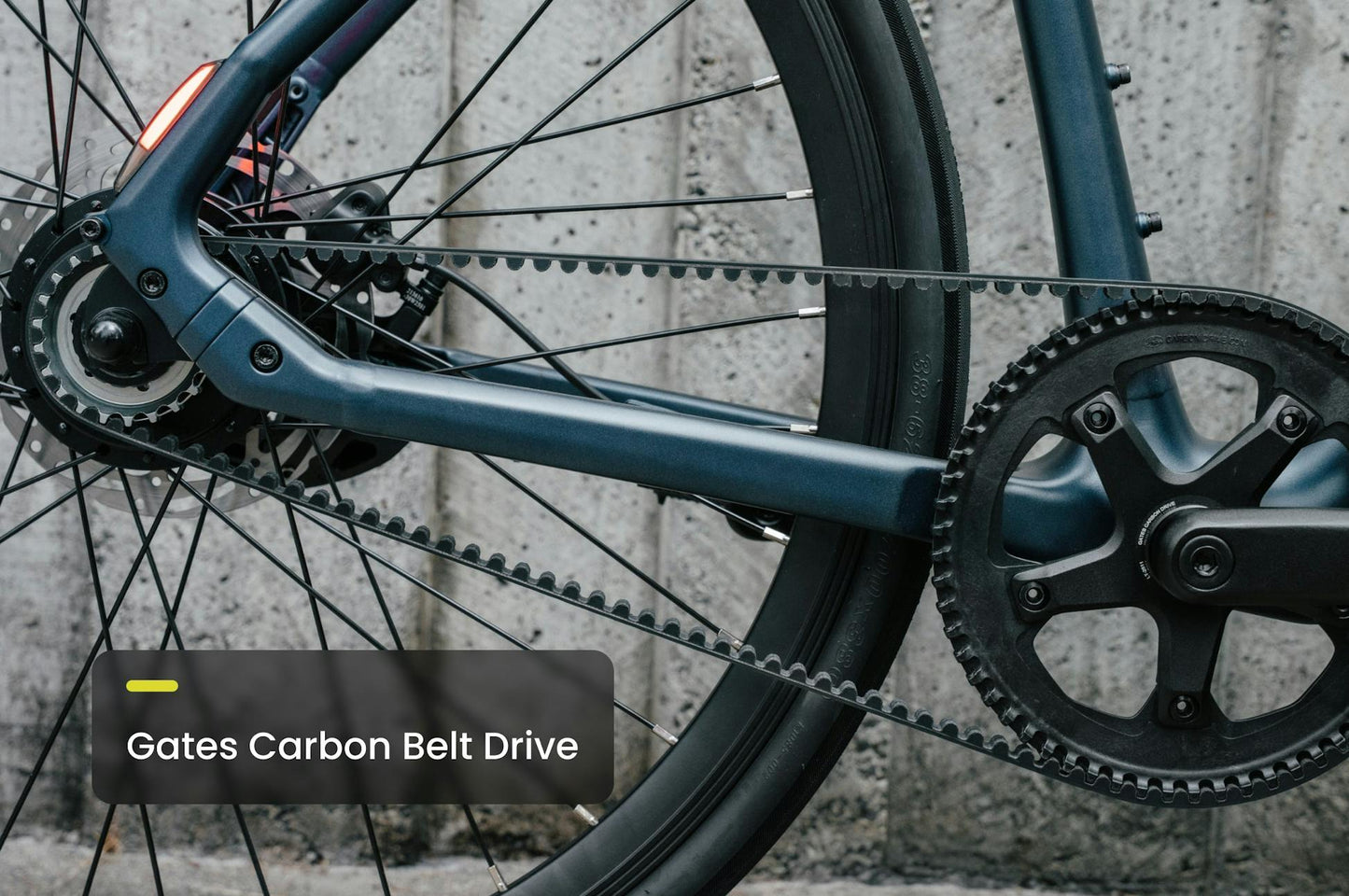

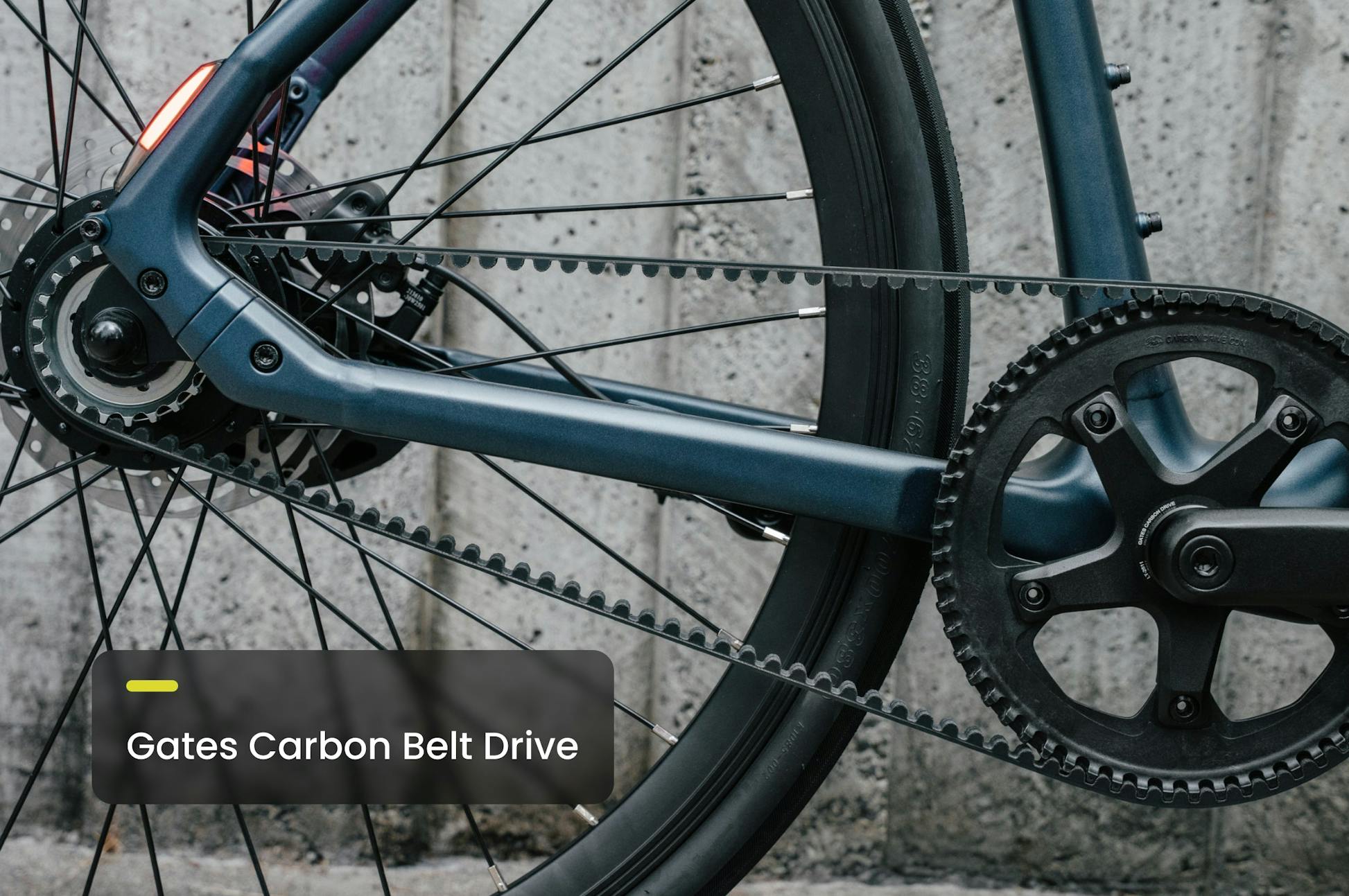

Gates Carbon Belt Drive
Clean, quiet, and maintenance-free. Unlike traditional chains, the Gates Carbon Belt Drive system doesn't require lubrication, won't rust, and will last 2-3 times longer than a traditional drivetrain

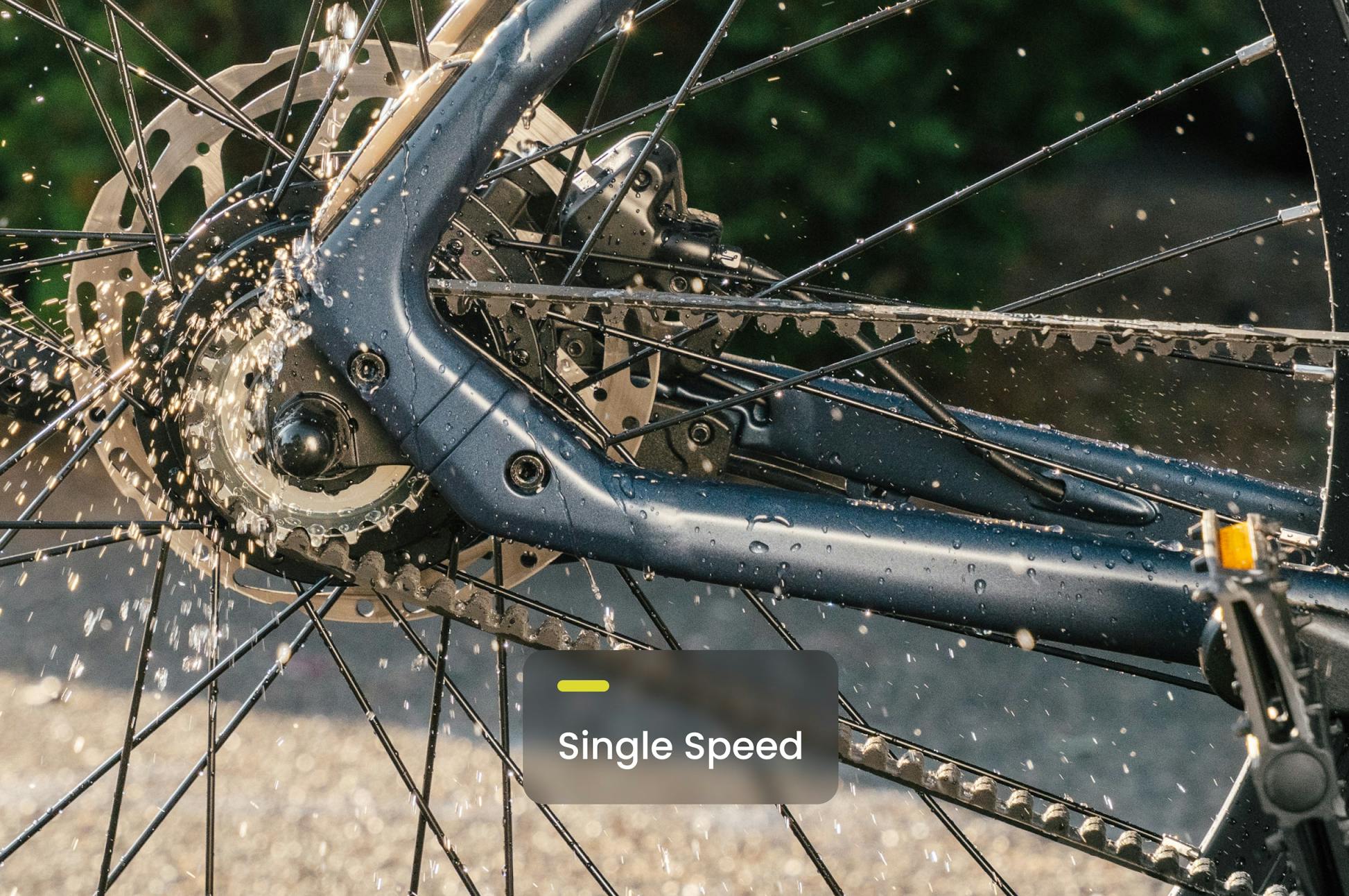

Single Speed
The single speed drivetrain offers ultimate simplicity and low maintenance riding. No shifters, derailleurs, cables, or adjustments. Just hop on and go.

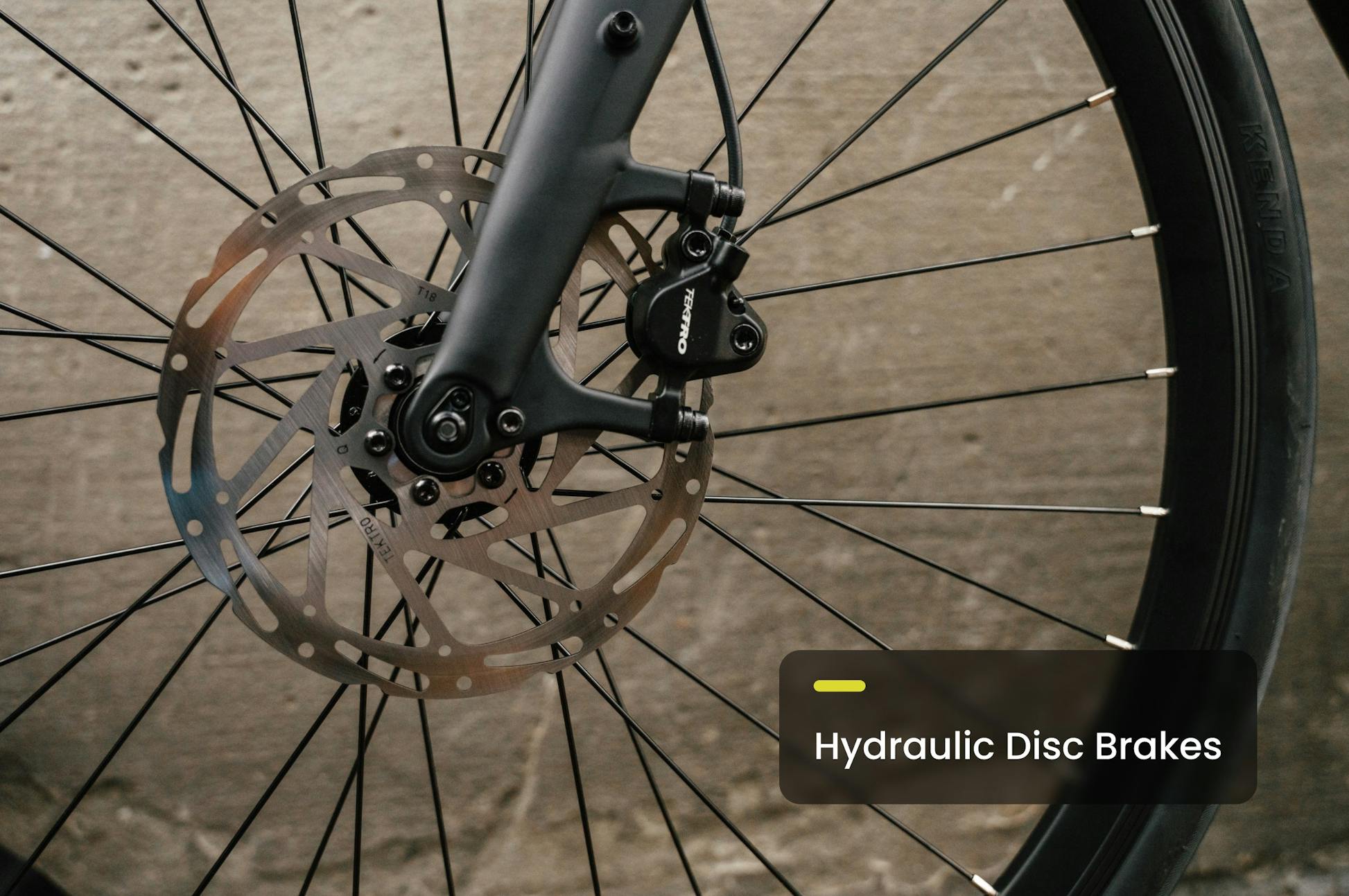

Hydraulic Disc Brakes
Enjoy a afer, more confident ride with the superior stoppping power, improved modulations, and lower maintenance offered by hydraulic disc brakes
Integrated Lights with Turn Signals
Integrated front and rear lights allow yout o see and be seen on your two-wheeled adventures. Built in turn signals give you the ability to safelty navigate city streets and communicate with surrounding road users.
Geometry
Soltera 3 ADV Ebike is available in 4 sizes to suit most adults.
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A - Seat Tube Length | 390mm (15") | 450mm (17") | 510mm (22") | 570mm (22") |
| B - Top Tube Length Horizontal | 560mm (22") | 575mm (22") | 585mm (23") | 600mm (23") |
| C - Bottom Bracket Drop | 65mm (2") | 65mm (2") | 65mm (2") | 65mm (2") |
| D - Head Tube Length | 150mm (5") | 150mm (5") | 150mm (5") | 150mm (5") |
| E - Head Tube Angle | 71° | 71° | 71° | 71° |
| F - Seat Tube Angle | 74° | 74° | 74° | 74° |
| G - Rear Chainstay Length | 440mm (17") | 440mm (17") | 440mm (17") | 440mm (17") |
| H - Front Wheel Center | 624mm (24") | 639mm (25") | 649mm (25") | 660mm (26") |
| I - Wheelbase | 1048mm (41") | 1063mm (41") | 1074mm (42") | 1085mm (42") |
| J - Reach | 390mm (15") | 405mm (15") | 420mm (16") | 435mm (17") |
| K - Stack Height | 580mm (22") | 605mm (23") | 620mm (24") | 640mm (25") |
| L - Fork Length | 428.5mm (16") | 428.5mm (16") | 428.5mm (16") | 428.5mm (16") |
| M - Fork Offset | 43mm (1") | 43mm (1") | 43mm (1") | 43mm (1") |
| N - Trail | 74mm (2") | 74mm (2") | 74mm (2") | 74mm (2") |
| Wheel Size | 700x38c | 700x38c | 700x38c | 700x38c |
| Stand Over Height (Inseam) | 74cm (29") | 77cm (30") | 81cm (32") | 85cm (33.5") |
| Rider Height (Range) | 155cm - 165cm (5'1" - 5'5") | 165cm - 175cm (5'5" - 5'9") | 175cm - 187cm (5'9" - 6'1") | 187cm - 200cm (6'1" - 6'4") |
