Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

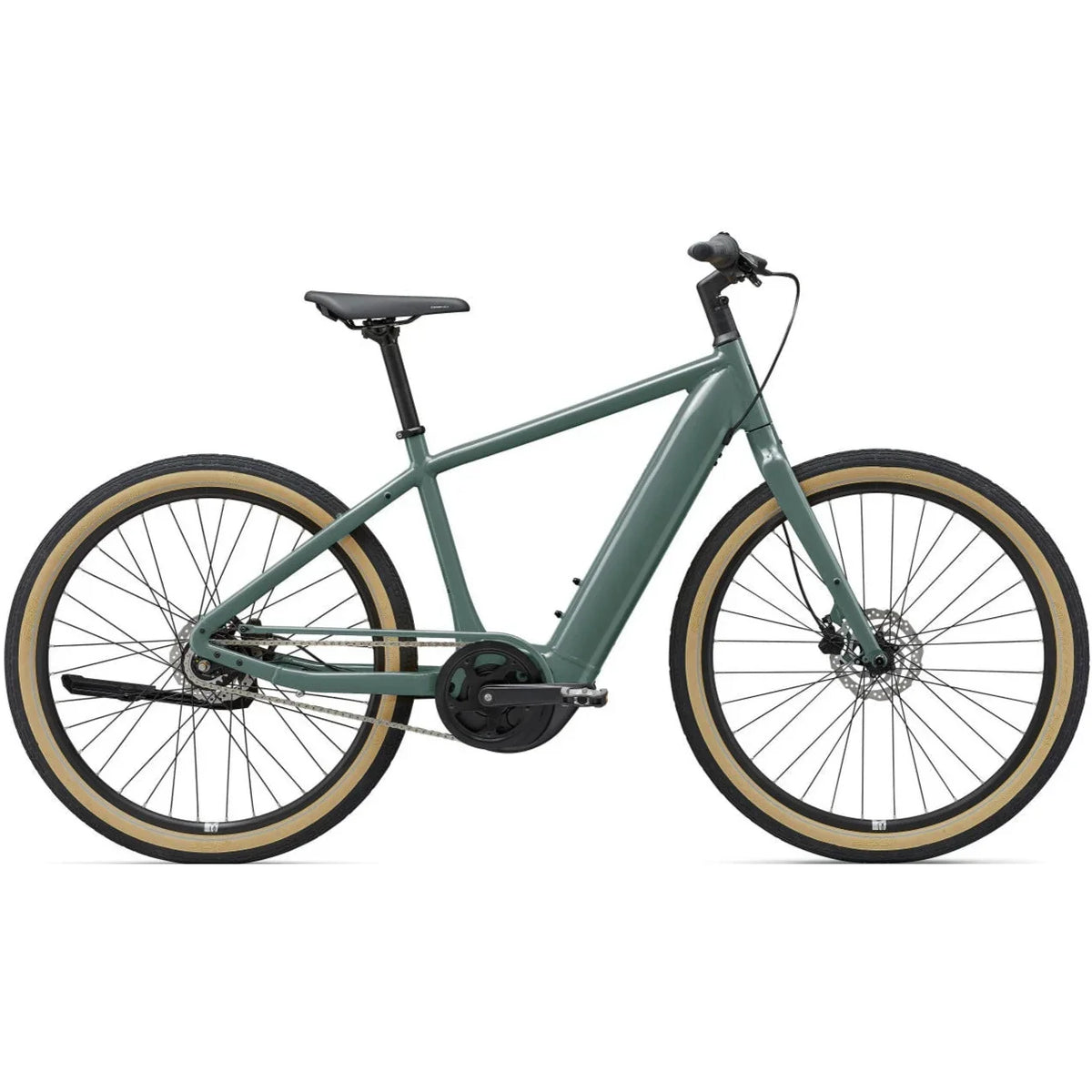

Looking for a way to inject some excitement into your daily commute? Look no further than the Transend E+ GTS 28MPH E-Bike! This electric commuter bike is the perfect way to add a little adventure, exercise, and fun into your daily routine.
With its powerful SyncDrive Life motor and integrated battery pack, the Transend E+ gives you a seamless boost of pedaling power, so you can ride farther and faster with less effort. Plus, with a range of support modes to choose from, you can customize your ride to suit your fitness level and the distance you need to travel.
But that's not all – the Transend E+ also comes with the Giant E-Bike app, which makes it easy to access navigation functions, fitness info, and support modes. So whether you're looking to take a leisurely ride through the park or get across town in a flash, this e-bike has got you covered.
So why settle for a boring, crowded train or bus when you can kick off a new commuting routine that's healthy, exciting, and downright fun? Try the Transend E+ GTS 28MPH E-Bike today and make daily transportation the highlight of your day!
FEATURES:

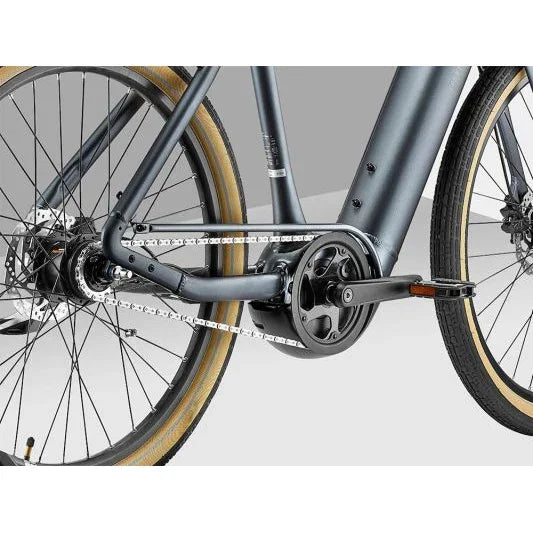

- Mid-Drive Motor: SyncDrive Life motor features Smart Assist technology with six sensors to calculate torque, cadence, slope, and speed and deliver smooth, powerful pedaling assistance.
- Integrated Battery: The in-tube EnergyPak500 battery design with 250W mid-frame motor.
- Internal Geared Hub: Integrated gear changing for smooth, worry-free shifting.
- Six Levels of Support: Choose from Eco, Eco+, Normal, Sport, Sport+, and Auto Assist modes for max assist speed up to 28mph.
- Plush Saddle: Selle Royal Essenza saddle provides long-lasting comfort and support.
- Hydraulic Disc Brakes: Tektro brakes with 160mm rotors provide optimal control and stopping power in all conditions.
- Wide Gear Range: 7-Speed Shimano Nexus drivetrain makes it easy to choose the perfect gear for flat or hilly terrain.
- Grippy Tires: High-volume 2.2-inch tires offer confident handling on smooth or rough roads.
- Chainguard: Protects clothing from chain dirt and grime.
Specifications
|
Motor |
60Nm torque, 250W Mid Drive Motor, power by YAMAHA, SyncDrive Life motor |
|
Controller |
RideControl One ANT+, 5 power level plus auto mode |
|
Display |
ANT+ Wireless display compatible |
|
Battery |
500Wh capacity Integrated Panasonic cell, partner with Panasonic, EnergyPak 500 |
|
Sizes |
S, M, L |
|
Colors |
Abyssal Green, Knight Shield |
|
Frame |
ALUXX aluminium, GTS (Double Diamond) |
|
Fork |
ALUXX aluminium |
|
Handlebar |
TR48A-00S1, aluminium 12D sweep back, rise 25 mm, width: 720mm |
|
Grips |
Momentum dual compound |
|
Stem |
TDS-807-8 FOV 31.8 |
|
Seatpost |
Aluminium 30.9mm |
|
Saddle |
Selle Royal Essenza Moderate |
|
Pedals |
Anti-slip |
|
Shifters |
Shimano Nexus 7sp RevoShift |
|
Brakes |
Tektro HD-M275, hydraulic disc, 160mm [F/R] |
|
Brake Levers |
Tektro HD-M275 |
|
Cassette |
18 T |
|
Chain |
KMC Z1eHX NP/NP |
|
Crankset |
Steel 42T Chain ring, 160mm crank |
|
Rims |
Momentum, 27.5 aluminum, e-bike optimized |
|
Hubs |
Shimano TX505 [F] Nexus 7 [R] |
|
Spokes |
Stainless steel |
|
Tires |
Kenda Kwick Seven.5, 27.5x2.20" |
|
Lighting |
Optional |
|
Carrier |
Optional front and/or rear |
|
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | ||
|---|---|---|---|---|
| A | Seat Tube Length (inch) | 15.7 | 18.5 | 21.5 |
| B | Seat Tube Angle | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 22.2 | 22.8 | 24.2 |
| D | Head Tube Length (inch) | 5.5 | 5.9 | 6.5 |
| E | Head Tube Angle | 69.5° | 69.5° | 69.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 |
| H | Wheelbase (inch) | 44 | 44.6 | 46 |
| I | Chain Stay Length (inch) | 19.1 | 19.1 | 19.1 |
| J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 |
| K | Stack (inch) | 22.9 | 23.2 | 23.8 |
| L | Reach (inch) | 15.5 | 15.9 | 17.2 |
| M | Stand Over Height (inch) | 28 | 29.8 | 31.9 |
| N | Handlebar Width (inch) | 28.3 | 28.3 | 28.3 |
| O | Stem Length (inch) | 2.4 | 2.4 | 3.1 |
| P | Crank Length (inch) | 6.5 | 6.5 | 6.5 |
| Q | Wheel Size | 27.5 | 27.5 | 27.5 |
