Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.
Are you ready to experience the ultimate freedom on two wheels? Look no further than the Liv Tempt E+ 3 29 Electric Mountain Bike! This bad boy isn't just a way to get from point A to point B, it's a whole new level of excitement, accessibility, and reliability rolled into one electrifying ride.
With its powerful electric motor, you can conquer any mountain or trail with ease, leaving traditional bikes in the dust. But don't worry, you won't sacrifice accessibility for power. The Liv Tempt E+ 3 29 is designed to be easy to use and suitable for all levels of riders, whether you're a seasoned pro or just starting out.
And when it comes to reliability, this bike has got you covered. Built with top-quality materials and the latest technology, you can trust that your ride will always be smooth and safe. So why settle for an ordinary bike when you can have the ultimate freedom, fun, and joy with the Liv Tempt E+ 3 29 Electric Mountain Bike?
Accessible and Reliable
The ultra-reliable EnergyPak 500Whr has an average range of 120 km with a potential to reach up to 180 km, while the EnergyPak 400Whr has an average range of 100 km and can reach 150 km*, helping you ride further to access to new trails and experiences. *Actual range depends on several factors including weight, elevation, terrain and acceleration.
Integrated Design
The easy-to-access EnergyPak side-release battery is beautifully integrated into a lightweight and durable ALUXX-Grade aluminum frame, designed and tuned for women using Liv’s women first philosophy.
Smooth Riding
SyncDrive Core motor with 50Nm torque creates a natural yet powerful ride feel.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The table below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
| Range | Extreme: 34 miles | Good: 65 miles | Ideal: 93 miles |
Specifications
| Motor SyncDrive Core, 50Nm, Powered by Yamaha | Pedals Aluminum Platform |

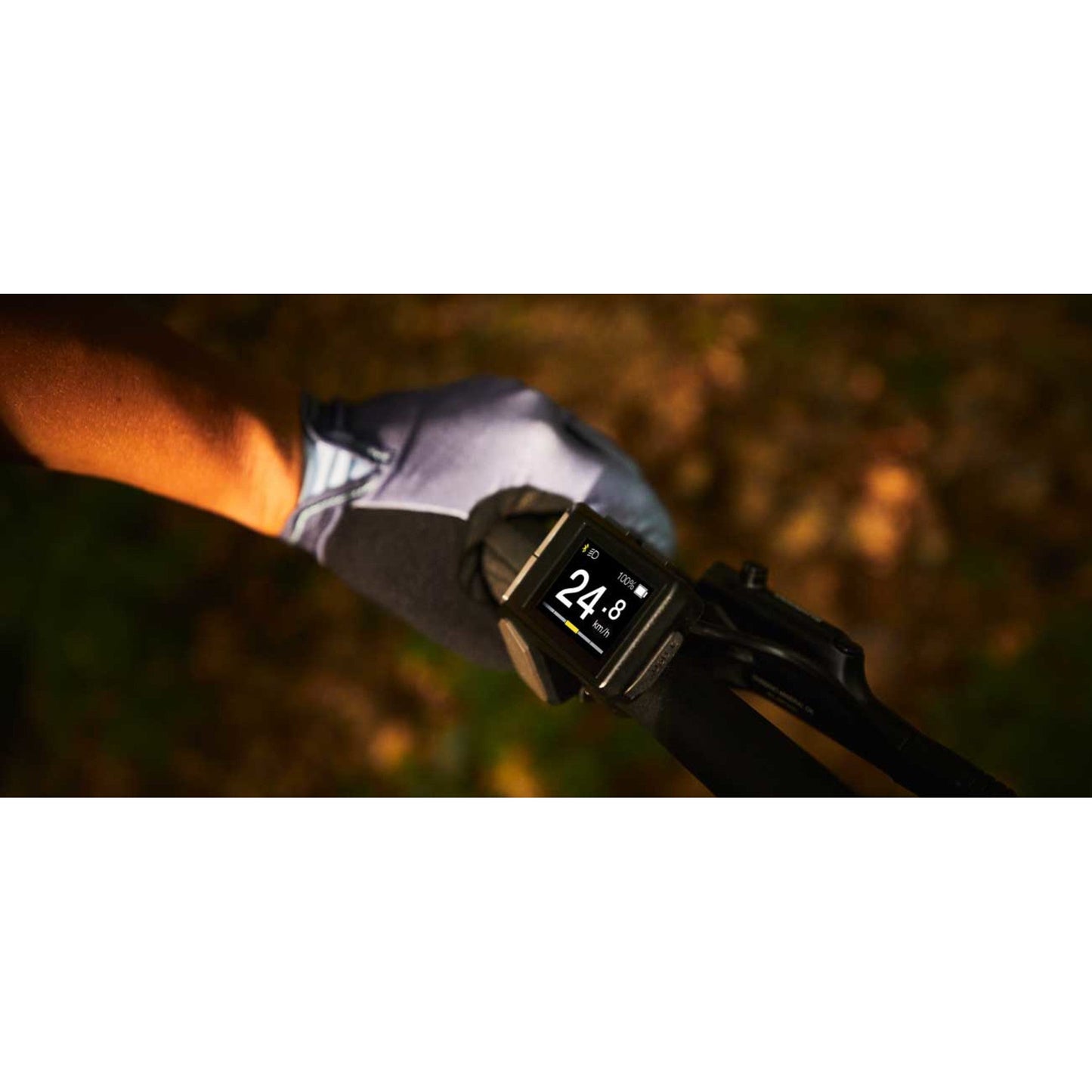

| Controller RideControl Dash, full color LCD screen | Shifters Shimano Altus |
| Display RideControl Dash, full color LCD screen | Front Derailleur - |
| Battery EnergyPak 400Wh | Rear Derailleur Shimano Alivio, 9-speed |
| Sizes XS, S, M, L, (XS-S: 27.5, M-L: 29er) | Brakes Tektro HD-M275, hydraulic disc, 160/180mm |
| Colors Gunmetal Black | Brake Levers Tektro HD-M275 |
| Frame ALUXX Aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount | Cassette Shimano CS-HG200, 11-36T, 9-speed |
| Fork SR Suntour XCM ATB Coil 29" 100mm travel, Tapered 1½ - 1⅛" steerer | Chain KMC e.9 Sport, e-bike optimized |
| Shock N/A | Crankset FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T |
| Handlebar Giant Connect TR Riser 31.8x690mm, 750mm | Bottom Bracket - |
| Grips Liv Connect Ergo Microtech Plus, Lock-on | Rims GX03V (XS-S: 27.5, M-L: 29er) |
| Stem Giant Contact | Hubs Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium | Spokes Stainless steel |
| Saddle Liv Sport | Tires Maxxis Rekon 29x2.4" / 27.5x2.4" Wire Bead 60TPI (XS-S: 27.5, M-L: 29er) |
| Weight The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. | |
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (inch) | 14.4 | 15.9 | 17.5 | 19.1 |
| SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° |
| TOP TUBE LENGTH (inch) | 21.5 | 22.4 | 23.4 | 24.2 |
| HEAD TUBE LENGTH (inch) | 4.1 | 4.5 | 4.1 | 4.5 |
| HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° | 68.0° |
| FORK RAKE (inch) | 1.7 | 1.7 | 1.8 | 1.8 |
| TRAIL (inch) | 4.1 | 4.1 | 3.9 | 3.9 |
| WHEELBASE (inch) | 43.8 | 44.6 | 45.6 | 46.4 |
| CHAIN STAY LENGTH (inch) | 18.7 | 18.7 | 18.7 | 18.7 |
| BOTTOM BRACKET DROP (inch) | 2 | 2 | 1.8 | 1.8 |
| STACK (inch) | 23.3 | 23.6 | 23.7 | 24.1 |
| REACH (inch) | 14.8 | 15.4 | 16.2 | 16.9 |
| STAND OVER HEIGHT (inch) | 27.3 | 28.4 | 30 | 30.2 |
| HANDLEBAR WIDTH (inch) | 27.2 | 27.2 | 29.5 | 29.5 |
| STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2.4 |
| CRANK LENGTH (inch) | 6.5 | 6.5 | 6.7 | 6.7 |
| WHEEL SIZE | 27.5" | 27.5" | 29" | 29" |
