Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

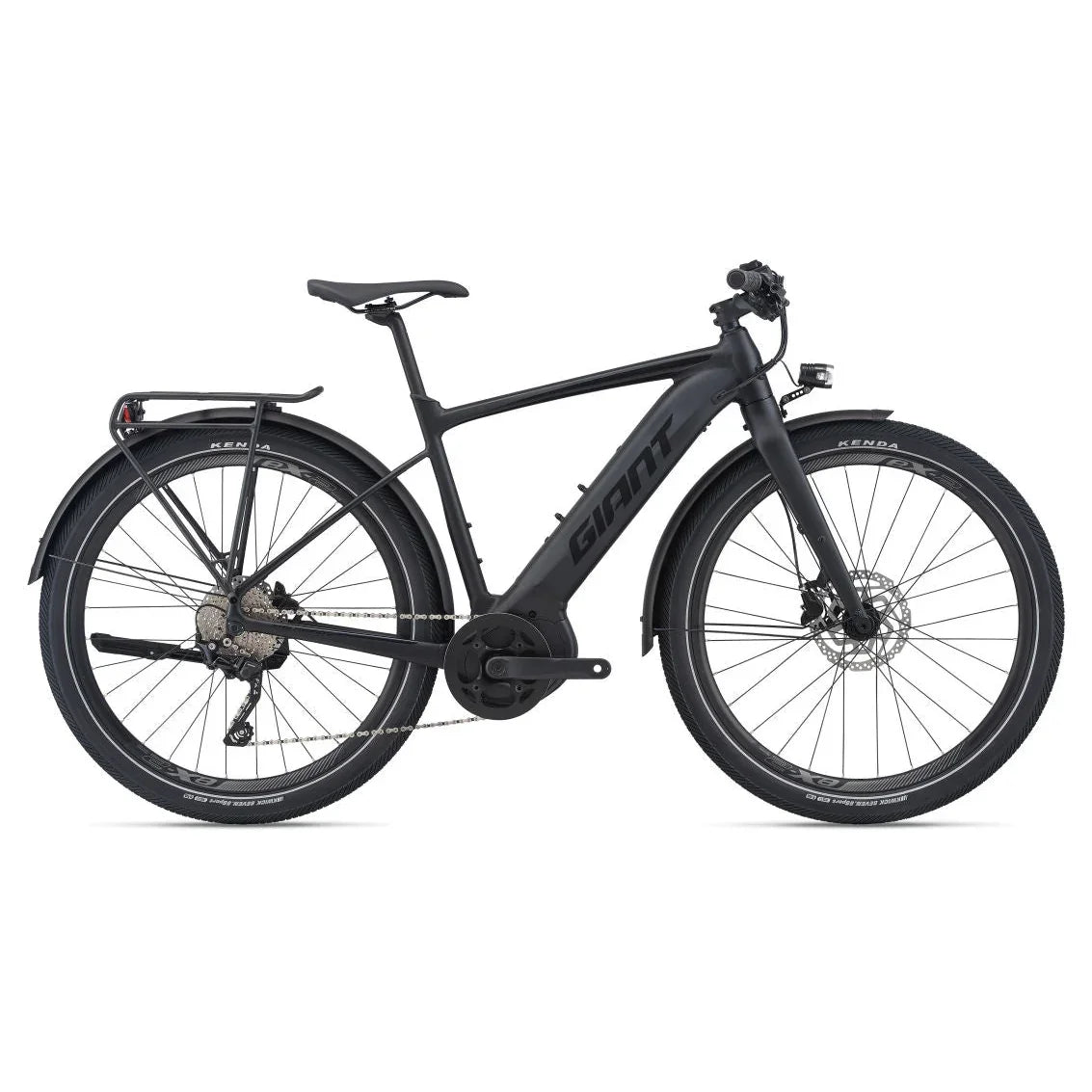

Buckle up, speed demons! The FastRoad E+ EX Pro 28MPH E-Bike is your ticket to lightning-fast travels in urban jungles.
This bad boy boasts a compact yet mighty motor that'll have you cruising up hills and covering longer distances like a boss. Say goodbye to pedal exhaustion and hello to seamless pedaling support that'll make you feel like you have bionic legs. Whether you're zipping through traffic or taking the scenic route, this state-of-the-art mobility e-bike will have you feeling like a superhero on wheels.
Urban mobility
The SyncDrive Pro motor delivers smooth and powerful acceleration, and the durable aluminum frame is fully equipped with a rack, fenders and kickstand.
Integrated battery
The new EnergyPak Smart Compact 500 battery delivers long-range power and is smoothly integrated into the frame for sleek design.
Extra range
Option to carry an EnergyPak Plus range extender, which provides 250Wh of additional power.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK SMART 500 / SYNCDRIVE PRO
Range
- Extreme: 31 miles
- Good: 62 miles
- Ideal: 99 miles
Specifications
|
Motor |
SyncDrive Pro, 80Nm, powered by Yamaha |
|
|
Controller |
RideControl Ergo |
|
|
Display |
RideDash Evo |
|
|
Battery |
EnergyPak Smart Compact 500Wh EnergyPak Plus range extender compatible |
|
|
Sizes |
XS, S, M, ML, L, XL |
|
|
Colors |
Black |
|
|
Frame |
ALUXX Aluminum |
|
|
Fork |
ALUXX SL-grade Aluminium, 12x100 thru-axle |
|
|
Shock |
N/A |
|
|
Handlebar |
Giant Connect XC Riser 31.8 x 690mm |
|
|
Grips |
Giant Contact Ergo |
|
|
Stem |
Giant Contact |
|
|
Seatpost |
Giant D-shape, Aluminium |
|
|
Saddle |
Giant Sport |
|
|
Pedals |
Aluminum Platform |
|
|
Shifters |
Shimano Tiagra |
|
|
Front Derailleur |
- |
|
|
Rear Derailleur |
Shimano GRX RX400, 10-speed |
|
|
Brakes |
Shimano BR-MT200, hydraulic disc, 180/160mm |
|
|
Brake Levers |
Shimano BL-MT201 |
|
|
Cassette |
Shimano Tiagra, 11-36, 10-speed |
|
|
Chain |
KMC e.10 Sport |
|
|
Crankset |
Forged Alloy minimal Q-factor, 42T |
|
|
Bottom Bracket |
N/A |
|
|
Rims |
Giant eX-2, Tubeless Ready |
|
|
Hubs |
Giant Performance Tracker Road, Sealed Bearing |
|
|
Spokes |
Sapim E-Lite [r] Race [f] |
|
|
Tires |
Kenda Kwick Seven.5 27.5 x 2.40 (61-584), 60TPI, w/ reflex |
|
|
Lighting |
Axa BlueLine 50 front Axa Blueline rear |
|
|
Carrier |
Giant Rack-It MIK |
|
|
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 17.7 | 18.7 | 20.7 | 21.7 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (inch) | 22.2 | 22.6 | 23.2 | 24 |
| D | HEAD TUBE LENGTH (inch) | 4.3 | 4.7 | 6.3 | 7.3 |
| E | HEAD TUBE ANGLE | 71.0° | 71.5° | 72.0° | 72.0° |
| F | FORK RAKE (inch) | 1.8 | 1.8 | 1.8 | 1.8 |
| G | TRAIL (inch) | 2.9 | 2.8 | 2.6 | 2.6 |
| H | WHEELBASE (inch) | 42.1 | 42.2 | 42.4 | 42.9 |
| I | CHAIN STAY LENGTH (inch) | 17.9 | 17.9 | 17.9 | 17.9 |
| J | BOTTOM BRACKET DROP (inch) | 2.8 | 2.8 | 2.8 | 2.8 |
| K | STACK (inch) | 22 | 22.4 | 24 | 24.9 |
| L | REACH (inch) | 15.9 | 16 | 15.9 | 16.1 |
| M | STAND OVER HEIGHT (inch) | 28.8 | 29.6 | 31.3 | 32.2 |
| N | HANDLEBAR WIDTH (inch) | 27.2 | 27.2 | 27.2 | 27.2 |
| O | STEM LENGTH (inch) | 2.8 | 3.1 | 3.5 | 3.5 |
| P | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 27.5" | 27.5" | 27.5" | 27.5" |
