Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

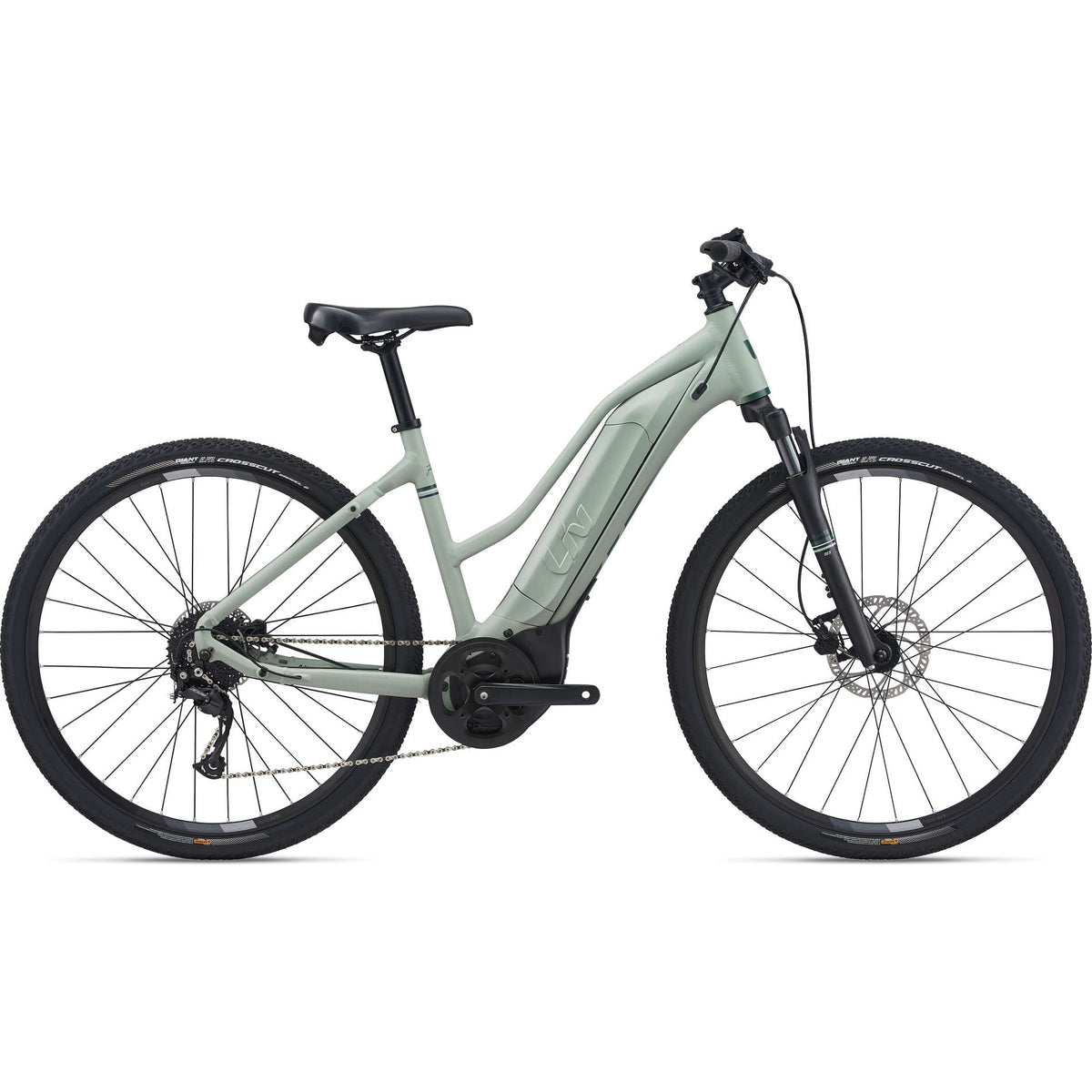

Are you ready to take your cycling game to the next level? The Rove E+ Electric Bike has got your back! With reliable, power-assisted pedaling, this bike will be your trusty sidekick on all your adventures.
Say goodbye to struggling up those tough hills or long commutes, because the Rove E+ will give you an extra boost when you need it most. Plus, with its sleek design and cutting-edge technology, you'll look like a total boss while cruising around town.
Whether you're a seasoned pro or just starting out, the Rove E+ will help you discover new trails and exciting destinations with ease. So what are you waiting for? Get ready to experience the thrill of the ride like never before with the Rove E+ Electric Bike!
Accessibility
Explore new places, new roads and new adventures with the 150 km* range of the reliable EnergyPak battery. The SyncDrive Core Motor delivers 50Nm of torque and has six speed control settings, offering up to 300% pedal assistance. *Actual range depends on several factors including weight, elevation, terrain and acceleration.
Powered for Fun
The reliable EnergyPak 400Wh side-release battery is beautifully integrated into a lightweight and durable ALUXX SL-Grade aluminum frame for a bike that zips along on longer adventures.
Smooth Riding
SyncDrive motor technology smooths out bumps along the ride, and RideControl One on the handlebar provides easy access to select pedal assist functions and view battery levels.
Specifications
| Motor | Giant SyncDrive Core, 50Nm, 5-mode plus automatic, 360% tunable support, powered by YAMAHA. Pedal assist to 20 mph. |
|---|---|
| Controller | Giant RideControl Ergo |
| Sensors | Giant PedalPlus 6-sensor technology |
| Display | *wireless display compatible |
| Battery | EnergyPak 400Wh, 36V, 11.3Ah rechargeable lithium-ion |
| Sizes | XS, S, M, L |
| Colors | Laurel |
| Frame | ALUXX SL-Grade Aluminum |
| Fork | SR Suntour NEX E25, 63mm |
| Shock | N/A |
| Handlebar | Giant Sport XC, 25.4 |
| Stem | Giant Sport |
| Seatpost | Alloy, 30.9 |
| Saddle | Liv Sport Comfort, integrated handle |
| Pedals | Platform |
| Shifters | Shimano Altus |
| Front Derailleur | - |
| Rear Derailleur | Shimano Alivio |
| Brakes | Tektro M275, hydraulic (F:180mm, R:160mm) |
| Brake Levers | Tektro M275 |
| Cassette | Shimano HG200, 9-speed, 11x36 |
| Chain | KMC e.9 Sport, E-bike optimized |
| Crankset | Forged alloy, 42t |
| Bottom Bracket | N/A |
| Rims | Giant GX03 Disc wheelset |
| Hubs | Alloy disc, QR |
| Spokes | Stainless |
| Tires | Giant Crosscut Gravel 2, tubeless, 700x45c |
| Extras | Giant EnergyPak 4A fast charger |
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (inch) | 14.6 | 16.5 | 18.5 | 20.5 |
| SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° |
| TOP TUBE LENGTH (inch) | 21.5 | 22.2 | 23 | 23.8 |
| HEAD TUBE LENGTH (inch) | 5.3 | 5.3 | 6.1 | 6.9 |
| HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAIL (inch) | 3.6 | 3.6 | 3.6 | 3.6 |
| WHEELBASE (inch) | 43.2 | 43.7 | 44.6 | 45.2 |
| CHAIN STAY LENGTH (inch) | 18.5 | 18.5 | 18.5 | 18.5 |
| BOTTOM BRACKET DROP (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| STACK (inch) | 24.4 | 24.4 | 25.1 | 25.9 |
| REACH (inch) | 14.4 | 15 | 15.6 | 16 |
| STAND OVER HEIGHT (inch) | 24.3 | 23.5 | 23 | 22.4 |
| HANDLEBAR WIDTH (inch) | 24.4 | 24.4 | 25.2 | 25.2 |
| STEM LENGTH (inch) | 2.8 | 3.1 | 3.1 | 3.5 |
| CRANK LENGTH (inch) | 6.7 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE | 700C | 700C | 700C | 700C |
