Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

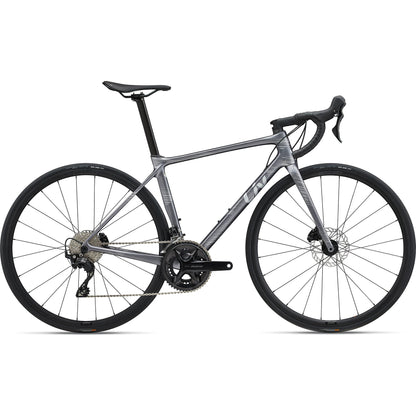

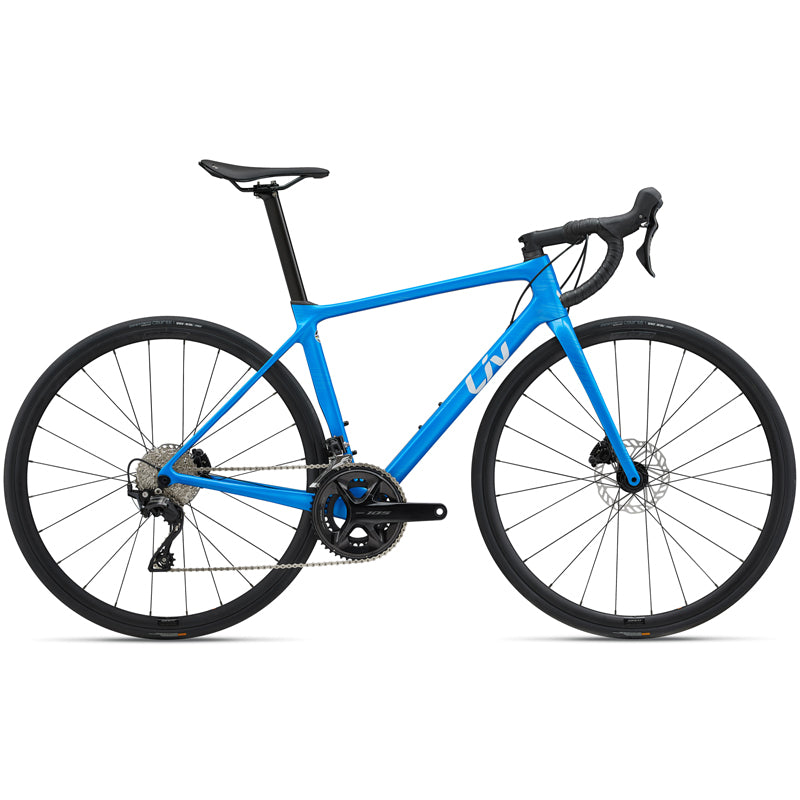

Be bold and embrace the adventure of the climb, the thrill of the descent, and achieving a new PR with the Langma Advanced Disc 2 (2024). Its revamped aero frame and the revolutionary Giant SLR 36 Disc Wheelsystem with integrated disc brakes, combined with a custom Liv saddle and handlebars, make for a powerful and high-performing ride.
Accelerate faster
The heart of the Langma Advanced is a super-light Advanced-grade composite frameset, delivering a powerful stiffness-to-weight ratio for explosive acceleration. Updated truncated ellipse tubing reduces wind drag and boosts sprinting efficiency.
Better handling
Integrated, flat-mount disc brakes deliver the confidence to carry speed into corners and navigate variable weather conditions. The Langma also accommodates tires up to 32mm, so you can customize your set-up for the road ahead.
Vibration canceling
The tubeless Giant SLR 36 Disc WheelSystem (select models) reduces drag, while the adjustable Variant Composite Seatpost provides superior compliance, so you get a responsive ride that practically skims over rough roads.
| Sizes | XXS, XS, S, M, L |
| Colors | Liquid Metal, AI Blue |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact XXS: 360mm, XS: 360mm, S: 380mm, M: 400mm, L: 420mm |
| Grips | Liv All Condition |
| Stem | Giant Contact XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm |
| Seatpost | Giant Variant, composite XXS: 357mm, XS: 357mm, S: 357mm, M: 357mm, L: 357mm |
| Saddle | Liv Approach |
| Pedals | Sold separately |
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 hydraulic |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12 |
| Crankset | Shimano 105, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 Disc wheelset |
| Hubs | Giant P-R2 Disc wheelset, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant Course 1, tubeless, 700x25c (28mm), folding |
| Extras | tubeless prepared, 32mm max tire size |
| Weight | The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 15.4 | 16.5 | 17.7 | 18.9 | 20.1 |
| B | SEAT TUBE ANGLE | 75.0° | 75.0° | 74.5° | 74.0° | 73.5° |
| C | TOP TUBE LENGTH (inch) | 19.6 | 20 | 20.6 | 21.3 | 21.9 |
| D | HEAD TUBE LENGTH (inch) | 4.1 | 4.7 | 5.3 | 6.1 | 6.9 |
| E | HEAD TUBE ANGLE | 70.0° | 71.0° | 72.0° | 72.5° | 72.5° |
| F | FORK RAKE (inch) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 |
| G | TRAIL (inch) | 2.9 | 2.6 | 2.4 | 2.3 | 2.3 |
| H | WHEELBASE (inch) | 38.2 | 38.3 | 38.5 | 38.7 | 39.2 |
| I | CHAIN STAY LENGTH (inch) | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
| J | BOTTOM BRACKET DROP (inch) | 2.8 | 2.8 | 2.8 | 2.8 | 2.6 |
| K | STACK (inch) | 19.6 | 20.4 | 20.9 | 21.8 | 22.4 |
| L | REACH (inch) | 14.3 | 14.6 | 14.8 | 15 | 15.2 |
| M | STAND OVER HEIGHT (inch) | 26.8 | 27.6 | 28.7 | 29.9 | 31.1 |
| N | HANDLEBAR WIDTH (inch) | 14.2 | 14.2 | 15 | 15.7 | 16.5 |
| O | STEM LENGTH (inch) | 3.1 | 3.1 | 3.5 | 3.9 | 4.3 |
| P | CRANK LENGTH (inch) | 6.5 | 6.5 | 6.7 | 6.7 | 6.8 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
