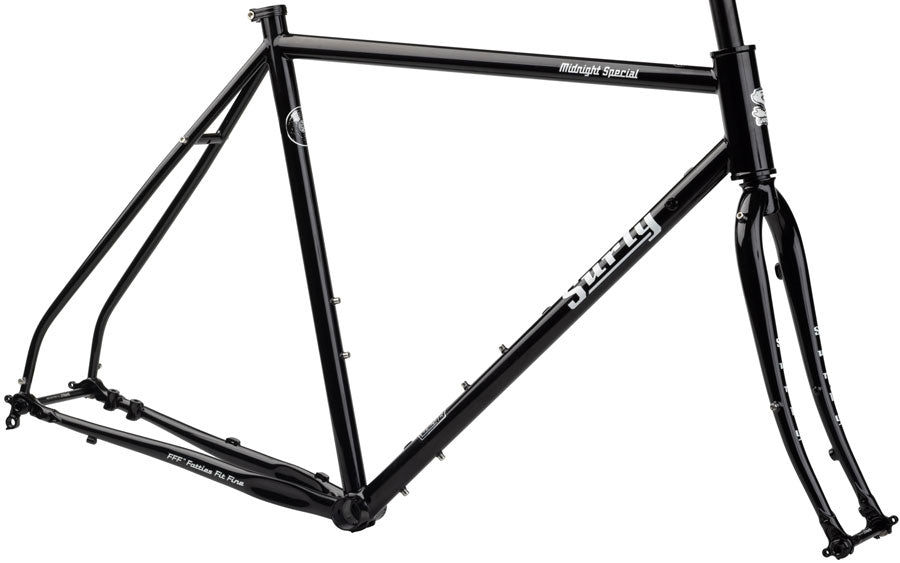

Surly Midnight Special Frameset - 650b/700c Steel Hi-Viz Black

Surly Midnight Special Frameset - 650b/700c Steel Hi-Viz Black

Regular price $899.00
Regular price $899.00 Sale price $899.00
Sale Sold out
Size

Have questions about buying a bike?
Chat with a specialist ↗
Our Platinum Pro Assembly fee of only $79 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Surly bike comes 90% built, reassembly is quick and easy with our video guides.

Low stock

SKU:04-002347

View full details

Road Plus Bike That Tackles Pavement Gravel

Midnight Special shines on pot-holed, deteriorating pavement and the occasional long stretch of gravel. Its 700c tires eat up road chatter and absorb all the bumps in the road like the champion it was designed to be.

When it comes to road bikes, we just want to toss a few bananas into our pockets and see where the road takes us. We seek out varied surfaces on our rides and frequently go from pavement to gravel to shittier pavement. Midnight Special allows us to accomplish all of that quite comfortably.

  • Higher volume tires allow better fine-tuning of tire pressure on varying surfaces and create a wider contact patch for increased traction
  • Modern road standards like flat-mount disc brakes, 12mm front and rear thru-axles, and a 44mm head tube
  • Clearance for 650b x 50mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 38mm with fenders)

Design Wheel/Tire Sizes

650b x 50mm

Alternate Wheel/Tire Sizes

700c x 42mm

Max Tire Outer Diameter

Frame clearance: 27.5 x 2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)

Fork clearance: 27.5 x 2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)

Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated

Suspension Fork Length (Travel)

N/A

Rigid Fork Length

400 x 50mm (40–54cm), 400 x 40mm (56–64cm)

Axle to Crown

400mm

Rear Spacing

12 x 142mm (Surly axle included), 10 x 135mm with Surly 10/12 Adapter Washers (not included)

Front Brake (Rotor)

Disc – Flat Mount (160mm max rotor), use brake manufacturer’s front flat mount adapter and supplied bolts

Headset

Upper: ZS44/28.6

Lower: EC44/30

Front Spacing

12 x 100mm (Surly axle included)

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Seatpost

Ø27.2mm

Dropper Post Compatible

No

Seatpost Clamp

Ø30mm

Front Derailleur Type

Bottom-pull (Ø28.6mm)

Bottom Bracket

68mm threaded (1.37" x 24TPI)

Crankset (Max Ring)

1x (Road): 44T

2x (Road): 34/50T

3x (Road): 30/39/50T

Accessory Mounts

Downtube mounted shifter bosses (cable housing stops not included with frameset)

Bottle Mounts

3 Standard

Fork Mounts

Rack mounts: upper, lower, and mid-blade threaded

Front Fender Mounts

Yes

Rear Fender Mounts

Yes

No technical specifications available.
Size 40cm 46cm 50cm 54cm 56cm 58cm 60cm 64cm
A. Effective Top Tube 500.0 520.0 540.0 555.0 570.0 585.0 605.0 625.0
B. Stand Over 720.0 751.0 778.0 806.0 827.0 846.0 866.0 895.0
C. Reach 363.0 366.0 379.0 389.0 393.0 402.0 409.0 423.0
D. Stack 531.0 538.0 544.0 560.0 580.0 599.0 620.0 641.0
E. Total Seat Tube Length 400.0 460.0 500.0 540.0 560.0 580.0 600.0 640.0
F. Headtube Length 95.0 100.0 110.0 125.0 140.0 160.0 180.0 200.0
G. Headtube Angle
71.0
71.5
72.0
72.5
73.0
73.0
73.5
74.0
H. Seat Tube Angle
75.5
74.0
73.5
73.5
73.0
73.0
72.5
72.5
I. BB Drop 70.0 70.0 65.0 65.0 65.0 65.0 65.0 65.0
K. Chainstay Length 425.0 425.0 425.0 425.0 425.0 425.0 425.0 425.0
L. Fork Length Axle to Crown 400.0 400.0 400.0 400.0 400.0 400.0 400.0 400.0
M. Fork Offset 50.0 50.0 50.0 50.0 40.0 40.0 40.0 40.0
N. Wheelbase 993.0 994.0 1007.0 1018.0 1012.0 1027.0 1036.0 1050.0
Crank Arm Length
Handlebar Width
Recommended Rider Height
Stem Length
