Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

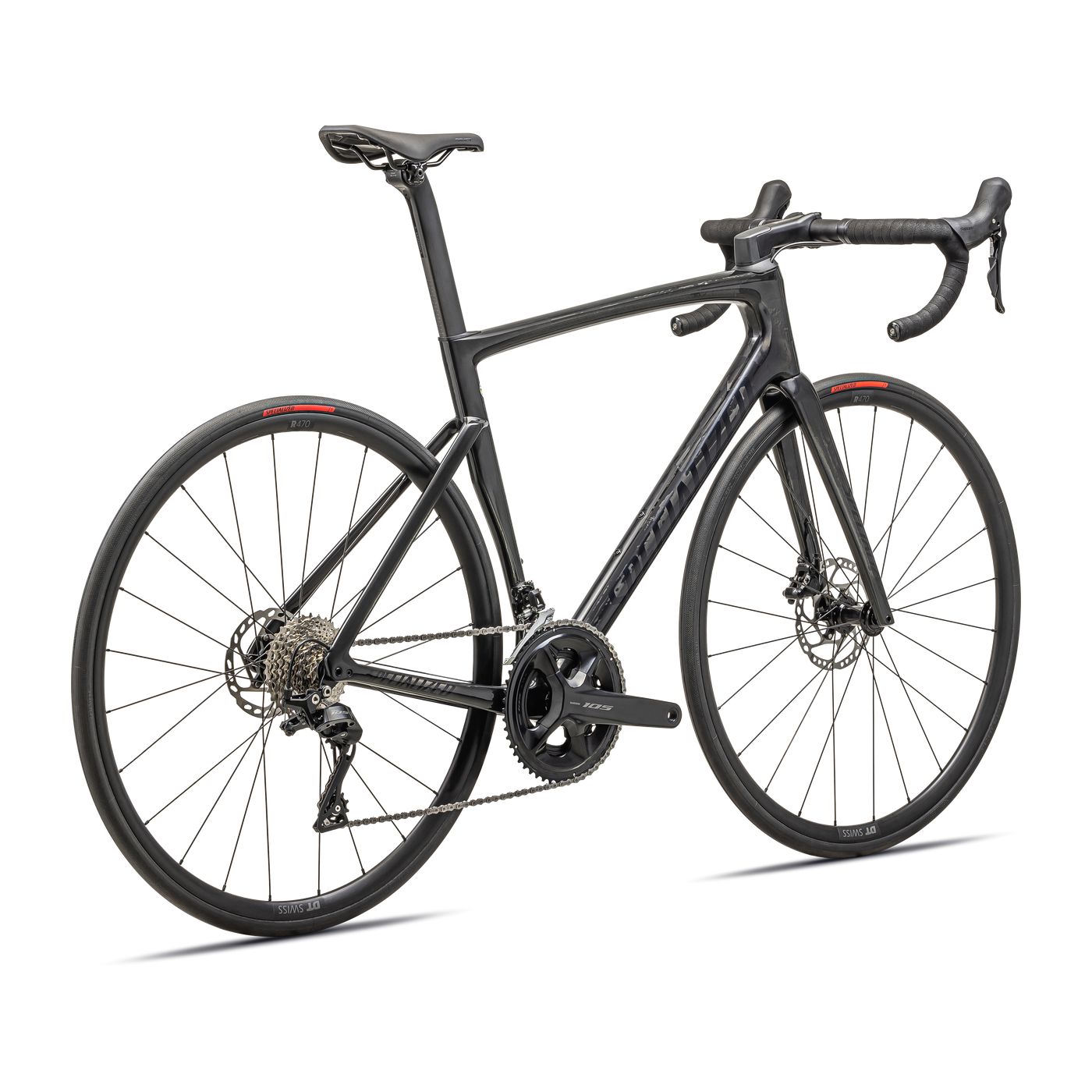

The new Tarmac is designed to go fast, there's no if's, and's, or but's about that—but it represents so much more than just aerodynamic prowess.
With a light-weight, Rider-First Engineered™ frame, it delivers the best-possible ride characteristics, no matter the size. So no matter what you have planned for your new Tarmac, its ready to help you achieve your goals—PRs, KOMs, or podium top-steps. One bike to rule them all.
With the new Shimano 105 Mechanical 12-speed group, along with some fast rolling tires in the Turbo Pro 700x26mm tires, this new Tarmac delivers performance at a more palatable price point.
- While aerodynamics were paramount to the Tarmac’s development, and to the development of all of our race bikes, weight was the co-pilot on this optimal race bike journey. Previously “aero bikes” always compromised in the weight department—the more drag you reduced, the more weight you gained. With the new Tarmac, our design philosophy was to keep it at, or below, the UCI weight limit out of the box, with no sacrifices to aerodynamics. And with the help of the FreeFoil Shape Library, tools like isotopic FEA analysis, and some engineering wizardry by the best engineers in the industry, we delivered a Fact 9r frame that weighs a mere 1010 grams, without giving up a gram of aero, stiffness or ride quality.
- Continuing our quest to develop the perfect race bike, we used our Rider-First Engineered™ philosophy to ensure that the new Tarmac is the most balanced, best handling Tarmac yet—no matter the size. With an army of the world’s best test riders from our three World Tour Teams — Boels-Dolmans, Deceuninck-Quick-Step, and Bora-hansgrohe — we made changes to the Tarmac based on their thousands of kilometers on the road. We balanced the ride quality between the front and rear end, so even the longest days in the saddle continue to be comfortable—all without giving up anything to the Tarmac’s legendary handling and race-winning snappiness.
- Building on the learnings from the Venge, the new Tarmac utilizes simple integration to create a clean, fast cockpit that’s easy to live with. We’ve improved the routing for any configuration — mechanical shifting, traditional stems, round bars, etc. — all while keeping its aerodynamic attributes. These same traits also make the new Tarmac easy to work on and easy to travel with. It’s a win-win.
FRAMESET | |
---|---|
Frame | Tarmac SL7 FACT 9r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc |
SUSPENSION | |
Fork | FACT Carbon, 12x100mm thru-axle, flat-mount disc |
COCKPIT | |
SeatPost | 2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset |
Saddle | Body Geometry Power Sport, steel rails |
Tape | Roubaix S-Wrap |
Handlebars | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
Stem | Tarmac integrated stem, 6-degree |
Seat Binder | Tarmac integrated wedge |
BRAKES | |
Front Brake | Shimano 105, Hydraulic Disc |
Rear Brake | Shimano 105, Hydraulic Disc |
DRIVETRAIN | |
Chainrings | 52/36T |
Shift Levers | Shimano 105, 12 speed Mechanical |
Cassette | Shimano 105, 12-speed, 11-34t |
Crankset | Shimano 105, 12-speed |
Front Derailleur | Shimano 105, Braze-on |
Rear Derailleur | Shimano 105, 12 speed Mechanical |
Chain | Shimano SLX M7100, 12-speed w/ quick link |
Bottom Bracket | Shimano Threaded BSA BB |
WHEELS & TIRES | |
Front Wheel | DT R470 Disc |
Rear Wheel | DT R470 Disc |
Inner Tubes | Presta Valve Standard, 48mm valves |
Front Tire | Turbo Pro, 700x26 |
Rear Tire | Turbo Pro, 700x26 |
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|---|
Crank Length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
Handlebar Width | 360 | 380 | 400 | 420 | 420 | 440 | 440 |
Stem Length | 70 | 80 | 90 | 100 | 100 | 110 | 110 |
Saddle Width | 155 | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 300 | 300 | 300 | 380 | 380 | 380 | 380 |
Head Tube Length | 93 | 102 | 113 | 131 | 151 | 178 | 198 |
BB Height | 266 | 266 | 266 | 268 | 268 | 268 | 268 |
Fork Rake/Offset | 47 | 47 | 47 | 44 | 44 | 44 | 44 |
Head Tube Angle | 70.5 | 71.75 | 72.5 | 73 | 73.5 | 73.5 | 74 |
BB Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
Fork Length, Full | 366 | 366 | 366 | 366 | 366 | 366 | 366 |
Trail | 71 | 63 | 58 | 58 | 55 | 55 | 52 |
Seat Tube Angle | 75.5 | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
Front Center | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
Bike Standover Height | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
Wheelbase | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
Seat Tube Length | 435 | 447 | 458 | 475 | 496 | 517 | 547 |
Top Tube Length, Horizontal | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
Stack to Stem | 509 | 522 | 535 | 552 | 573 | 599 | 620 |
Reach to Stem | 363 | 372 | 377 | 381 | 393 | 400 | 406 |
Frame Stack | 491 | 504 | 517 | 534 | 555 | 581 | 602 |
Frame Reach | 369 | 378 | 383 | 387 | 398 | 405 | 411 |
