| Height Range | |
| XX-Small | 4'9"-5'2" |
| X-Small | 5'-5'4" |
| Small | 5'2"-5'6" |
| Medium | 5'4"-5'10" |
| Large | 5'7"-6'0" |
Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
Liv

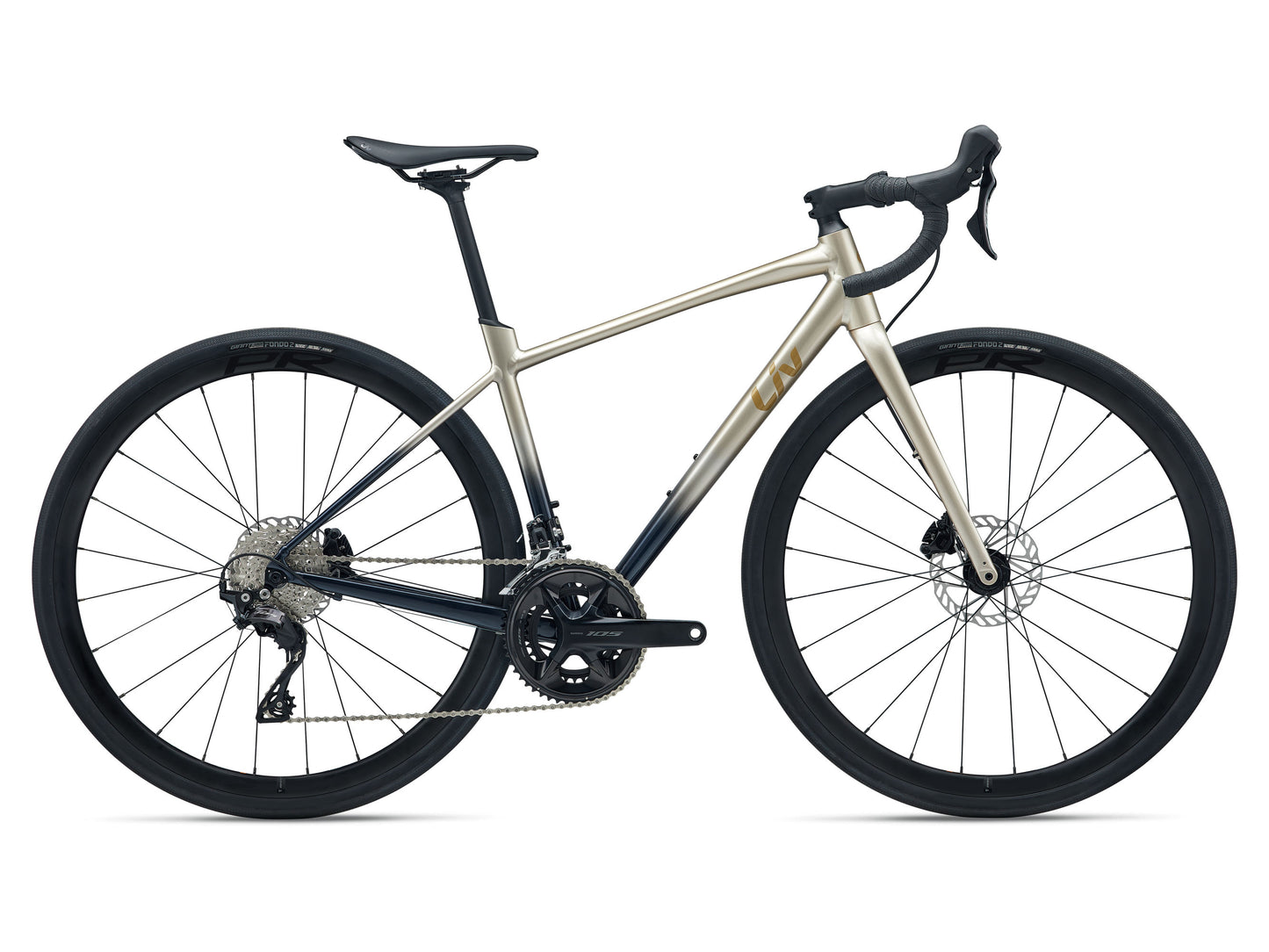

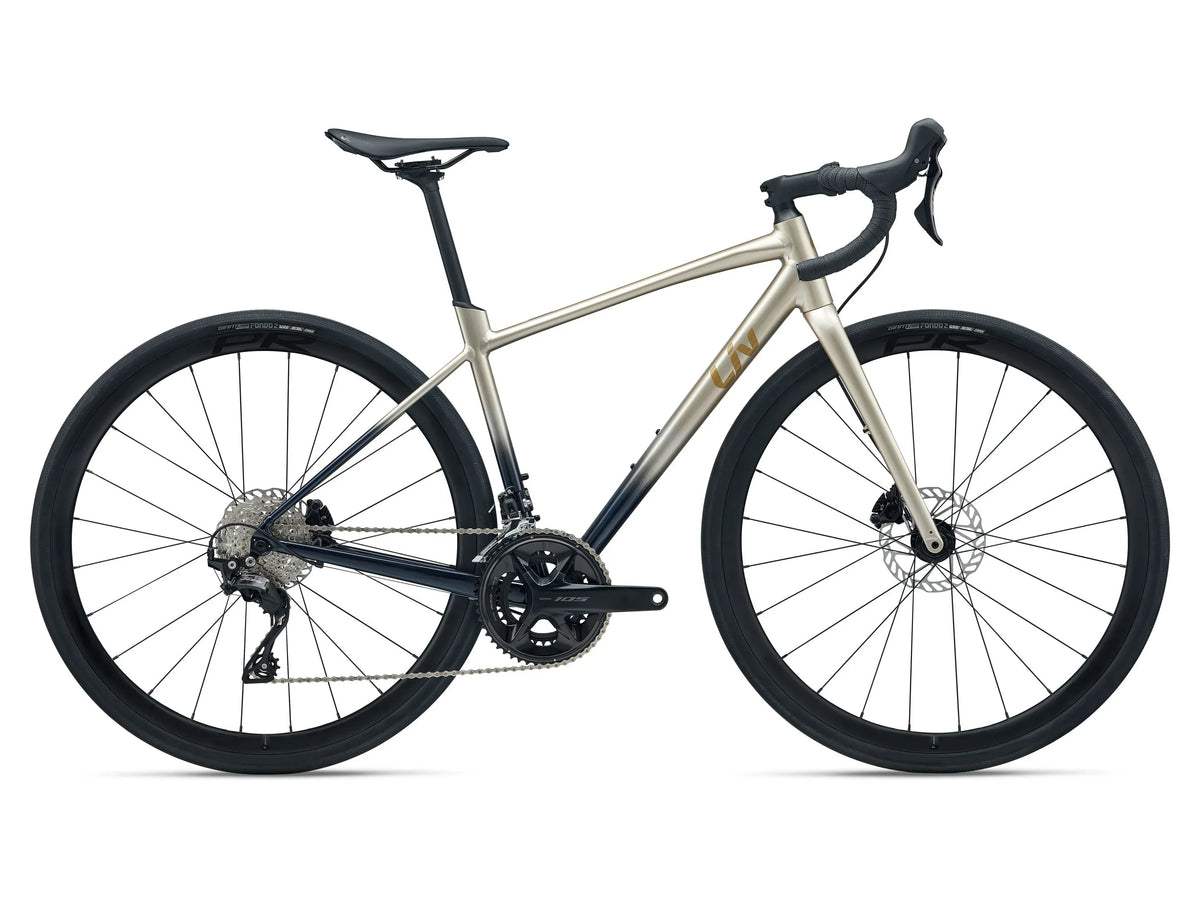

Avail AR 1 (2026)
$2,199.99
Instant Rebate
Your Price: $2,049.99
*Discount applies automatically at checkout.
Out of stock
SKU: 1017034192
Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
SPECIFICATIONS
GEOMETRY
| XXS | XS | S | M | L | |
|---|---|---|---|---|---|
| A Seat Tube Length (inch) | 15.6 | 16.9 | 18.3 | 19.7 | 21.1 |
| B Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° | 74.0° |
| C Top Tube Length (inch) | 19.7 | 20.3 | 20.7 | 21.3 | 21.9 |
| D Head Tube Length (inch) | 4.7 | 5.3 | 5.9 | 6.7 | 7.5 |
| E Head Tube Angle | 70.0° | 70.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (inch) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| G Trail (inch) | 3 | 2.9 | 2.5 | 2.5 | 2.5 |
| H Wheelbase (inch) | 38.8 | 39.3 | 39 | 39.4 | 40 |
| I Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J Bottom Bracket Drop (inch) | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| K Stack (inch) | 20.2 | 20.9 | 21.7 | 22.4 | 23.1 |
| L Reach (inch) | 14.3 | 14.6 | 14.6 | 14.8 | 15.2 |
| M Stand Over Height (inch) | 26.1 | 27 | 28.2 | 29.3 | 30.4 |
| N Handlebar Width (inch) | 15 | 15 | 15.7 | 15.7 | 16.5 |
| O Stem Length (inch) | 2.8 | 2.8 | 3.1 | 3.5 | 3.5 |
| P Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 | 6.8 |
FEATURES
Key Technologies
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
More Info
Compact Road Design
The world's first Compact Road frame is introduced and ridden by the ONCE ProTour team. With a dramatically sloping toptube and a compact rear triangle, the new design increases rigidity, improves handling and reduces weight. ONCE rider Joseba Beloki will ride the Giant TCR (Total Compact Road) to two Tour de France podiums.
More Info
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
