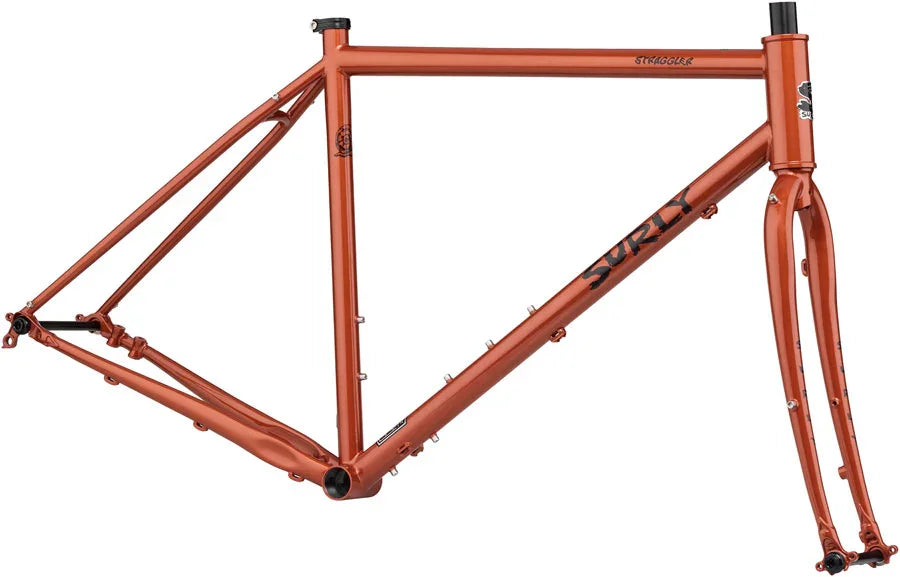

Surly Straggler Frameset - Steel Shaggy Carpet

Surly Straggler Frameset - Steel Shaggy Carpet

Regular price $899.00
Regular price $899.00 Sale price $899.00
Sale Sold out
Size

Have questions about buying a bike?
Chat with a specialist ↗
Our Platinum Pro Assembly fee of only $79 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Surly bike comes 90% built, reassembly is quick and easy with our video guides.

Low stock: 2 left

SKU:04-002175

View full details

Ride Where the Pavement Ends

If you only have room for one bike in your life, Straggler can (and should) be your one and only.

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, flat-mount brakes, and zero ego.

It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready for you to plow through challenges, not obstacles.

Straggler’s capabilities extend into some light cargo setups, so you can do double-duty when hitting the trails and running around town. Tack on one of our Pack Racks and maybe a frame bag when you need to grab some groceries on the way back to civilization –– knowing with Straggler, you always have an exit plan.

  • 650b or 700c wheels (varies by frame size) for optimized rider fit. Sizes 46-52cm: 650b wheels, 54cm and up: 700c wheels.
  • Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames

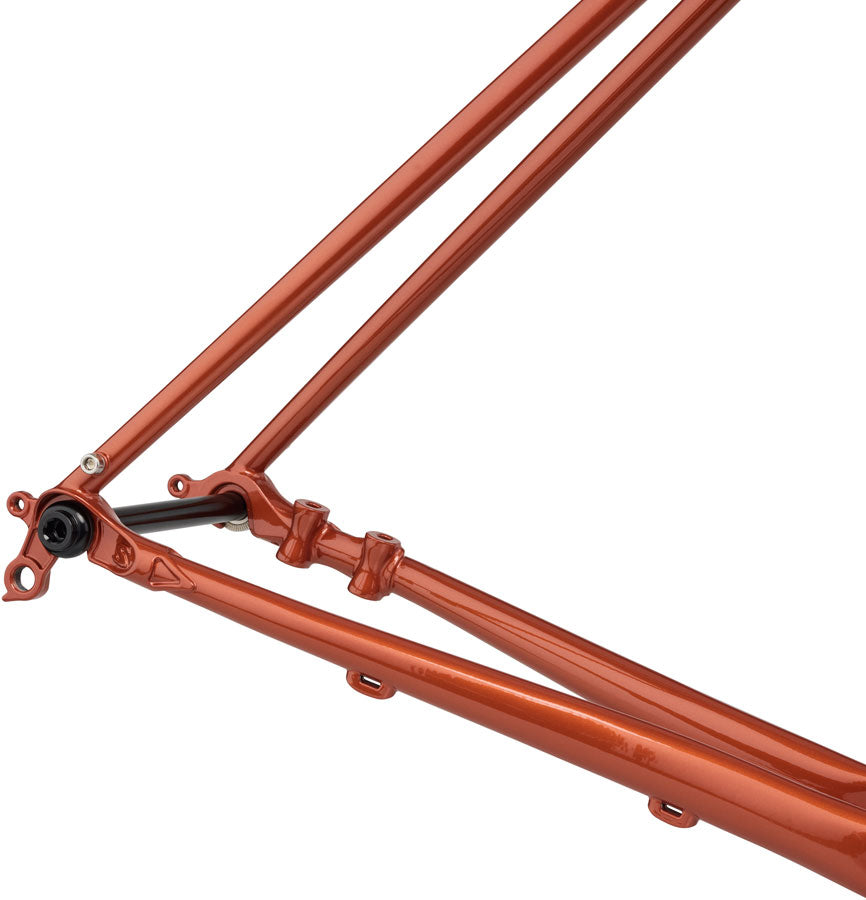

  • Updated thru-axle dropouts for improved stiffness and handling
  • Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
  • Lower bottom bracket and sloping top tube adds stability and better standover
  • 50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain

Frameset

  • Frame: Straggler, Thru-axle, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork: Straggler, Thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated
  • Color: Shaggy Carpet

Components

  • Seatpost Clamp: Surly Stainless, 30.0mm

Drivetrain

  • (No components listed)

Wheels

  • Front Axle: Surly Thru-axle, 12 x 100mm
  • Rear Axle: Surly Thru-axle, 12 x 142mm

Weight

  • Frame: 9 lb 1 oz (56cm) with seat collar, and front/rear thru-axles
No technical specifications available.
Size 46 (650b) 49 (650b) 52 (650b) 54 (700c) 56 (700c) 58 (700c) 61 (700c) 64 (700c)
A. Effective Top Tube 500 520 540 555 570 585 605 630
B. Stand Over 682 716 746 779 807 830 857 895
C. Reach 363.9 362.9 365.3 391.4 389.1 392.5 403.5 419.5
D. Stack 507.9 530.4 554 570.7 591.6 610.6 639.1 667.7
E. Total Seat Tube Length 390 430 460 490 520 545 570 620
F. Headtube Length 90 110 135 120 140 160 190 220
G. Headtube Angle
70.0
71.0
71.0
71.5
72.0
72.0
72.0
72.0
H. Seat Tube Angle
75.0
73.5
72.5
74.0
73.0
72.5
72.5
72.5
I. BB Drop 62 62 62 72 72 72 72 72
J. BB Height 277 277 277 285.5 285.5 285.5 285.5 285.5
K. Chainstay Length 416 416 416 435 435 435 435 435
L. Fork Length Axle to Crown 387.5 387.5 387.5 407.6 407.6 407.6 407.6 407.6
M. Fork Offset 44 44 44 44 44 44 44 44
N. Wheelbase 984.4 982.1 992.6 1033.6 1033.2 1042.7 1063 1088.3
Crank Arm Length 165 165 165 170 170 170 170 170
Handlebar Width 400 420 440 460 460 480 500 520
Recommended Rider Height 147 - 157 155 - 165 160 - 170 166 - 177 173 - 183 179 - 189 184 - 194 193 - 203
Stem Length 70 80 90 90 100 100 100 110
