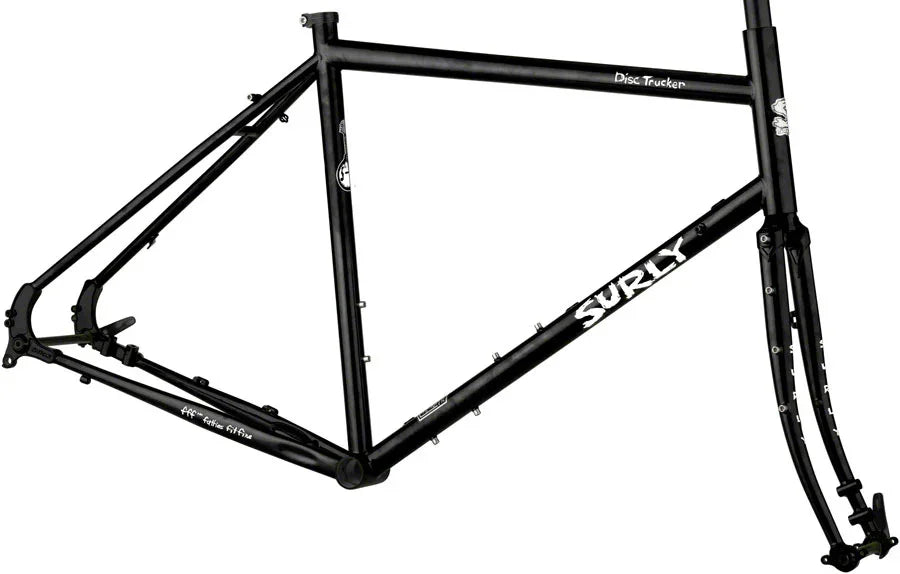

Surly Disc Trucker Frameset - 700c Steel Hi-Viz Black

Surly Disc Trucker Frameset - 700c Steel Hi-Viz Black

Regular price $699.00
Regular price $699.00 Sale price $699.00
Sale Sold out
Starting at $64/mo or 0% APR with . See if you qualify
Color: Black
Size
Our Platinum Pro Assembly fee of only $89 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Surly bike comes 90% built, reassembly is quick and easy with our video guides.

Low stock

SKU:FM1960

View full details

Long Distance Cargo Bike Ready to Go Anywhere

Designed for comfort while simultaneously hauling a lot of stuff long distances, many consider Long Haul Trucker to be the gold standard of touring bikes. It features everything a long-distance bicycle tourist would need when traversing the globe.

LHT’s applications go well beyond global touring. It’s a great option for what we refer to as "extreme commuting." That means more than just carrying your laptop and change of clothes with you. You have the capacity for whatever the day throws at you.

  • Every braze-on you’ll ever need: front and rear rack mounts, fender eyelets, water bottle bosses, spare spoke holder, pump peg
  • Available in 26” (sizes 42–58 cm) and 700c (sizes 56–62 cm) wheel diameters
  • Rim brake-specific (if disc brakes are more your thing, check out the Disc Trucker)
  • Clearance for 26” x 2.1” tires with or without fenders (26” platform) or 700c x 42mm with fenders, 45mm without fenders (700c platform)

Frame Construction

4130 Chromoly, Natch tubing

Double-butted main triangle

TIG welded

ED coated

Fork Construction

4130 Chromoly, Natch tubing

Double-butted tapered fork blades

Brazed lugs

ED coated

Dropouts & Hub Spacing

Rear Dropout: Vertical

Rear Hub Spacing: 10 x 135mm

Front Hub Spacing: 10 x 100mm

Brakes

Rear Brake: Rim – Canti (removable posts)

Front Brake: Rim – Canti (removable posts)

Headset & Steerer

Head Tube: Ø34mm

Steerer Tube: Ø28.6mm (1-1/8")

Crown Race: Ø30mm (1-1/8")

S.H.I.S. Upper: EC34/28.6

S.H.I.S. Lower: EC34/30

Seat & Drivetrain

Seat Collar: Ø30mm

Seatpost: Ø27.2mm

Front Derailleur Clamp: Bottom-pull (Ø28.6mm)

Max Chainring Compatibility (CL)

1x (Road): 44T

2x (Road): 42/53T

3x (Road): 38/52/56T

Bottom Bracket

68mm threaded (1.37" x 24TPI)

Tire Clearance — Frame

26in: 26 x 2.1" (with fenders)

700c: 700 x 42mm (with fenders)

700c: 700 x 45mm (without fenders)

Tire Clearance — Fork

26in: 26 x 2.0" (with or without fenders)

700c: 700 x 50mm (with or without fenders)

700c (29er): 29 x 2.0" (with or without fenders)

Fork Specifications

Rigid Fork (26in): 376 x 45mm

Rigid Fork (700c): 390 x 45mm

Max Suspension Fork Length: N/A

Mounts

Bottle Mounts (Frame): 3 standard

Bottle Mounts (Fork): N/A

Rack Mounts (Frame): Yes (upper and lower threaded)

Rack Mounts (Fork): Yes (upper, lower, and mid-blade threaded)

Fender Mounts (Frame): Yes

Fender Mounts (Fork): Yes

Other Features

Chainstay-mounted spoke holder

Surly removable kickstand plate (included)

Downtube-mounted shifter bosses (cable housing stops not included with frameset)

No technical specifications available.
SIZE 56cm(700c) 58cm(700c) 60cm(700c) 62cm(700c)
Reach 389.3 394.4 401.0 403.0
Stack 588.0 606.1 623.2 643.2
Head Tube Angle 72.0˚° 72.0˚° 72.0˚° 72.0˚°
Head Tube Length 152.0 171.0 189.0 210.0
Seat Tube Length 560.0 580.0 600.0 620.0
BB Drop 78.0 78.0 78.0 78.0
Wheelbase 1055.6 1066.7 1080.8 1085.3
Chainstay Length 460.0 460.0 460.0 460.0
Top Tube Length, Actual 564.5 580.2 594.8 603.9
Top Tube Length, Effective 570.0 586.0 600.0 610.0
Seat Tube Angle 73.0° 72.5° 72.5° 72.0°
Standover Height 811.9 829.8 847.8 866.5
Stem Length 100 110 120 120
Stem Angle
Handlebar Width 440 440 460 460
Crank Length 175 175 175 175
Fork Length 390.0 390.0 390.0 390.0
Fork Rake 45.0 45.0 45.0 45.0
