Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

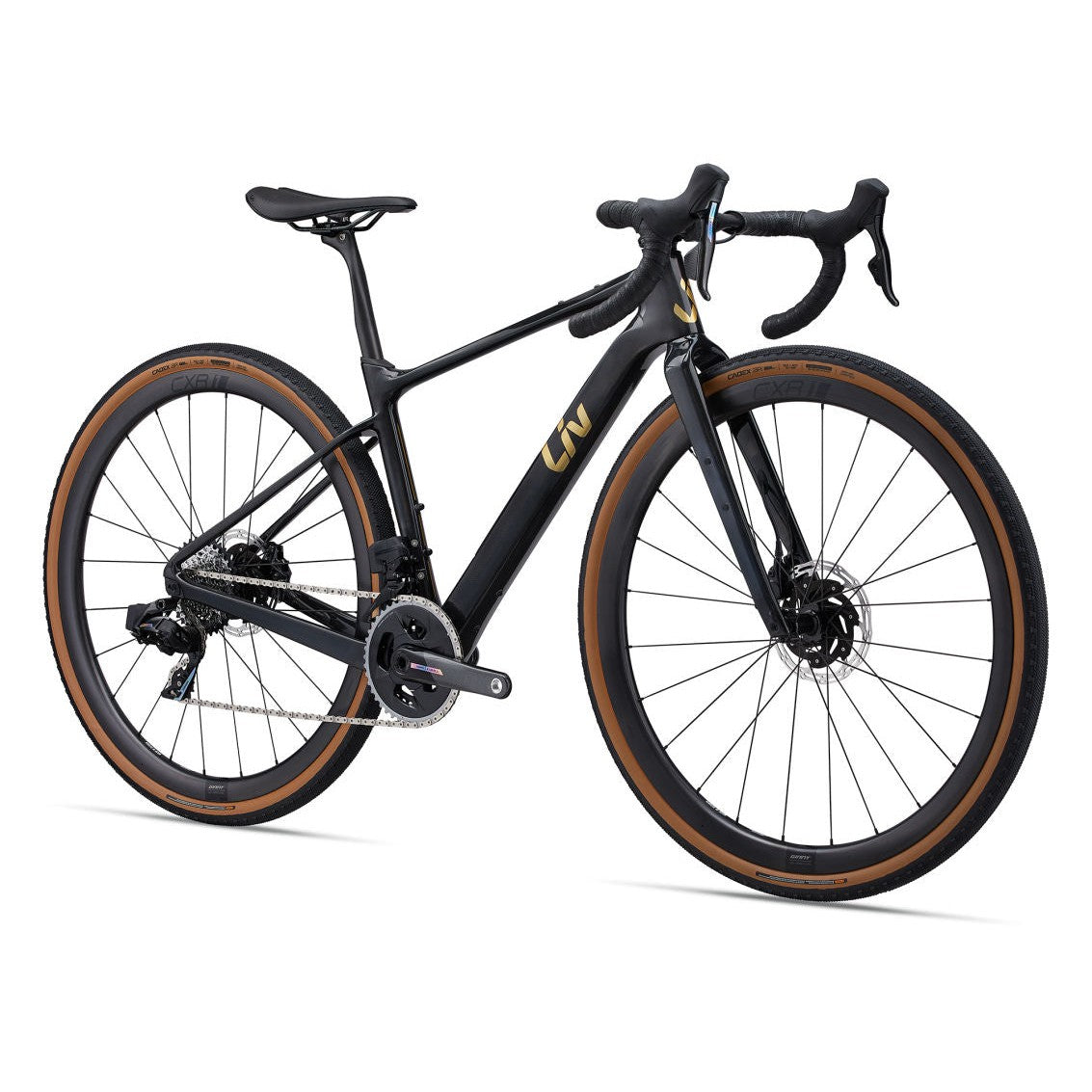

The Liv Devote Advanced Pro Gravel Bike - your ticket to gravel race glory! This bike is more than just a ride; it's your trusted companion for conquering county lines, soaring above tree lines, and crossing finish lines with style and speed.
Ultralight Agility
With its ultralight Advanced-grade composite frame and Advanced SL-grade composite fork, this bike is all about snappy acceleration. Internal cable routing keeps things sleek and tidy while leaving room for your essential accessories. Plus, the redesigned geometry puts you in a more aggressive position, enhancing traction, stability, and control whether you're cruising at high speeds or tackling steep descents.
Superior Compliance and Control
The Contact SLR XR D-Fuse handlebar offers a comfortable and ergonomic grip with its 5-degree back sweep and flare drop. The Contact SLR D-Fuse seatpost can be easily swapped out for your preferred seatpost size, absorbing bumps and reducing vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to any terrain with the flip chip dropout, allowing you to adjust your wheelbase length and rear-wheel tire clearance. Go shorter for nimble handling and quick acceleration, or go longer for added stability, larger tires, and extra traction. And don't forget the integrated down tube storage, perfect for stashing a multi-tool or extra fuel, ensuring nothing slows you down on your gravel adventures.
This Liv Devote Advanced Pro Gravel Bike is more than just a bike; it's your partner in gravel-grinding greatness. Get ready to unleash your inner gravel racing champ and enjoy every moment of the journey.
Specifications
|
Sizes |
XS, S, M, L |
|
Colors |
Carbon/Chrome |
|
Frame |
Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing |
|
Fork |
Advanced SL-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc |
|
Shock |
N/A |
|
Handlebar |
Giant Contact SLR XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, composite XS: 400mm, S: 400mm, M: 420mm, L: 420mm |
|
Grips |
Liv All Condition |
|
Stem |
Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm |
|
Seatpost |
Giant Contact SLR D-Fuse, composite, -5/+15mm offset |
|
Saddle |
Liv Approach SL |
|
Pedals |
|
|
Shifters |
SRAM Force eTap AXS, 2x12 |
|
Front Derailleur |
SRAM Force eTap AXS Wide |
|
Rear Derailleur |
SRAM Force eTap AXS |
|
Brakes |
SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm |
|
Brake Levers |
SRAM Force eTap AXS hydraulic |
|
Cassette |
SRAM Force, 12-speed, 10x36 |
|
Chain |
SRAM Force D2 |
|
Crankset |
SRAM Force D2 DUB, 30/43 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm |
|
Bottom Bracket |
SRAM DUB, press fit |
|
Rims |
Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm |
|
Hubs |
[F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
|
Spokes |
Sapim CX-Ray |
|
Tires |
CADEX AR, 700x40c, tubeless |
|
Extras |
53mm max tire size in long flip chip position, 45mm max tire size in short flip chip position, tubeless prepared, ISC clamp, integrated down tube storage bag |
|
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| X-Small | Small | Medium | Large | |
| Low | High | Low | High | Low | High | Low | High | |
| SEAT TUBE LENGTH (inch) | 15.4 | 16.5 | 18.3 | 19.7 |
| SEAT TUBE ANGLE | 75.0° | 74.0° | 75.0° | 74.0° | 75.0° | 74.0° | 75.0° | 74.0° |
| TOP TUBE LENGTH (inch) | 20.7 | 20.7 | 21.1 | 21.1 | 21.5 | 21.5 | 21.9 | 21.9 |
| HEAD TUBE LENGTH (inch) | 3.5 | 4.3 | 5.5 | 6.3 |
| HEAD TUBE ANGLE | 70.0° | 70.0° | 71.0° | 70.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| FORK RAKE (inch) | 2 | 2 | 2 | 2 |
| TRAIL (inch) | 3.1 | 3.2 | 3 | 3.1 | 2.8 | 3 | 2.8 | 3 |
| WHEELBASE (inch) | 39.8 | 40.2 | 40.1 | 40.5 | 40.4 | 40.8 | 41.1 | 41.4 |
| CHAIN STAY LENGTH (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.9 | 17.3 |
| BOTTOM BRACKET DROP (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| STACK (inch) | 20.6 | 20.6 | 21.4 | 21.5 | 22.6 | 22.6 | 23.3 | 23.4 |
| REACH (inch) | 15 | 14.9 | 15.1 | 15.1 | 15.2 | 15.2 | 15.4 | 15.3 |
| STAND OVER HEIGHT (inch) | 26.8 | 27.1 | 27.9 | 28.1 | 29.4 | 29.7 | 30.7 | 30.9 |
| HANDLEBAR WIDTH (inch) | 15.7 | 15.7 | 16.5 | 16.5 |
| STEM LENGTH (inch) | 2 | 2.4 | 2.8 | 3.1 |
| CRANK LENGTH (inch) | 6.5 | 6.7 | 6.8 | 6.8 |
| WHEEL SIZE | 700X42C | 700X42C | 700X42C | 700X42C |
