Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

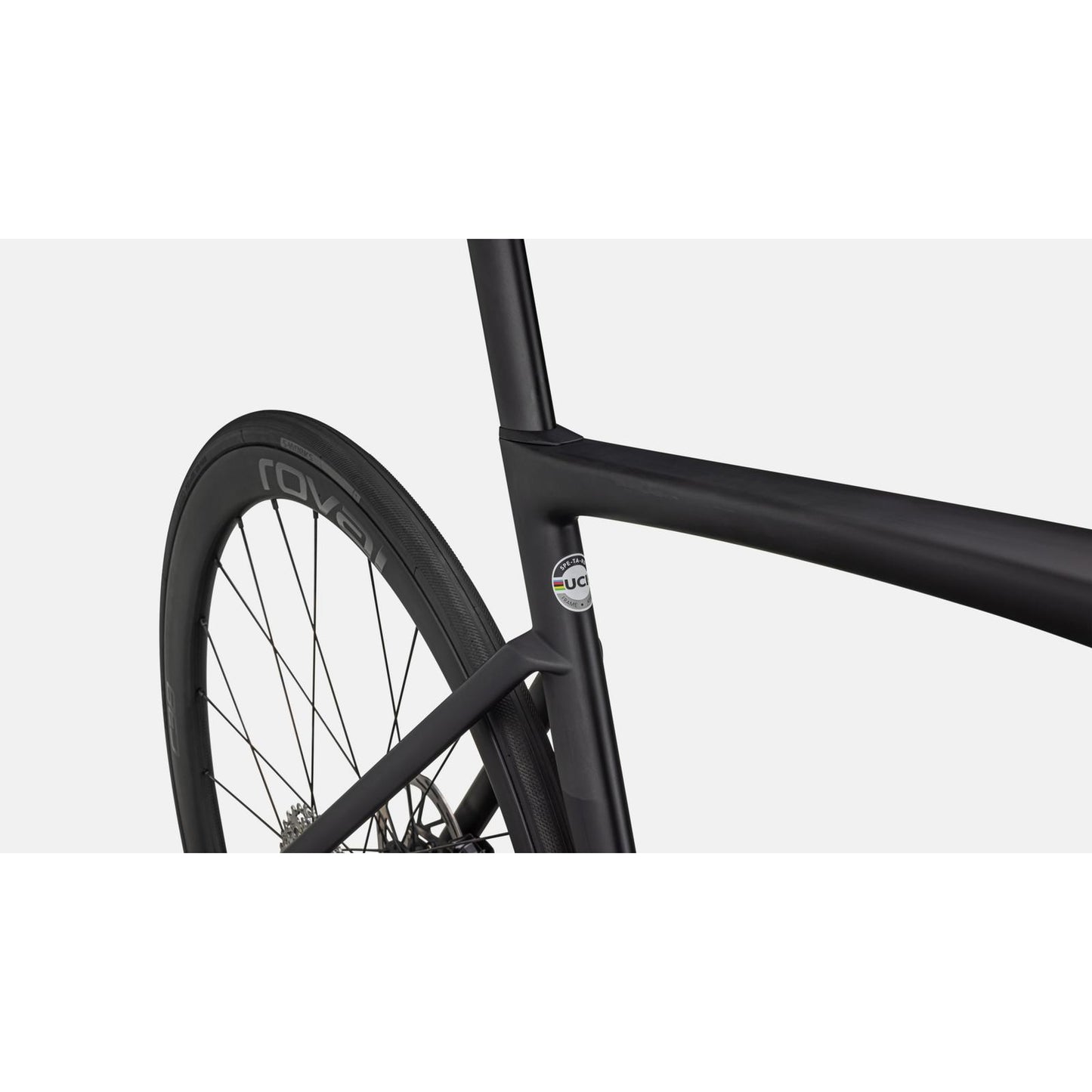

The all-new Specialized Tarmac SL7 Expert Road Bike—a speed demon with an attitude! It's not just about going fast; it's about defying limits with its mind-blowing aerodynamic prowess.
This bike is so much more than just a speedy rocket. All this jaw-dropping performance, wrapped up in a more budget-friendly package. The new Tarmac doesn't just rule the roads; it rules your heart! So embrace the FUN, embrace the speed, and conquer all terrains with this one bike to rule them all—the Specialized Tarmac SL7 Expert Road Bike. PRs, KOMs, and unforgettable adventures await!
Features:
- 'Aero is everything'—we’ve been preaching it for years and it’s still the driving force for the new Tarmac. In our quest for tube shapes that deliver the fastest frame that the UCI rules allow, we took a page out of the Venge development book and utilized our FreeFoil Shape Library. Armed with a library of optimized shapes, we turned to the Win Tunnel to plug these shapes into a modular test bike, for more testing and validation. The result? A new Tarmac Expert that’s faster than before—33 seconds faster over 40km than the Tarmac SL6. No compromises, just pure speed.
- While aerodynamics were paramount to the Tarmac’s development, and to the development of all of our race bikes, weight was the co-pilot on this optimal race bike journey. Previously “aero bikes” always compromised in the weight department—the more drag you reduced, the more weight you gained. With the new Tarmac, our design philosophy was to keep it at, or below, the UCI weight limit out of the box, with no sacrifices to aerodynamics. And with the help of the FreeFoil Shape Library, tools like isotopic FEA analysis, and some engineering wizardry by the best engineers in the industry, we delivered a frame that weighs a mere 920 grams, without giving up a gram of aero, stiffness or ride quality.
- Continuing our quest to develop the perfect race bike, we used our Rider-First Engineered™ philosophy to ensure that the new Tarmac is the most balanced, best handling Tarmac yet—no matter the size. With an army of the world’s best test riders from our three World Tour Teams — Boels-Dolmans, Deceuninck-Quick-Step, and Bora-hansgrohe — we made changes to the Tarmac based on their thousands of kilometers on the road. We balanced the ride quality between the front and rear end, so even the longest days in the saddle continue to be comfortable—all without giving up anything to the Tarmac’s legendary handling and race-winning snappiness.
- Building on the learnings from the Venge, the new Tarmac utilizes simple integration to create a clean, fast cockpit that’s easy to live with. We’ve improved the routing for any configuration — mechanical shifting, traditional stems, round bars, etc. — all while keeping its aerodynamic attributes. These same traits also make the new Tarmac easy to work on and easy to travel with. It’s a win-win.
SeatPost |
2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset |
Saddle |
Body Geometry Power Expert |
Handlebars |
Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach |
Tape |
Supacaz Super Sticky Kush |
Stem |
Tarmac integrated stem, 6-degree |
Seat Binder |
Tarmac integrated wedge |
Front Wheel |
Roval C38, 21mm internal width carbon rim |
Rear Wheel |
Roval C38, 21mm internal width carbon rim |
Front Tire |
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm |
Rear Tire |
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm |
Inner Tubes |
Turbo Ultralight, 48mm Presta valve |
Fork |
FACT Carbon, 12x100mm thru-axle, flat-mount disc |
Chain |
SRAM Rival 12 speed |
Cassette |
SRAM XG 1250 10-36 |
Bottom Bracket |
SRAM DUB BSA 68 |
Shift Levers |
SRAM Rival AXS |
Crankset |
SRAM Rival AXS with Power |
Rear Derailleur |
SRAM Rival eTAP AXS, Max 36T |
Front Derailleur |
SRAM Rival eTAP AXS, braze-on |
Chainrings |
48/35T |
Rear Brake |
SRAM Rival, hydraulic disc |
Front Brake |
SRAM Rival, hydraulic disc |
Frame |
Tarmac SL7 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc |
Geometry
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 360mm | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
Stack | 491mm | 504mm | 517mm | 534mm | 555mm | 581mm | 602mm |
Reach | 369mm | 378mm | 383mm | 387mm | 398mm | 405mm | 411mm |
Head Tube Length | 93mm | 102mm | 113mm | 131mm | 151mm | 178mm | 198mm |
Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
Fork Length, Full | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm |
Fork Rake/Offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
Bike Standover Height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
Seat Tube Length | 435mm | 447mm | 458mm | 475mm | 496mm | 517mm | 547mm |
Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
