Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.
Whether your goal is to escape on gravel back roads, far from cars and crowds, toe the start line at your first gravel race, or simply get the most versatile bike on the road or dirt, no bike is better than the new Diverge.
It's quite simply the fastest, most capable - and just maybe the most fun - alloy bike Specialized has ever made, delivering a ride that's quick and lively, but stable and confidence inspiring when the terrain gets rough. With all-new gravel geometry and category leading tire clearance, the new Diverge represents everything Specialized has learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.

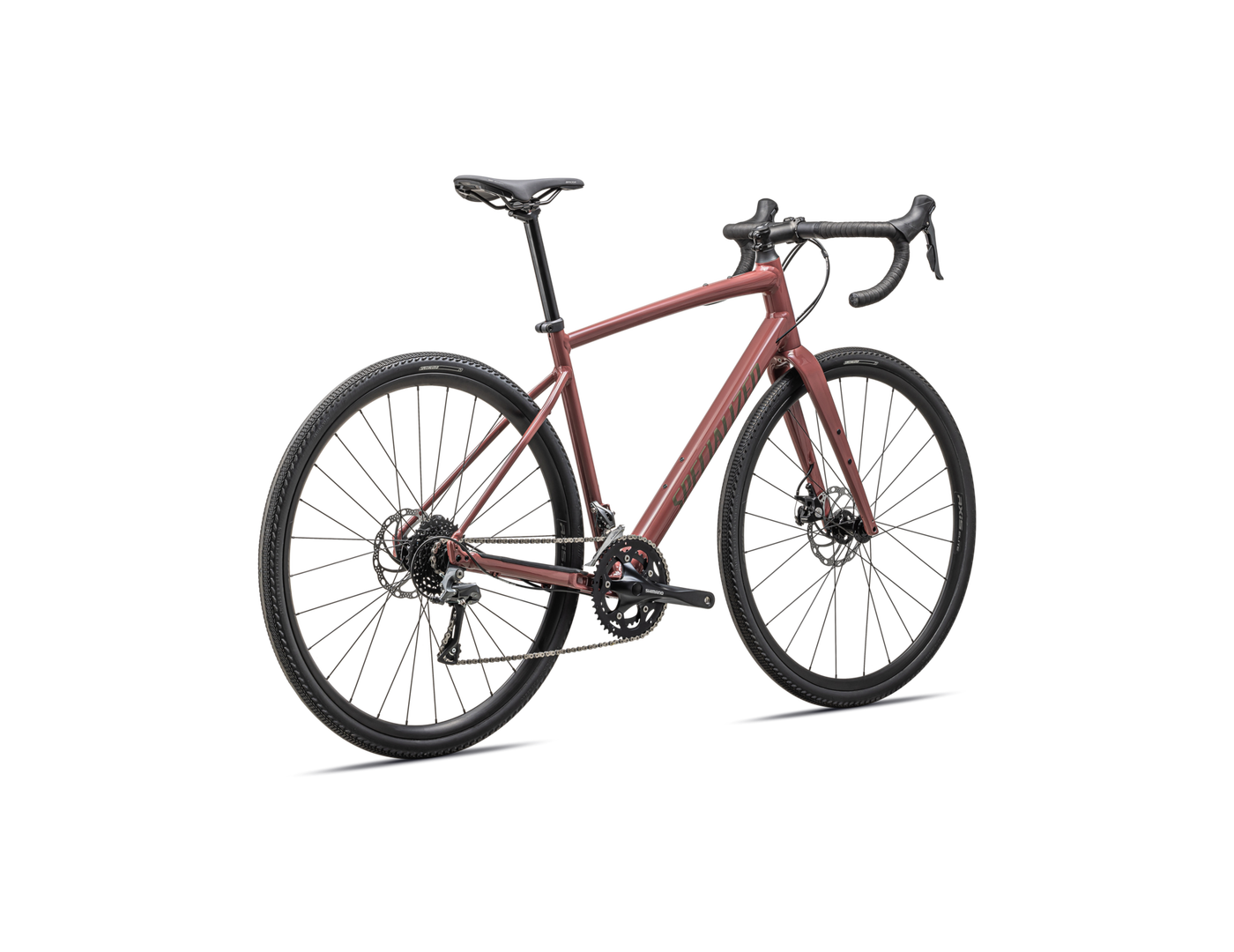

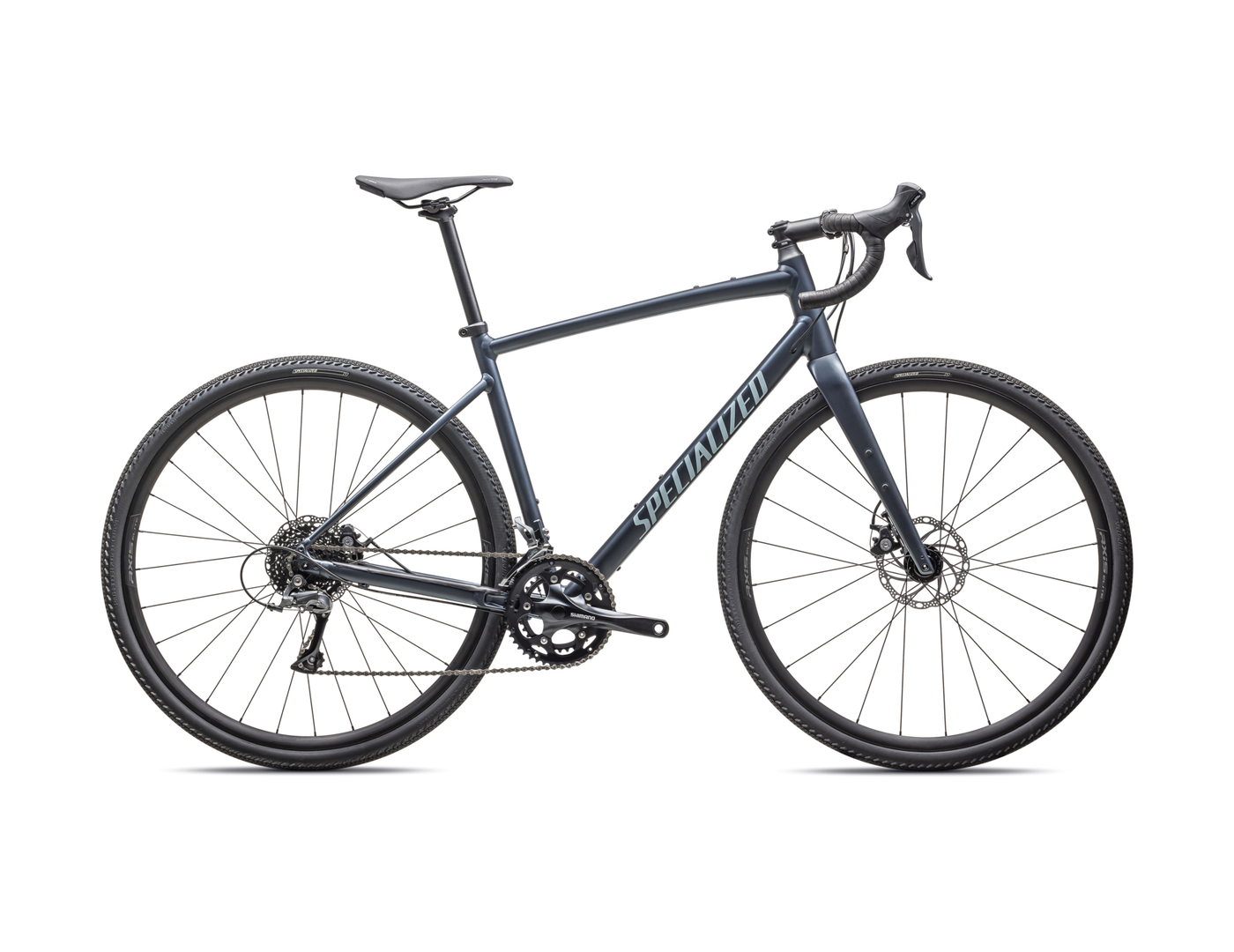

With a premium E5 alloy frame and a full carbon FACT fork the Diverge E5 delivers a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. Shimano’s Claris 2x8 group gives a wide range of gears for any terrain, while Axis Elite alloy wheels and Pathfinder Sport 38mm tires provide an efficient ride on pavement with the versatility for hard pack dirt riding.
- Specialized's Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge E5 becomes a light, lively and versatile bike ready to attack any surface.
- Specialized tossed gravel geometry status quo out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability but high enough to utilize with 650b wheels if that’s your jam.
- Specialized has given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive-side chain stay utilizing a solid beam of carbon behind the chainrings, we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 170 | 170 | 175 | 175 |
| Handlebar Width | 360 | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 529 | 545 | 561 | 578 | 599 | 618 | 635 |
| Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 |
| Head Tube Length | 110 | 125 | 140 | 155 | 175 | 195 | 213 |
| Head Tube Angle | 69.5 | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 |
| BB Height | 270 | 270 | 270 | 270 | 270 | 270 | 270 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Trail | 72 | 69 | 66 | 61 | 57 | 57 | 57 |
| Fork Length, Full | 390 | 390 | 390 | 390 | 390 | 390 | 390 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 589 | 598 | 608 | 615 | 626 | 641 | 656 |
| Chainstay Length | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1008 | 1017 | 1027 | 1035 | 1046 | 1061 | 1076 |
| Top Tube Length, Horizontal | 504 | 521 | 538 | 554 | 570 | 584 | 598 |
| Bike Standover Height | 680 | 703 | 723 | 763 | 789 | 808 | 834 |
| Seat Tube Length | 430 | 470 | 500 | 530 | 560 | 363 | 390 |
| Seat Tube Angle | 74.5 | 74 | 73.75 | 73.5 | 73.5 | 73.5 | 73.5 |
