Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

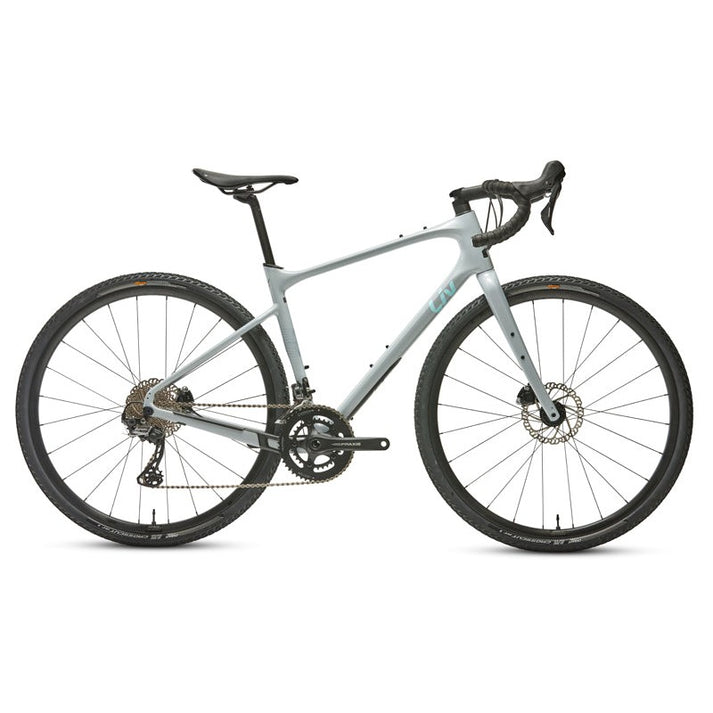

Hey there adventurer! Meet your new companion, the Devote Advanced 2 Gravel Road Bike. This bike is built to tackle everything from bikepacking and gravel grinding to everyday adventure rides and group trekking.
With its Advanced-Grade Composite frame and fork, this bike is lightweight and agile, allowing you to sail up climbs and accelerate quickly on any terrain. And with clearance for 45c tires and mounts for racks, accessories, and three water bottle cages, you'll be ready for any epic ride.
But this bike isn't just functional, it's also a smooth operator. The internal cable routing, D-Fuse seatpost, and handlebars ensure a clean and comfortable ride that can handle any vibration. So get ready to stir your backcountry desires with the Devote Advanced 2 Gravel Road Bike!
Lightweight
Advanced-Grade Composite frame and fork keeps your ride lightweight so you can sail up climbs and accelerate quickly on paved or gravel roads.
Adventure-Ready
With clearance for 45c tires and mounts for racks, accessories and three water bottle cages, this bike meets the demands of your next epic ride.
Smooth Operator
Internal cable routing and D-Fuse seatpost and handlebars keep this gravel bike clean and contoured for vibration-damping comfort and less maintenance.
Specifications
|
Sizes |
XS, S, M, L |
|
Colors |
Candy Navy |
|
Frame |
Advanced-Grade Composite, 12x142mm thru-axle, disc |
|
Fork |
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
|
Shock |
N/A |
|
Handlebar |
Giant Contact XR D-Fuse, 31.8 XS:40cm, S:40cm, M:42cm, L:42cm |
|
Grips |
Liv All Condition |
|
Stem |
Giant Contact XS:70mm, S:80mm, M:90mm, L:90mm |
|
Seatpost |
Giant D-Fuse, composite XS:75mm travel, S:75mm travel, M:75mm travel, L:100mm |
|
Saddle |
Liv Approach |
|
Pedals |
Sold separately |
|
Shifters |
Shimano GRX RX-600, 2x11 |
|
Front Derailleur |
Shimano GRX RX-810 |
|
Rear Derailleur |
Shimano GRX RX-810 |
|
Brakes |
Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
|
Brake Levers |
Shimano GRX RX-600 hydraulic |
|
Cassette |
Shimano 105, 11-speed, 11x34 |
|
Chain |
KMC X11SL-1 |
|
Crankset |
Praxis Alba 2D, 32/48 XS:165mm, S:170mm, M:172.5mm, L:172.5mm |
|
Bottom Bracket |
Praxis, press fit |
|
Rims |
Giant P-X2 Disc wheelset |
|
Hubs |
Giant P-X2 Disc wheelset |
|
Spokes |
Giant P-X2 Disc wheelset |
|
Tires |
Giant CrossCut AT 1, 700x38c, tubeless |
|
Extras |
tubeless prepared, 45mm max tire size |
|
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 15.4 | 16.5 | 18.3 | 19.7 |
| B | SEAT TUBE ANGLE | 75.0° | 75.0° | 74.5° | 74.5° |
| C | TOP TUBE LENGTH (inch) | 20.3 | 20.7 | 21.1 | 21.7 |
| D | HEAD TUBE LENGTH (inch) | 3.7 | 4.9 | 6.1 | 7.1 |
| E | HEAD TUBE ANGLE | 70.5° | 70.5° | 71.0° | 71.0° |
| F | FORK RAKE (inch) | 2 | 2 | 2 | 2 |
| G | TRAIL (inch) | 3 | 3 | 2.8 | 2.8 |
| H | WHEELBASE (inch) | 39.9 | 40.2 | 40.2 | 40.9 |
| I | CHAIN STAY LENGTH (inch) | 16.9 | 16.9 | 16.9 | 16.9 |
| J | BOTTOM BRACKET DROP (inch) | 3.1 | 3.1 | 3.1 | 3.1 |
| K | STACK (inch) | 20.9 | 22 | 23.1 | 24.1 |
| L | REACH (inch) | 14.9 | 14.8 | 14.6 | 15 |
| L | REACHTOHANDLEBAR (inch) | 16.9 | 17.2 | 17.4 | 17.8 |
| M | STAND OVER HEIGHT (inch) | 26.9 | 28 | 29.5 | 30.7 |
| N | HANDLEBAR WIDTH (inch) | 15.7 | 15.7 | 16.5 | 16.5 |
| O | STEM LENGTH (inch) | 2.8 | 3.1 | 3.5 | 3.5 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.8 | 6.8 |
| Q | WHEEL SIZE | 700c | 700c | 700c | 700c |
