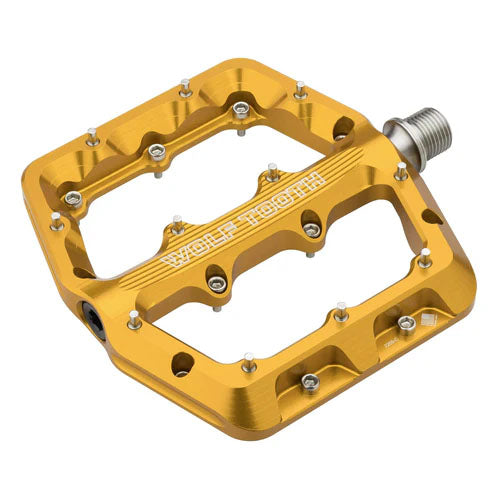

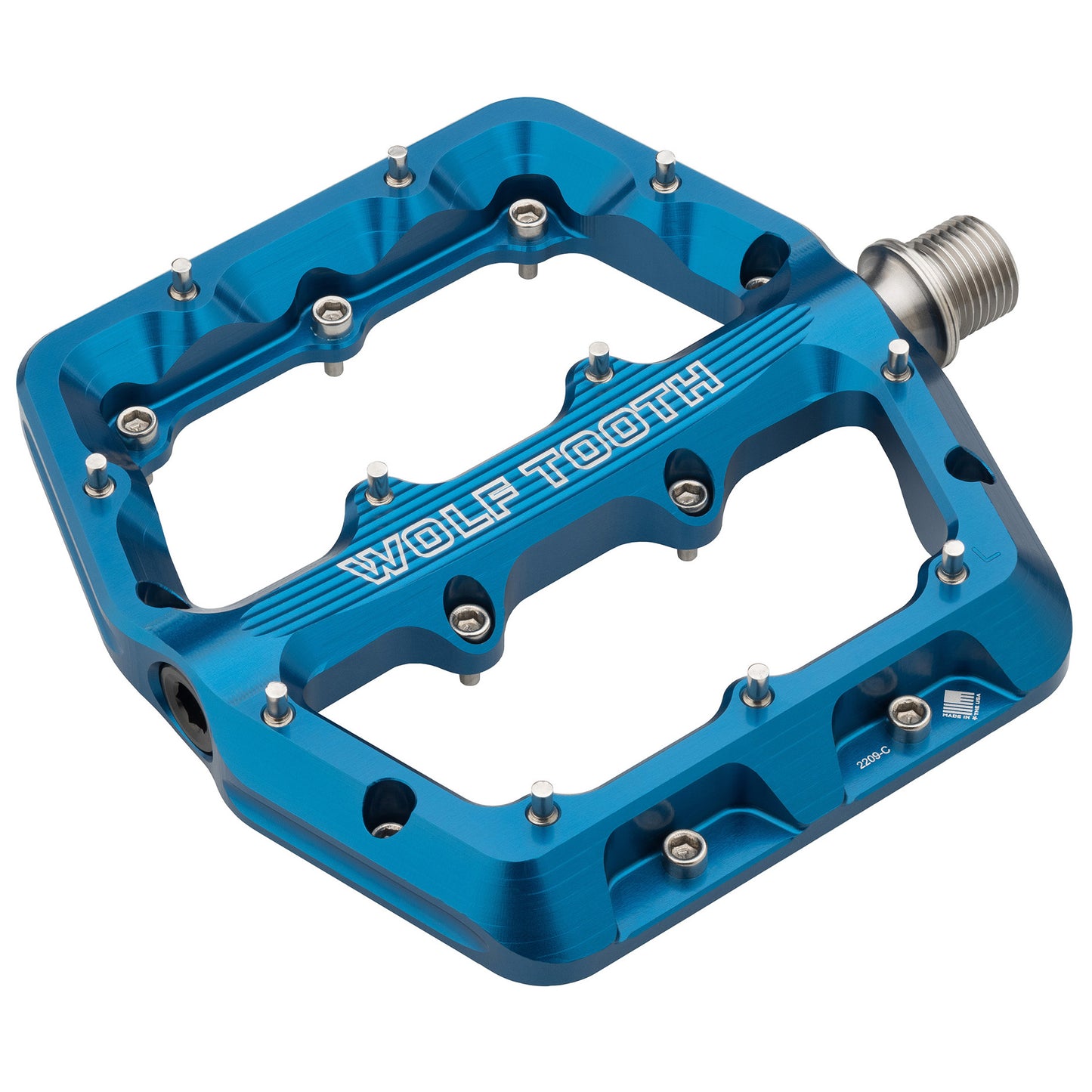

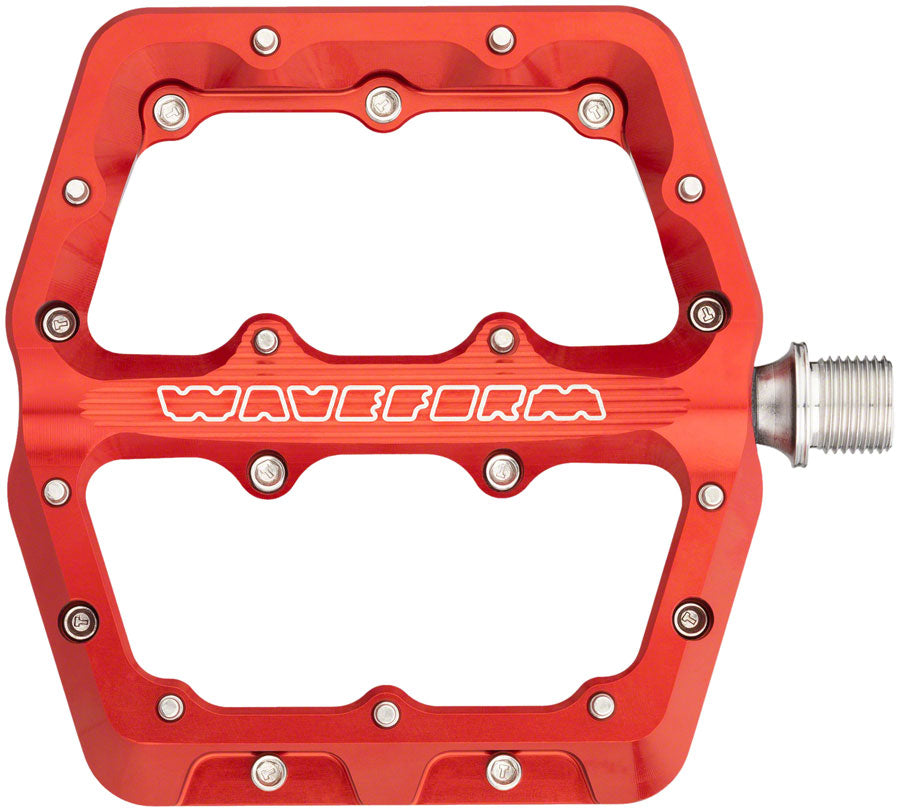

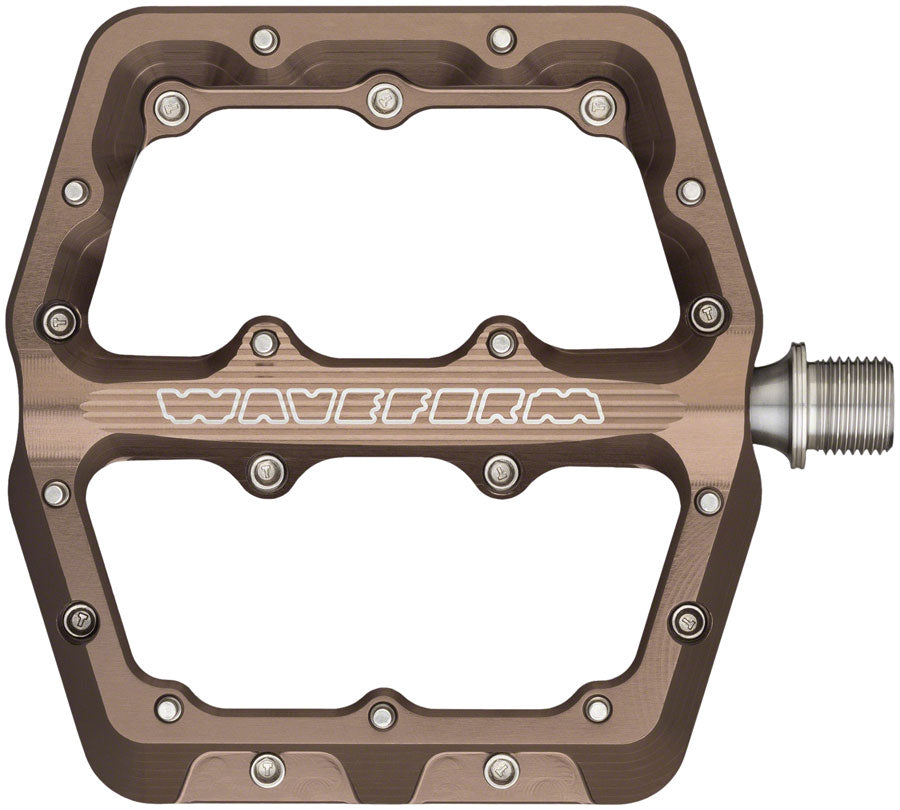

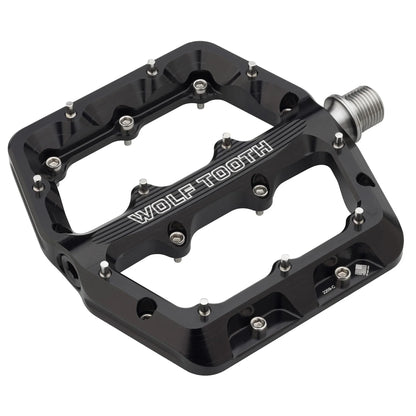

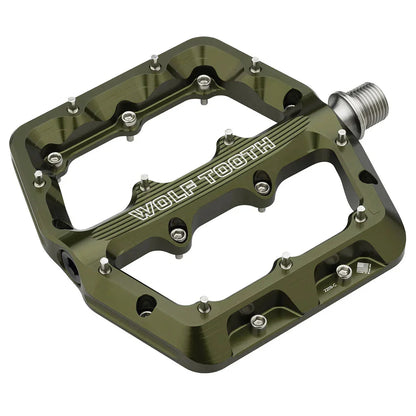

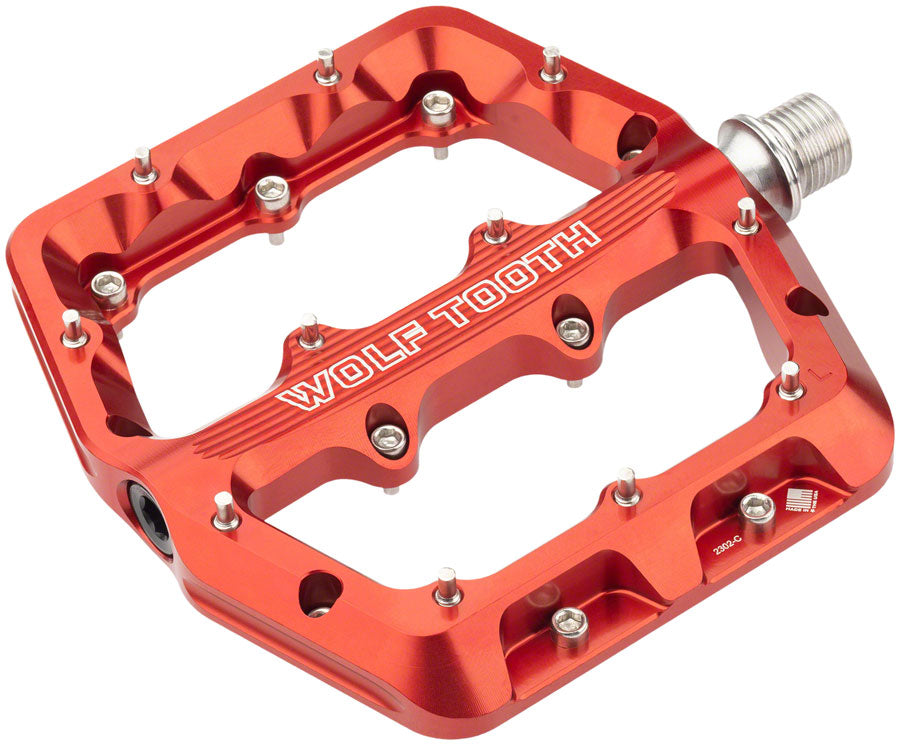

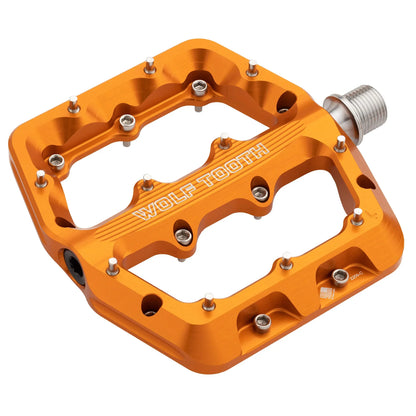

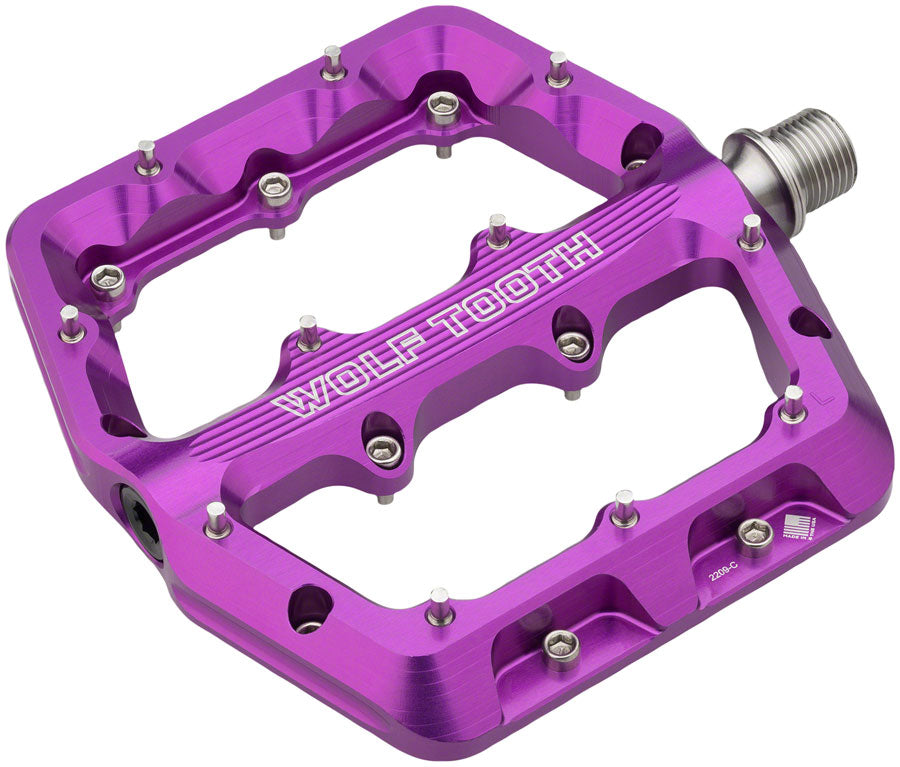

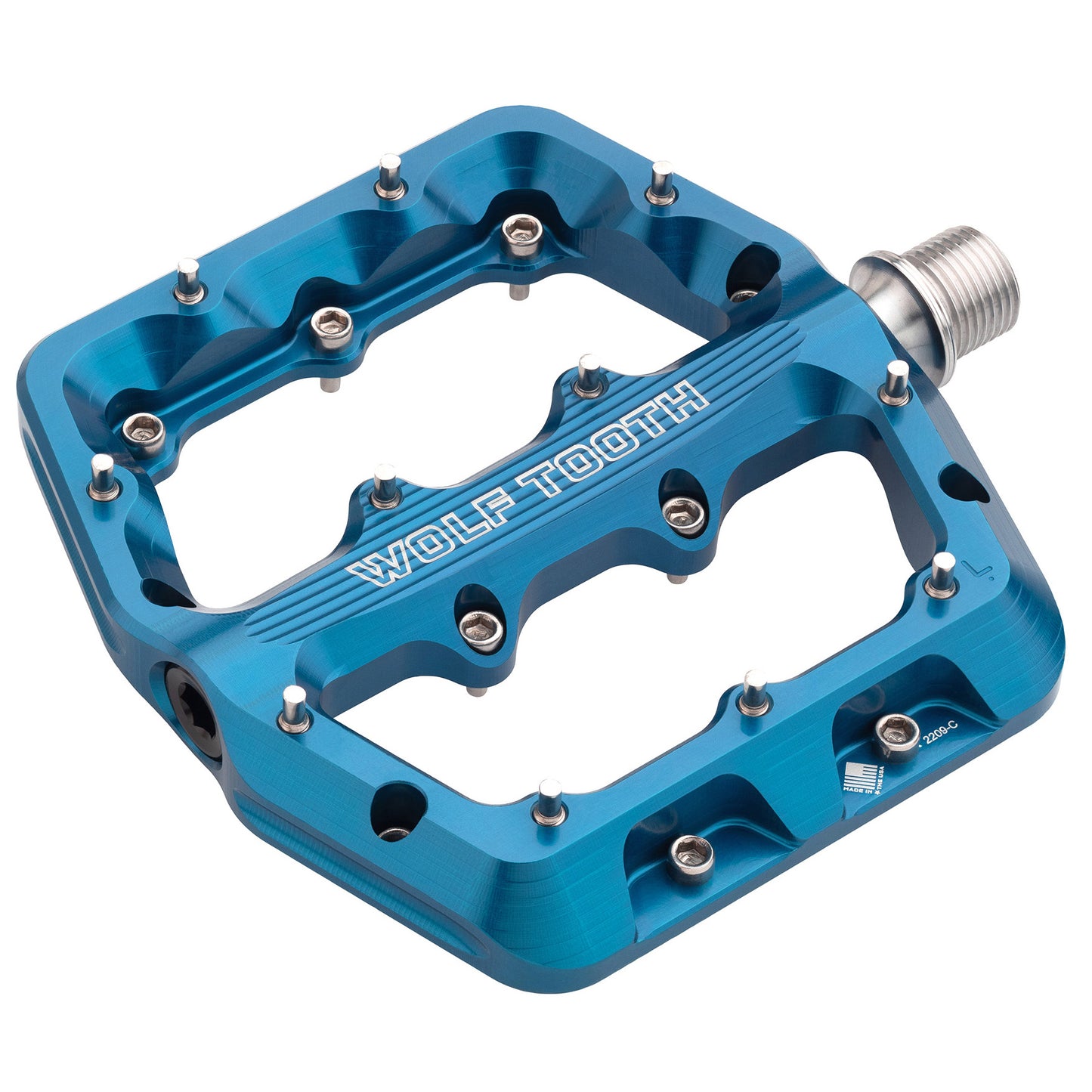

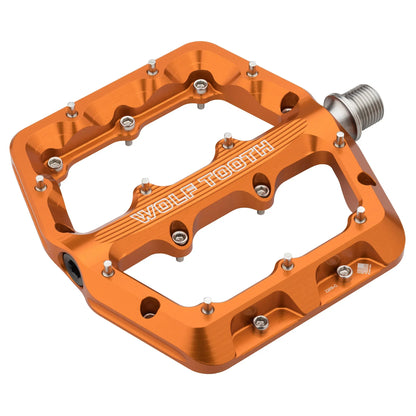

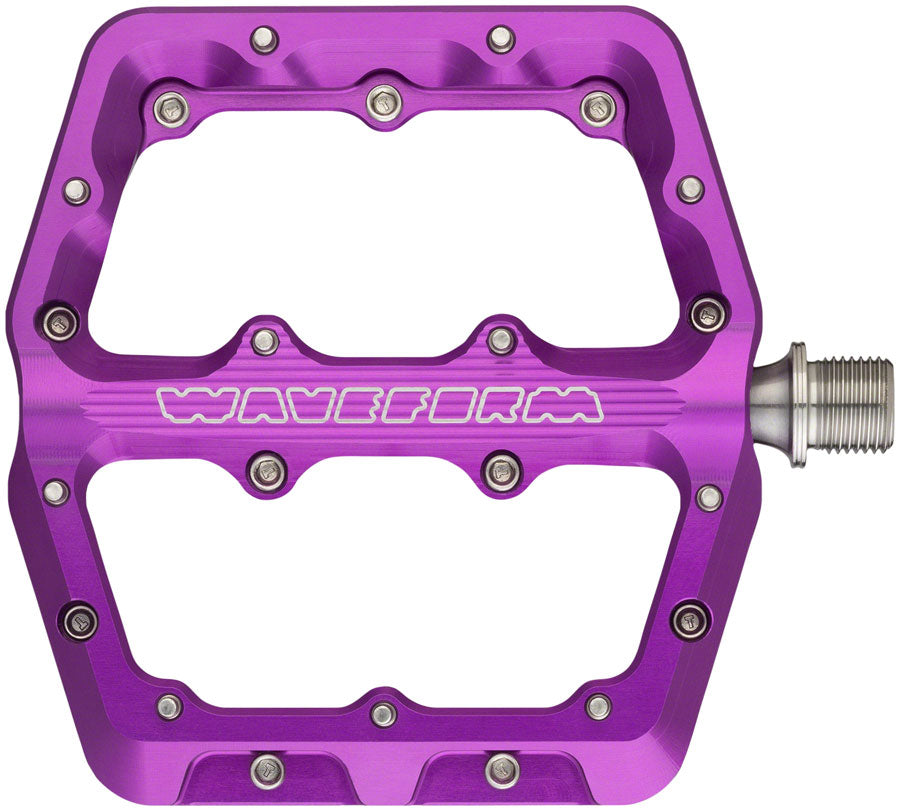

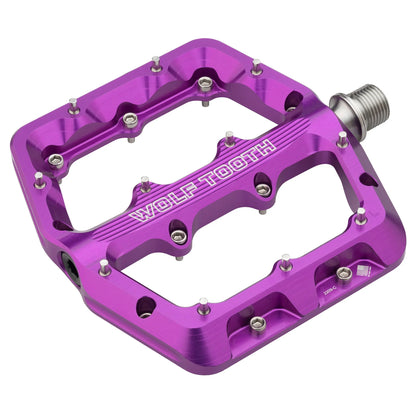

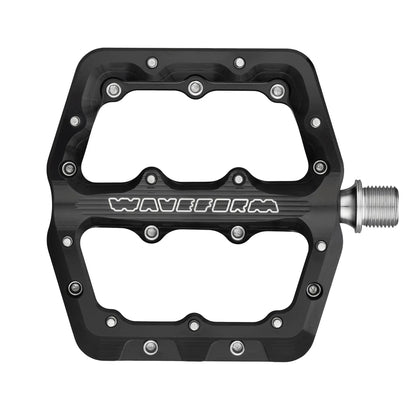

Waveform Pedals are engineered for all-mountain performance, offering a superior platform for everything from cross-country to aggressive downhill riding.
Designed to provide a supportive interface, these pedals are available in multiple sizes that are proportionally scaled to match the footprint of your shoe for maximum stability and control.

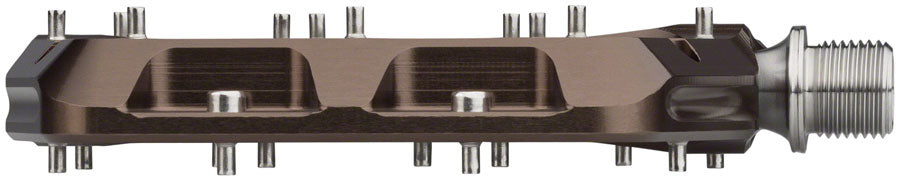

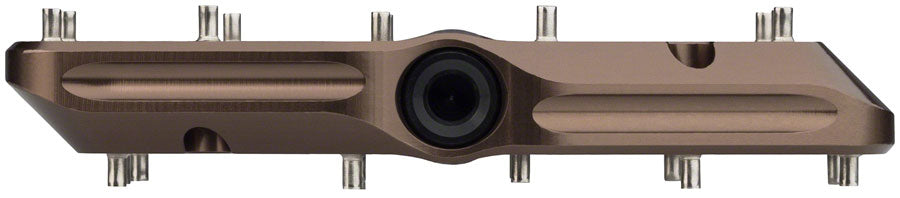

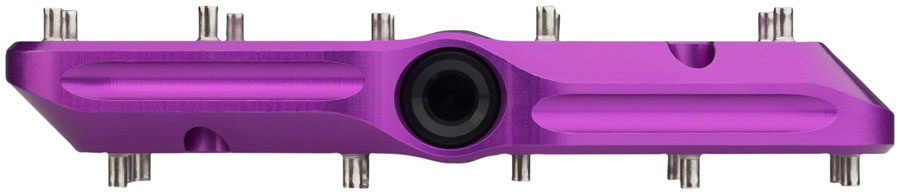

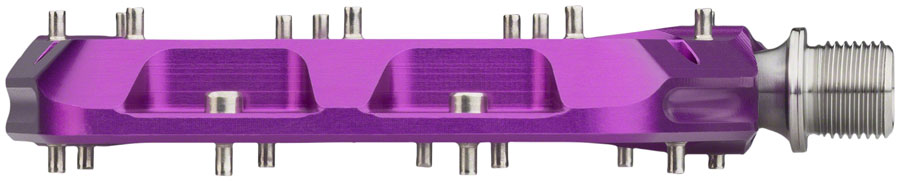

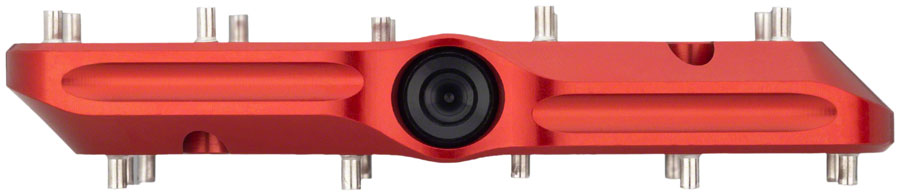

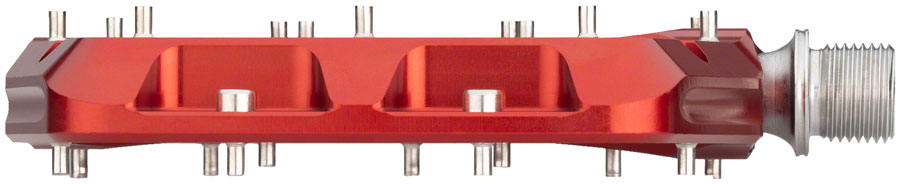

Each pedal features a slim, dual-concave profile that measures just 14mm at the perimeter and tapers to 12.5mm in the center, effectively cradling your foot for an optimized pedal feel. To ensure relentless traction in all conditions, every side is equipped with 11 stainless steel rear-loading pins.Proportionally designed platform shaped to match shoe profileSlim concave profile with a large tapered leading edge to deflect pedal strikes on rocky terrainAdvanced internal system featuring 3 low-friction fully sealed cartridge bearings and 1 Igus bushing per pedalCustom V-ring rotary seal protects internals against water and trail contaminationIncludes 11 stainless steel rear-loading pins per side (4.5mm tall) for exceptional gripFully serviceable design requires only a standard set of hex keys for maintenance
TECH SPECS
Pedal Type
Platform
Body Material
6061-T6 Aluminum
Spindle Material
17-4 PH Stainless Steel
Pedal Spindle
9/16"
Large Dimensions
112mm x 106mm (400g)
Small Dimensions
105mm x 99mm (380g)
Bearings
Three fully sealed cartridge bearings
All bicycle pedals are sold as a pair and include a left and right-specific pedal. Need help installing your new set of pedals? Check out our guide by clicking here (a new window will open).
