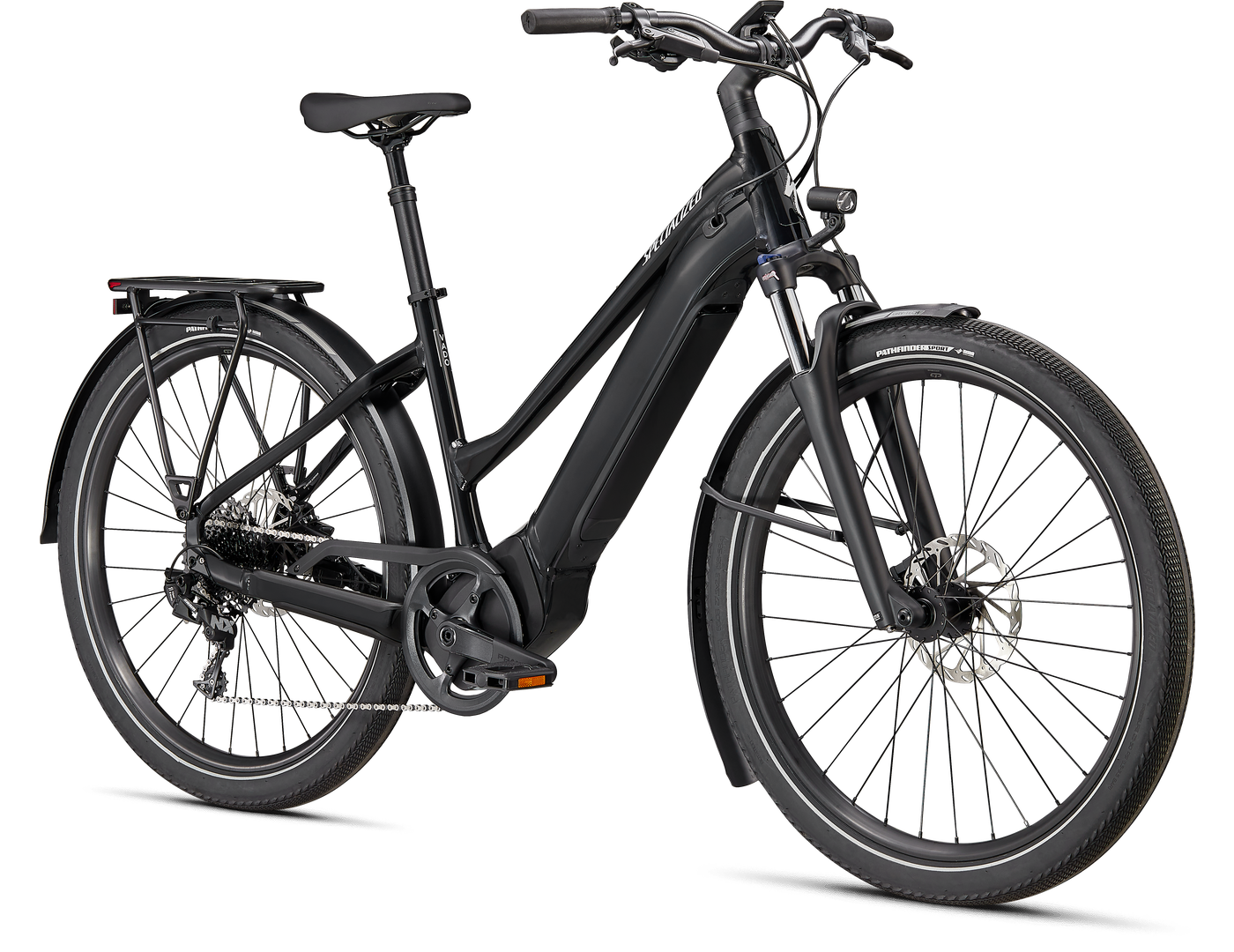

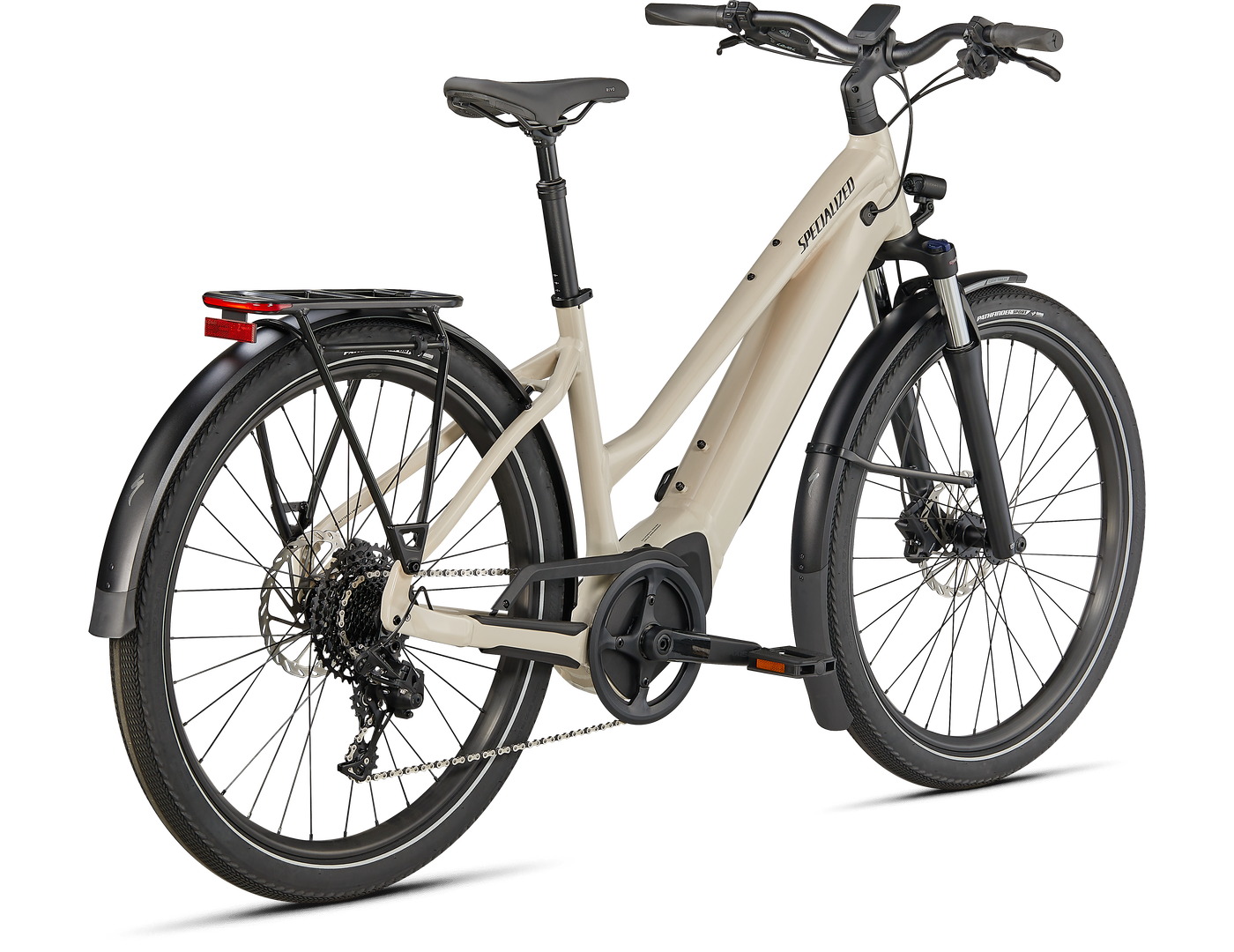

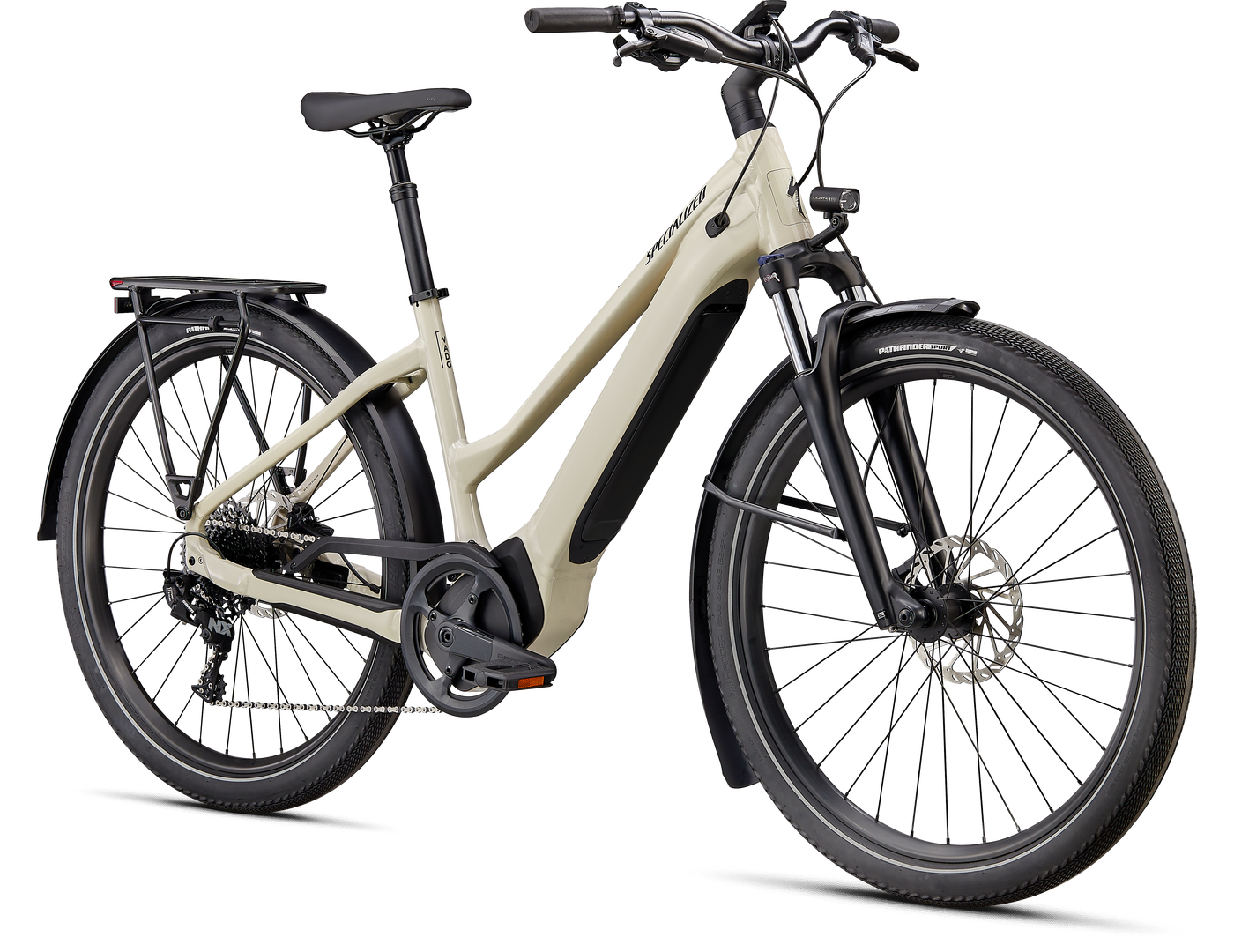

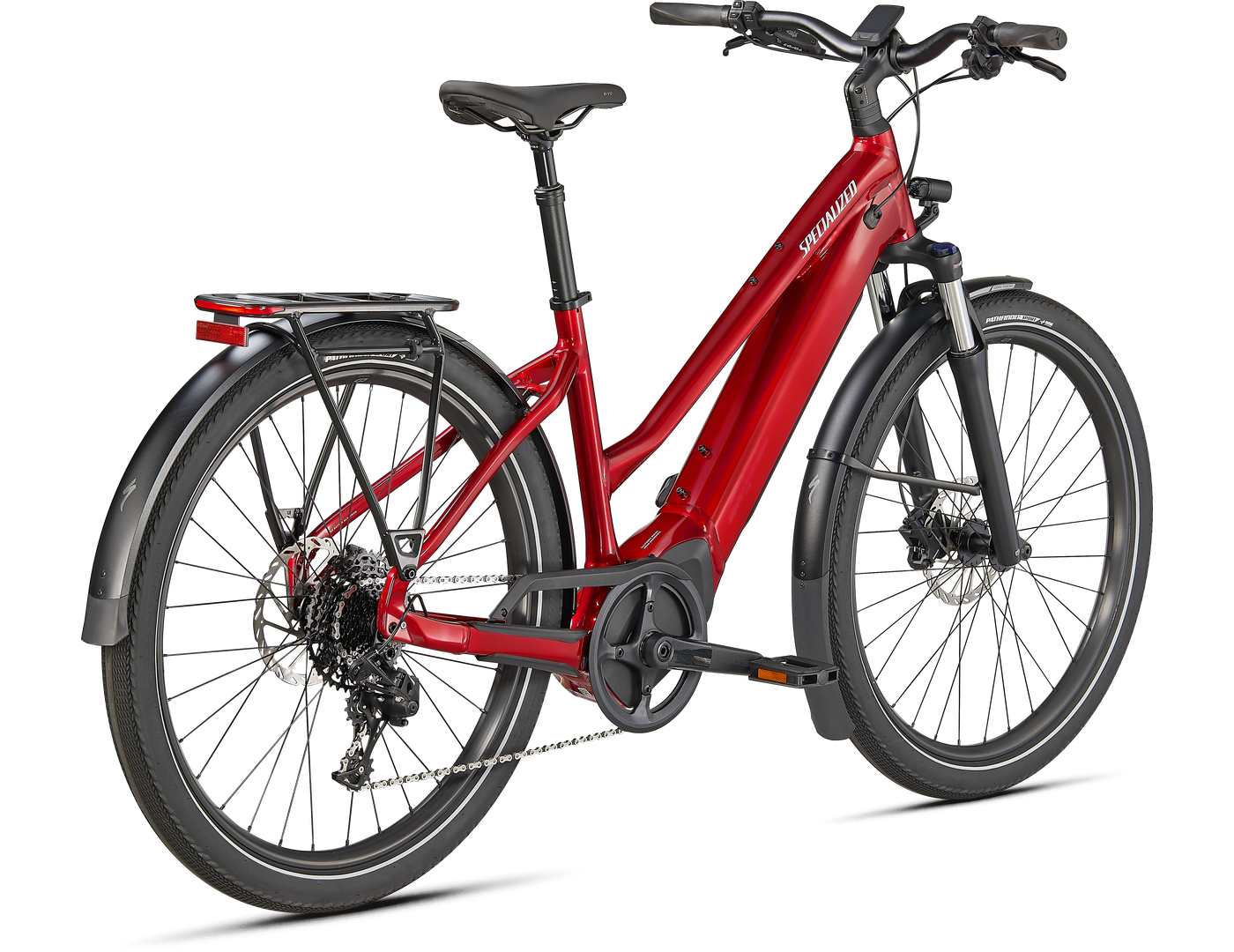

Specialized Turbo Vado 4.0 Step-Through (2023)

Specialized Turbo Vado 4.0 Step-Through (2023)

Regular price $3,249.99
Regular price $4,000.00 Sale price $3,249.99
18% OFF Sold out
Starting at $158/mo or 0% APR with . See if you qualify
Color: Tan
Size
Our Platinum Pro Assembly fee of only $89 will be added at checkout to cover the professional bike build and re-packaging by our certified teach team. Your new Specialized bike comes 90% built, reassembly is quick and easy with our video guides.
Inches CM Size
5'1"-5'5" 155-165 Small
5'5"-5'9" 165-175 Medium
5'9"-6'0" 175-183 Large
6'0"6'4" 183-193 X-Large

In stock

SKU:95022-5002U

View full details

Consider Vado your high-performance transportation bike, getting you where you’re going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado’s full power and huge range will get you from ‘point A’ to ‘point B’ ASAP.

The Specialized Vado has everything you need for e-powered transport. It brings a balanced nature to the way it handles and superior levels of comfort. This is a true class leader of its type.

TURBO: The heart of the Vado is its Turbo technology, an advanced and integrated electric bike system that delivers an unequaled combination of power, natural feel, anti-theft functions, training tips, and a full-function bike computer.

POWERFUL: It’s you, just faster — it’s 4x You. The Turbo Full Power system senses the force you apply to the pedals and naturally quadruples it for an experience that makes getting up any hill or to any destination no sweat. Literally.

COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.

SMOOTH: Stay comfortable in the saddle with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post that smooths harsh bumps from points A to B.

SECURE: Vado has anti-theft lock built right into the bike. Prevent would-be bike thieves by disabling the motor with a press of a button so no one can turn on the motor without your phone connected to the Specialized app or your personalized pin. The Vado’s battery locks in the bike or can be easily taken with you. And if anyone tries to move your bike an alarm will sound. Beat it, thieves.

The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.

  • Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
  • MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
  • Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
  • Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
  • Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
  • Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
  • Long-Range - With a ride-anywhere range, go up to 90 miles (145 km) or 6.5 hours on a single charge (eco mode).

E-Bike Specifications

Charger & Electronics

  • Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
  • Wiring Harness: Custom wire harness
  • UI/Remote: MasterMind TCD, w/ handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
  • Motor: Specialized 2.0, 70Nm torque, custom-tuned motor, 250W nominal
  • Battery: Specialized U2-710, alloy casing, state of charge display, 710Wh

Frameset

  • Frame: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
  • Seat Binder: Alloy, bolt-type, 34.9mm

Suspension

  • Fork: SR Suntour MobieA32, 80mm travel, lockout, fender mounts, integrated light mount

Brakes

  • Front Brake: SRAM Level, 2-piston caliper, hydraulic disc, 180mm
  • Rear Brake: SRAM Level, 2-piston caliper, hydraulic disc, 180mm

Drivetrain

  • Chainrings: Praxis, 48T, 104BCD
  • Crankset: Custom alloy forged crankarms
  • Chaincase: Custom chaincover
  • Chain: KMC e11S, 11-speed w/ Missing Link™
  • Shift Levers: SRAM NX, 11-speed
  • Rear Derailleur: SRAM NX, 11-speed
  • Cassette: SRAM PG-1130, 11-speed, 11-42t

Wheels & Tires

  • Rims: 650b disc, double-wall alloy, pinned, 32h
  • Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
  • Front Hub: Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
  • Spokes: DT Swiss Industry
  • Front Tire: Pathfinder Sport Reflect, 650Bx2.3
  • Rear Tire: Pathfinder Sport Reflect, 650Bx2.3
  • Inner Tubes: Standard 40mm SV 650Bx1.75-2.4

Cockpit

  • Grips: Body Geometry Women's Contour
  • Saddle: Bridge Sport, Steel rails, 155mm
  • Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
  • Handlebars: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
  • SeatPost: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve

Accessories

  • Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
  • Headlight: Lezyne Ebike Hecto E65, 210 Lumen, 12V
  • Bell: Simple bell
  • Taillight: Spanninga Commuter Glow XE, 12V
  • Pedals: Specialized Commuter w/ grip tape & reflectors
  • Kickstand: Specialized kickstand, 40mm mount
  • Rack: Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
  • Bike Lock: Turbo System Lock

Product Details

  • Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
  • Product ID: 275163
  • Weight: 26.4kg (58 lb, 3.2 oz)
  • Weight Size: MD
No technical specifications available.
S M L XL
Crank Length 170 170 170 170
Handlebar Width 680 680
Stem Length 60 60 75 75
Saddle Width 155 155 155 155
Seatpost Length 350 350 400 400
Reach 423 444 464 481
Bike Standover Height 618 617 617 626
Seat Tube Angle (Virtual) 75.5 75 74.5 74
Toptube Length (horizontal) 585 615 645 675
Headtube Length 135 150 165 190
Seat Tube Length 400 450 460 500
BB Height 285 285 285 285
BB Drop 70 70 70 70
Fork Rake/Offset 44 44 44 44
Stack 625 639 652 676
Wheelbase 1160 1186 1212 1239
Fork Length (full) 480 480 480 480
Trail 96 96 96 96
Front Center 699 724 750 777
Chainstay Length 470 470 470 470
Headtube Angle 68 68 68 68
