Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

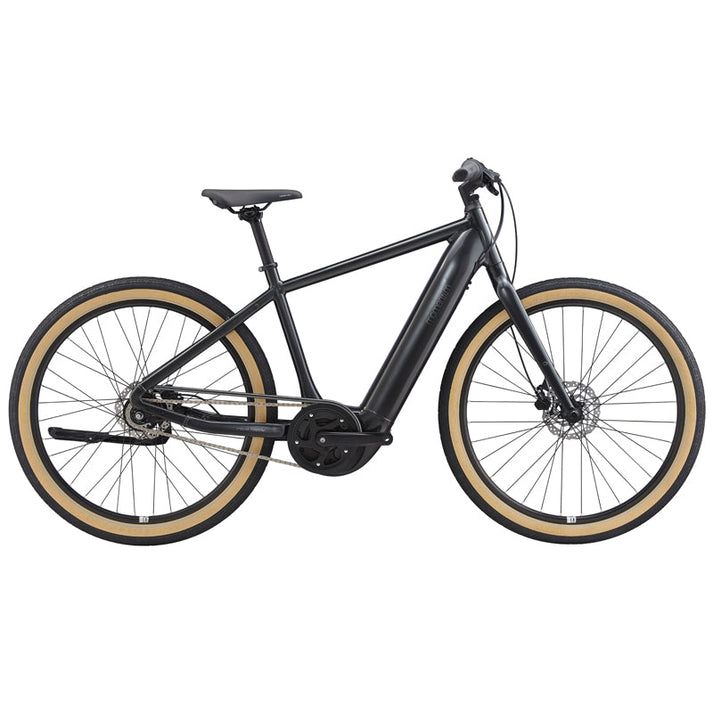

Introducing the Transend E+ GTS 28MPH E-Bike (2021), the ultimate ride for adventure seekers who want to ditch the dull and embrace the thrill! Say goodbye to boring commutes on trains or buses and say hello to a whole new way to move.
This bad boy is powered by the SyncDrive Life motor, equipped with Smart Assist technology that's smarter than your average robot. With its six sensors calculating torque, cadence, slope, and speed, you'll experience smooth and powerful pedaling assistance like never before. It's like having a personal cheerleader on two wheels, giving you a seamless boost of pedaling power that will have you riding farther and faster with less effort. Who needs a gym membership when you have this energetic companion?
The Transend E+ comes with an integrated battery cleverly stashed inside its sleek frame, the EnergyPak500. Paired with a 250W mid-frame motor, it's the perfect power duo that keeps you cruising without any worries of running out of juice. And shifting gears? Piece of cake! This baby rocks an internal geared hub for silky-smooth gear changes that will make you feel like a biking pro.
Let's talk speed, with six levels of support to choose from, including Eco, Eco+, Normal, Sport, Sport+, and Auto Assist modes, you have the power to go as fast as 28 MPH! Feel the wind in your hair as you zip through the streets, leaving everyone in your dust. It's pure exhilaration wrapped in a stylish frame.
Comfort is key, and the Transend E+ knows it. That's why it treats your behind to the Selle Royal Essenza saddle, providing long-lasting comfort and support. No sore bums here, folks!
Equipped with Tektro hydraulic disc brakes featuring 160mm rotors, you'll have optimal control and stopping power in any weather condition. Rain or shine, this bike has your back.
Conquering hilly terrains is a breeze with the 7-speed Shimano Nexus drivetrain. You can effortlessly find the perfect gear for any incline, whether you're taking on steep hills or cruising along flat roads. It's like having a personal mountain goat in your pedal strokes.
Last but not least, this beast rides on grippy 2.2-inch tires that can handle any road surface with confidence. Smooth or rough, bring it on! Plus, with the chainguard protecting your clothing from chain dirt and grime, you can ride in style without worrying about any fashion mishaps.
So, if you're ready to inject some fun into your daily grind and experience the world in a whole new way, hop on the Transend E+ GTS 28MPH E-Bike (2021). Adventure awaits, my friend!

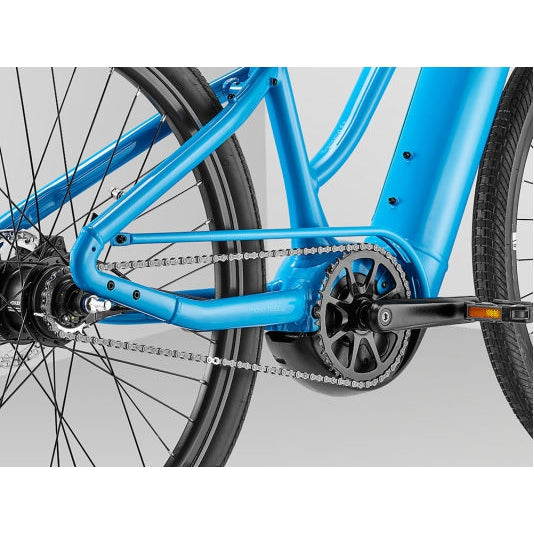

Mid-Drive Motor
SyncDrive motor features Smart Assist technology with six sensors to calculate torque, cadence, slope and speed and deliver smooth, powerful pedaling assistance
Integrated Battery
The in-tube EnergyPak500 battery design with 250W mid-frame motor
Internal Geared Hub
Integrated gear changing for smooth, worry-free shifting
Six Levels Of Support: Choose from Eco, Eco+, Normal, Sport, Sport+, and Auto Assist modes for max assist speed of up to 28 MPH
Plush Saddle
Selle Royal Essenza saddle provides long-lasting comfort and support
Hydraulic Disc Brakes
Tektro brakes with 160mm rotors provide optimal control and stopping power in all conditions
Wide Gear Range
7-Speed Shimano Nexus drivetrain makes it easy to choose the perfect gear for flat or hilly terrain
Grippy Tires
High-volume 2.2 inch tires offer confident handling on smooth or rough roads
Chainguard:
Protects clothing form chain dirt and grime
Specifications
Sizes
Motor |
Giant SyncDrive Life |
Sensors |
Giant PedalPlus 6-sensor technology |
Display |
Giant RideControl One |
Battery |
Giant EnergyPak 500Wh |
Sizes |
S, M, L |
Colors |
2 color |
Frame |
ALUXX aluminium, Double Diamond |
Fork |
ALUXX aluminium |
Handlebar |
Aluminium 12D sweep back, rise 25 mm, 720 width, TR48A-00S1 |
Stem |
TDS-807-8 FOV 31.8 |
Seatpost |
Aluminium 30.9mm |
Saddle |
Selle Royal Essenza Moderate |
Pedals |
Anti-slip |
Shifters |
NEXUS 7 RevoShift, SL-C3000-7 |
Front Derailleur |
N/A |
Rear Derailleur |
N/A |
Brakes |
Tektro HD-C275 hydraulic disc brake, 160mm |
Brake Levers |
Tektro HD-C275 Hydraulic Disc |
Cassette |
18 T |
Chain |
KMC Z1eHX NP/NP |
Crankset |
Giant Crank |
Rims |
27.5 aluminum, e-bike optimized |
Hubs |
Shimano Nexus 7, SG-C3001-7D rearShimano TX505 front |
Spokes |
Stainless steel |
Tires |
Kenda Kwick Seven.5 27.5" x 2.20 |
Extras |
Giant EnergyPak 6A charger, Alloy Kickstand |
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
S | M | L | ||
---|---|---|---|---|
A | Seat Tube Length (inch) | 15.7 | 18.5 | 21.5 |
B | Seat Tube Angle | 73.0° | 73.0° | 73.0° |
C | Top Tube Length (inch) | 22.2 | 22.8 | 24.2 |
D | Head Tube Length (inch) | 5.5 | 5.9 | 6.5 |
E | Head Tube Angle | 69.5° | 69.5° | 69.5° |
F | Fork Rake (inch) | 2 | 2 | 2 |
H | Wheelbase (inch) | 44 | 44.6 | 46 |
I | Chain Stay Length (inch) | 19.1 | 19.1 | 19.1 |
J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 |
K | Stack (inch) | 22.9 | 23.2 | 23.8 |
L | Reach (inch) | 15.5 | 15.9 | 17.2 |
M | Stand Over Height (inch) | 28 | 29.8 | 31.9 |
N | Handlebar Width (inch) | 28.3 | 28.3 | 28.3 |
O | Stem Length (inch) | 2.4 | 2.4 | 3.1 |
Q | Wheel Size | 27.5 | 27.5 | 27.5 |
