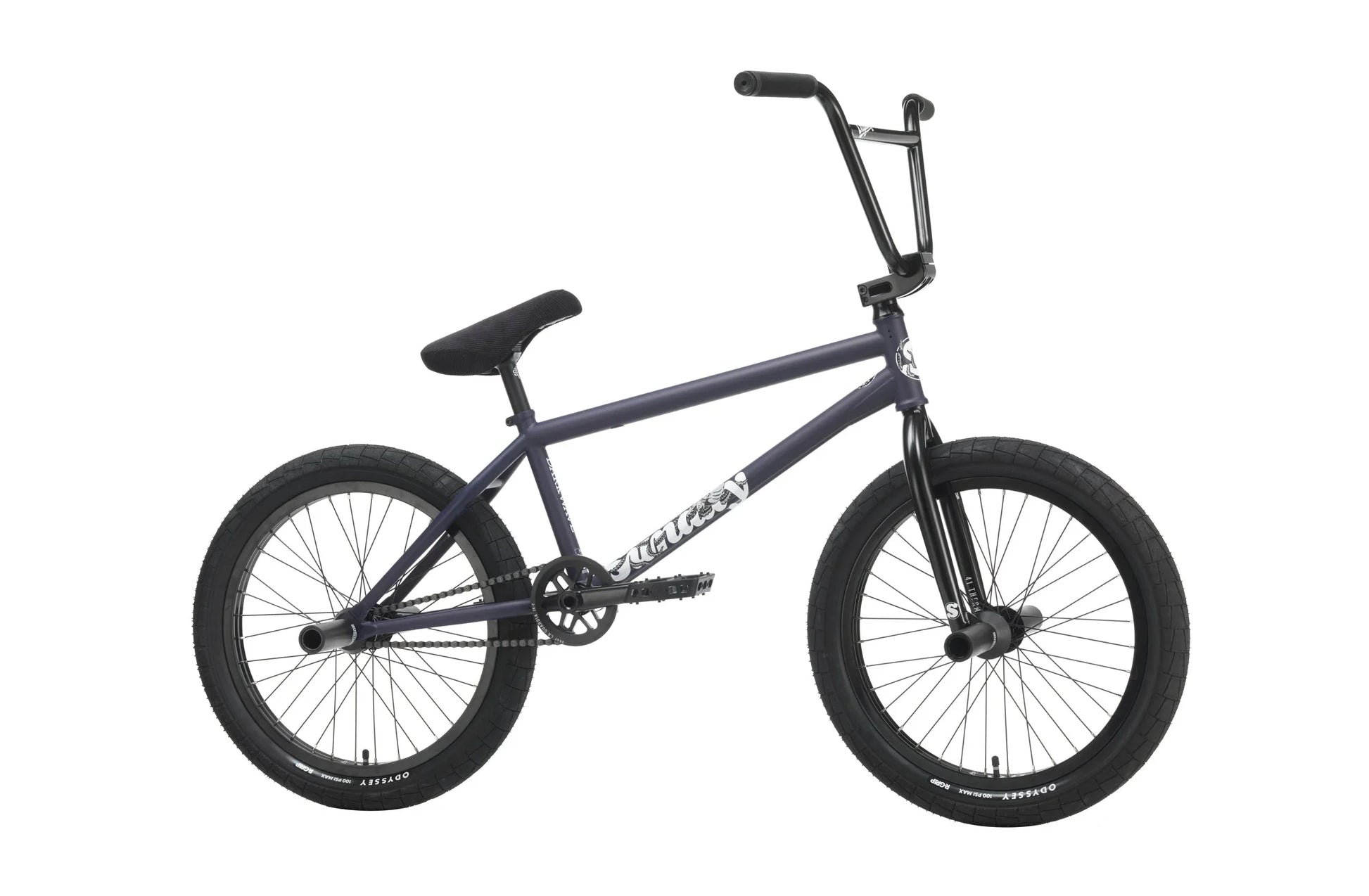

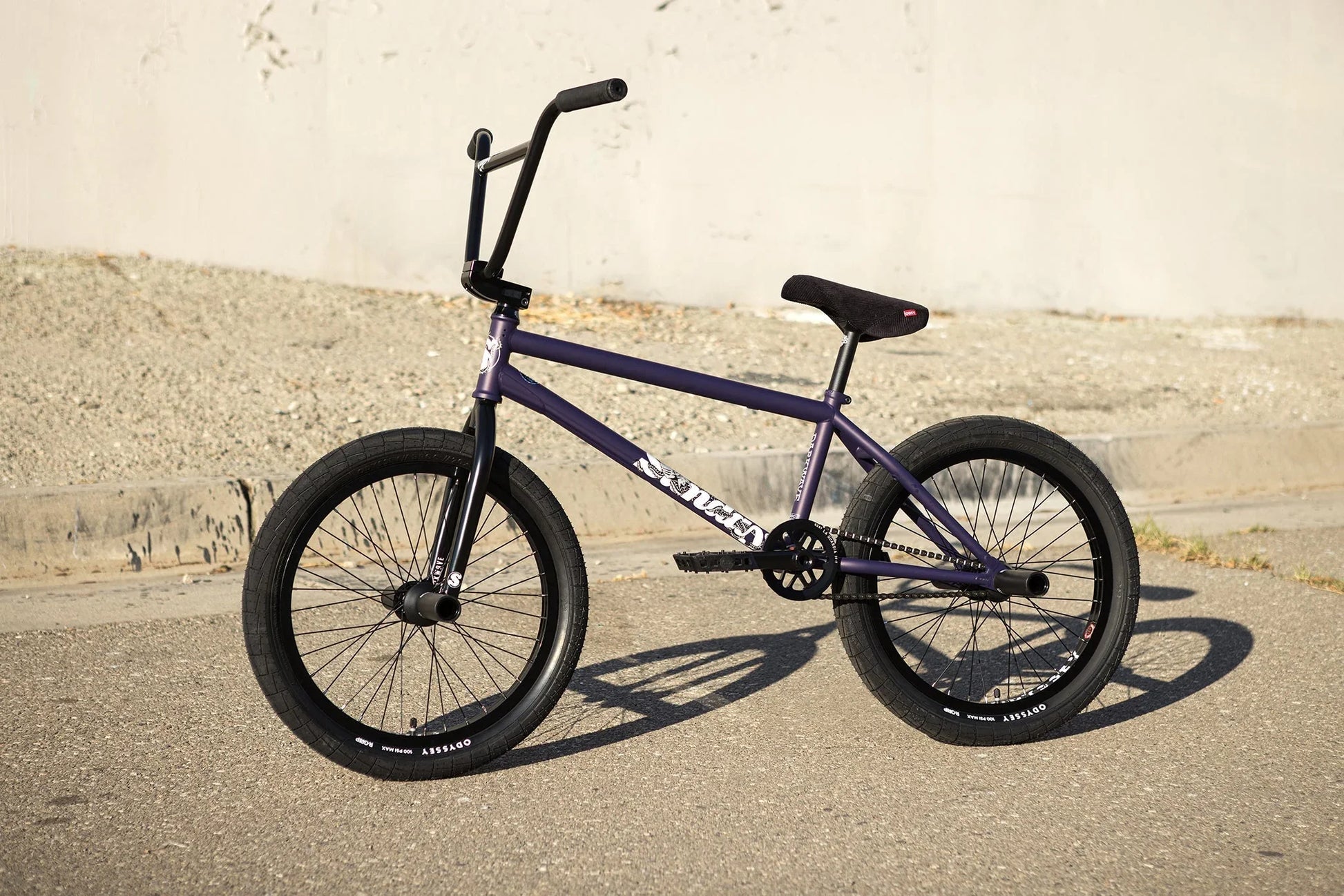

This is the Broc Raiford Darkwave Authentic.
This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey and Sunday products, left hand drive setup and top tube size.
Key Features
- 100% Aftermarket Parts Kit
- Lifetime Warranty on Bars, Forks, and Cranks
- Sunday Darkwave Frame
- Sunday Darkwave 41-Thermal Forks
- Odyssey BROC 41-Thermal Bars
- Odyssey Thunderbolt 41-Thermal Cranks
- Odyssey Broc v2 Stem
- Odyssey Clutch Pro Freecoaster
- Odyssey Vandero Pro Front Hub
- Odyssey Hazard Lite Rims
- Odyssey Broc Tires with R-Grip
Specifications

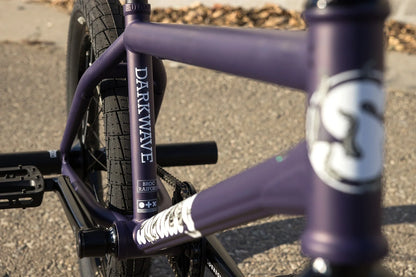

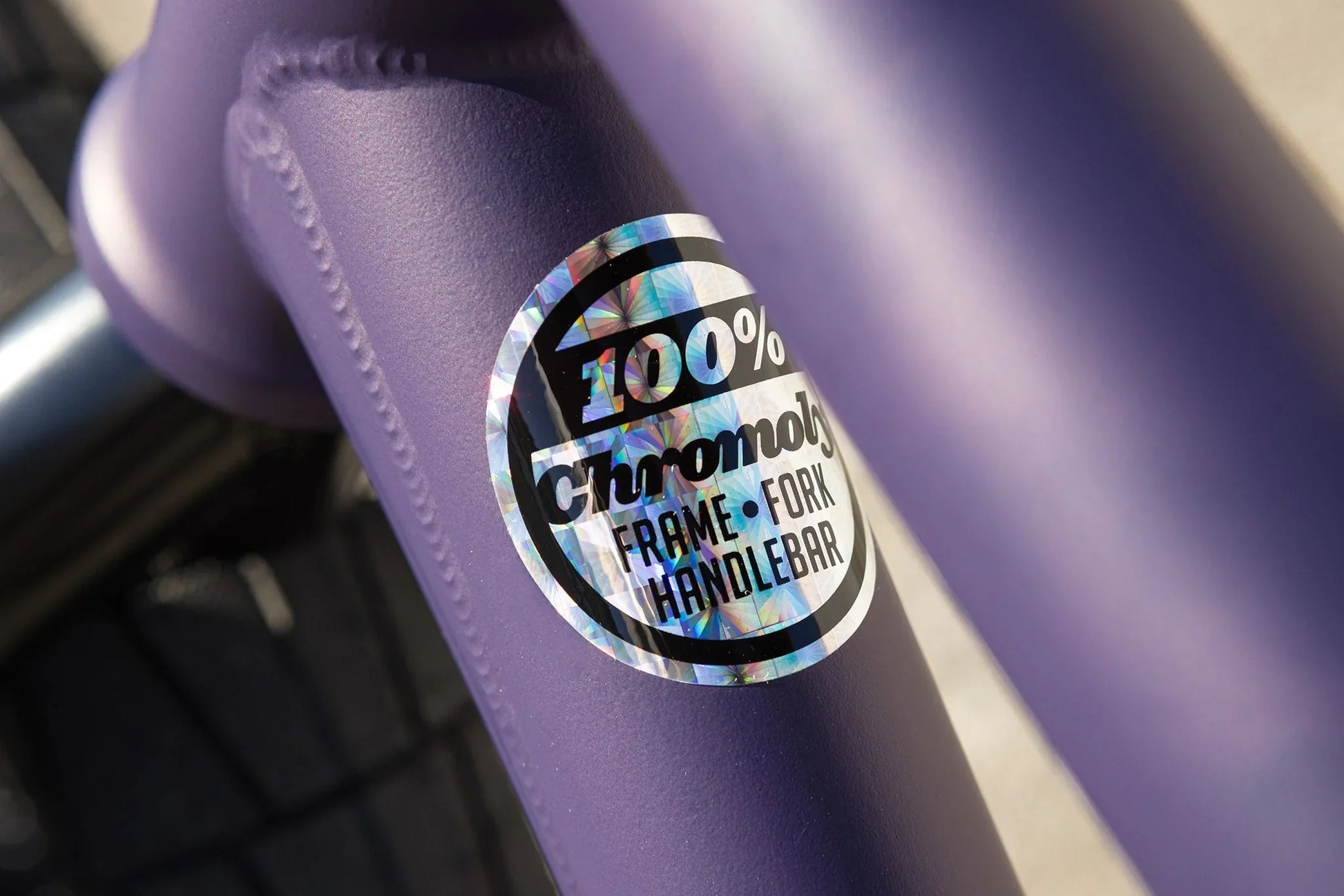

Frame: Sunday Darkwave, 21" (RHD) or 21.25" (LHD), 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork: Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

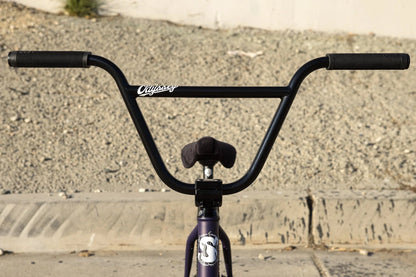

Handlebar: Odyssey BROC Bar, 41-Thermal, aftermarket bar

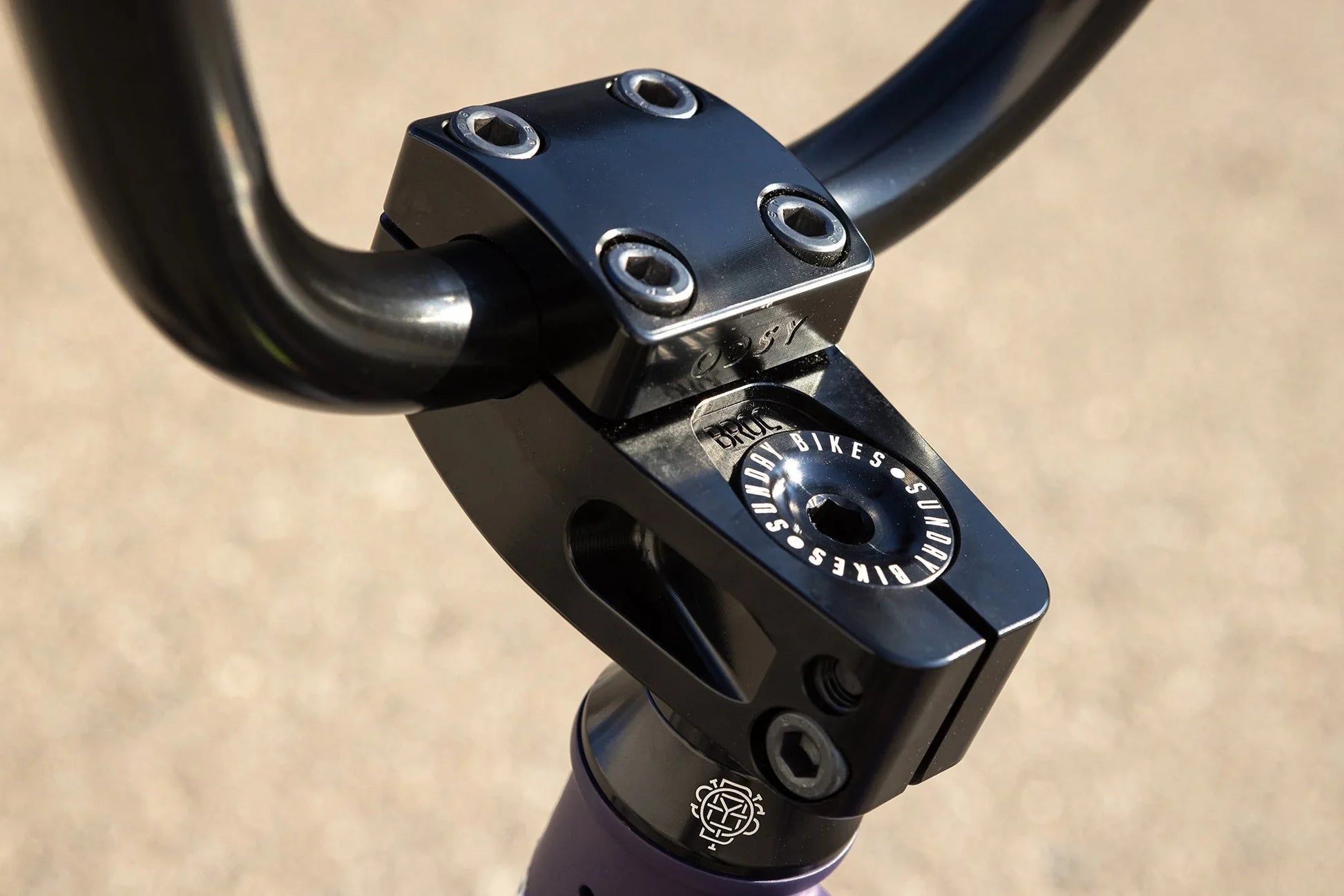

Stem: Odyssey BROC v2 Stem, 50mm

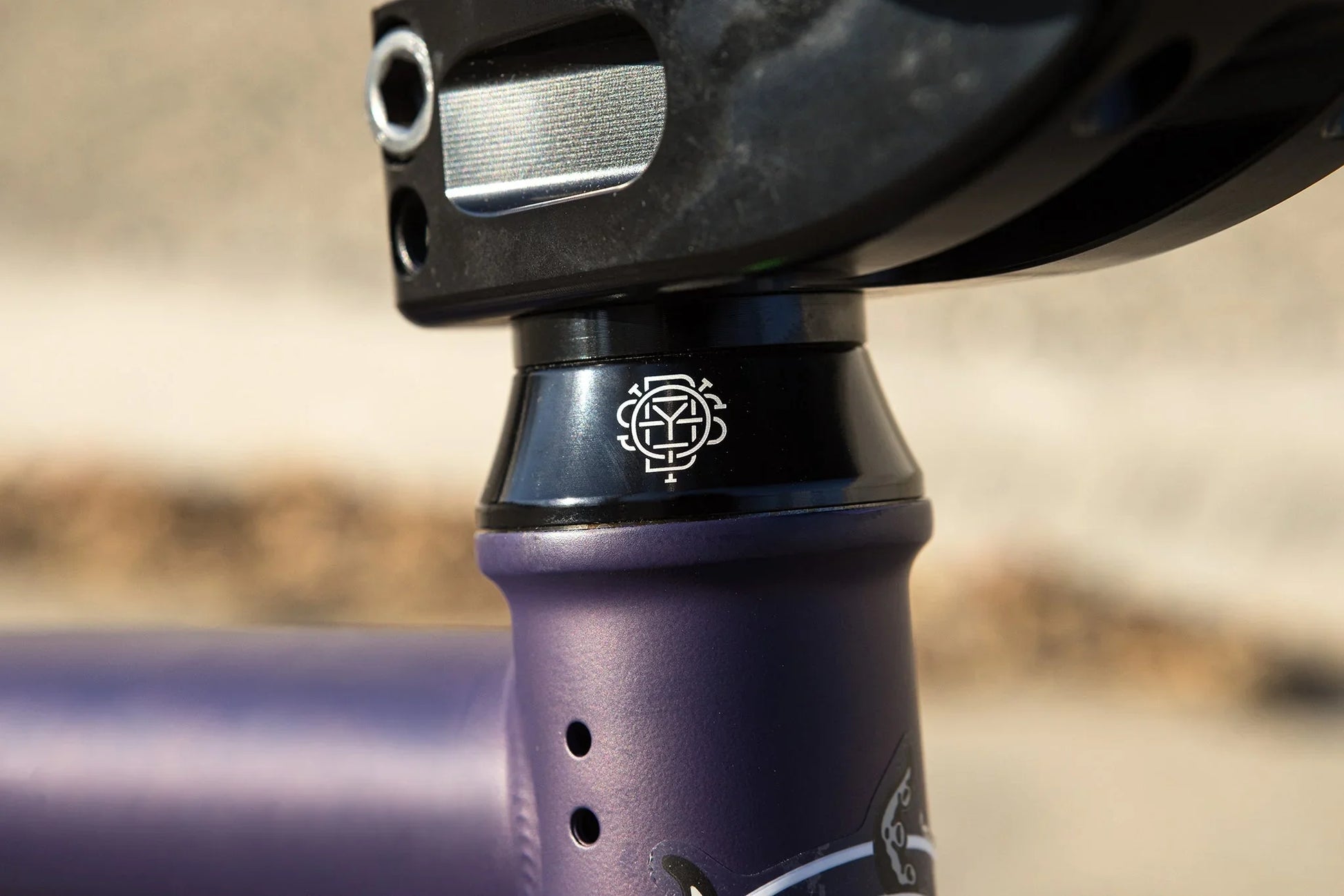

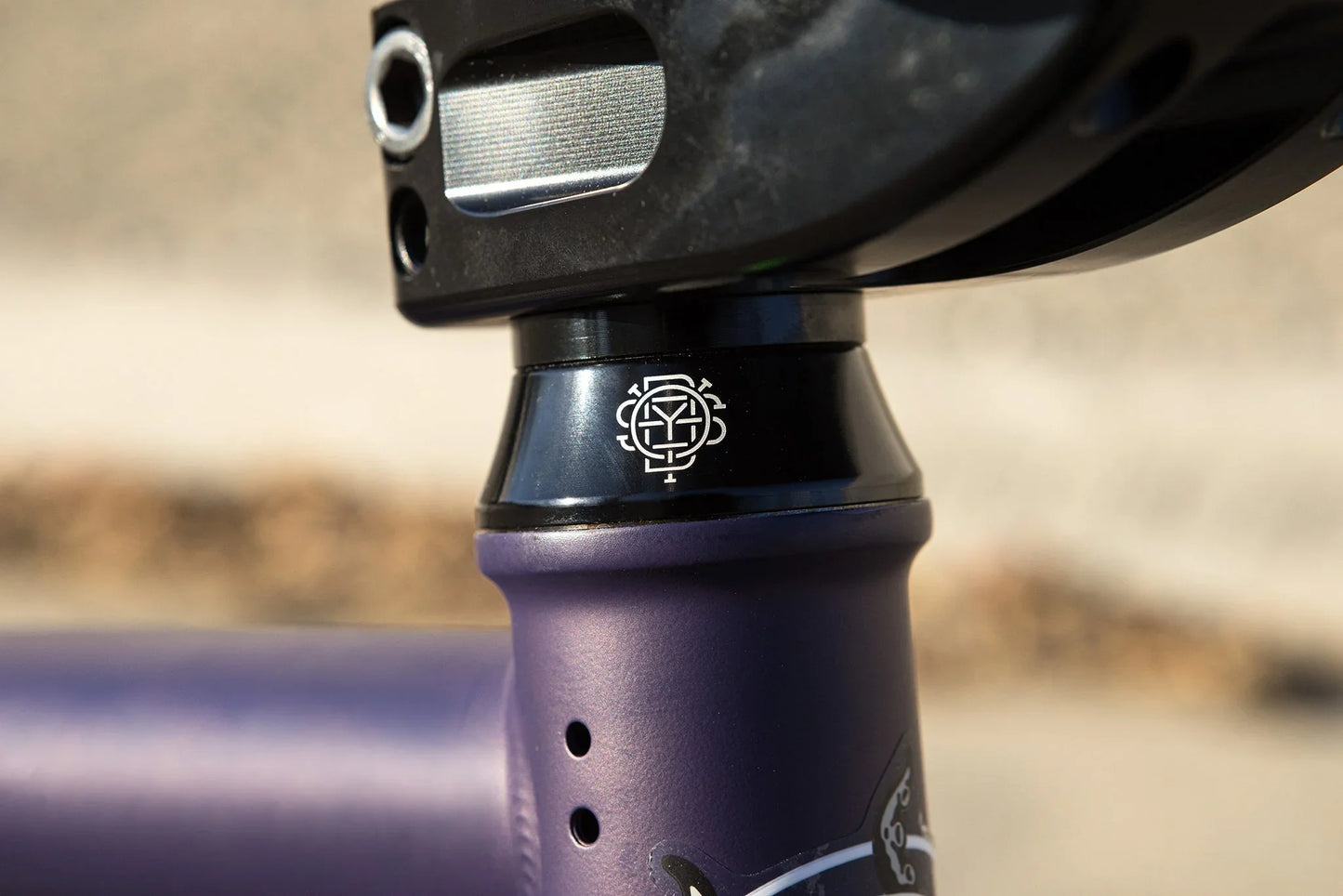

Headset: Odyssey Pro Conical, 1-1/8"
Headset Cap: Sunday aftermarket, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic

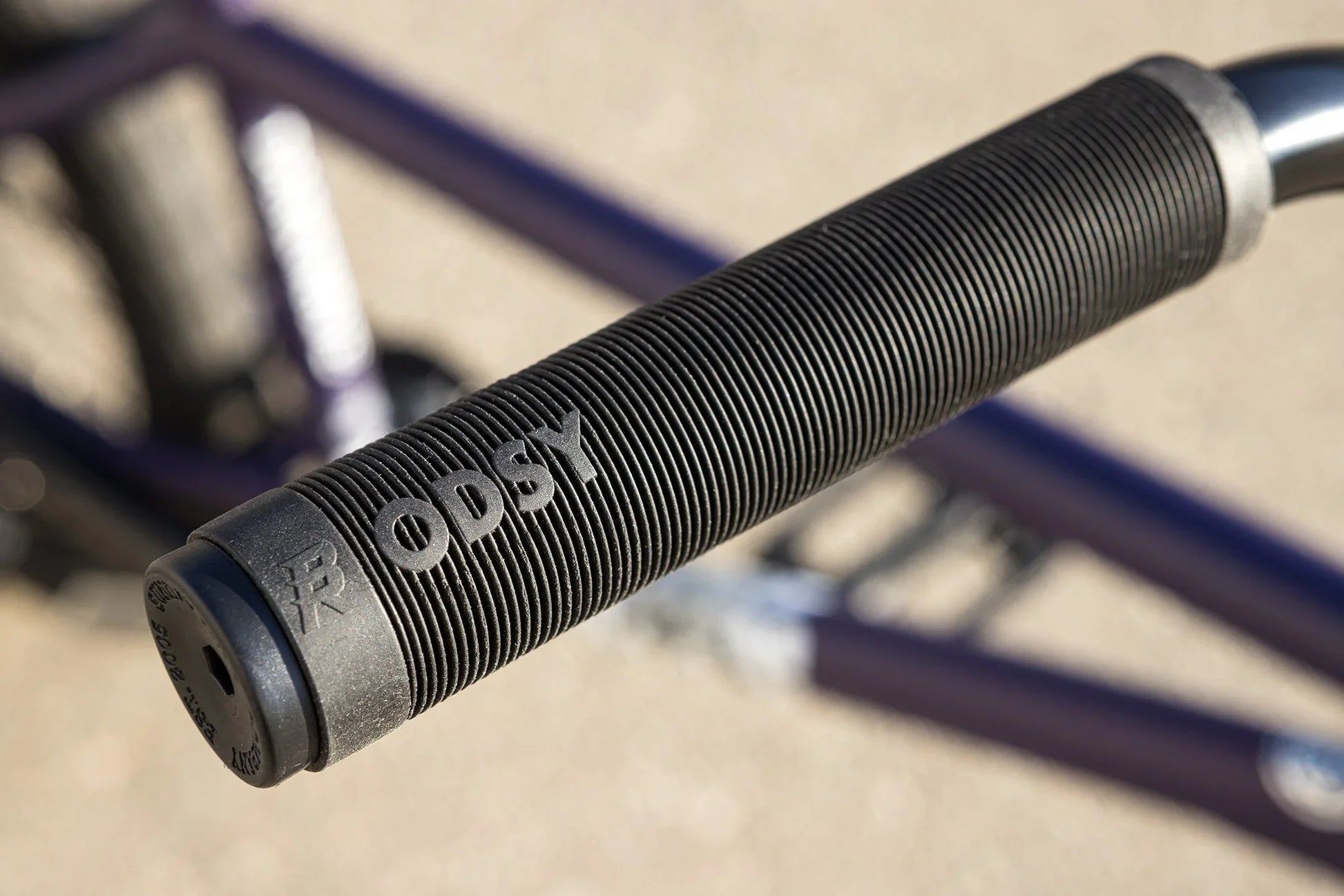

Grips: Odyssey Broc Raiford

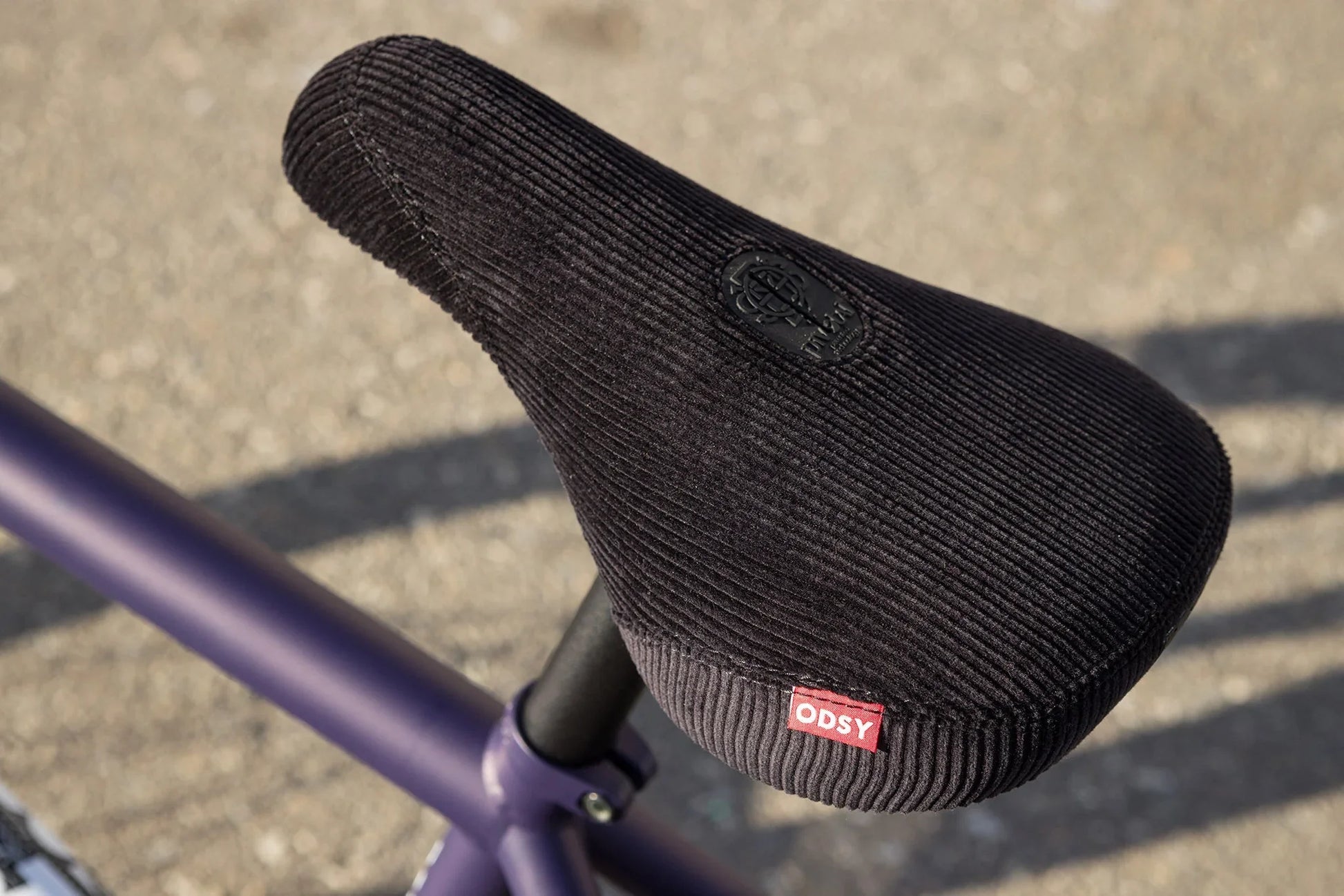

Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Integrated

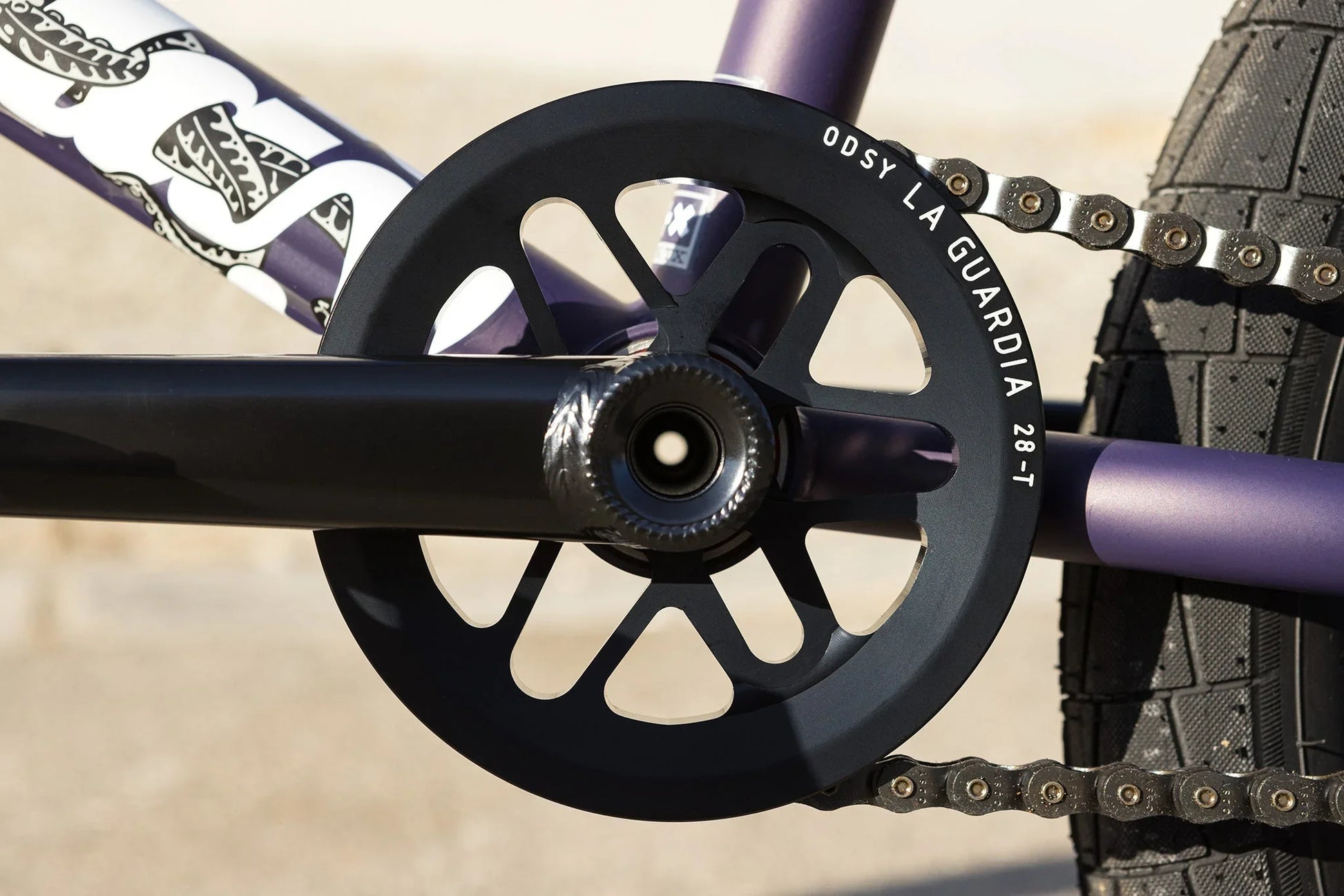

Sprocket: Odyssey La Guardia Sprocket, 28T
Cranks: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal
BB Parts: Odyssey Sealed, Mid, 22mm

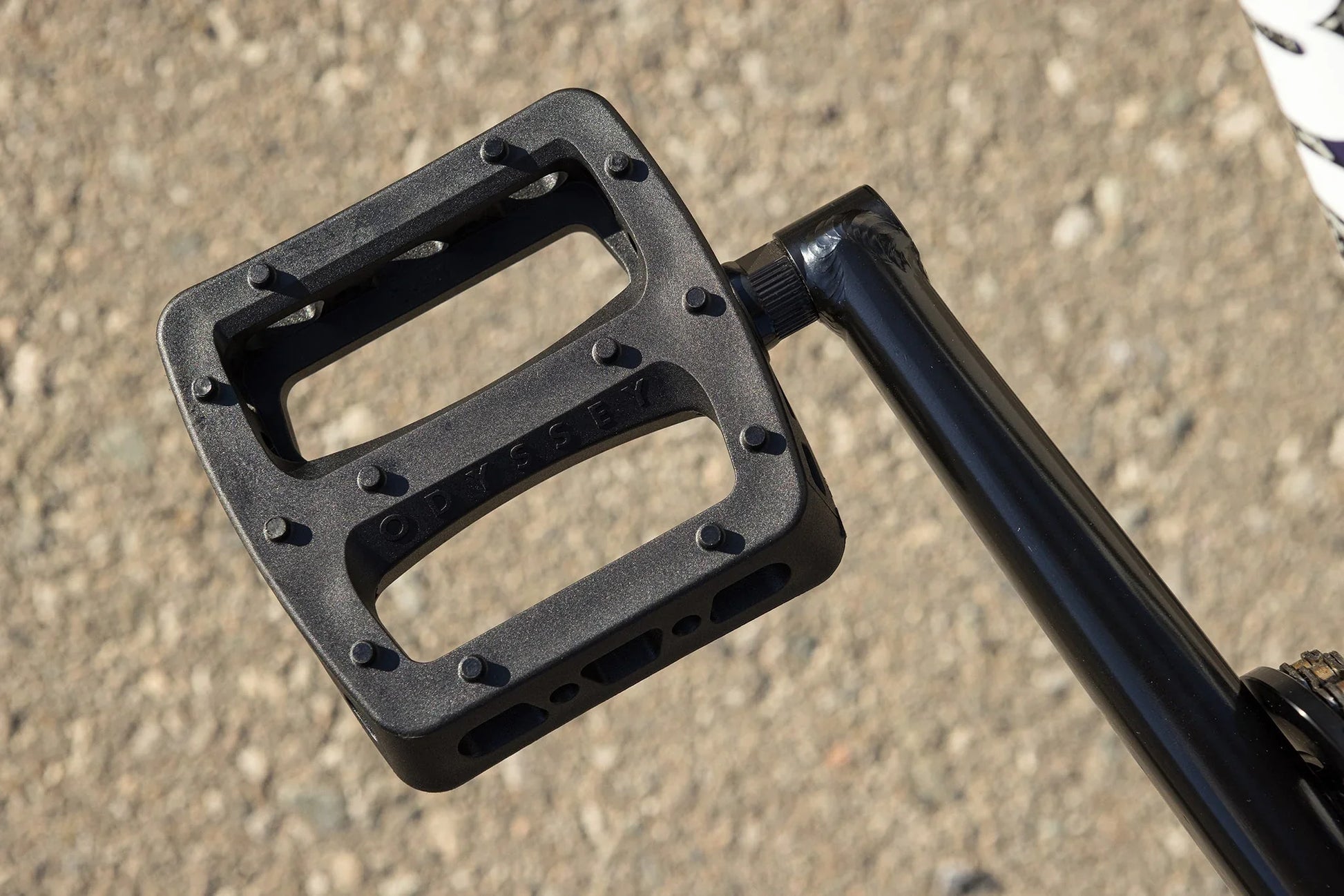

Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Hazard Lite, 20", 36H

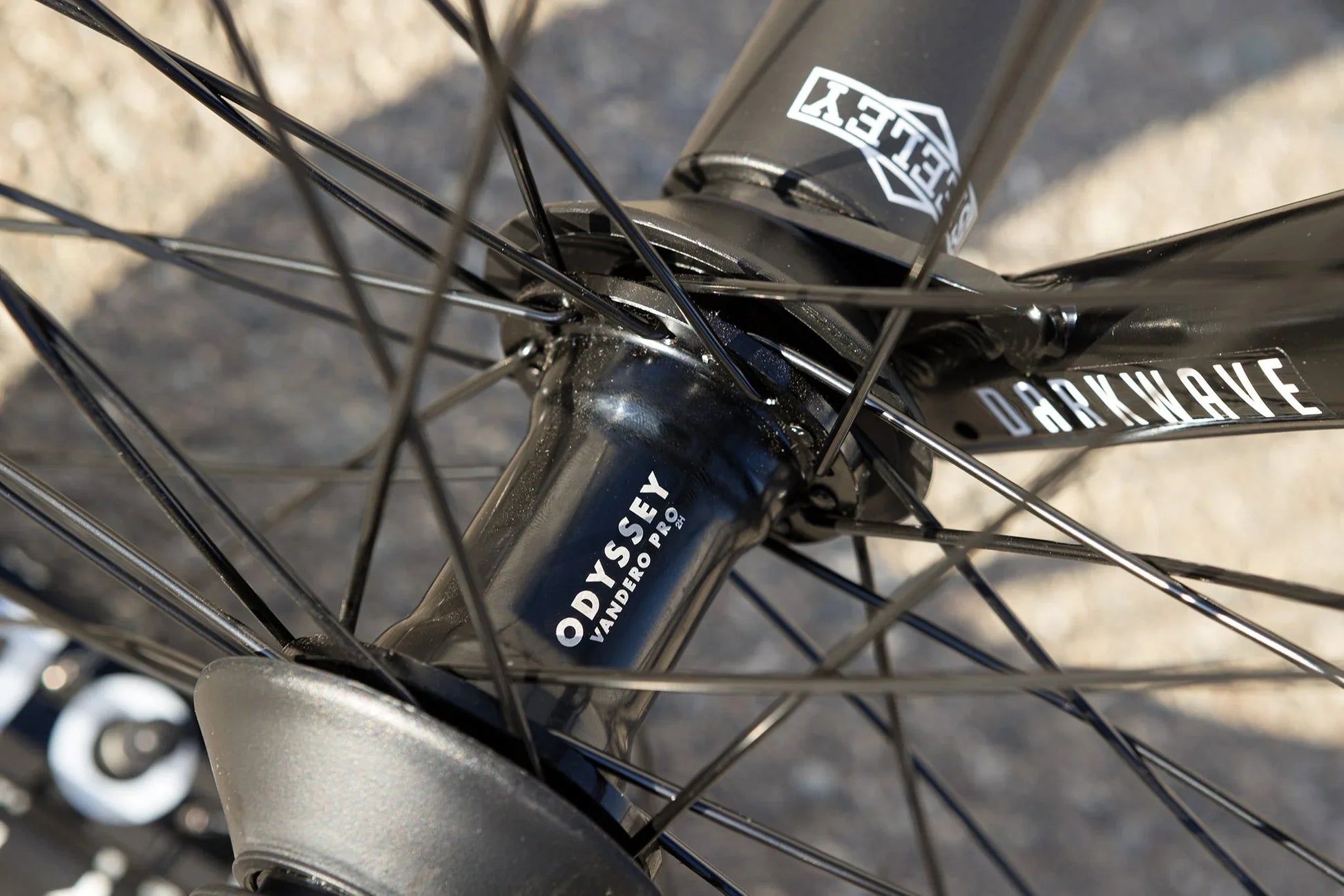

Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards

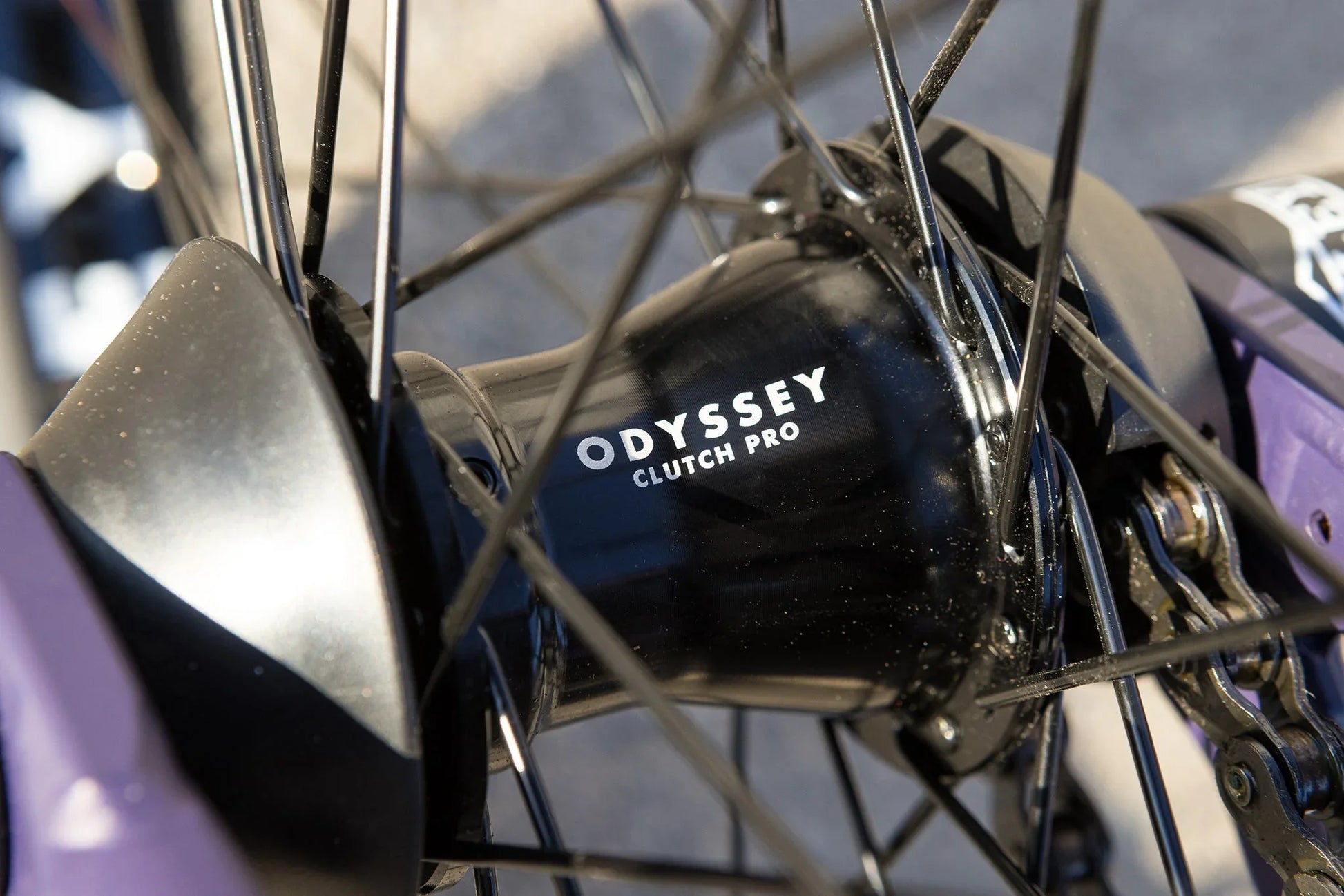

Rear Hub: Odyssey Clutch Pro freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, drive + non-drive side plastic guard
Spokes: 14g steel, black

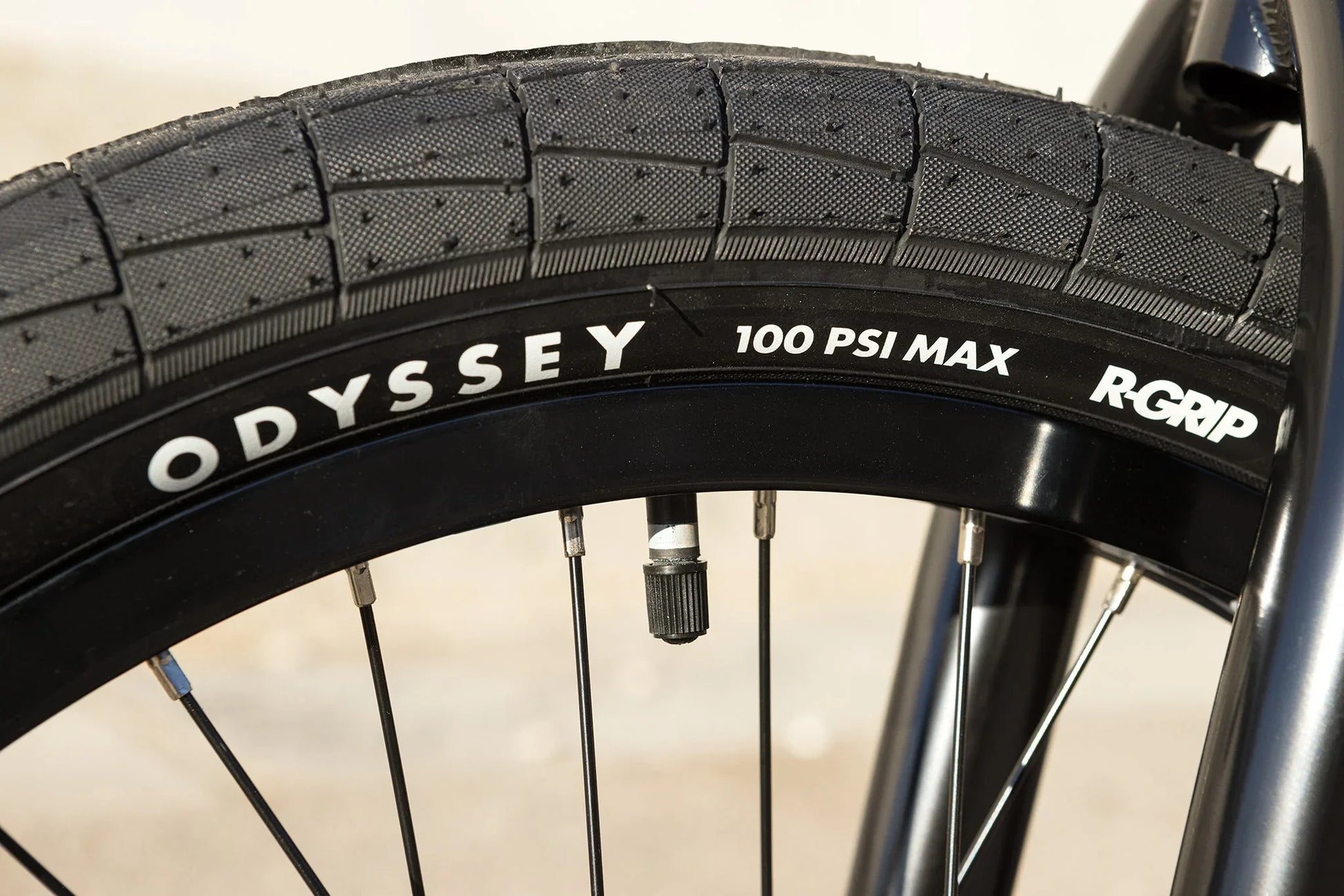

Tires: Odyssey Broc Tire, 20 x 2.4" (F & R)
Chain: Odyssey Bluebird Half-Link
Pegs: Sunday Seeley Peg 4.75" (x4)
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 21" (RHD) or 21.25" (LHD)
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 13.25"-13.5”
Bottom Bracket Height: 11.75"
Standover: 9.25”
Handlebar Geometry
Rise: 9.8"
Width: 29"
Backsweep: 10°
Upsweep: 2°
Choosing the right size BMX bike is crucial for comfort, control, and performance. This guide will help you understand the ideal tire size and top tube length based on age ranges to ensure a perfect fit for riders of all ages.
Age Ranges and Recommended BMX Bike Sizes
-
Ages 2-5 (12" Tire)
- Tire Size: 12 inches
- Top Tube Length: 12-13.5 inches
- Description: These bikes are designed for the youngest riders, offering stability and easy handling to help them learn the basics.
-
Ages 5-7 (14" Tire)
- Tire Size: 14 inches
- Top Tube Length: 14-15.5 inches
- Description: Slightly larger than the 12" bikes, these are ideal for children gaining confidence and control.
-
Ages 7-9 (16" Tire)
- Tire Size: 16 inches
- Top Tube Length: 16-17.5 inches
- Description: Suitable for young riders developing their skills and needing a bit more space for comfort.
-
Ages 9-12 (18" Tire)
- Tire Size: 18 inches
- Top Tube Length: 17-18.5 inches
- Description: Perfect for pre-teens who are serious about riding and need a bike that offers more stability and control.
-
Ages 12-14 (20" Tire)
- Tire Size: 20 inches
- Top Tube Length: 18-19.5 inches
- Description: This size is common among teenage riders and provides a good balance of control and agility.
-
Ages 14+ (20" Tire)
- Tire Size: 20 inches
- Top Tube Length: 20-21.5 inches
- Description: For older teens and adults, the 20" bike with a longer top tube offers enhanced performance for tricks and stunts.
BMX Bike Size Chart
| Age Range | Tire Size | Top Tube Length |
|---|---|---|
| 2-5 | 12 inches | 12-13.5 inches |
| 5-7 | 14 inches | 14-15.5 inches |
| 7-9 | 16 inches | 16-17.5 inches |
| 9-12 | 18 inches | 17-18.5 inches |
| 12-14 | 20 inches | 18-19.5 inches |
| 14+ | 20 inches | 20-21.5 inches |
