Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

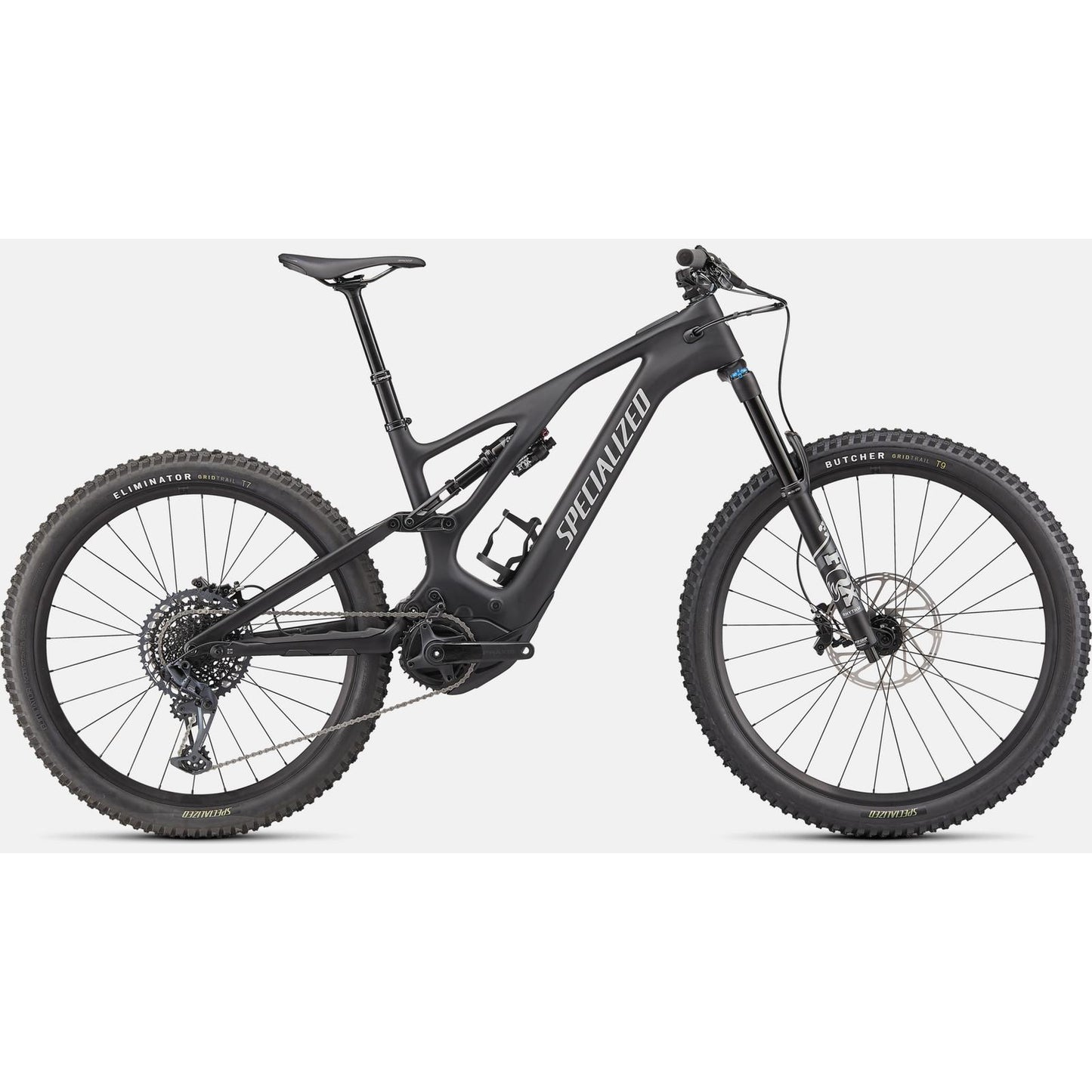

Get ready to turbocharge your mountain biking adventures with the Specialized Turbo Levo Comp Carbon Electric Mountain Bike! This cutting-edge trail conqueror doesn't just push boundaries; it obliterates them while making every moment an absolute blast.
Imagine riding trails with the power of four of you, thanks to the mind-bending Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU). It's like having your own personal energy amplifier, offering seamless integration to your efforts. Whether you want to tackle rugged terrains or cruise through scenic paths, the Levo has your back.
And the range? Oh, it's not just about breaking limits; it's about rewriting the rules. The Levo takes your energy and transforms it into up to five hours of trail-blazing euphoria. This means more miles, more exploration, and more unforgettable memories on two wheels.
But let's not forget about the ride itself—because that's where the magic happens. With its optimized chassis, 150mm of meticulously tuned rear suspension, and adjustable geometry, the Levo isn't just a bike; it's an extension of you. The stability and natural feel of the ride are unparalleled, reminding you that the journey is just as important as the destination. Believe it—you're in for a ride like no other.
The Turbo Levo is equipped with a no-nonsense SRAM GX/NX drivetrain that's as reliable as it is efficient. Paired with trail-taming Fox suspension and a feather-light yet incredibly strong alloy wheelset, this bike elevates your trail riding experience to a whole new level.
So, whether you're climbing with renewed vigor, descending with unrivaled confidence, or simply racking up the miles with a gigantic grin on your face, the all-new Turbo Levo is your ticket to more fun, more adventure, and more of everything that makes mountain biking the exhilarating sport you adore. Get ready to redefine your trails and make every ride an electrifying escapade!
Features:
- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

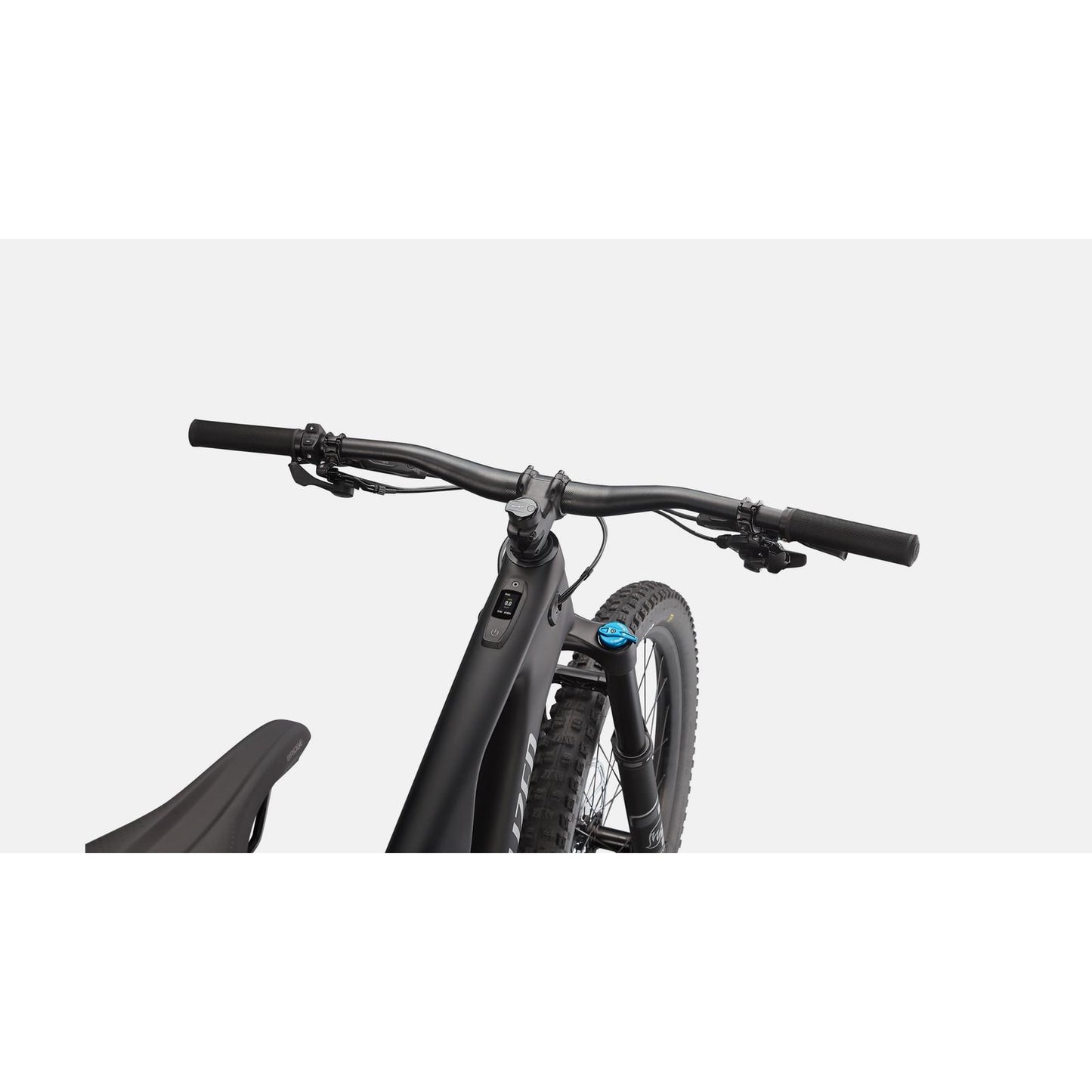

- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

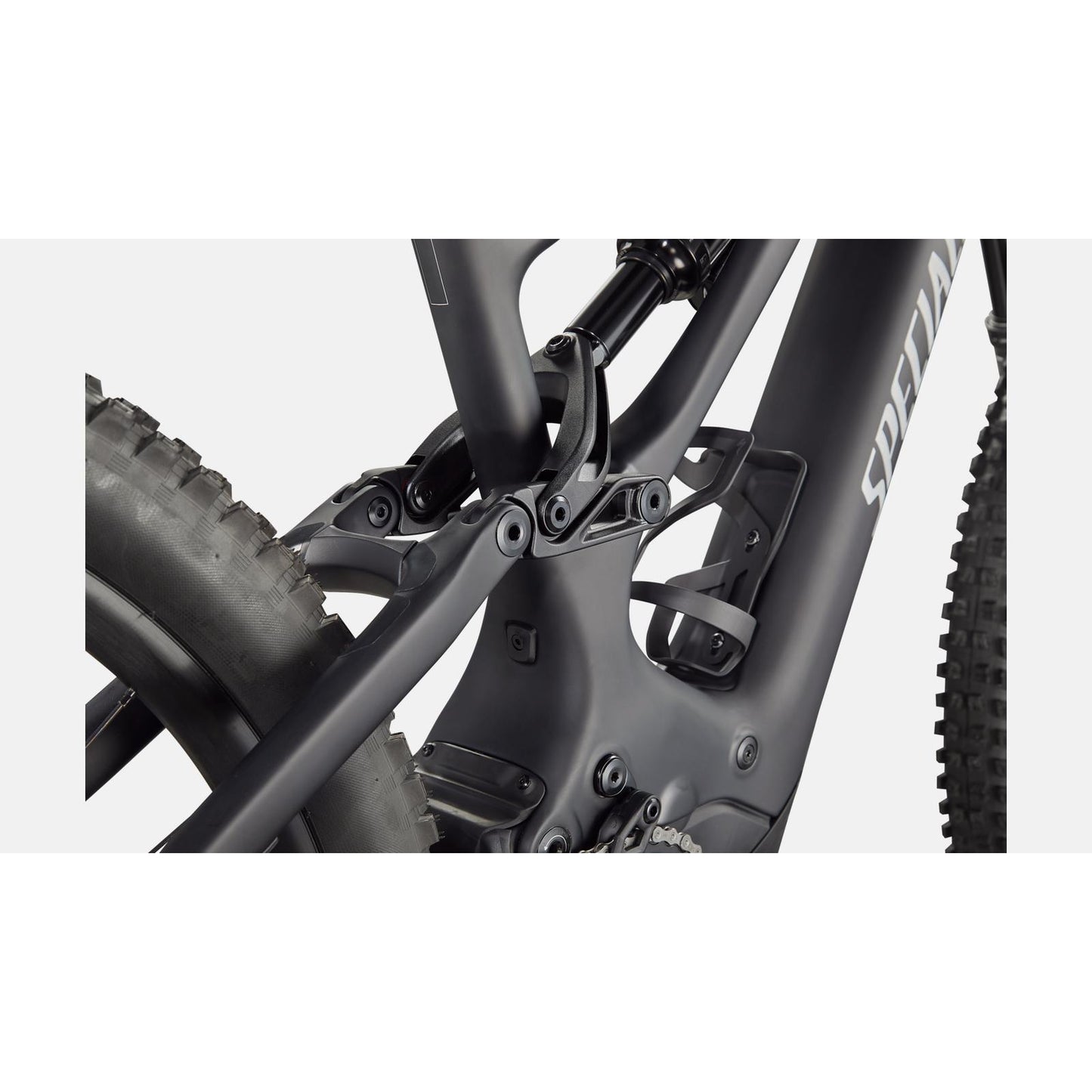

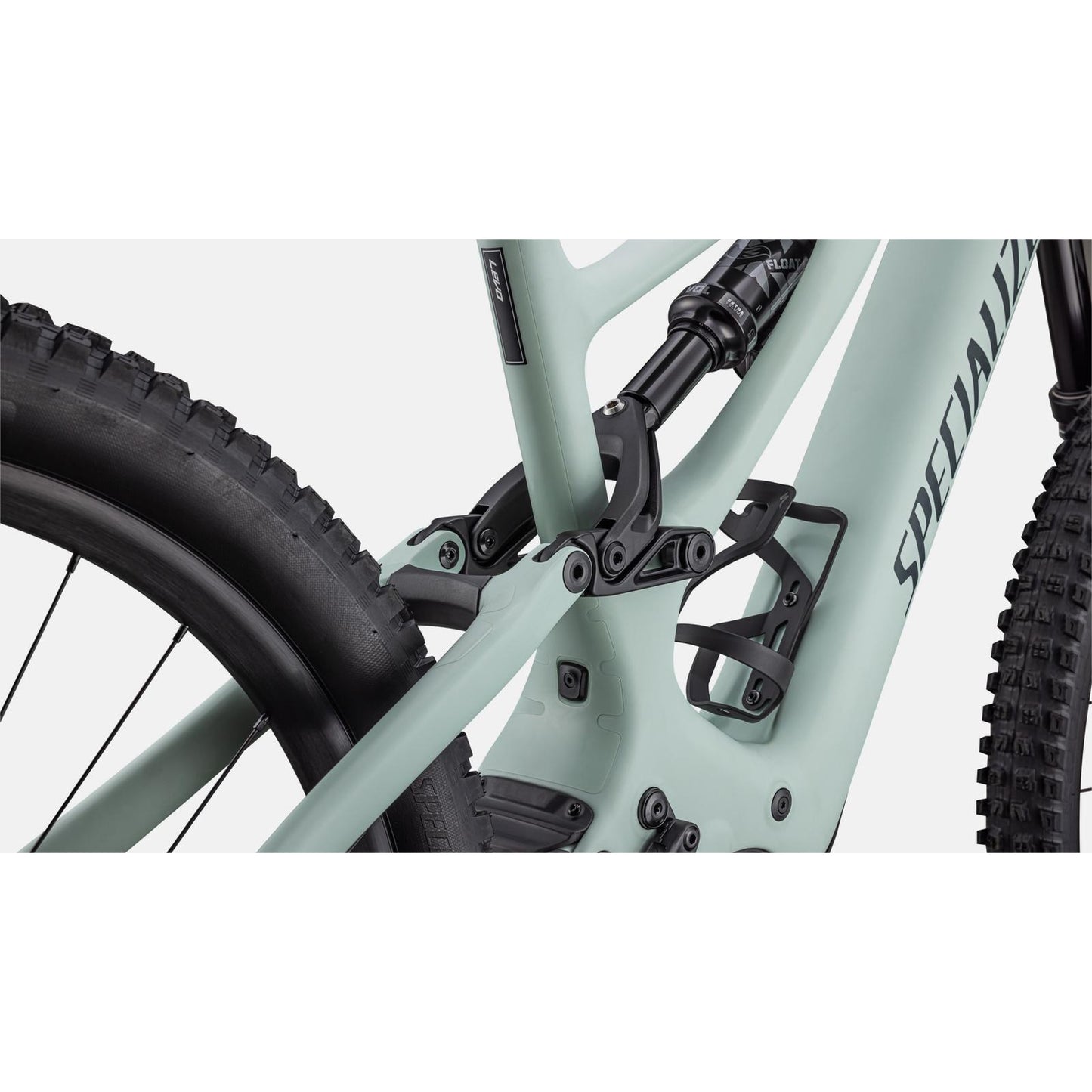

- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Specifications
Stem |
Alloy Trail Stem, 35mm bar bore |
Saddle |
Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Tape |
Specialized Trail Grips |
Handlebars |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
SeatPost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm |
Seat Binder |
Alloy, 38.6mm |
Frame |
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
Fork |
Fox 36 Rhythm, 29", 44mm offset, Grip damper, S1: 150mm, S2-S6: 160mm travel |
Rear Hub |
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h |
Front Hub |
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
Front Tire |
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6" |
Spokes |
DT Swiss Industry |
Rear Tire |
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6" |
Rims |
Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
Inner Tubes |
Standard, Presta Valve |
Wiring Harness |
Custom Specialized wiring harness |
Charger |
Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
Motor |
Specialized 2.2 Custom Rx Trail Tuned Motor |
Battery |
Specialized M3-700, Integrated battery, 700Wh |
UI/Remote |
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote |
Rear Shock |
FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm |
Crankset |
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm |
Shift Levers |
SRAM GX, trigger, 12-speed |
Rear Derailleur |
SRAM GX Eagle, 12-speed |
Chain |
SRAM NX Eagle, 12-speed |
Chainrings |
SRAM X-Sync Eagle, 104 BCD, 34t, steel |
Cassette |
Sram XG-1275, 12-speed, 10-52t |
Rear Brake |
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm |
Front Brake |
SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm |
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 40mm | 40mm | 40mm | 40mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 190mm |
Stack | 605mm | 617mm | 626mm | 635mm | 644mm | 653mm |
Reach | 412mm | 432mm | 452mm | 477mm | 502mm | 532mm |
Headtube Length | 105mm | 105mm | 115mm | 125mm | 135mm | 145mm |
Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
BB Height | 352mm | 350mm | 350mm | 350mm | 350mm | 350mm |
BB Drop | 25mm | 27mm | 27mm | 27mm | 27mm | 27mm |
Trail | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
Fork Length (full) | 557mm | 567mm | 567mm | 567mm | 567mm | 567mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 738mm | 760mm | 784mm | 814mm | 843mm | 878mm |
Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm | 442mm |
Wheelbase | 1179mm | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
Bike Standover Height | 752mm | 776mm | 783mm | 787mm | 788mm | 790mm |
Seat Tube Length | 380mm | 390mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle | 78° | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
Max Seatpost Insertion | 210mm | 220mm | 240mm | 255mm | 275mm | 295mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
