Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

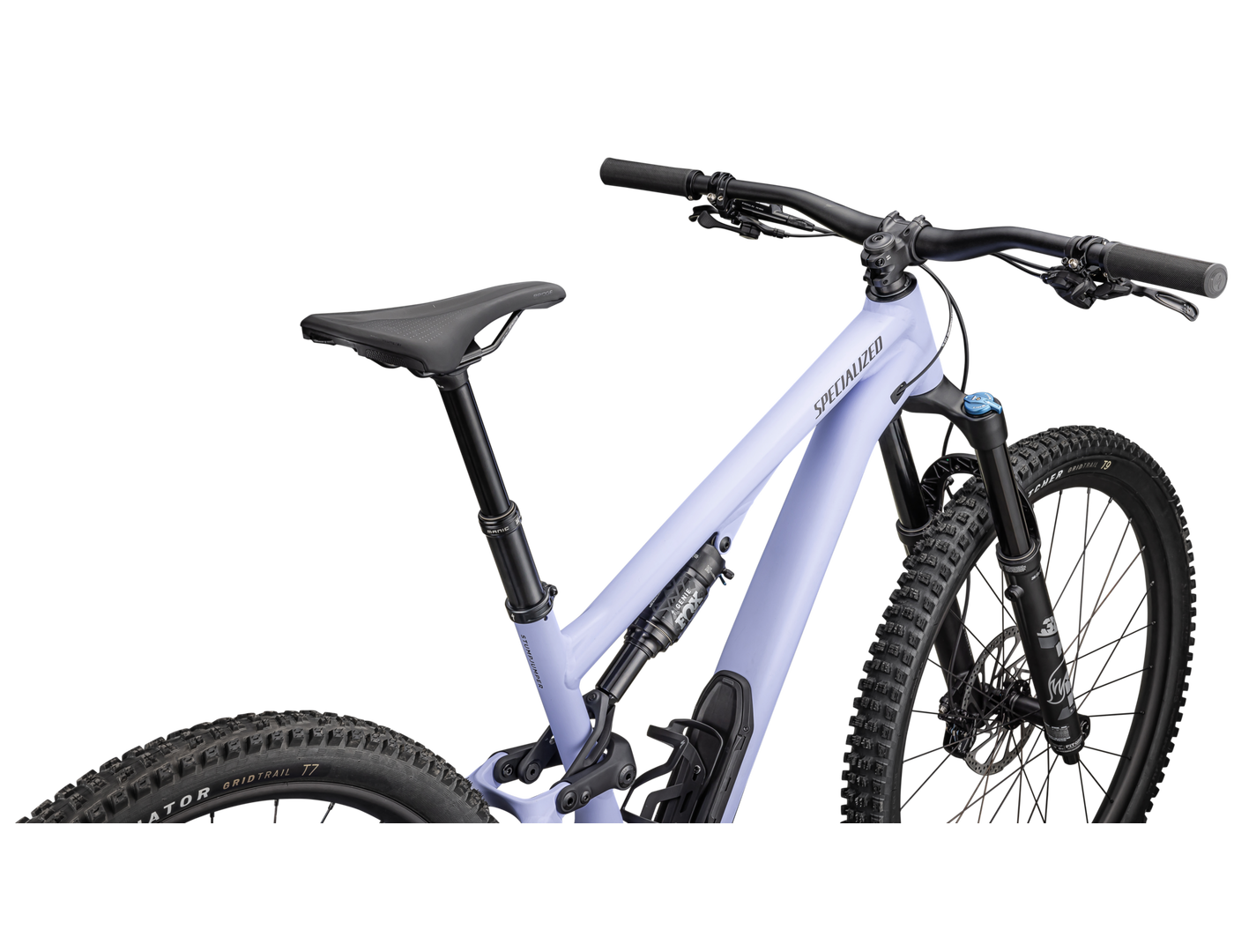

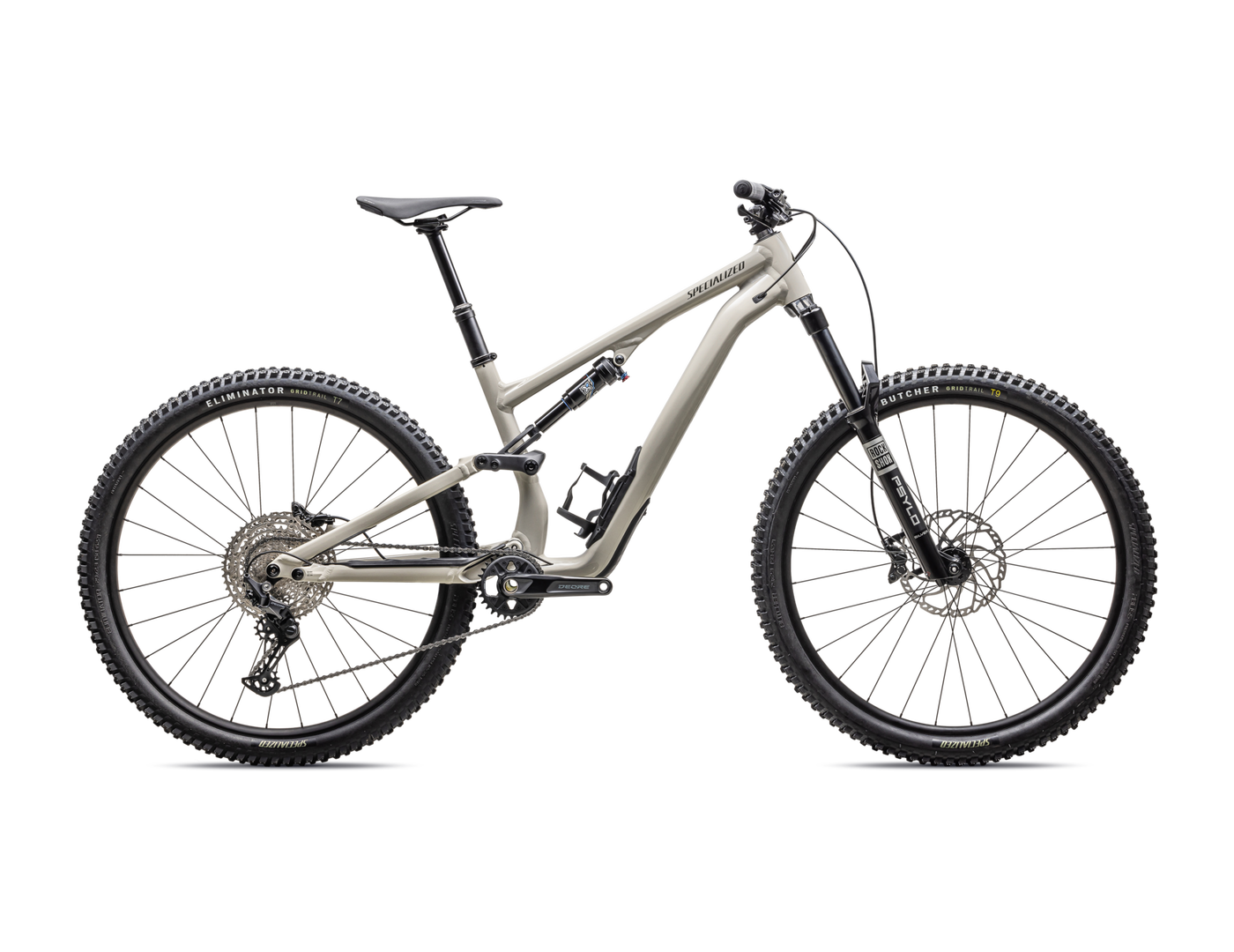

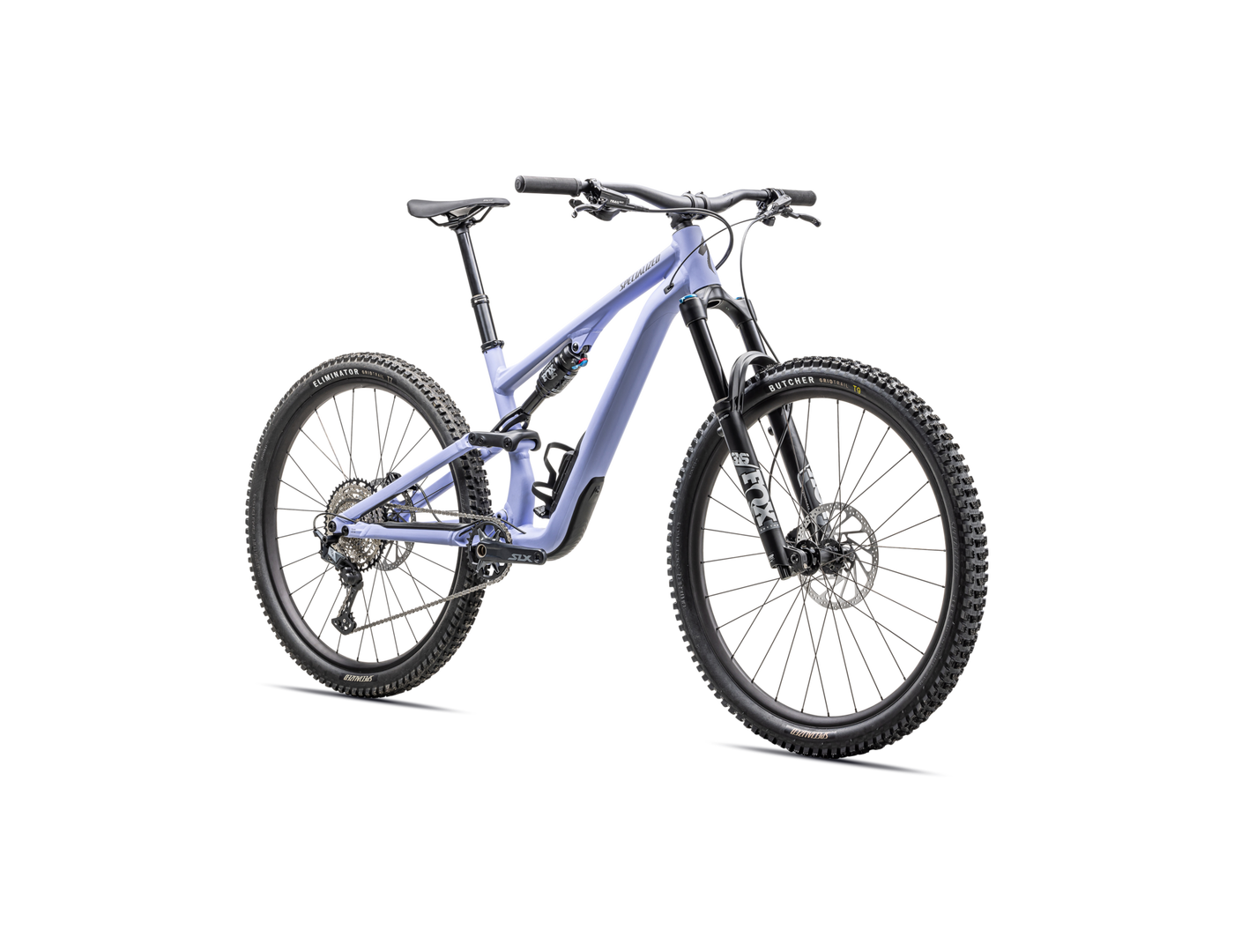

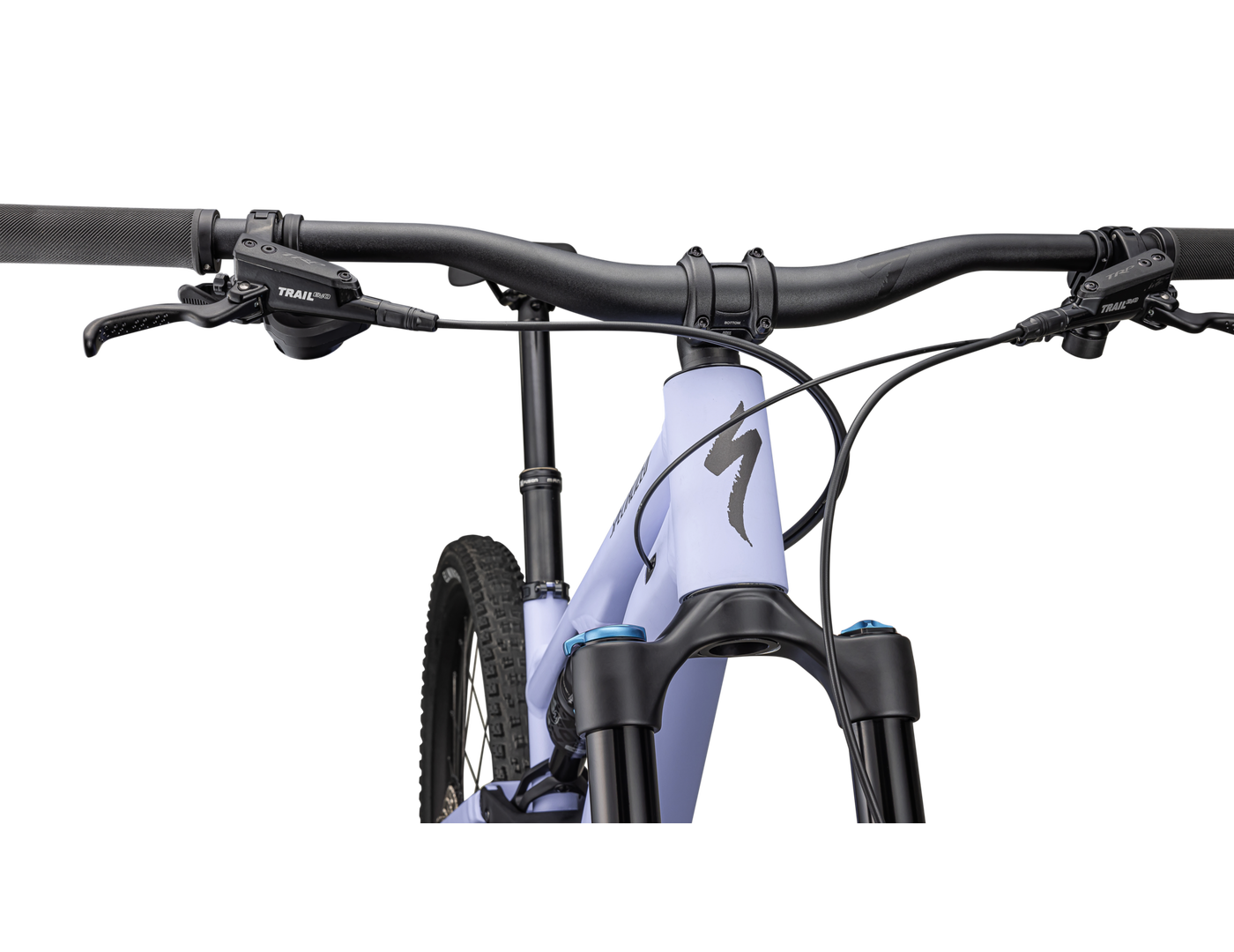

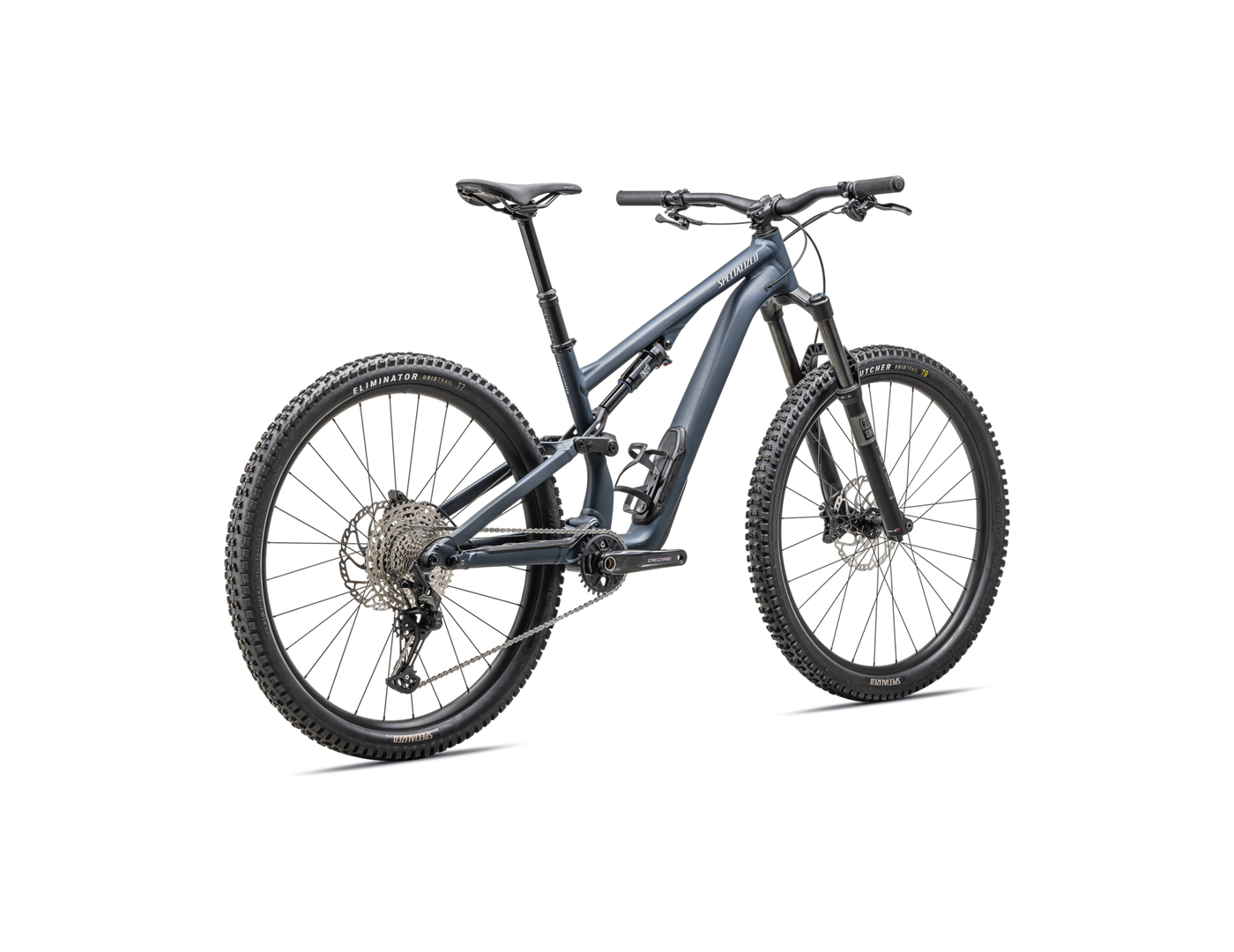

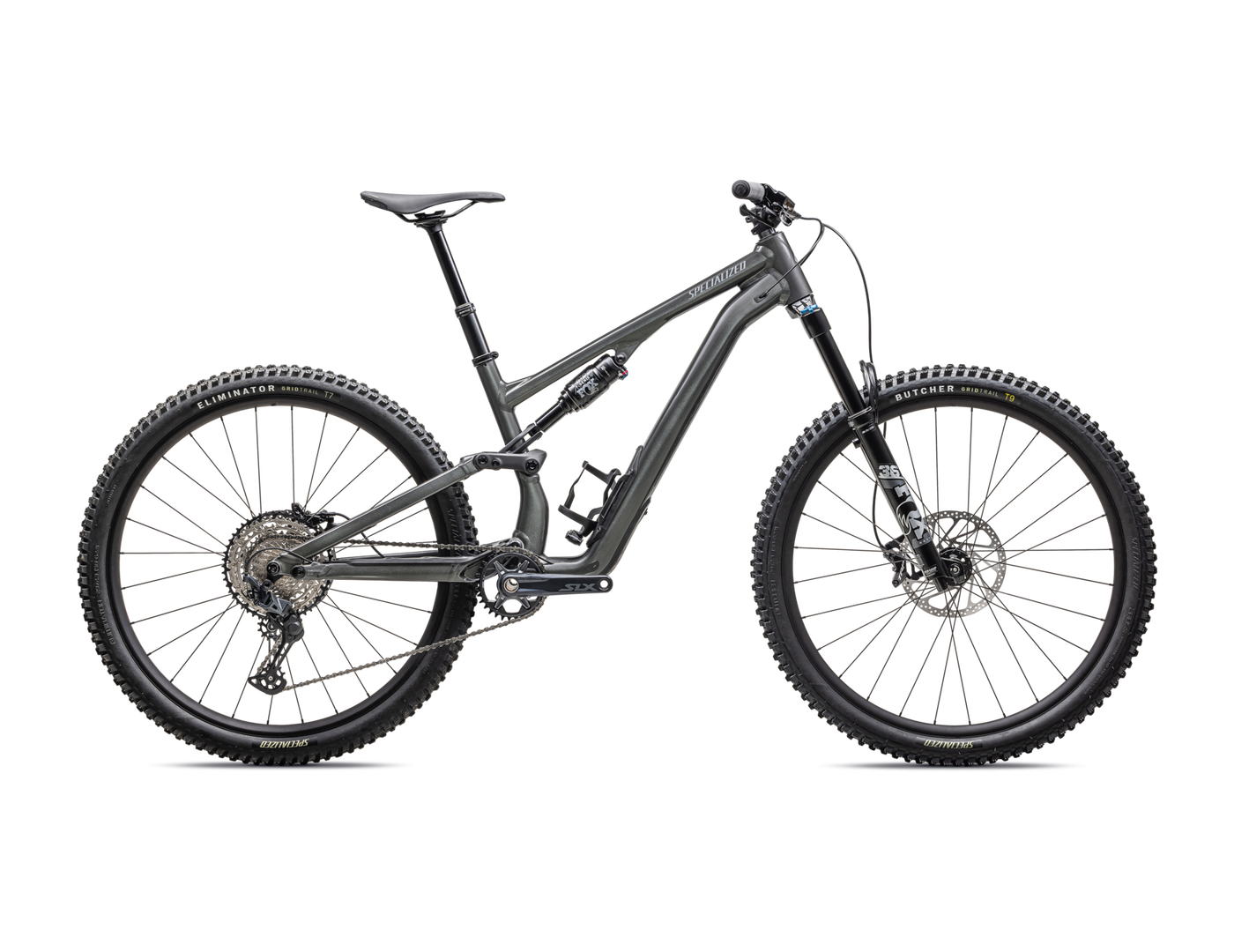

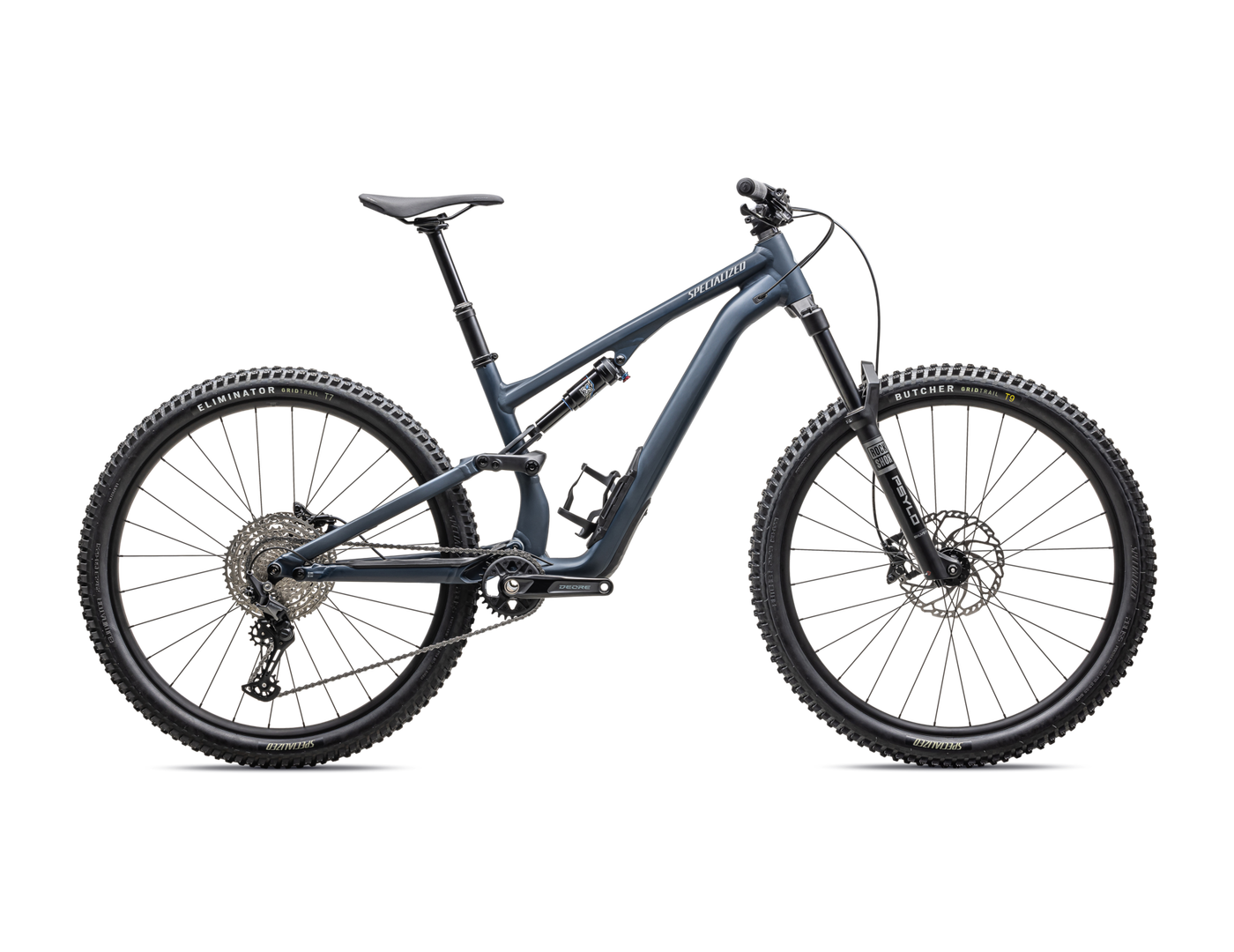

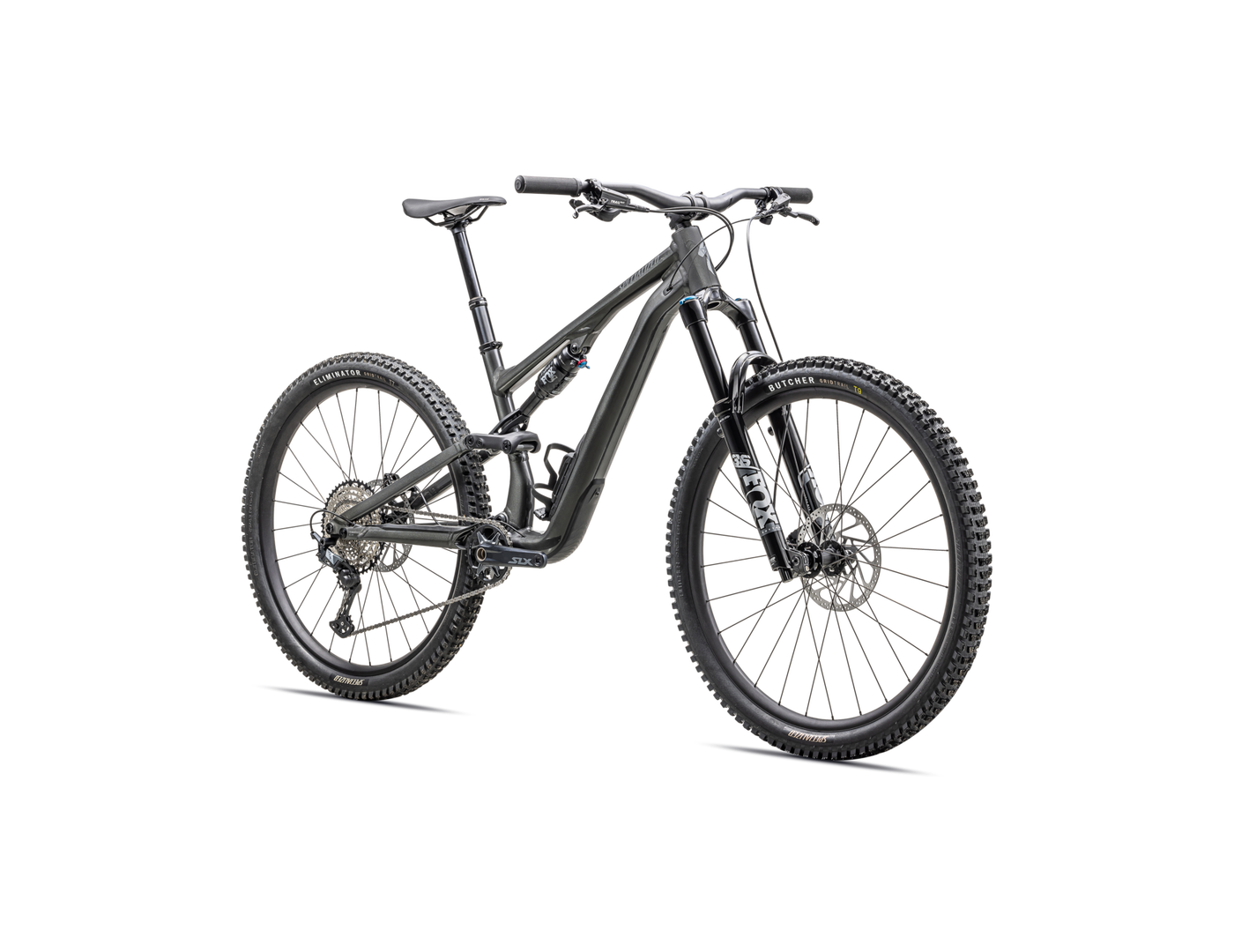

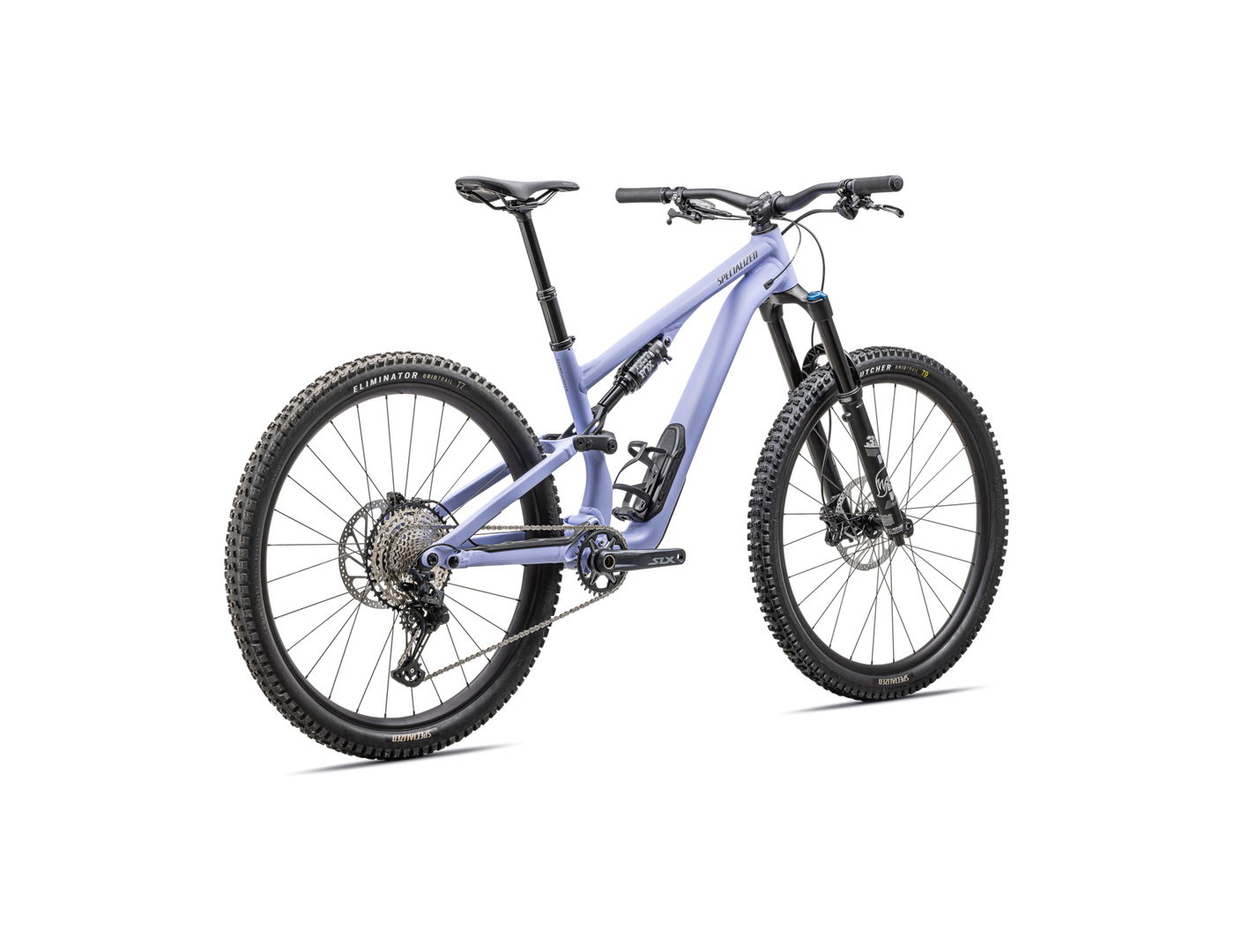

Get ready to conquer and challenge every obstacle on the trail with the Stumpjumper 15 Alloy. This bike will devour bumps like a champion and still deliver short-travel control, playful maneuverability, and optimal efficiency. Personalize it to your liking and become the only rider that truly matters. Conquer, challenge, and customize - this is the Stumpjumper 15 Alloy!
BREAKTHROUGH CAPABILITY: GENIE Shock Technology combines a poppy, playful ride with a bottomless DH feel.
ULTIMATE CONTROL: Measurably better traction than “Bike of the Year” Stumpjumper EVO.
UNMATCHED PERSONALIZATION: Six-way geometry adjustment, mixed wheel or 29”, tunable spring curve, and more.
GENIE—The Magic Carpet Ride: The biggest innovation on the Stumpjumper 15 Alloy is GENIE. This patent-pending air spring technology we invented grants every trail rider three wishes: the maximum grip and traction of a coil spring feel, better bottom-out prevention than a standard air spring, and the ability to tune mid-stroke and end-stroke support independently.
ILLUMINATING GENIE: GENIE combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it's the best of both worlds – coil and air – with extra tunability. Say goodbye to compromises and hello to the future of riding.
WHAT BUMP?: With 16.3% better bump force management than a traditional air-sprung shock, GENIE makes the Stumpjumper 15 Alloy ride like a bike with more travel. For example, the Stumpjumper 15 Alloy (with 145 mm rear wheel travel) and our Enduro (170 mm travel) both use 101 mm of travel to absorb a 1080 N bump force.
TRACTION GALORE: Extensive field testing proves that Stumpjumper 15 Alloy with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground a greater percent of the time than a typical air spring would.
BYE, BYE, BOTTOM-OUTS: 39% fewer bottom-outs than a standard air spring. During big hit events, you benefit from the rising rate in the last 30% of the GENIE stroke. Because of this two-stage, pronounced rising rate, GENIE reduces the frequency and severity of bottom-outs.
HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY: The Stumpjumper 15 Alloy seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. The head angle and bottom bracket height can be fine-tuned for stability or clearance.
WHEEL CHOICE: With our aftermarket shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL: SWAT on Stumpjumper 15 Alloy elevates downtube storage, an innovation we pioneered.
MORE RELENTLESS THAN YOU: Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner is just one way we've got you covered.
- All-new M5 alloy frame with SWAT door integration
- Robust Specialized alloy wheels with sealed cartridge bearings
- Ride Dynamics tuned FOX FLOAT Performance with Specialized GENIE patent-pending air spring technology provides maximum grip and traction found in a linear coil spring, bottom-out prevention found in a progressive air spring, and the ability to tune mid-stroke and end-stroke support independently. 2-position open and firm damper adjustments.
- Eat up the chunkiest trails with the FOX FLOAT 36 Rhythm fork with GRIP damper
- Performance-focused and durable Shimano SLX drivetrain
- Big stopping power from TRP Trail EVO 4-piston brakes
- Trustworthy time and time again X-Fusion Manic dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
SWAT
With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More InfoS1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165 | 165 | 165 | 170 | 170 | 170 |
Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 125 | 150 | 170 | 200 | 200 | 200 |
Stack | 608 | 618 | 627 | 640 | 654 | 667 |
Reach | 400 | 425 | 450 | 475 | 500 | 530 |
Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
BB Height | 334 | 337 | 337 | 337 | 337 | 337 |
BB Drop | 41 | 38 | 38 | 38 | 38 | 38 |
Trail | 129 | 130 | 130 | 130 | 130 | 130 |
Fork Length (full) | 551 | 561 | 561 | 561 | 561 | 561 |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
Front Center | 720 | 751 | 780 | 812 | 843 | 879 |
Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
Wheelbase | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
Top-tube Length (horizontal) | 541 | 573 | 595 | 624 | 647 | 677 |
Bike Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
Seat Tube Angle | 78 | 77 | 77 | 76.5 | 76.5 | 76.5 |
Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
Max Seatpost Insertion | 245 | 245 | 255 | 255 | 285 | 285 |
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
