Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

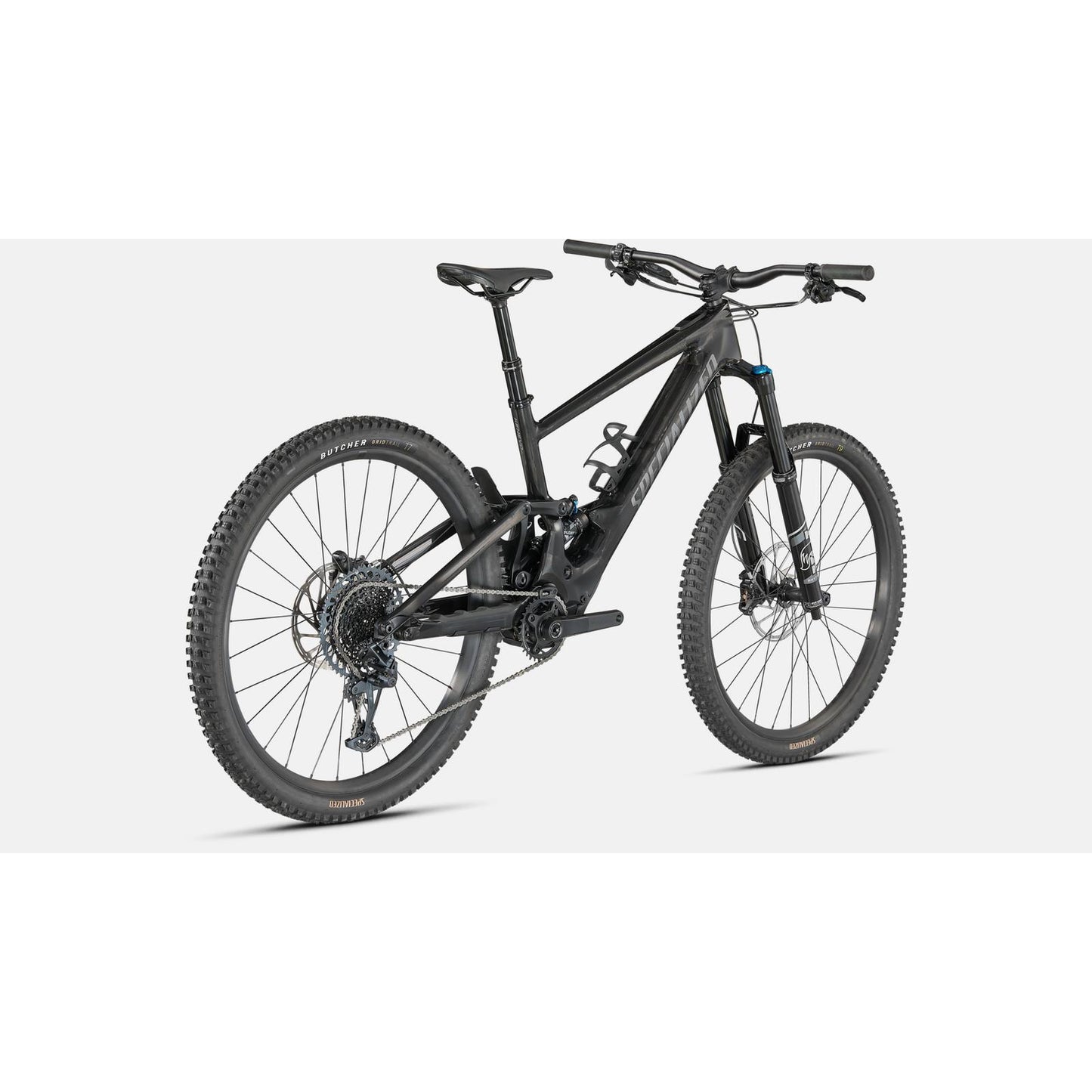

Power up to trail riding’s next level and dominate any and all trail monsters—the Turbo Kenevo Super Light melds the legendary handling and all-around big trail prowess of the Enduro with Specialized's Super Light electric support to deliver indomitable capability, light weight, and power to conquer more and bigger trails.
The Turbo Kenevo Super Light puts the “E” in Specialized's Enduro, delivering more of what you want from your trail ride—more capability everywhere, more power to climb, more pop when you really need it, more adrenaline. More laps, more jumps, more drops, faster rides with fresher legs.
And it does all this with less. Carrying much less weight than bulkier e-MTBs, the Turbo Kenevo Super Light is hyper-responsive and just as willing and able to redefine big trail performance as our Enduro. Level up your trail game.
The Turbo Kenevo SL Comp pairs the most capable e-MTB chassis you can find with a smart mix of components including SRAM’s expansive GX Eagle 12-speed drivetrain, full FOX suspension, and a lightweight, durable alloy wheelset.
FEATURES
- The Turbo Kenevo Super Light motor/controller system is a full integration of the bike’s 250-watt motor and 320Wh battery with a radically advanced and seamlessly integrated controller. The result is massive power delivered, up to 20mph/32kph, to get you to the top of your favorite descent with just half of the effort, and much faster, giving even more of the quality ride you yearn for, and more of it than ever before possible.
- Specialized's next-generation TCU2 is your information hub, with customizable display fields including the exact percentage of battery level, and features Specialized's all-new, bar-mounted MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
- 29” wheels front and rear deliver a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- The Turbo Kenevo Super Light geometry can be fine-tuned for wherever and however you ride. Six distinct geometry settings allow easy adjustment to hone performance in any terrain. Head angle can be adjusted between 63 and 65.5 degrees. Bottom bracket height can be fine-tuned up or down by 7mm. We’ve never made a more adjustable, adaptable trail bike.
- The Turbo Kenevo Super Light’s 170mm of Enduro-inspired travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Turbo Kenevo Super Light’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Specifications
Stem | Alloy Trail Stem, 35mm bar bore |
Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width |
Tape | Specialized Trail Grips |
Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
SeatPost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, S2: 125mm, S3/S4: 150mm, S5: 170mm |
Front Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 220mm |
Rear Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
Rear Derailleur | SRAM GX Eagle, 12-speed |
Shift Levers | SRAM GX, trigger, 12-speed |
Cassette | Sram XG-1275, 12-speed, 10-52t |
Chain | SRAM NX Eagle, 12-speed |
Crankset | Praxis Forged/M30 Spindle Interface |
Chainrings | SRAM X-Sync Eagle, 94 BCD, 32T, alloy |
Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
Spokes | DT Swiss Industry |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
Inner Tubes | Standard, Presta valve |
Rear Hub | Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h |
Rear Tire | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.3" |
Seat Binder | Alloy, 38.6mm |
Frame | FACT 11m full carbon, 29", full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 170mm rear travel, geo adjust head tube, geo adjust horst pivot |
Fork | FOX FLOAT 36 RHYTHM 29, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, 1.5" tapered steerer, 170mm travel |
Motor | Specialized SL 1.1, custom lightweight motor |
Battery | Specialized SL1-320, fully integrated, 320Wh |
Charger | Custom charger, 48V System w/ SL system charger plug |
UI/Remote | Specialized MasterMind TCU, ANT+/Bluetooth®, w/Handlebar remote |
Wiring Harness | Custom Specialized wiring harness |
Rear Shock | FOX FLOAT X Performance, LSR, 2-position lever, 62.5x230mm |
SWAT | SWAT CC, integrated tool and chain tool with spare link in steerer tube |
Geometry
S2 | S3 | S4 | S5 | |
---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 170mm |
Handlebar Width | 800mm | 800mm | 800mm | 800mm |
Stem Length | 40mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 125 mm | 150 mm | 170 mm | 170 mm |
Stack | 618mm | 626mm | 635mm | 644mm |
Reach | 435mm | 460mm | 485mm | 510mm |
Headtube Length | 105mm | 115mm | 125mm | 135mm |
Headtube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
BB Height | 350mm | 350mm | 350mm | 350mm |
BB Drop | 25mm | 25mm | 25mm | 25mm |
Trail | 136mm | 136mm | 136mm | 136mm |
Fork Length (full) | 579mm | 579mm | 579mm | 579mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
Front Center | 782mm | 812mm | 841mm | 871mm |
Chainstay Length | 447mm | 447.3mm | 447mm | 447mm |
Wheelbase | 1228mm | 1258mm | 1287mm | 1316mm |
Bike Standover Height | 779mm | 779mm | 792mm | 802mm |
Seat Tube Length | 400mm | 420mm | 440mm | 465mm |
Seat Tube Angle | 76° | 76° | 76° | 76° |
Max Seatpost Insertion | 0mm | 0mm | 0mm | 0mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm |
