Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

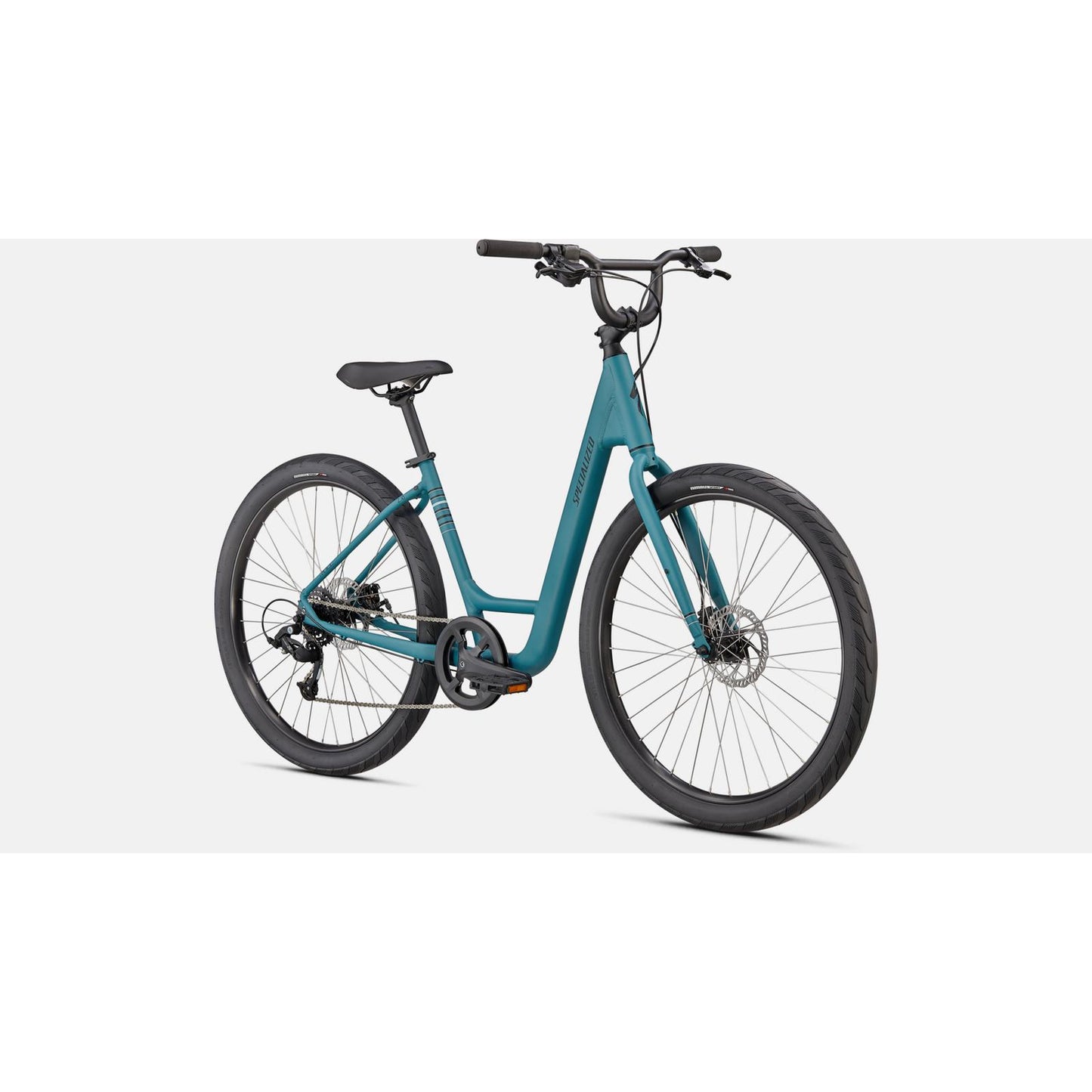

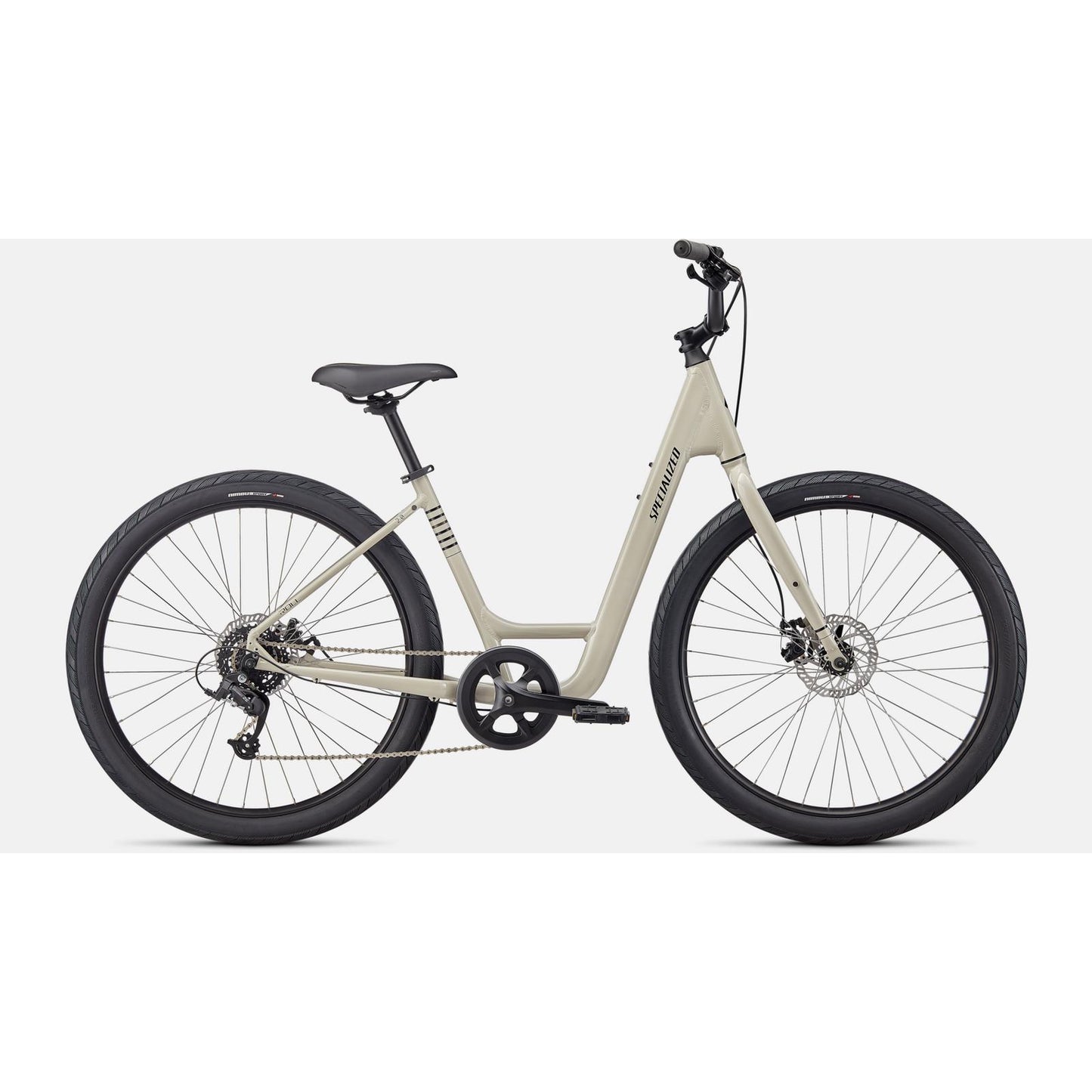

Introducing the Specialized Roll 2.0 Low Entry Fitness Road Bike—a true game-changer on the path to fitness FUN! They say big journeys start with small steps, but when it comes to fitness, that first pedal push can be a real adventure. Fear not, for the Roll is here to turn that pedal stroke into a life-altering thrill ride!
Unveil a world of possibilities with its easy-breezy design, inviting you to hop on and off like a pro. Those 650b tires? Wide and grippy, making every twist and turn a dance of confidence. And let's talk brakes—mechanical disc brakes that spell out "hassle-free" for a safer, smoother journey.
No need to compromise; the Roll 2.0 Low-Entry has your back with a trusty mix of components that laugh in the face of wear and tear. This isn't just a bike; it's your partner-in-crime for years of exhilarating rides. Don't just settle—let the Roll 2.0 Low Entry sweep you off your feet and onto the open road of fitness excitement!
Features:
- The Low-Entry Roll is made of our A1 Premium Aluminum. It features our Ground Control Positioning that makes it easy to put a foot down when stopped, while our Low-Entry design makes getting on and off a breeze. Lastly, the frame comes ready with rack/fender mounts.
- Wide diameter, 650b x 2.3" Nimbus II Sport tires provide excellent traction, stability, and cushioning, which creates a safer, more reliable, and more comfortable ride on either paved or dirt roads. Plus, the reflective accents of the tire increase your visibility to motorists in low-light conditions.
- Equipped with a Body Geometry Comfort Gel saddle, you can expect a supreme level of comfort anywhere you ride. It is ergonomically designed and scientifically tested to provide unmatched comfort and support while reducing pressure on soft tissue.
Specifications
Chainrings |
42T |
Bottom Bracket |
68mm, square taper, 124.5mm length |
Crankset |
Forged aluminum arms, 3-piece, 7 speed |
Chain |
KMC Z7, 7-speed w/ Missing Link™ |
Cassette |
SunRace, 7-Speed, 11-34t |
Rear Derailleur |
microSHIFT RD-M26S, 7-speed |
Shift Levers |
microSHIFT TS39 Trigger shift, 7-speed |
Stem |
3D-forged alloy, 31.8mm, 7-degree rise |
SeatPost |
Alloy, 2-bolt clamp, 27.2mm |
Grips |
Slip-on, Closed End Grips |
Saddle |
Specialized Body Geometry Comfort Gel |
Handlebars |
Specialized Roll, 6061 alloy, Double butted, 15-degree backsweep, 136mm rise, 31.8mm |
Rims |
650b disc, double-wall alloy, pinned, 32h |
Rear Hub |
Alloy, 6-bolt disc, 7-speed freehub, loose ball bearing, quick-release, 32h |
Front Hub |
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h |
Rear Tire |
Nimbus II Sport, 650b x 2.3" |
Front Tire |
Nimbus II Sport, 650b x 2.3" |
Spokes |
Stainless, 14g |
Inner Tubes |
Standard 48mm SV 27.5X1.75/2.4 |
Seat Binder |
Quick-release clamp, 31.8mm |
Frame |
Specialized A1 Premium Aluminum, Low Entry , Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts |
Rear Brake |
Radius CX7, mechanical disc, 160mm |
Front Brake |
Radius CX7, mechanical disc, 160mm |
Pedals |
Specialized Body Geometry Fitness, platform, plastic |
Fork |
Steel formed tubes, post-mount disc, fender/rack mounts |
Geometry
S | M | L | |
---|---|---|---|
Crank Length | 165mm | 170mm | 175mm |
Seatpost Length | 350mm | 350mm | 350mm |
Handlebar Width | 680mm | 680mm | 680mm |
Stem Length | 70mm | 70mm | 70mm |
Saddle Width | 200mm | 200mm | 200mm |
Stack | 538mm | 621mm | 644mm |
Reach | 346mm | 352mm | 370mm |
Head Tube Length | 155mm | 190mm | 215mm |
Head Tube Angle | 68° | 69° | 69° |
BB Height | 285mm | 285mm | 285mm |
BB Drop | 70mm | 70mm | 70mm |
Trail | 84mm | 77mm | 77mm |
Fork Length, Full | 420mm | 420mm | 420mm |
Fork Rake/Offset | 55mm | 55mm | 55mm |
Front Center | 617mm | 626mm | 653mm |
Chainstay Length | 480mm | 480mm | 480mm |
Wheelbase | 1088mm | 1097mm | 1124mm |
Top Tube Length, Horizontal | 594mm | 615mm | 643mm |
Bike Standover Height | 495mm | 495mm | 495mm |
Seat Tube Length | 370mm | 450mm | 500mm |
Seat Tube Angle | 67° | 67° | 67° |
