Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

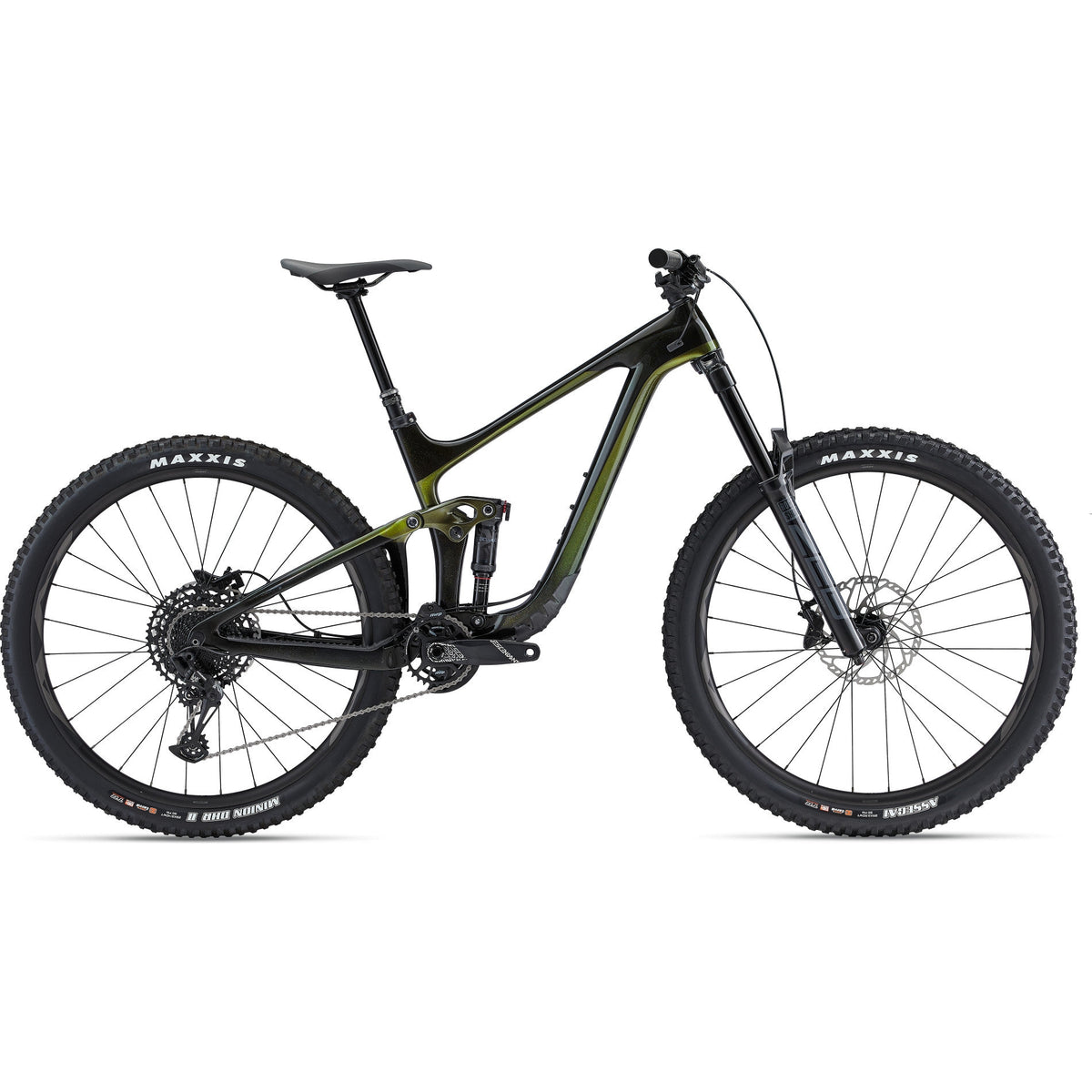

Looking for a high-performance mountain bike that can handle the toughest terrain? Look no further than our full-composite ripper, expertly designed in collaboration with Giant Enduro pros to give you the ultimate confidence and control when the trail gets rowdy.
Whether you're tackling big climbs or steep, rocky descents, this bike has got you covered. With its cutting-edge design and advanced materials, it stays cool even under the most intense conditions, giving you the power and stability you need to ride with ease.
So if you're ready to take your mountain biking game to the next level, don't settle for anything less than the best. Get your hands on our full-composite ripper and experience the thrill of hard-charging adventure like never before.
Race-bred suspension
Maestro rear suspension developed and tested under extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke and smoother feel, and the Advanced Forged Composite upper rocker arm adds stiffness while lowering overall frame weight.
Progressive enduro geometry
The purpose-built composite frameset helps you ride aggressive descents and rail corners with confidence. Enduro-optimized head and seattube angles, plus a 170mm fork with 44mm offset, produce confident front-end handling.
29er confidence and control
Larger 29-inch diameter wheels optimized to roll over rugged enduro terrain with improved balance and stability, giving you the momentum to crank up tough climbs and the confidence to fly on fast, technical descents.
Specifications
|
Sizes |
S, M, L, XL |
|
Colors |
Panther / Phantom Green |
|
Frame |
Advanced-Grade Composite front and rear triangles, 146mm Maestro suspension, 12x148mm thru-axle |
|
Fork |
RockShox ZEB Select, 170mm, Charger RC, 15x110 Maxle Stealth, 44mm offset, custom tuned for Giant |
|
Shock |
RockShox Deluxe Select+, 205/60, custom tuned for Giant |
|
Handlebar |
Giant Contact SLR TR35, composite, 800x35mm, 20mm rise |
|
Grips |
Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm |
|
Stem |
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
|
Seatpost |
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm |
|
Saddle |
Giant Romero SL |
|
Pedals |
|
|
Shifters |
SRAM NX Eagle, 1x12 |
|
Front Derailleur |
N/A |
|
Rear Derailleur |
SRAM NX Eagle |
|
Brakes |
Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]203mm |
|
Brake Levers |
Shimano BL-MT501 |
|
Cassette |
SRAM NX Eagle, 11x50 |
|
Chain |
SRAM NX Eagle |
|
Crankset |
TruVativ Descendent 6k, DUB, 32t S:165mm, M:170mm, L:170mm, XL:170mm |
|
Bottom Bracket |
SRAM DUB, press fit |
|
Rims |
Giant AM 29, alloy |
|
Hubs |
Shimano, sealed |
|
Spokes |
Sapim |
|
Tires |
[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , EXO+, TR tubeless |
|
Extras |
tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector |
|
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 17 | 17 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 76.4° | 76.4° | 76.4° | 76.4° |
| C | TOP TUBE LENGTH (inch) | 22.6 | 23.7 | 25.2 | 26.2 |
| D | HEAD TUBE LENGTH (inch) | 3.9 | 3.9 | 4.3 | 4.7 |
| E | HEAD TUBE ANGLE | 64.6° | 64.6° | 64.6° | 64.6° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 5.2 | 5.2 | 5.2 | 5.2 |
| H | WHEELBASE (inch) | 46.9 | 48 | 49.7 | 50.7 |
| I | CHAIN STAY LENGTH (inch) | 17.3 | 17.3 | 17.3 | 17.3 |
| J | BOTTOM BRACKET DROP (inch) | 1.1 | 1.1 | 1.1 | 1.1 |
| K | STACK (inch) | 24.5 | 24.5 | 24.8 | 25.2 |
| L | REACH (inch) | 16.7 | 17.8 | 19.2 | 20.1 |
| M | STAND OVER HEIGHT (inch) | 29.8 | 29.9 | 30.7 | 31.7 |
| N | HANDLEBAR WIDTH (inch) | 31.5 | 31.5 | 31.5 | 31.5 |
| O | STEM LENGTH (inch) | 1.6 | 1.6 | 1.6 | 1.6 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
