Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

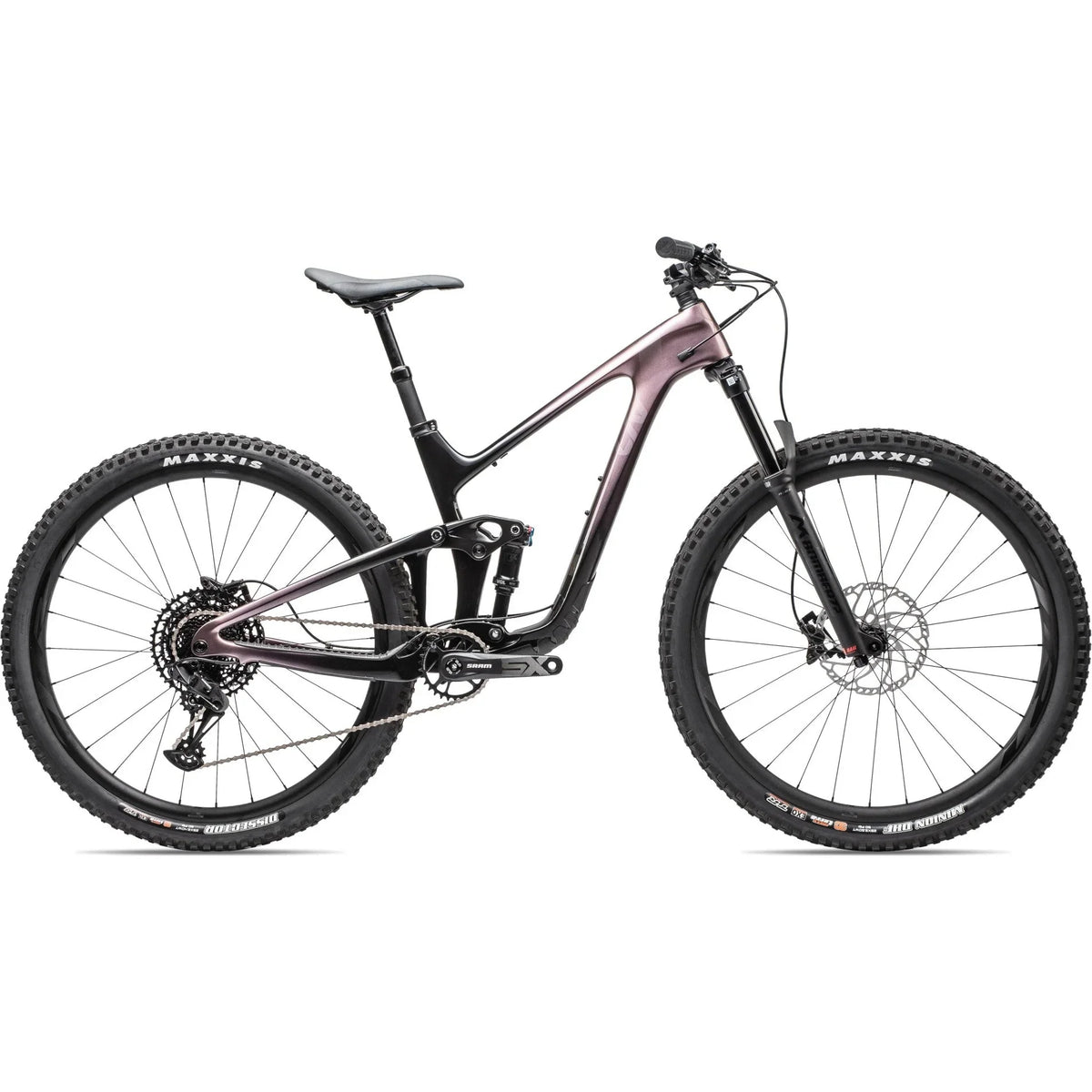

Designed to tackle challenging singletracks, ascend steep inclines, and hit aggressive descents, the Liv Intrigue Advanced Pro 29 women's mountain bike cherishes adventurous rides.
Top Performance Trail
Advanced-Grade Composite frame, Maestro Suspension and flip chip adjustable frame geometry equip you with a lightweight, versatile trail bike.
Balanced Agility
Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.
Custom Tuned Suspension
The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
Specifications
| Sizes | S, M, L |
| Colors | Twilight Mauve / Carbon / Dark Iridescent |
| Frame | Advanced-Grade Composite front and rear triangles, 125mm Maestro Suspension, flip chip |
| Fork | Marzocchi Bomber Z2, 140mm, Rail damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |
| Shock | Fox Float DPS Performance 185/50, custom tuned for Liv |
| Handlebar | Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm |
| Grips | Liv Supera, single lock ring |
| Stem | Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm |
| Seatpost | Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia |
| Pedals | Sold separately |
| Shifters | SRAM SX Eagle, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM SX Eagle |
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano Deore BL-MT401 |
| Cassette | SRAM SX, 11x50 |
| Chain | SRAM SX Eagle |
| Crankset | SRAM SX, 30t S:170mm, M:170mm, L:170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TR 1 29 WheelSystem |
| Hubs | Giant TR 1 29 WheelSystem |
| Spokes | Giant TR 1 29 WheelSystem |
| Tires | [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | tubeless prepared, max tire size 2.5", max chainring size 32t |
| Weight | The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | ||
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (inch) | 16.7 | 17.1 | 18.1 |
| B | SEAT TUBE ANGLE | 77.0° | 77.8° | 77.0° | 77.8° | 77.0° | 77.8° |
| C | TOP TUBE LENGTH (inch) | 22 | 21.9 | 22.6 | 22.6 | 23.6 | 23.5 |
| D | HEAD TUBE LENGTH (inch) | 4.1 | 4.3 | 4.9 |
| E | HEAD TUBE ANGLE | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.8 | 4.6 | 4.8 | 4.6 | 4.8 | 4.6 |
| H | WHEELBASE (inch) | 45.7 | 45.7 | 46.3 | 46.3 | 47.4 | 47.4 |
| I | CHAIN STAY LENGTH (inch) | 17.2 | 17.1 | 17.2 | 17.1 | 17.2 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 1.6 | 1.2 | 1.6 | 1.2 | 1.6 | 1.2 |
| K | STACK (inch) | 24.4 | 24.2 | 24.6 | 24.3 | 25.2 | 24.9 |
| L | REACH (inch) | 16.3 | 16.7 | 16.9 | 17.2 | 17.8 | 18.1 |
| M | STAND OVER HEIGHT (inch) | 28.8 | 29.1 | 29 | 29.4 | 29.8 | 30.1 |
| N | HANDLEBAR WIDTH (inch) | 29.9 | 29.9 | 30.7 |
| O | STEM LENGTH (inch) | 2 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.9 |
| Q | WHEEL SIZE | 29" | 29" | 29" |
