Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

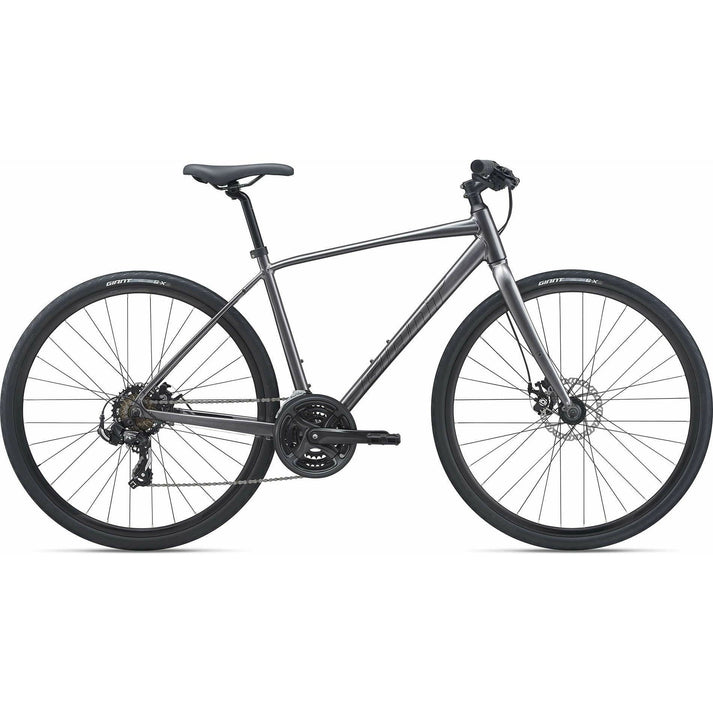

This versatile flat-bar all-rounder bike can get your legs spinning and motivate you to be active every day. Commute to work, ride to class, find new adventures in your daily routine.
With its lightweight ALUXX aluminum frame, upright positioning and high-quality parts that give it a smooth, comfortable ride, the Escape Disc is totally versatile and totally fun to ride. It now features a high-quality composite fork* and innovative D-Fuse seatpost. Both are great for smoothing out rough roads, absorbing shocks and vibrations, and giving you a smoother, more comfortable ride. The disc brakes deliver powerful braking performance in dry or wet conditions, and the 700c wheels with Giant EasyRide Tubeless tires (on select models) keep you rolling with speed, efficiency and a reduced risk of flats. As an added bonus, there’s clearance for larger tires up to 45mm in width, which makes it easier to ride rougher roads. It comes with integrated mounts, so you can customize your ride with racks or fenders. Whatever road or path you choose, Escape Disc is ready to roll.
Balanced and efficient
Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.
Versatile and capable
Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.
Rugged reliability
Puncture-resistant tires feature the Giant EasyRide Tubeless system (on select models). Integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.
Specifications
Sizes | S, M, L, XL |
Colors | Metallic Black, Metallic Blue |
Frame | ALUXX-Grade Aluminum, disc |
Fork | high-tensile steel, rack mount, disc |
Shock | N/A |
Handlebar | Giant Sport flat, 25.4 |
Stem | Giant Sport |
Seatpost | Giant D-Fuse, alloy |
Saddle | Giant Sport Comfort |
Pedals | Urban fitness |
Shifters | Shimano EF41 |
Front Derailleur | Shimano Tourney |
Rear Derailleur | Shimano Tourney |
Brakes | Tektro mechanical, 160mm |
Brake Levers | Shimano ST-EF41 |
Cassette | Shimano TZ50, 7-speed, 14x34 |
Chain | KMC Z7 |
Crankset | Forged alloy, 28/38/48 with chainguard |
Bottom Bracket | cartridge |
Rims | Giant GX wheelset |
Hubs | Giant GX wheelset, QR, 32h |
Spokes | Stainless |
Tires | Giant S-X3, 700x38c |
Geometry
S | M | L | XL | |
---|---|---|---|---|
SEAT TUBE LENGTH (inch) | 16.9 | 19.1 | 21.1 | 23 |
SEAT TUBE ANGLE | 73.5° | 73.0° | 73.0° | 73.0° |
TOP TUBE LENGTH (inch) | 22.2 | 22.8 | 23.4 | 24 |
HEAD TUBE LENGTH (inch) | 4.5 | 5.1 | 6.3 | 7.5 |
HEAD TUBE ANGLE | 70.0° | 71.0° | 71.0° | 71.0° |
FORK RAKE (inch) | 2 | 2 | 2 | 2 |
TRAIL (inch) | 3 | 2.7 | 2.7 | 2.7 |
WHEELBASE (inch) | 42.3 | 42.3 | 43 | 43.6 |
CHAIN STAY LENGTH (inch) | 17.5 | 17.5 | 17.5 | 17.5 |
BOTTOM BRACKET DROP (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
STACK (inch) | 21.2 | 21.9 | 23 | 24.1 |
REACH (inch) | 16 | 16.1 | 16.4 | 16.7 |
STAND OVER HEIGHT (inch) | 28.1 | 29.7 | 31.5 | 33.1 |
HANDLEBAR WIDTH (inch) | 25.2 | 25.2 | 27.2 | 27.2 |
STEM LENGTH (inch) | 3.5 | 3.5 | 3.9 | 3.9 |
CRANK LENGTH (inch) | 6.7 | 6.7 | 6.9 | 6.9 |
WHEEL SIZE | 700C | 700C | 700C | 700C |
