Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

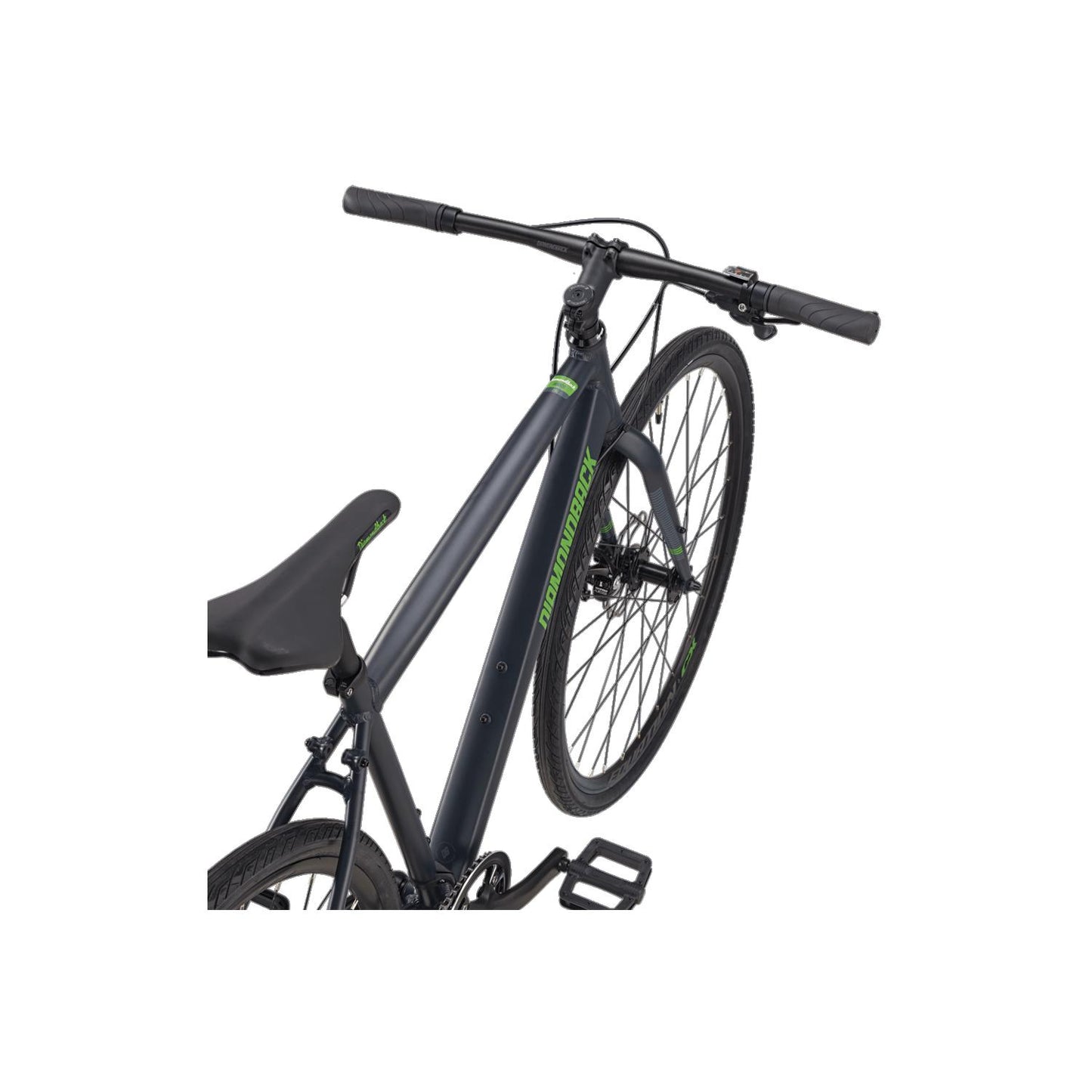

The Diamondback Haanjo 1 is a bike that defies definitions and exceeds expectations. Part road bike, part mountain bike, it is designed to let you choose how and where you want to ride, whether that’s commuting or gravel road adventures. You’ll find the geometry is a little more relaxed than a traditional road bike, putting you in a more comfortable position for long rides and rough roads. No front derailleur on the 1×9-speed Shimano drivetrain keeps shifting simple and reliable. Wide 700×38c tires give you the confidence to keep going when things get a little rough. With mounts for fenders and racks on the frame and the steel fork, you can stay dry and bring your gear along on your next ride.
Specifications
| FRAME | DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Aluminum Formed Top Tube, 1 1/8" Headtube, Replaceable Hanger |
| FORK | DB Steel Gravel Disc, 1-1/8" Steerer Tube, w/Fender and Low Rider Mounts |
| HEADSET | FSA IS-3/ No.11 Integrated Style |
| CRANKS | Aluminum 38T Single Ring w/Aluminum Chainguard |
| BOTTOM BRACKET | Steel Cartridge |
| REAR DERAILLEUR | Shimano Acera RD-T3000, 9 Speed, SGS |
| SHIFTER | Shimano Acera M3000, 9 Speed |
| COGSET | Shimano HG201, 9 Speed Cassette, 11-36T |
| CHAIN | KMC Z9, 9 Speed |
| FRONT HUB | 28h Aluminum Quick Release |
| REAR HUB | 28h Aluminum Quick Release, Cassette |
| SPOKES | 14g Stainless Steel |
| RIMS | Diamondback Equation CX, 28h, Doublewall |
| TIRES | Vee Rubber Zilent, Wire Bead, 700x38c |
| BRAKE LEVERS | Tektro 2 Finger Aluminum |
| PEDALS | DB Platform |
| HANDLEBAR | DB Flat Bar, 640mm Wide, 31.8mm Bar Bore |
| GRIPS | Diamondback Dual Density Grip |
| STEM | DB 6061 Aluminum 3D Forged, +/-7° Rise, 31.8mm Bar Bore |
| SEAT | Diamondback Performance Gravel Road |
| SEATPOST | DB Aluminum Micro Adjust, 27.2mm |
| EXTRAS | Tool Kit |
| BRAKES | Tektro Aries Mechanical Disc, w/160mm Front / 140mm Rear Rotor |
Geometry
| FRAME SIZE | XS/47CM 5'1"-5'4"" - 5'4" | SM/50CM 5'4"-5'8" | MD/53CM 5'7"-5'10" | LG/56CM 5'10"-6'1" | XL/59CM 6'1"-6'4" |
|---|---|---|---|---|---|
| Rider Height | - | - | - | - | - |
| Bike Stand Over Height | 705.0 mm | 738.0 mm | 782.0 mm | 811.0 mm | 836.0 mm |
| Bike Seat Tube Length | 395.0 mm | 450.0 mm | 505.0 mm | 535.0 mm | 565.0 mm |
| Bike Top Tube Length | 525.0 mm | 525.0 mm | 540.0 mm | 560.0 mm | 580.0 mm |
| Bike Head Tube Length | 110.0 mm | 130.0 mm | 155.0 mm | 180.0 mm | 200.0 mm |
| Bike Head Angle | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° |
| Bike Seat Angle | 73.0 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Bike Wheel Base | 1018.0 mm | 1019.0 mm | 1036.0 mm | 1058.0 mm | 1079.0 mm |
| Bike Chain Stay Length | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm |
| Bike Fork Offset | 45.0 mm | 45.0 mm | 45.0 mm | 45.0 mm | 45.0 mm |
| Bike Bb Height | 276.0 mm | 278.0 mm | 280.0 mm | 280.0 mm | 280.0 mm |
| Bike Bb Drop | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm |
| Bike Stem Length | 60.0 mm | 70.0 mm | 80.0 mm | 90.0 mm | 100.0 mm |
| Bike Handlebar Width | 640.0 mm | 640.0 mm | 640.0 mm | 640.0 mm | 640.0 mm |
| Bike Crank Length | 170.0 mm | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm |
| Bike Seat Post Length | 300.0 mm | 300.0 mm | 300.0 mm | 300.0 mm | 300.0 mm |
| Bike Stack | 541.0 mm | 560.0 mm | 584.0 mm | 607.0 mm | 626.0 mm |
| Bike Reach | 364.0 mm | 358.0 mm | 367.0 mm | 380.0 mm | 394.0 mm |
| Bike Fork Length | 404.0 mm | 404.0 mm | 404.0 mm | 404.0 mm | 404.0 mm |
