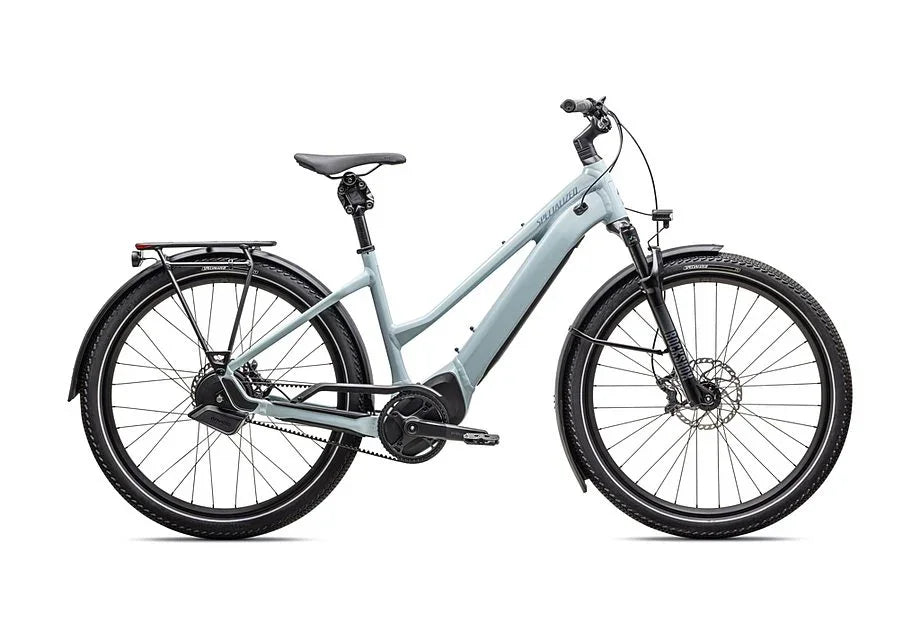

Specialized Vado 5.0 IGH Step Through UL Electric Bike (2025)

Specialized Vado 5.0 IGH Step Through UL Electric Bike (2025)

Regular price $5,500.00
Regular price $5,500.00 Sale price $5,500.00
Sale Sold out
Color: Blue
Size

Have questions about buying a bike?
Chat with a specialist ↗
For a limited time, enjoy Free Platinum Assembly and Shipping (a $299 value) on us with your bike purchase! That’s expert assembly, secure packaging, and doorstep delivery—all free! 🎉 Ride ready, hassle-free. Shop now! 🚀

11 in stock

SKU:95025-4002U

View full details

The Vado 5.0 IGH Step Through UL Electric Bike combines responsive power delivery with a refined riding experience for serious commuters and utility cyclists. Its internal hub gearing system provides smooth, maintenance-free shifting across varied terrain, while the step-through frame design offers accessibility without compromising structural integrity. With robust battery capacity and efficient motor performance, this e-bike handles loaded commutes and longer distances with consistent power output. The UL certification ensures safety compliance for daily transportation use. Built for riders who demand both performance and practicality, the Vado 5.0 delivers the speed and range needed to replace car trips while maintaining the reliability expected from premium electric transportation.

Engineered for e-powered transport, it offers a perfectly balanced ride with superior comfort and handling, establishing itself as a true leader in its class.

TURBO TECHNOLOGY: At the core lies an advanced, integrated electric system delivering an exceptional combination of power, a natural pedal feel, anti-theft features, training insights, and a comprehensive bike computer.

POWERFUL PERFORMANCE: Amplify your pedaling effort up to four times with the Turbo Full Power system, making climbs and long rides feel effortless and enjoyable.

COMFORT AND CONTROL: Optimized body positioning and handling provide unmatched comfort and confidence. Hydraulic disc brakes offer strong stopping power, while larger tires maximize traction for safe turning and braking.

SMOOTH RIDE: Equipped with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post, it smooths out rough terrain to keep you comfortable on every journey.

SECURITY FEATURES: Integrated anti-theft technology lets you disable the motor with a button press, requiring connection to your phone or a personalized PIN to reactivate. The removable, lockable battery adds another layer of security, and a motion sensor alarm deters theft attempts.

Note: Motor support speed limits vary by region and local regulations, which may affect ride range.

  • Equipped with DRYTECH fenders, bright LED front and rear lights, and a heavy-duty rear rack rated for up to 27kg, compatible with child bike seats and thru-axle trailers.
  • Fully integrated, removable, and lockable downtube battery for easy charging and security.
  • Integrated Garmin Radar sensor detects vehicles up to 140 meters behind you, providing visual, audible, and haptic alerts for enhanced safety.
  • Long-range capability offers up to 62 miles (100 km) or 4.5 hours of ride time on a single charge in eco mode.
  • MasterMind display and companion app deliver real-time ride data, support level tuning, range optimization, diagnostics, and advanced customization.
  • Proven smooth efficiency through precision engineering and suspension systems that absorb even the smallest bumps for a comfortable ride.
  • Enviolo AUTOMATiQ Internal Gear Hub offers stepless, automatic shifting based on your pedal cadence, allowing a “set it and forget it” riding experience for added safety and comfort.
  • Turbo Full Power 2.2 motor paired with a 710Wh battery provides seamless, quiet power assistance up to 28 mph with intuitive response to your pedaling.
  • Turbo System Lock feature lets you remotely disable the motor and activate an alarm via the app, ensuring your bike’s security when unattended.

E-Bike

Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

UI/Remote: MasterMind TCD, w/ handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages

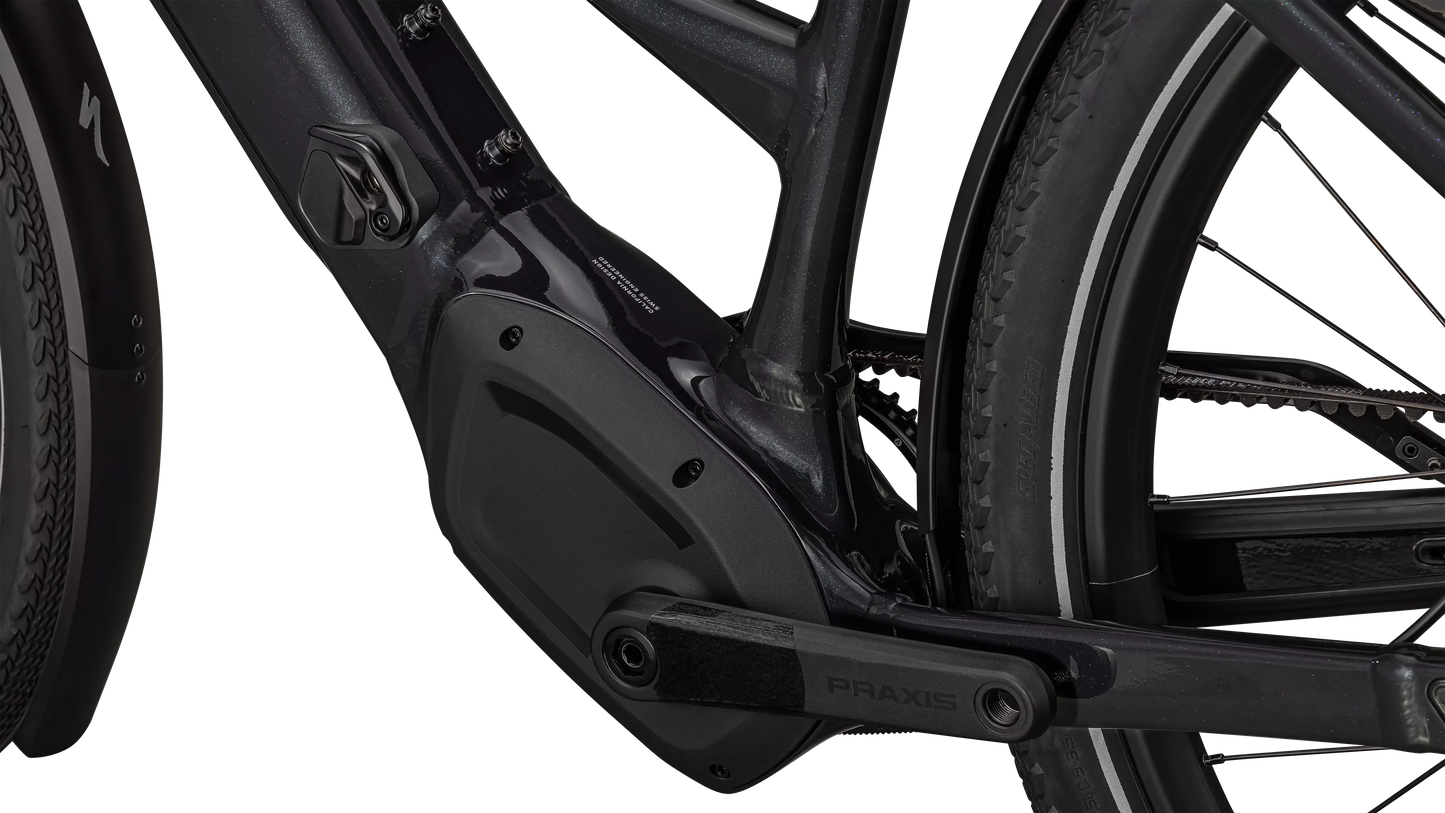

Motor: Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal

Battery: Specialized U2-710, integrated battery, state of charge display, 710Wh, UL certified

Frameset

Frame: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout

Seat Binder: Specialized Alloy 34.9, Steel Bolt

Suspension

Fork: RockShox Recon Silver RL, 80mm travel, Motion-Control, fender mounts

Brakes

Front Brake: Shimano 4-piston, CUES BL-U8000, BR-U8020, SM-MA-F180P/P2

Rear Brake: Shimano 4-piston, CUES BL-U8000, BR-U8020

Drivetrain

Crankset: Custom alloy forged crankarms, 170mm

Chaincase: Custom chaincover

Rear Derailleur: Automatic Hub Interface, AHI-PRO-40T-OE-1, enviolo Netherlands, 17Nm, 40T spline compatible

Chain: Gates Carbon Drive CDX 122t belt, black

Cassette: Gates Carbon Drive CDX 22t sprocket, silver

Chainrings: Gates Carbon Drive CDX 50T chainring, black

Internal Gear Hub: enviolo AUTOMATiQ Pro shifting interface

Wheels & Tires

Rims: 650b disc, double-wall alloy, pinned, 32h

Spokes: DT Swiss Industry

Front Tire: Pathfinder Sport Reflect, 650Bx2.3

Rear Tire: Pathfinder Sport Reflect, 650Bx2.3

Front Hub: Specialized alloy, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Rear Hub: enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h

Inner Tubes: Standard 40mm SV 650Bx1.75-2.4

Cockpit

Saddle: Bridge Sport, Steel rails, 155mm

Seatpost: Cane Creek Thudbuster ST, 30.9mm

Grips: ERGON GA30-S Custom, 134.8mm length

Stem: Specialized Flowset, 3D-forged alloy, 20° rise, 31.8mm clamp

Handlebars: Specialized alloy, 15° backsweep, 46mm rise, 31.8mm

Accessories

Radar: Integrated Garmin Radar with custom data display on MasterMind TCD

Headlight: LEZYNE Power StVZO E500+, 500 lumens

Taillight: Spanninga StVZO Commuter Glow with Brake XEr

Pedals: Specialized Commuter with grip tape & reflectors

Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fender stays

Bell: Specialized brass bell

Kickstand: Specialized kickstand, 40mm mount

Rack: Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load

Bike Lock: Turbo System Lock

Product Details

Product ID: 277424

Compliance Certification: Certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS

Weight: 27.57 kg (60 lb, 12.5 oz)

Weight Size: MD

No technical specifications available.
S M L XL
Crank Length 170 170 170 170
Handlebar Width 680 680 680 680
Stem Length 60 60 75 75
Saddle Width 155 155 155 155
Seatpost Length 375 375 375 375
Stack 625 639 652 676
Reach 423 444 464 481
Headtube Length 135 150 165 190
Headtube Angle 68 68 68 68
BB Height 285 285 285 285
BB Drop 70 70 70 70
Trail 96 96 96 96
Fork Length (full) 480 480 480 480
Fork Rake/Offset 44 44 44 44
Front Center 699 724 750 777
Chainstay Length 470 470 470 470
Wheelbase 1160 1186 1212 1239
Toptube Length (horizontal) 585 615 645 675
Bike Standover Height 618 617 617 626
Seat Tube Length 400 450 460 500
Seat Tube Angle (Virtual) 75.5 75 74.5 74
