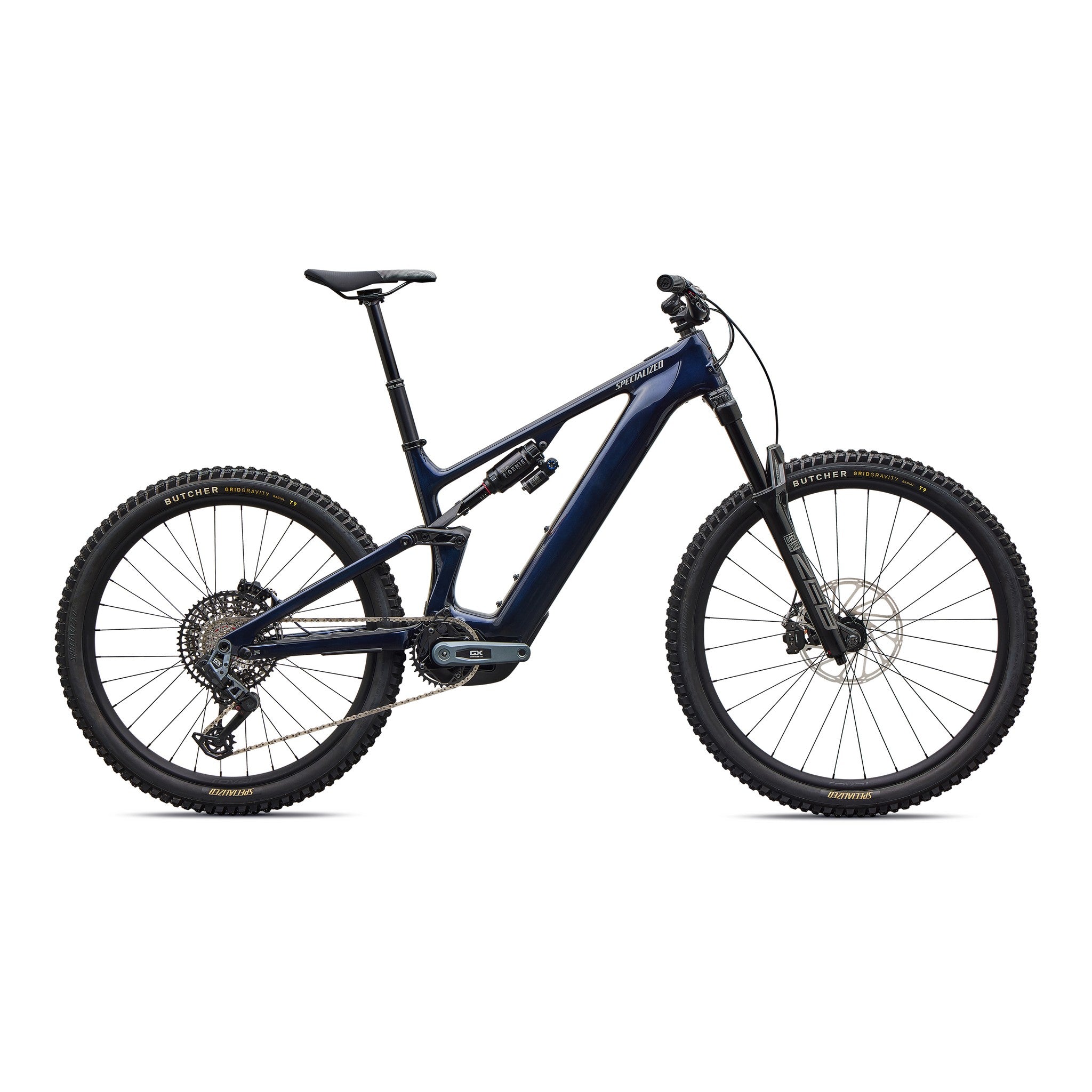

Turbo Levo 4 Expert
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

FEATURES

  • Use - Full Power E-MTB Trail
  • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
  • Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
  • Suspension - Front: 160mm RockShox ZEB Select+ fork
    Rear: 150mm RockShox Super Deluxe Select+ shock w/ GENIE
  • Drivetrain - SRAM GX Eagle T-Type AXS
  • Wheels - Roval Traverse Alloy wheels w/ Butcher Grid Gravity Radial 2.4" tires

Specialized

Turbo Levo 4 Expert

$9,499.99
Free Shipping
on this Specialized bike!
*Discount applies automatically at checkout.

Size Guide

S0 / XXS  S1 / XS S2 / S S3 / M S4 / L S5 / XL S6 / XXL
4'9" - 5'2" 4'11" - 5'3" 5'2" - 5'8" 5'5" - 5'11" 5'8" - 6'2" 5'10" - 6'4" 6'2" - 6'8"

Size Down for More Maneuverability, Size Up for More Stability



Low stock (1 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: 95227-3005

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

FEATURES

  • Use - Full Power E-MTB Trail
  • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
  • Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
  • Suspension - Front: 160mm RockShox ZEB Select+ fork
    Rear: 150mm RockShox Super Deluxe Select+ shock w/ GENIE
  • Drivetrain - SRAM GX Eagle T-Type AXS
  • Wheels - Roval Traverse Alloy wheels w/ Butcher Grid Gravity Radial 2.4" tires
SPECIFICATIONS

E-bike

  • Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
  • Battery: 840Wh battery
  • Charger: Specialized 4amp charger
  • UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Frameset

  • Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
  • Seat Binder: Alloy, 38.6mm

Suspension

  • Fork: Rockshox Zeb Select+, high/low speed compression adjust, rebound adjust, 15x110mm axle, 44mm offset
  • Rear Shock: All New Rockshox Super Deluxe Select + GENIE, RCT damper with (LSC) Low Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm

Brakes

  • Front Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
  • Rear Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

  • Crankset: SRAM GX Alloy crank, ISIS interface, 155mm length
  • Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
  • Shift Levers: SRAM AXS Pod Controller w/discrete clamp
  • Rear Derailleur: SRAM GX Eagle AXS Transmission
  • Cassette: SRAM XG-1275 Transmission 12-Speed 10-52t
  • Chain: SRAM GX Eagle Transmission 12-Speed Flattop Chain

Wheels & Tires

  • Front Wheel: Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
  • Rear Wheel: Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
  • Front Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
  • Rear Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
  • Inner Tubes: Standard, Presta Valve

Cockpit

  • Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
  • Stem: Specialized, 35mm Clamp, 35mm Reach
  • Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
  • Saddle: Specialized Bridge Comp with Mimic
  • Seatpost: Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm

Accessories

  • SWAT: SWAT Internal downtube storage

Product Details

  • Product ID: 263403
  • Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
    For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
  • Weight Size: S4
  • Weight: 24.72 kg (54 lb, 8.0 oz)
GEOMETRY
S2 S3 S4 S5 S6
Crank Length 155 155 155 155 155
Handlebar Width 780 800 800 800 800
Stem Length 35 35 35 35 35
Saddle Width 155 143 143 143 143
Seatpost Length 125 160 185 213 213
Stack 618 626 638 652 667
Reach 435 455 480 505 535
Headtube Length 95 103 117 132 149
Headtube Angle 64.5 64.5 64.5 64.5 64.5
BB Height 350 350 350 350 350
BB Drop 29.5 29.5 29.5 29.5 29.5
Trail 132 132 132 132 132
Fork Length (full) 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44
Front Center 765 789 820 851 888
Chainstay Length 435 435 435 435 435
Wheelbase 1200 1223 1254 1286 1323
Top-tube Length (horizontal) 578 599 627 655 689
Bike Standover Height 753 754 753 758 761
Seat Tube Length 390 405 425 445 465
Seat Tube Angle 77 77 77 77 77
Saddle Height for Effective ST Angle 690 735 780 825 870
Max Seatpost Insertion 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80
FEATURES

Key Technologies

genie-hero.png__PID:a2ecb2ee-823a-4da7-b97b-19154fb7f689

GENIE

Discover the revolutionary GENIE shock technology by Specialized - and how this patent-pending, 2-stage air-spring shock technology delivers the best of both worlds: a coil-like liner spring rate mid-stroke and the progressive end-stroke of an air shock.
More Info
Specialized bikes SWAT frame storange

SWAT

With a simple push and pull at the down tube's water bottle cage, you gain access to a massive amount of storage, all without compromising the integrity or ride quality of the frame. Whatever you can fit in there, you can ride with, so be creative and keep your ride essentials where you want them—off your back and on the bike.
More Info
fact-10-carbon-bikes.png__PID:dd2bc090-6360-4998-9db4-69a982a96392

FACT Carbon Fiber

Short for Functional Advanced Composite Technology, is a comprehensive engineering process that guides the development of frames and components, all the way from initial sketches to finished products.
More Info

See the Turbo Levo 4 Expert in Action
