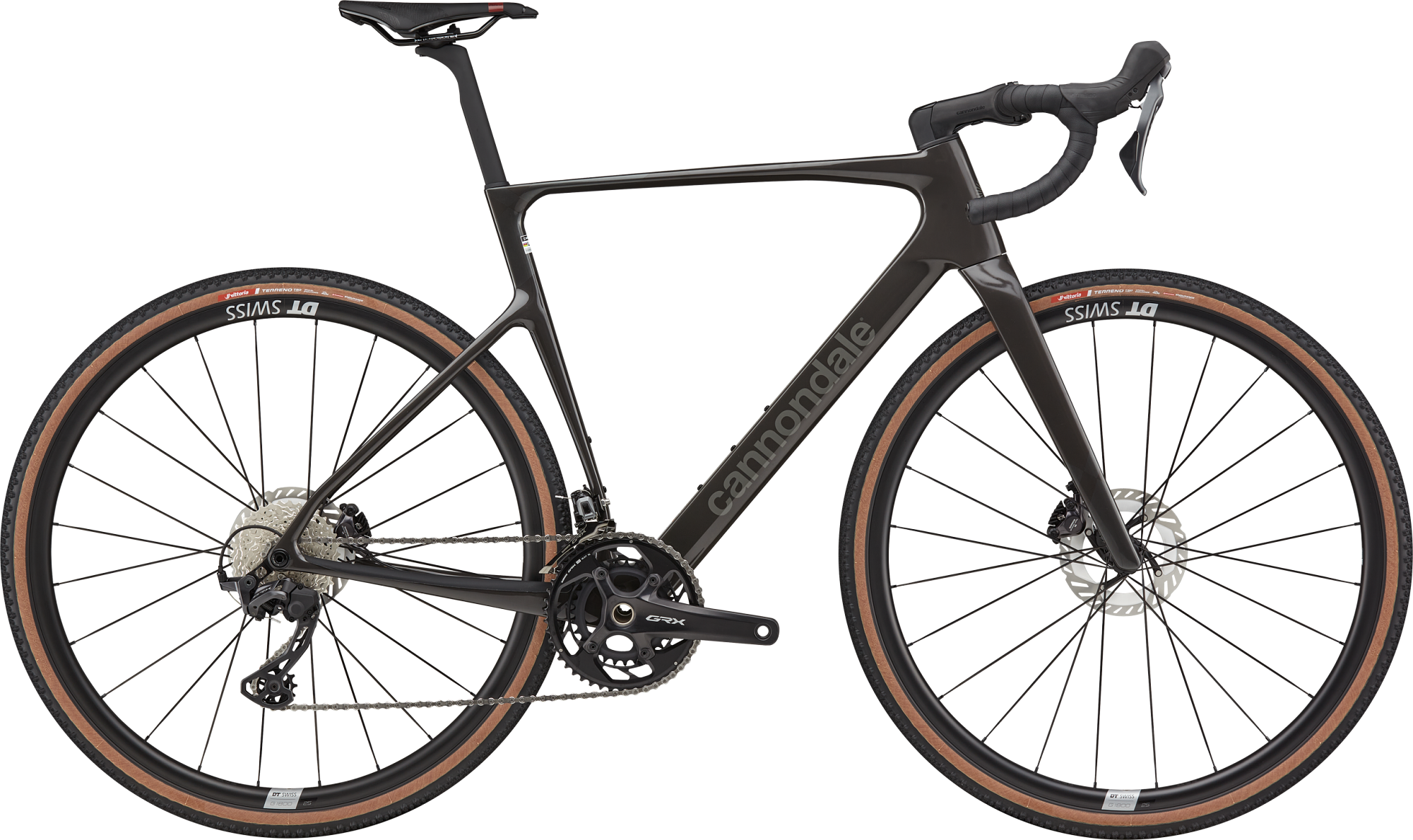

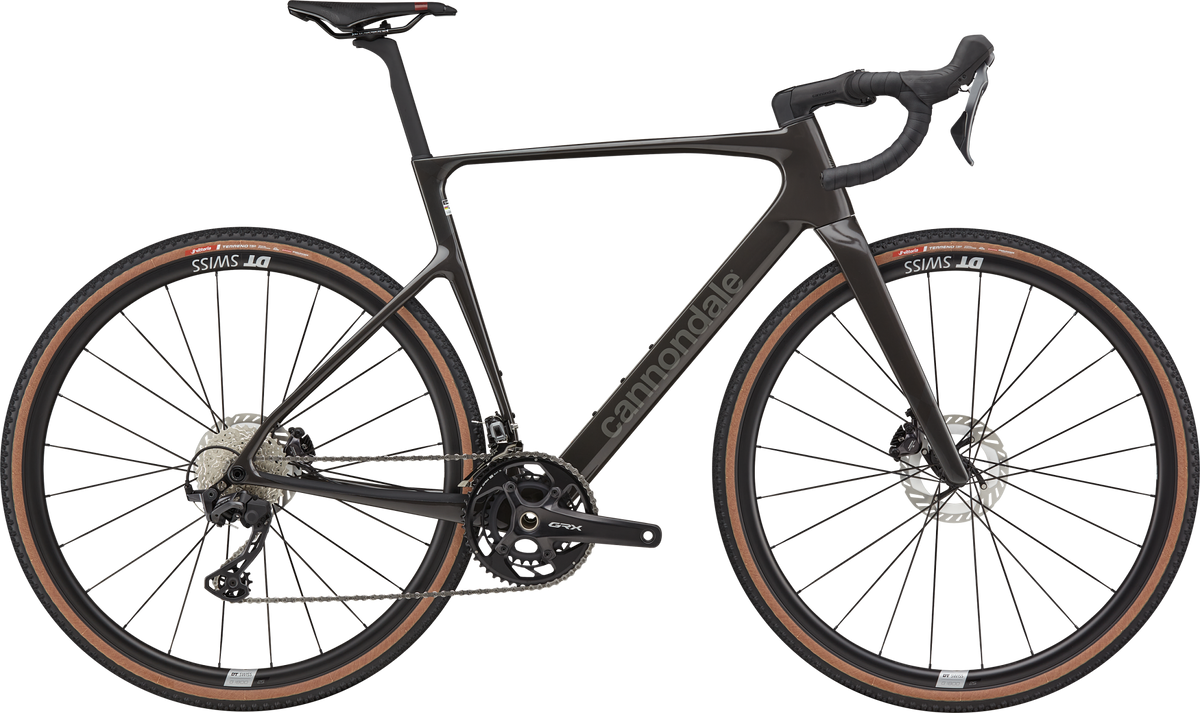

SuperX 3
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

All In to Go All Out

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Model Description

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.

What it's for

Elite gravel racing, KOM hunting, Going like hell

Highlights

  • Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
  • Crisp, reliable shifting from Shimano’s GRX 820 gravel groupset
  • Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors
  • DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and ride-anywhere durability
  • Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube
  • Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces

Cannondale

SuperX 3

$4,599.00

Size Guide

Jump to: MOUNTAIN | GRAVEL | ROAD | ELECTRIC | FITNESS

Mountain Bikes

Trail

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'3" - 5'8"
160 - 172
  5'7" - 6'0"
170 - 182 		  5'11" - 6'3"
180 - 190
XS S M L XL

Trail Women's

4'6" - 5'2"
137 - 157
 5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182
XS S M L

Trail SE

5'1" - 5'4"
154 - 162
 5'4" - 5'8"
162 - 172
  5'7" - 6'0"
170 - 182 		  6'0" - 6'3"
182 - 190
S M L XL

Habit, Habit HT

5'0" - 5'2"
142 - 157
 5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
XS S M L XL

Scalpel, Scalpel SE, Scalpel HT

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Jekyll

5'2" - 5'5"
157 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'0"
172 - 182 		  5'11" - 6'5"
180 - 195
S M L XL

Moterra, Moterra LT, Moterra SL

5'1" - 5'5"
154 - 165
 5'4" - 5'9"
162 - 175
  5'8" - 6'1"
172 - 185 		  6'0" - 6'5"
182 - 195
S M L XL

Gravel

Topstone, Topstone Carbon

4'10" - 5'5"
147 - 165		 5'3" - 5'9"
160 - 175		 5'7" - 6'1"
170 - 185		  5'10" - 6'4"
177 - 193		  6'0" - 6'8"
182 - 203
XS

 S M L XL

SuperSix EVO SE, SuperSix EVO CX

5'0" - 5'4"
152 - 162
 5'5" - 5'9"
165 - 175
 5'7" - 5'11"
170 - 180
  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
46cm

 51cm 54cm 56cm 58cm

Road

Synapse

5'0 - 5'4"
152 - 162
 5'2" - 5'6"
157 - 167 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
175 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'8"
190 - 203
44cm 48cm
 		 51cm 54cm 56cm 58cm 61cm

SuperSix Evo

5'1 - 5'5"
154 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'3" - 6'7"
190 - 200
44cm
48cm
 		 51cm 54cm 56cm 58cm 61cm

SystemSix

5'3 - 5'7"
160 - 170
 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		 5'10" - 6'2"
177 - 187 		  6'10" - 6'4"
182 - 193		  6'2" - 6'6"
187 - 198 		 6'5" - 6'9"
195 - 205
47cm 51cm
 		 54cm 56cm 58cm 60cm 62cm

CAAD Optimo

5'2" - 5'5"
157 - 165
 5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'7" - 5'11"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193
44cm 48cm
 		 51cm 54cm 56cm 58cm

CAAD13

5'3" - 5'7"
160 - 170 		 5'5" - 5'9"
165 - 175 		 5'4" - 5'9"
170 - 180 		  5'10" - 6'1"
177 - 185		  6'0" - 6'4"
182 - 193 		 6'2" - 6'6"
187 - 198
48cm
 		 51cm 54cm 56cm 58cm
60cm

Fitness, Urban & Comfort

Adventure, Adventure EQ

4'11" - 5'6"
149 - 167		 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187
S M L

Quick, Quick Women's, Quick Remixte

4'10 - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170 		 5'5" - 5'10"
165 - 177 		 5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
XS S
 		 M L XL XXL

Quick CX

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
 5'9" - 6'2"
175 - 187
  6'0" - 6'5"
182 - 195		  6'4" - 6'9"
193 - 205
S

 M L XL XXL

Quick CX Women's

4'10" - 5'3"
147 - 160
 5'2" - 5'7"
157 - 170
  5'5" - 5'10"
165 - 177
XS S M

Bad Boy

5'2" - 5'7"
157 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'2"
175 - 187 		  6'0" - 6'5"
182 - 195
S M L XL

Treadwell, Treadwell EQ

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L

Treadwell Remixte, Treadwell EQ Remixte

4'11" - 5'6"
149 - 167
  5'4" - 6'0"
162 - 182
S L

Electric

Adventure Neo, Adventure Neo EQ

4'11" - 5'7"
149 - 170
  5'7" - 6'6"
170 - 198
S L

Adventure Neo Allroad, Adventure Neo Allroad Low StepThru

5'0" - 5'7"
152 - 170
 5'5" - 5'10"
165 - 177
  5'9" - 6'5"
175 - 195
S M L

Compact Neo

4'5" - 6'1"
134 - 185
OS

Tesoro Neo SL, Tesoro Neo SL Remixte

5'4" - 5'8"
162 - 172
 5'7" - 6'0"
170 - 182
  6'0" - 6'3"
182 - 190
S M L

Treadwell Neo, Treadwell Neo Remixte

4'11" - 5'6"
149 - 167
 5'4" - 6'0"
162 - 182
  5'10" - 6'5"
177 - 195
S M L
In stock
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: C17045U1046

All In to Go All Out

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Model Description

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.

What it's for

Elite gravel racing, KOM hunting, Going like hell

Highlights

  • Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
  • Crisp, reliable shifting from Shimano’s GRX 820 gravel groupset
  • Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors
  • DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and ride-anywhere durability
  • Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube
  • Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces
SPECIFICATIONS

Core Identity

  • Platform: SuperX
  • Model Name: SuperX 3
  • Model Code: C17045U

Frameset

  • Frame: SuperX Carbon, Proportional Response construction, internal cable routing, $12 \times 142\text{mm}$ thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder.
  • Fork: SuperX Carbon, integrated crown race, $12 \times 100\text{mm}$ thru-axle, internal routing, $1\text{-}1/8"$ to $1\text{-}1/2"$ Delta steerer, 55mm offset.
  • Headset: Integrated, $1\text{-}1/8" \text{ to } 1.5"$.

Drivetrain

  • Rear Derailleur: Shimano GRX 820, Shadow RD+.
  • Front Derailleur: Shimano GRX 820, braze-on.
  • Shifters: Shimano GRX 820, 12-speed.
  • Crank: Shimano GRX RX820, 48/31 (Note: Size 46cm uses GRX RX610, 46/30).Lengths: 165mm (46cm), 170mm (51cm), 172.5mm (54-56cm), 175mm (58-61cm).
  • Rear Cogs: Shimano 105 7100, 11-36, 12-speed.
  • Chain: Shimano M8100, 12-speed.
  • Bottom Bracket: Shimano BSA 68.

Brakes

  • Brakes: Shimano GRX 820 hydraulic disc.
  • Rotors: 160/160mm CL800 centerlock.
  • Brake Levers: Shimano GRX RX820 hydraulic disc.

Wheels & Tires

  • Rims: DT Swiss G1800 Spline, 24mm inner width, tubeless ready.
  • Tires: Vittoria Terreno T50, $700 \times 40\text{c}$, tubeless ready.
  • Hubs: (F) DT Swiss 370, $12 \times 100\text{mm}$ / (R) DT Swiss 370 LN Ratchet System, $12 \times 142\text{mm}$.
  • Spokes: DT Swiss Aero Comp.

Components

  • Handlebar: Cannondale C2, 7050 Alloy, Compact.Widths: 400mm (46-51cm), 420mm (54-61cm).
  • Stem: Cannondale C1 Conceal, Alloy, $31.8\text{mm}$, $-6^\circ$.
  • Saddle: Prologo Dimension AGX STN.
  • Seatpost: Cannondale C1 Aero 27 Carbon, SmartSense compatible.Offset: 0mm (46cm), 20mm (51-61cm).
  • Grips: Cannondale Bar Tape, 3.5mm.

Safety & Extras

  • Extras: Tubeless valves included.
  • ⚠️ WARNING - INGESTION HAZARD: This product contains a button cell or coin battery (for the wheel sensor). Keep out of reach of children; seek medical attention immediately if swallowed.
GEOMETRY
