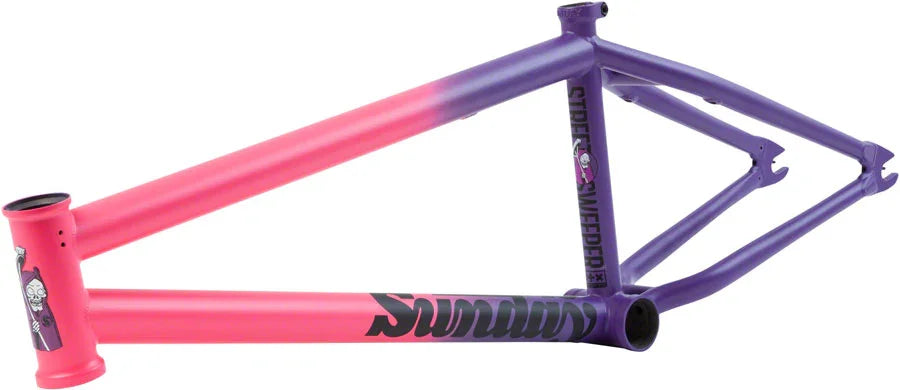

Sunday Street Sweeper BMX Frame - 20.75" TT Pink/Purple

Jake Seeley's Signature Frame: Engineered for Advanced Technical Street Riding

The Street Sweeper frame is a refined evolution of Jake Seeley’s original Broadcaster design, crafted to elevate your street riding experience. Featuring shorter chain stays, a steeper 75.25° head tube angle, a taller 11.7” bottom bracket, and compact hollow dropouts with integrated chain tensioners, this frame offers unmatched agility and control for technical maneuvers.

Built with versatility and durability in mind, the Street Sweeper includes removable U-brake hardware and Gyro tabs, allowing you to customize your setup seamlessly. Its front triangle combines traditional round Nightshift style top and down tubes reinforced with proven internal gusseting, ensuring strength without compromising weight.

Key Features

• 100% 4130 Chromoly Frame: Durable and lightweight, designed to withstand the rigors of street riding.
• Nightshift Style Double-Butted Tubes: Top and down tubes feature internal gusseting for enhanced frame strength and rigidity.
• Integrated Seat Clamp: Provides a clean look and reliable seatpost security.
• Miter Cut Top Tube: Precisely mitered to the seat stays, this joint increases frame strength significantly compared to traditional “sandwiched” designs.
• Tapered Chain and Seat Stays: Tapered and angled inward for improved chain clearance and weight savings, delivering a sleek aesthetic without sacrificing durability.
• Hollow Dropouts with Chain Tensioners: Hollow 8mm dropouts combine lightness with strength—twice as strong as solid 5mm dropouts—while integrated chain tensioners secure the wheel and simplify maintenance.
• Removable Brake Hardware: Proven brake mounts and cable guides that can be easily removed for a streamlined frame appearance when brakes aren’t needed.

Geometry Specifications

Top Tube Lengths: 20.5", 20.75", or 21"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 12.70-13”
Bottom Bracket Height: 11.7”
Standover Height: 8.8”
Tire Clearance: 2.4”
Head Tube Length: 4.7”
Weight: 5lbs

Whether you’re pushing technical lines or cruising urban terrain, the Street Sweeper frame delivers the perfect balance of strength, responsiveness, and style. Experience the precise handling and robust construction that Jake Seeley relies on to master the streets.
