A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego. It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready to plow through challenges, not obstacles. Straggler’s capabilities extend into some light cargo setups, so riders can do double-duty when hitting the trails and running around town.

FEATURES

  • 650b wheels on 46–52 and 700c wheels on 54–64 for optimized rider fit
  • Rack and fender mounts, plus two standard and one Three-Pack bottle mount on all frames
  • Updated thru-axle dropouts for improved stiffness and handling
  • Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
  • 50mm tire clearance (w/o fenders) for confident, comfortable riding on eroded terrain

Surly

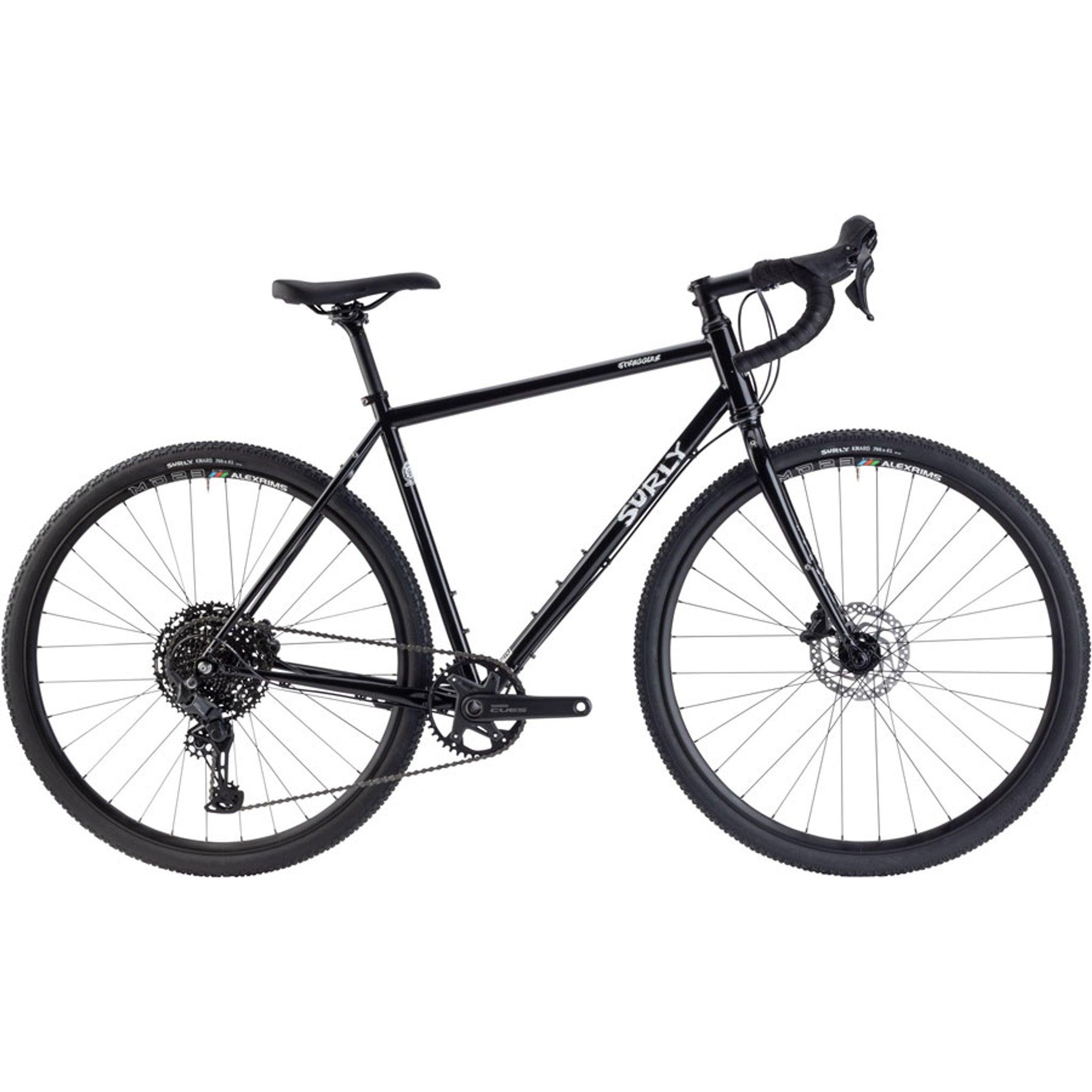

Straggler CUES 1x11 Bike - Hi-Viz Black

$2,199.00
END OF SUMMER SALE ☀️
New Bike Bonus
Score $150 in bonus dollars! with the Straggler CUES 1x11 Bike - Hi-Viz Black
*Your promo code hits your inbox after your ride ships.

Size Guide

No size chart available for this product.

Low stock (3 left)
PRO SETUP Expert Assembly 95% Ready to ride out of the box.
CERTIFIED Master Mechanic Assembly Precision dialed before shipping.
SINCE 1992 Over 30 Years of Trust Decades of cycling expertise.

SKU: BK01793

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego. It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready to plow through challenges, not obstacles. Straggler’s capabilities extend into some light cargo setups, so riders can do double-duty when hitting the trails and running around town.

FEATURES

  • 650b wheels on 46–52 and 700c wheels on 54–64 for optimized rider fit
  • Rack and fender mounts, plus two standard and one Three-Pack bottle mount on all frames
  • Updated thru-axle dropouts for improved stiffness and handling
  • Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
  • 50mm tire clearance (w/o fenders) for confident, comfortable riding on eroded terrain
SPECIFICATIONS

Frameset

  • Frame: Straggler, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork: Straggler thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated (Note: complete bikes include 6 spacers. Framesets come stock with uncut steerer.)
  • Color: Hi-Viz Black

Drivetrain

  • Front Derailleur: N/A
  • Rear Derailleur: Shimano CUES U6000 GS
  • Cassette: Shimano CUES LG400, 11-50t, 11spd
  • Chain: Shimano LG500
  • Crankset: Shimano CUES U6030, 40T
  • Bottom Bracket: Shimano RS501
  • Shifter: Shimano CUES U6030
  • Brakes and Rotors: Shimano CUES U6030, Shimano RT26 (6-bolt, 160mm front and rear)

Components

  • Headset: FSA Orbit ITA
  • Stem: TranzX JD-ST123A
  • Handlebar: Salsa Cowchipper
  • Grips / Bar Tape: Black cork
  • Seatpost: Kalloy SP-DC2 27.2mm, 0 offset
  • Saddle: WTB Volt Medium

Wheels

  • Front Hub: Novatec 12x100mm Thru-axle
  • Rear Hub: Novatec 12x142mm Thru-axle
  • Spoke: 14G black
  • Rim: Alex MD23, 32h, Tubeless Ready
  • Tires: Surly Knard 650b x 41, 33 TPI (46cm - 52cm) / Surly Knard 700c x 41, 33 TPI (54cm and up)

Other

  • Pedals: N/A
  • Complete Bike Weight: 27 lb 3 oz (56cm)
GEOMETRY
Frame measurements (mm) 46cm 49cm 52cm 54cm 56cm 58cm 61cm 64cm
A. Effective Top Tube

500

520 540 555 570 585 605 630
B. Stand Over 682 716 746 779 807 830 857 895
C. Reach 363.9 362.9 365.3 391.4 389.1 392.5 403.5 419.5
D. Stack 507.9 530.4 554.0 570.7 591.6 610.6 639.1 667.7
E. Total Seat Tube Length 390 430 460 490 520 545 570 620
F. Headtube Length 90 110 135 120 140 160 190 220
G. Headtube Angle 70 71 71 71.5 72 72 72 72
H. Seat Tube Angle 75 73.5 72.5 74 73 72.5 72.5 72.5
I. BB Drop 62 62 62 72 72 72 72 72
J. BB Height 277 277 277 285.5 285.5 285.5 285.5 285.5
K. Chainstay Length 416 416 416 435 435 435 435 435
L. Fork Length Axle to Crown 387.5 387.5 387.5 407.6 407.6 407.6 407.6 407.6
M. Fork Offset 44 44 44 44 44 44 44 44
N. Wheelbase 984.4 982.1 992.6 1033.6 1033.2 1042.7 1063 1088.3
Component measurements (mm)
Crank Arm Length 165 165 165 170 170 170 170 170
Handlebar Width 400 420 440 440 460 480 500 520
Stem Length 70 80 90 90 100 100 100 110

* All dimensions are preliminary and subject to change
