Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

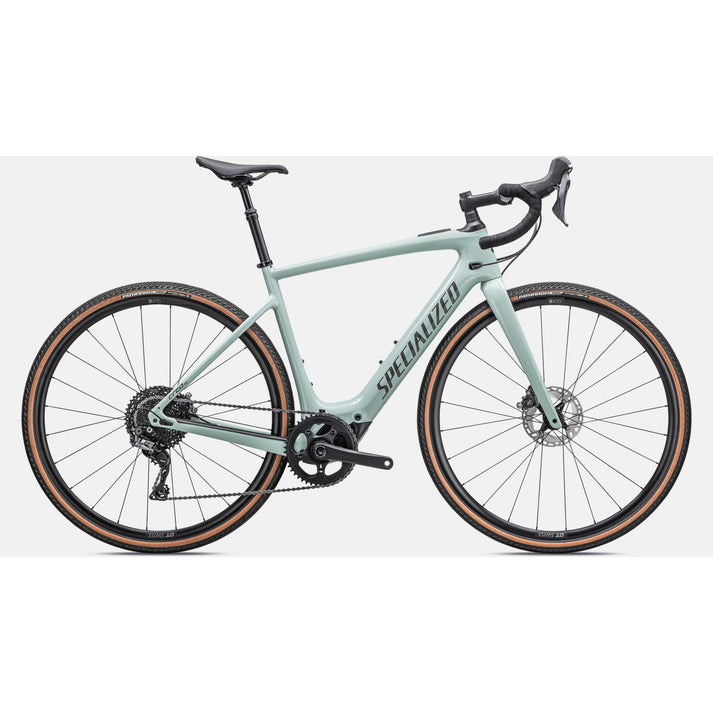

Introducing the Specialized Turbo Creo SL Comp Carbon Evo Electric Road Bike - where the thrill of gravel biking takes center stage! Ever wonder what makes gravel so irresistible? Is it the liberating escape from bustling city roads? Perhaps it's the symphony of rocks playfully crunching beneath your wheels? Or could it be the sheer rush of embarking on uncharted journeys? No matter the allure, the Turbo Creo SL EVO is your trusty companion, propelling you deeper into the wilderness, down rugged gravel trails, and toward your next daring escapade. Sharing its powerhouse motor, battery, and frame with its road-centric sibling, this variant boasts added tire clearance and a splash of adventure-ready components, beckoning you to chase your every whim. It's unmistakably you, just amplified.
The Turbo Creo SL Comp Carbon EVO is built around our remarkable Fact 11r carbon chassis, the same one cherished by the S-Works model, and spices things up with the inclusion of Future Shock 2.0. Diving into the specs, we've enlisted the prowess of a 1x Shimano GRX group to master your shifts and stops. DT R470 Boost™ wheels adorned with robust 38mm Pathfinder Pro tires ensure swift and unbridled motion, whether you're owning the asphalt or owning the dirt. And oh, the saddle – the much-loved Body Geometry Power Sport lends its embrace for plush comfort, while the X-Fusion Manic Dropper Post swoops in for those exhilarating downhill jaunts. It's not just a bike; it's an invitation to fly.
Features:
- The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff FACT 11r carbon frame inspire dancing on the pedals and diving into corners, but it also reduces overall system weight and increases the range.
- The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.
- Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our optional range extender provides up to 40 additional miles of mountain-flattening power.
- By connecting with our Specialized app, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit.
- With the Future Shock 2.0, you'll feel a reduction in fatigue and an increase in speed, no matter the terrain. The 2.0 iteration gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.
- We’ve learned there can be more difference between two male cyclists than between a male and female. Gender alone doesn’t provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders. One that's comfortable and snappy on the road, yet features all of the attributes you'd want from a proper gravel bike—a long wheelbase, raked-out fork, and low bottom bracket that keeps the Turbo Creo SL EVO stable at high speeds and delivers control in corners.
Specifications
Frame |
FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm |
Fork |
Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc |
Seat Binder |
Specialized Alloy, 30.8mm |
Stem |
Future Stem, Pro |
Handlebars |
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
Tape |
Roubaix S-Wrap |
Saddle |
Body Geometry Power Sport, hollow Cr-Mo rails |
SeatPost |
X-Fusion Manic Dropper, 50mm travel |
Front Brake |
Shimano GRX, Hydraulic disc |
Rear Brake |
Shimano GRX, Hydraulic disc |
Rear Derailleur |
Shimano RX812 GX, Shadow Plus, 11-speed |
Shift Levers |
Shimano GRX 810 hydraulic brake levers, mechanical shifting |
Cassette |
Sunrace, 11-speed, alloy spider, 11-42t |
Chain |
Shimano HG601, 11spd |
Crankset |
Praxis Forged/M30 Spindle Interface |
Chainrings |
44T |
Front Wheel |
DT R470 Boost, 12x110mm |
Rear Wheel |
DT R470 Boost, 12x148mm |
Front Tire |
Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
Rear Tire |
Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
Inner Tubes |
Presta valve, 48mm |
Motor |
Specialized SL 1.1, custom lightweight motor |
UI/Remote |
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote |
Battery |
Specialized SL1-320, fully integrated, 320Wh |
Charger |
Custom charger, 48V System w/ SL system charger plug |
Wiring Harness |
Custom Specialized wiring harness w/ chargeport |
Geometry
XS | S | M | L | XL | XXL | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 350mm | 400mm | 400mm | 400mm |
Stack | 573mm | 575mm | 592mm | 615mm | 643mm | 675mm |
Reach | 363mm | 373mm | 379mm | 384mm | 391mm | 399mm |
Head-Tube Length | 145.5mm | 145.5mm | 163.5mm | 185.5mm | 217mm | 250mm |
Head-Tube Angle | 71.5° | 72° | 72.5° | 73° | 73° | 73° |
B-B Height | 264.5mm | 264.5mm | 267mm | 267mm | 269.5mm | 269.5mm |
B-B Drop | 80.5mm | 80.5mm | 78mm | 78mm | 75.5mm | 75.5mm |
Trail | 68mm | 60mm | 56mm | 53mm | 53mm | 52mm |
Fork Length (full) | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
Front-Center | 586mm | 592mm | 598mm | 605mm | 621mm | 636mm |
Chain-Stay Length | 426mm | 426mm | 426mm | 427mm | 427mm | 428mm |
Wheelbase | 999mm | 1005mm | 1012mm | 1020mm | 1036mm | 1052mm |
Top-Tube Length (horizontal) | 527mm | 539mm | 548mm | 566mm | 581mm | 605mm |
Bike Stand-Over Height | 728mm | 731mm | 759mm | 782mm | 810mm | 840mm |
Seat-Tube Length | 415mm | 447.5mm | 477.5mm | 502.5mm | 527.5mm | 557.5mm |
Seat-Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
